.100″

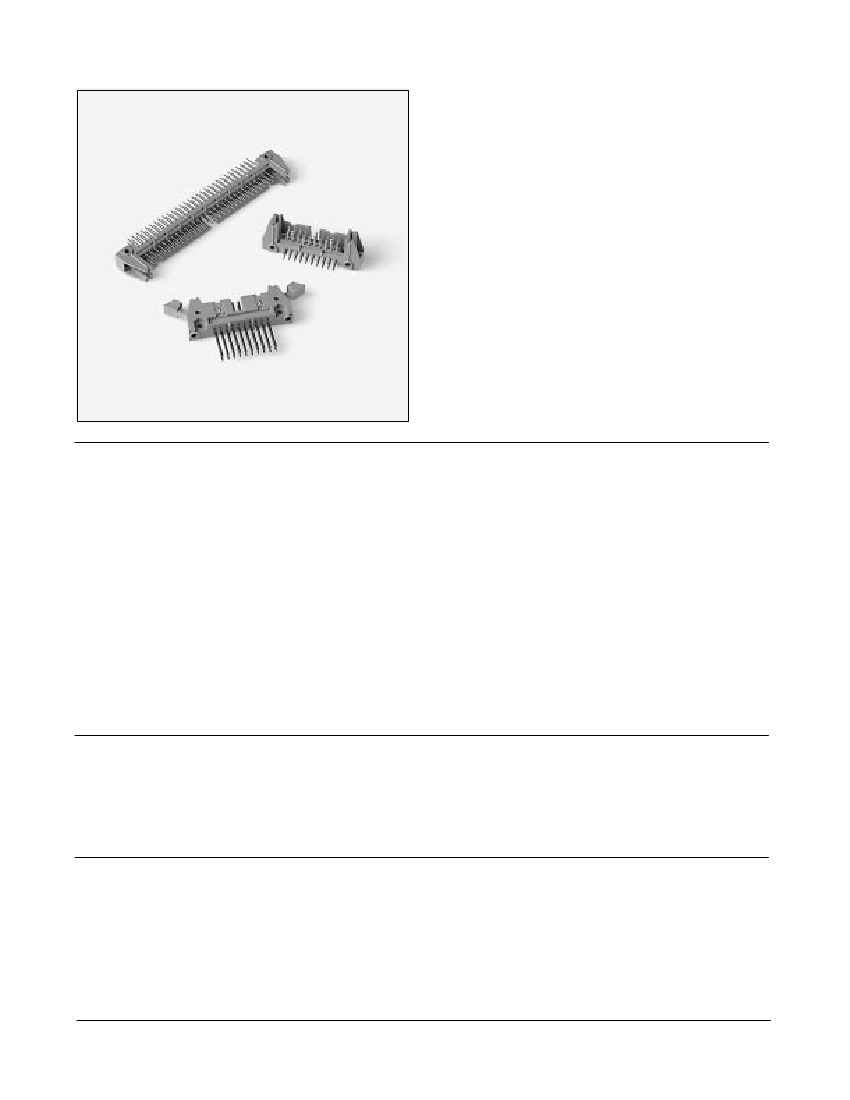

.100″ Latch/Ejector Header
3 Wall, Straight & Right Angle, High Temp Option
S
Military (with 3M’s 3518 polarizing key ) and
center bump polarization
S
Low profile
S
Optional ejector latches
S
Mounting holes for securing header to board
S
Three wall shroud provides design flexibility
S
Solder tail and wrap tail options
S
Optional polarizing posts available
S
High temperature option
Date Modified: October 19, 1999
18
TS-0771-02
Sheet 1 of 4
Physical
Insulation
Material: Glass Filled Polyester (PBT)
Glass Filled Polyester (PCT — High Temp Option)
Flammability: UL 94V-0
Color: Gray
Beige (High Temp Option)
Marking: 3M Logo, Part Identification Number and Orientation Triangle
Contact
Material: Copper Alloy
Plating
Underplate: 100
µ″
[ 2.54
µm
] Nickel — QQ-N-290, Class 2
Wiping Area: Gold — MIL-G-45204, Type II, Grade C
Solder Tails: 200
µ″
[ 5.08
µm
] 60/40 Tin Lead — MIL-P-81728
Wrap Tails: Gold Flash
Electrical
Current Rating:
1 A
Insulation Resistance:
>1
×
10
9
Ω
at 500 Vdc
Withstanding Voltage:
1000 Vrms at Sea Level
Environmental
Temperature Rating:
–55°C to +105°C
UL File No.: E68080
3M Interconnect Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-225-5373
.100″
.100″ Latch/Ejector Header
-X0XX
Header with No
Ejector/Latch
-X5XX
Header with
Short Ejector/Latch
for 3M Sockets without
Strain Relief
3 Wall, Straight & Right Angle, High Temp Option
-X6XX
Header with
Long Ejector/Latch
for 3M Sockets with
Strain Relief
-X4XX
Header with
Ejector only
®
®
.08
[2.0]
.08
[2.0]
.424
±
.010
[ 10.77 ]
.97 Ref
[24.6]
.573
±
.010
[ 14.55 ]
1.07 Ref
[27.2]
1.07 Ref
[27.2]
.37 Ref
[9.4]
.46 Ref
[11.7]
.42 Ref
[10.7]
Note: This Ejector is a Nickel
Plated Zinc Alloy Casting.
.025
±
.002 Sq Typ
[ 0.64 ]
2X
.100
[2.54]
(See Note 2)
D
.24
[6.1]
.15
[3.8]
.020
[0.51]
.28
[7.1]
.30
[7.6]
.100 Ref
[2.54]
C
L
“Y”
F Typ
Position 1
Orientation
Triangle
Notch A
(See Table 1 & Note1)
Notch B
(See Table 1)
.16
[4.1]
A
Notch C
(See Table 1 & Note 1)
B
E
±
.010
.12
[3.0]
Position 1
B
.30
[7.6]
.100 Ref
[2.54]
.25
[6.4]

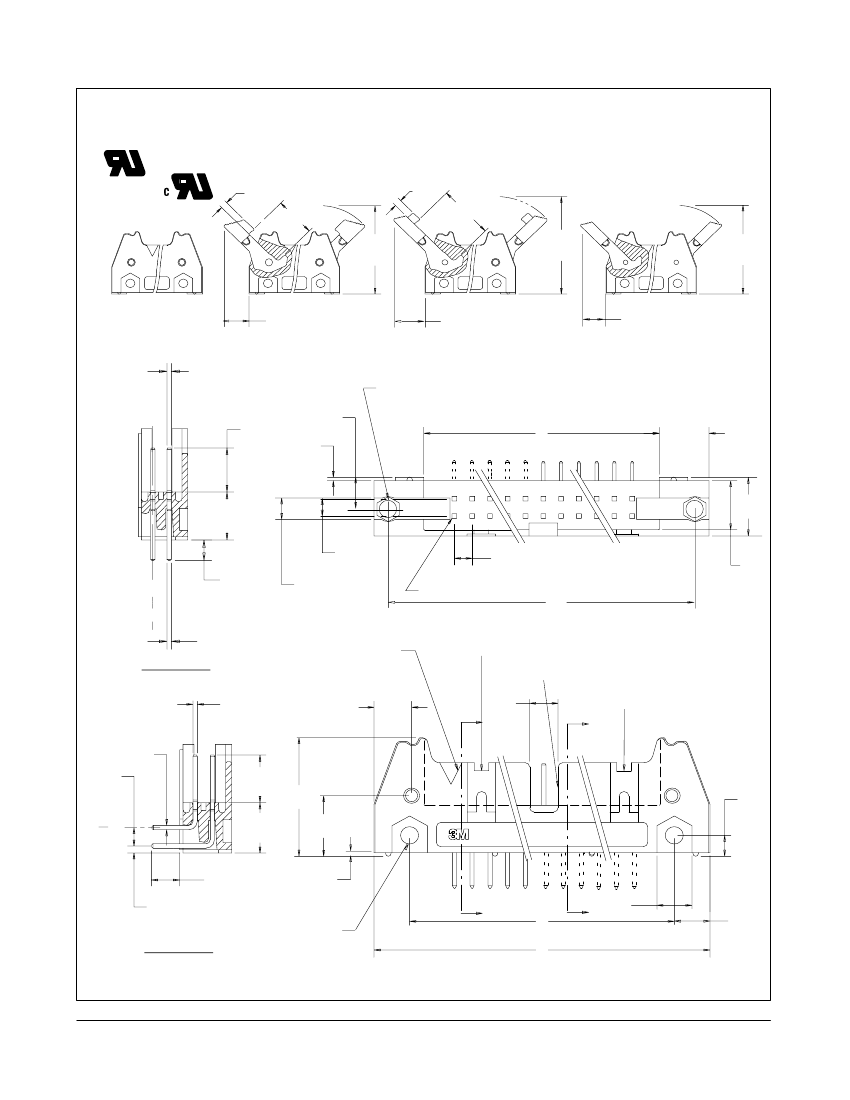

Section A–A
(Straight)
.025
±
.002 Sq Typ
[ 0.64 ]
.21
[5.3]
.100 Ref
[2.54]
F Typ
.24
[6.1]
.68
[17.3]
.35
[8.9]
.12
[3.0]
C
L
“Y”
.30
[7.6]
E
±
.010
.049 Ref
[1.24]
.020
[0.51]
A
2X
.100
[2.54]
(See Note 2)
C
A
TS-0771-02
Sheet 2 of 4
.197
B
[5.00]
.20
[5.1]
Section B–B
(Right Angle)
3M Interconnect Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-225-5373
.100″
.100″ Latch/Ejector Header
Table 1
Pn
Pin
Quantity
10
14
16
20
26
34
40
50
60
64
3M Part
Number
3793
3314
3408
3428
3429
3431
3432
3433
3372
3764
3 Wall, Straight & Right Angle, High Temp Option
Dimensions
A
1.26 [32.1]
1.46 [37.2]
1.56 [39.7]
1.76 [44.8]
2.06 [52.4]
2.46 [62.6]
2.76 [70.2]
3.26 [82.9]
3.76 [95.6]
3.96 [100.7]
B
1.105 [28.07]
1.305 [33.15]
1.405 [35.69]
1.605 [40.77]
1.905 [48.39]
2.305 [58.55]
2.605 [66.17]
3.105 [78.87]
3.605 [91.57]
3.805 [96.65]
C
.865 [21.97]
1.065 [27.05]
1.165 [29.59]
1.365 [34.67]
1.665 [42.29]
2.065 [52.45]
2.365 [60.07]
2.865 [72.77]
3.365 [85.47]
3.565 [90.55]
D
.71 [18.0]
.91 [23.1]
1.01 [25.6]
1.21 [30.7]
1.51 [38.3]
1.91 [48.5]
2.21 [56.1]
2.71 [68.8]
3.21 [81.5]
3.41 [86.6]
Polarization
Notches
Provided
BC
BC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
Table 2
3M Part
Number
Suffix
-1XX2
-2XX2
-1X03
-2X03
-3X05
-4X05
Pin Cross Section
Contact Tail
C t t T il
Solder Tail for
.062 [1.57]
Thick PC Board
Solder Tail for
.094 [2.39] to
.125 [3.18]
Thick PC Board
Wire Wrap Tail for up to
3 Levels of Wire Wrap
Dimension E
Di
i
Dimension F
.112
[2.84]
.155
[3.94]
.61 Ref
[15.5]
0.0245
±
.0005
[0.622]
0.0245
±
.0005
[0.622]
0.0250
±
.002
[0.635]
Diagonals
0.028
±
.001
[0.71]
0.028
±
.001
[0.71]
0.035
±
.003
[0.90]
Corner Radii
0.0075 Ref
[0.191]
0.0075 Ref
[0.191]
0.003 Max
[0.08]
.035
±
.003
[0.89] (See Note 3)
.035
±
.003
[0.89]
.045
±
.003
[1.14]
Dimension G
Di
i
.300
[7.62]
Side to Side Stackability
or
.116
.106
[2.69]
[2.95]
(See Note 2)
G Dia
.41
[10.4]
Max to Edge of PCB
for Daisy Chain
or
.116
.106
[2.69]
[2.95]
(See Note 2)
G Dia
“Y”
C
L
“Y”
C
L
Position 1
.100
±
.003
[2.54]
.232
[5.89]
.060
[1.52]
Position 1
.100
±
.003
[2.54]
.352
[8.94]
.029
[0.74]
.100
±
.003
[2.54]
.100
±
.003
[2.54]
B
C
Recommended Mounting Hole Pattern
(Straight)
Recommended Mounting Hole Pattern
(Right Angle)
Inch
[mm]
Tolerance Unless Noted
Notes:
1. Notches A & C will accomodate 3M Polarizing Keys (3M Part #3518 or M3518).
2. Accepts Rear and Front mounting hardware:
Rear Entry: #4-24 thread cutting screw, 3M Part #3341-5, .116 [2.95] dia mounting hole
Front Entry: (Prior to installation of latch on Straight Versions) #2-56 bolt and nut, 3M Part #3341-6,
.106 [2.69] dia mounting hole
3. The recommended PCB hole size for the kinked tail positions on the .112 solder tail connector is .035
±
.002.
Refer to TS-0972 for the positions kinked.
.0
Inch
±
.1
.00
.000
±
.01
±
.005
[ ] Dimensions for
Reference only
TS-0771-02
Sheet 3 of 4
3M Interconnect Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-225-5373
.100″
.100″ Latch/Ejector Header
Ordering Information
3 Wall, Straight & Right Angle, High Temp Option
30 Microinches Gold Plated Product
XXXXX-XXXX
Blank = Standard
N = High Temperature
3M Part Number
(See Table 1)
Latch/Ejector System
0 = No Latch/Ejector
4 = Roll Pin Ejectors
(3M Part # 3505-4)
5 = Short, Snap-In Latch/Ejectors,
(3M Part # 3505-30)
6 = Long, Snap-In Latch/Ejectors
(3M Part # 3505-31)
Tail
02 =Solder Tail for .062 [1.57] Thick Board
K2=Kinked Solder Tails for .062 [1.57]
Thick Board
03 =Solder Tails for .094 to .125 [2.39 to 3.18]
Thick Board
05 =Wrap Posts for up to 3 Levels of Wire Wrap
(not available on High Temp version)
Shroud and Pin Configuration
1 = 3 Wall, Right Angle
Solder Tail
2 = 3 Wall, Straight Solder Tail
3 = 3 Wall, Right Angle Wrap Post
(not available on High Temp version)
4 = 3 Wall, Straight Wrap Post
15 Microinches Gold Plated Product
XXXXX-XXXXUG
Plating Suffix
UG = 15 microinch Gold
Blank = Standard
N = High Temperature
3M Part Number
(See Table 1)
Shroud and Pin Configuration
1 = 3 Wall, Right Angle
Solder Tail
2 = 3 Wall, Straight Solder Tail
Tail
02 =Solder Tail for .062 [1.57] Thick Board
K2=Kinked Solder Tails for .062 [1.57]
Thick Board
03 =Solder Tails for .094 to .125 [2.39 to 3.18]
Thick Board
Latch/Ejector System
0 = No Latch/Ejector
5 = Short, Snap In Latch/Ejectors
(3M Part # 3505-30)
6 = Long, Snap In Latch/Ejectors
(3M Part # 3505-31)
TS-0771-02
Sheet 4 of 4
3M Interconnect Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-225-5373
