52007-1210 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52007-1210

52007-1210: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Wire Trap Terminal,; CategoryThe connector The connector; File Size84KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

52007-1210 Overview

Board Connector, 12 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Wire Trap Terminal,

52007-1210 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PUSH-COVER STYLE
body width	0.276 inch
subject depth	0.35 inch
body length	1.016 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	52007
Plug contact pitch	0.079 inch
Plug information	RIBBON CABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2 mm
Termination type	WIRE TRAP
Total number of contacts	12
UL Flammability Code	94V-0
Base Number Matches	1

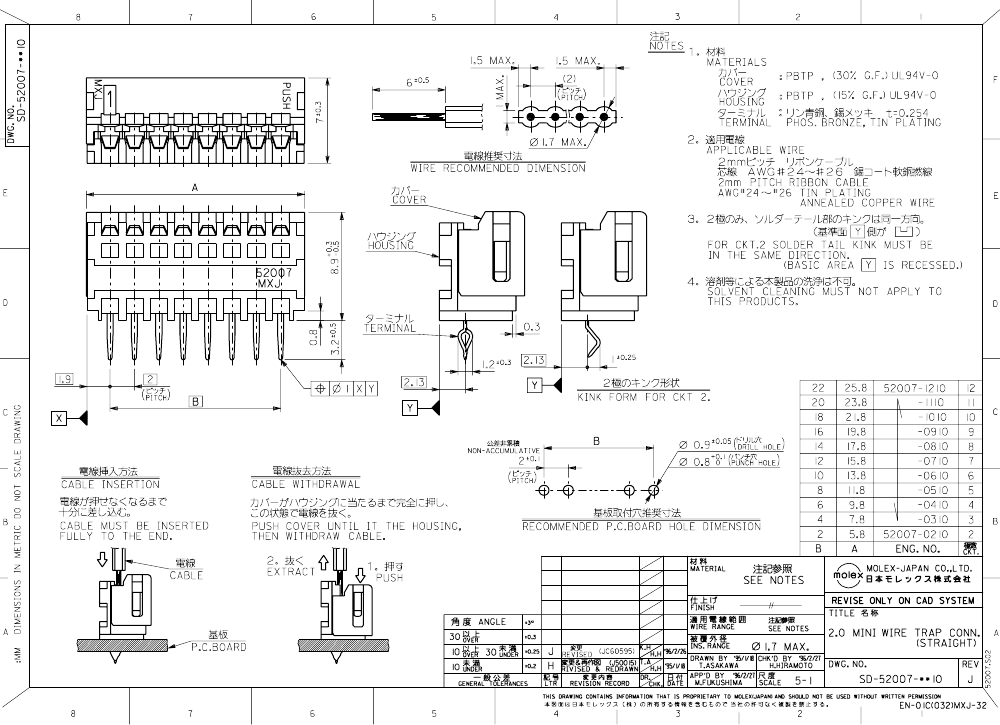

Preview

Download Datasheet

View All

52007-1210 Related Products

	52007-1210	52007-0810	52007-1010	S1R19T0-26E1-180	52007-0510	52007-0610	52007-0210	52007-0710	52007-1110	52007-0910
Description	Board Connector, 12 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Wire Trap Terminal,	Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Wire Trap Terminal	Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Wire Trap Terminal	Board Connector, 19 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Solder Lug Terminal, Plug	Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Wire Trap Terminal	Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Wire Trap Terminal	Board Connector, 2 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Wire Trap Terminal	Board Connector, 7 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Wire Trap Terminal	Board Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Wire Trap Terminal	Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Wire Trap Terminal
Reach Compliance Code	compliant	compliant	unknown	unknown	compliant	unknown	compliant	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	PUSH-COVER STYLE	PUSH-COVER STYLE	PUSH-COVER STYLE	TYPE 'E' TEFLON WIRE	PUSH-COVER STYLE	PUSH-COVER STYLE	PUSH-COVER STYLE	PUSH-COVER STYLE	PUSH-COVER STYLE	PUSH-COVER STYLE
body width	0.276 inch	0.276 inch	0.276 inch	0.08 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch
subject depth	0.35 inch	0.35 inch	0.35 inch	0.125 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch
body length	1.016 inch	0.701 inch	0.858 inch	1.875 inch	0.464 inch	0.543 inch	0.228 inch	0.622 inch	0.937 inch	0.78 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	AU	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	RYTON	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	52007	52007	52007	S1	52007	52007	52007	52007	52007	52007
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.1 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation type	BOARD	BOARD	BOARD	PANEL	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.126 inch	0.126 inch	0.126 inch	18 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Termination type	WIRE TRAP	WIRE TRAP	WIRE TRAP	SOLDER LUG	WIRE TRAP	WIRE TRAP	WIRE TRAP	WIRE TRAP	WIRE TRAP	WIRE TRAP
Total number of contacts	12	8	10	19	5	6	2	7	11	9
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ	20 mΩ	-	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
DIN compliance	NO	NO	NO	-	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	-	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Filter function	NO	NO	NO	-	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	-	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
MIL compliance	NO	NO	NO	-	NO	NO	NO	NO	NO	NO
Plug information	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE	-	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE
Mixed contacts	NO	NO	NO	-	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	ONE	-	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	-	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	-	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	3 A	3 A	3 A	-	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	-	UL	UL	UL	UL	UL	UL
Terminal pitch	2 mm	2 mm	2 mm	-	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
UL Flammability Code	94V-0	94V-0	94V-0	-	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	-	1	1	1	1	1	1
