CKFBAD38NA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> CKFBAD38NA

CKFBAD38NA: DescriptionRotary Switch, 3 Positions, DP3T, Circular, 0.15A, 250VDC, Solder Lug Terminal, Spindle Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size323KB，4 Pages; ManufacturerLorlin; Websitehttps://www.lorlin.co.uk; Environmental Compliance

Download Datasheet Parametric View All

CKFBAD38NA Overview

Rotary Switch, 3 Positions, DP3T, Circular, 0.15A, 250VDC, Solder Lug Terminal, Spindle Actuator, Panel Mount

CKFBAD38NA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Lorlin
Reach Compliance Code	compliant
Actuator length	1.181 inch
Actuator type	SPINDLE
Other features	UL
body height	14.097 mm
Body length or diameter	27.4828 mm
Casing diameter	0.375 inch
Nozzle length	0.315 inch
center contact material	BRASS
Center contact plating	SILVER
Contact (AC) maximum rated R load	0.15A@250VAC
Maximum contact current (AC)	0.15 A
Maximum contact current (DC)	0.15 A
Contact (DC) maximum rated R load	0.15A@250VDC
Contact resistance	0.02 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	250 V
Dielectric withstand voltage	1500VAC V
Electrical life	10000 Cycle(s)
End contact material	BRASS
End contact plating	SILVER
Graduation angle	60 deg
Insulation resistance	999000000 Ω
insulator material	GLASS FILLED POLYAMIDE
JESD-609 code	e4
Manufacturer's serial number	CK
Installation features	PANEL MOUNT
Number of positions	3
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
surface mount	NO
Switch action	CIRCULAR
switch function	DP3T
Switch type	ROTARY SWITCH
Terminal surface	Silver (Ag)
Terminal material	BRASS
Termination type	SOLDER LUG
Base Number Matches	1

Preview

Download Datasheet

View All

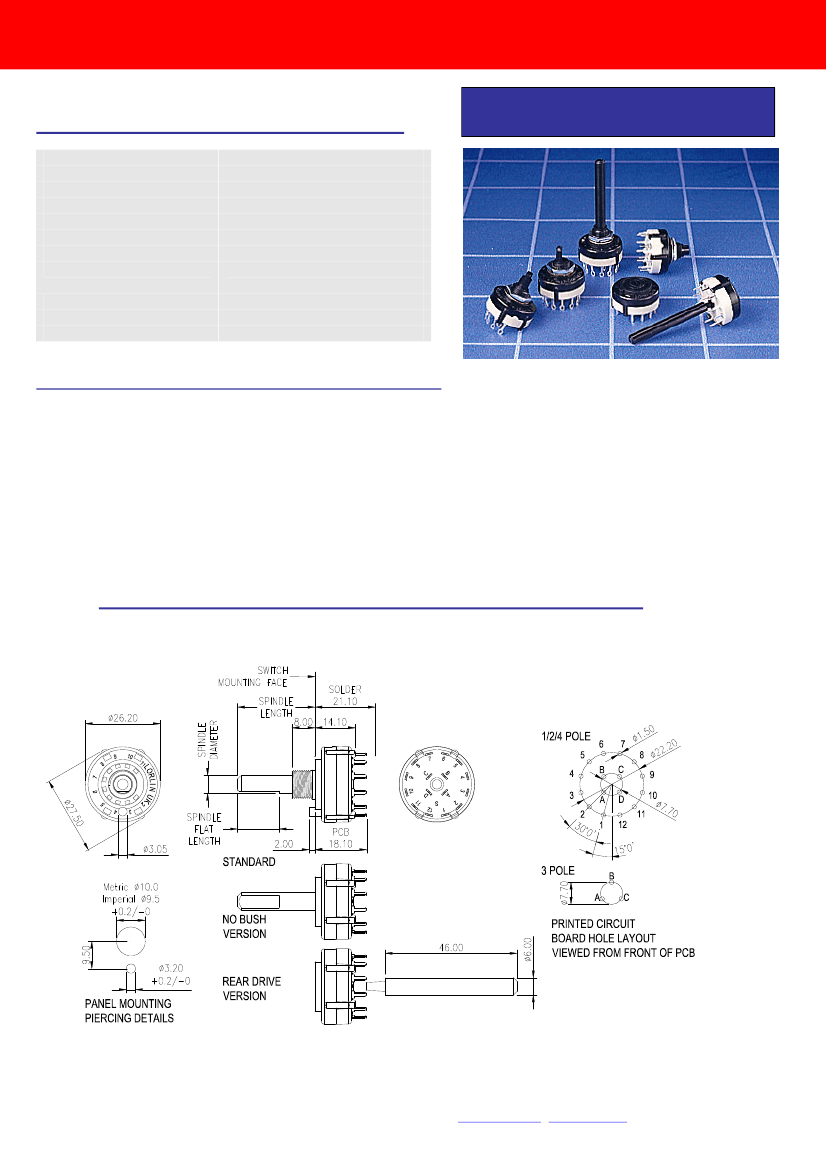

CK ROTARY SWITCH

GENERAL ELECTRICAL &

MECHANICAL SPECIFICATION

Switch Rating:

Currrent Carrying Capacity

Life:

Operating Temperature:

Proof Voltage:

Insulation Resistance:

Contact Resistance:

Operating Torque (nominal)

End Stop Torque (nominal):

Moulding Material:

Contact/Terminal Material:

150mA@250V ac/dc resistive load

5A non switching

>10,000 Cycles

-30ºC to +85 ºC

1,500Vac (Initial)

>999 M at 500Vdc (Initial)

<20 m

(initial)

Standard 8.6 ± 1 cNm

Light Action 3.5 ± 0.5 cNm

0.80 Nm

Polyamide 6.6 G.F.

Brass CZ108 Ag Plated

RoHS COMPLIANT

GENERAL FEATURES & OPTIONS

Made in UK

Cost effective single wafer

switch

Moulded 27.5mm diameter

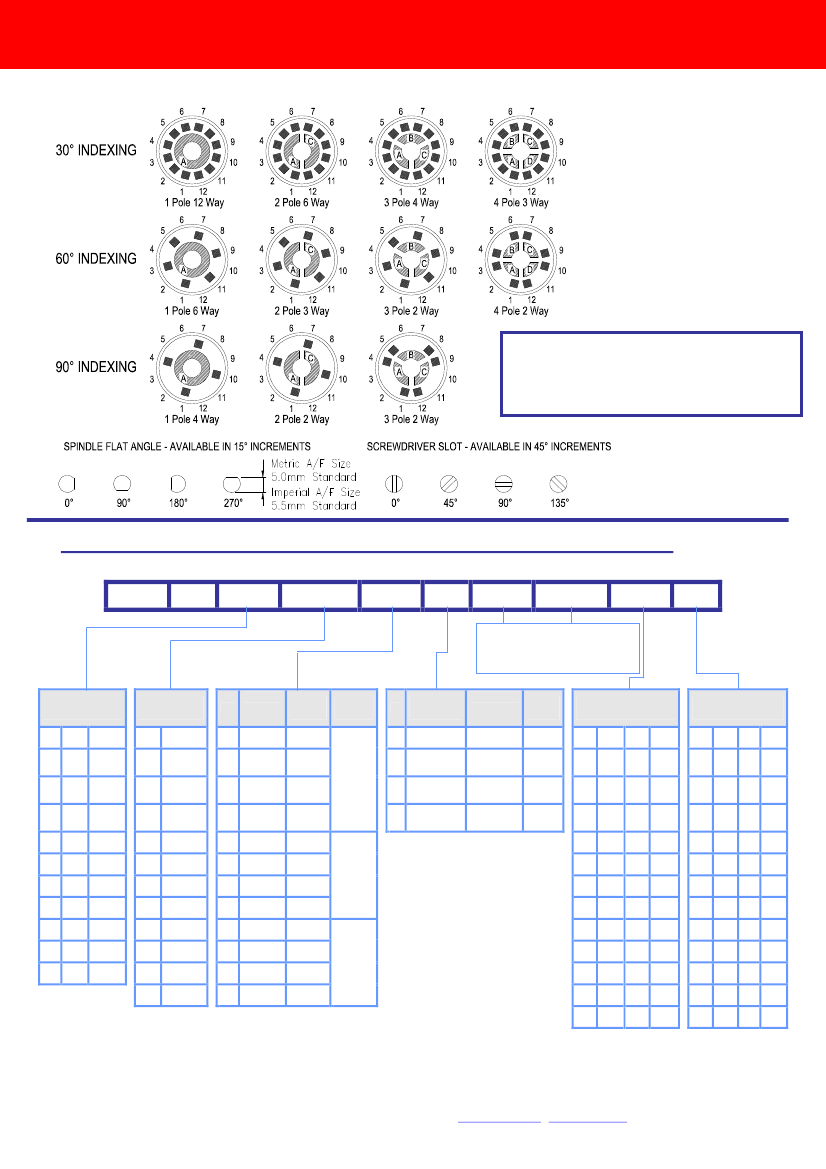

Standard 30º indexing

Solder or Printed Circuit

Board Terminals

Up to 4 poles per switch

Maximum 12 positions

Shorting (make before break 30º

indexing only) or non shorting

(break before make) contacts.

Adjustable stop to restrict number

of positions

Special options: 60ºor 90º indexing,

continuous rotation,

Optional reinforcement ring.

Fixed stop, UL-V0 rated

material, gold flashed or gold

plated contacts, and spindles with

special flats, slots or knurls.

No Bush versions available

Rear Drive versions available

Sealed PCB Termination

available

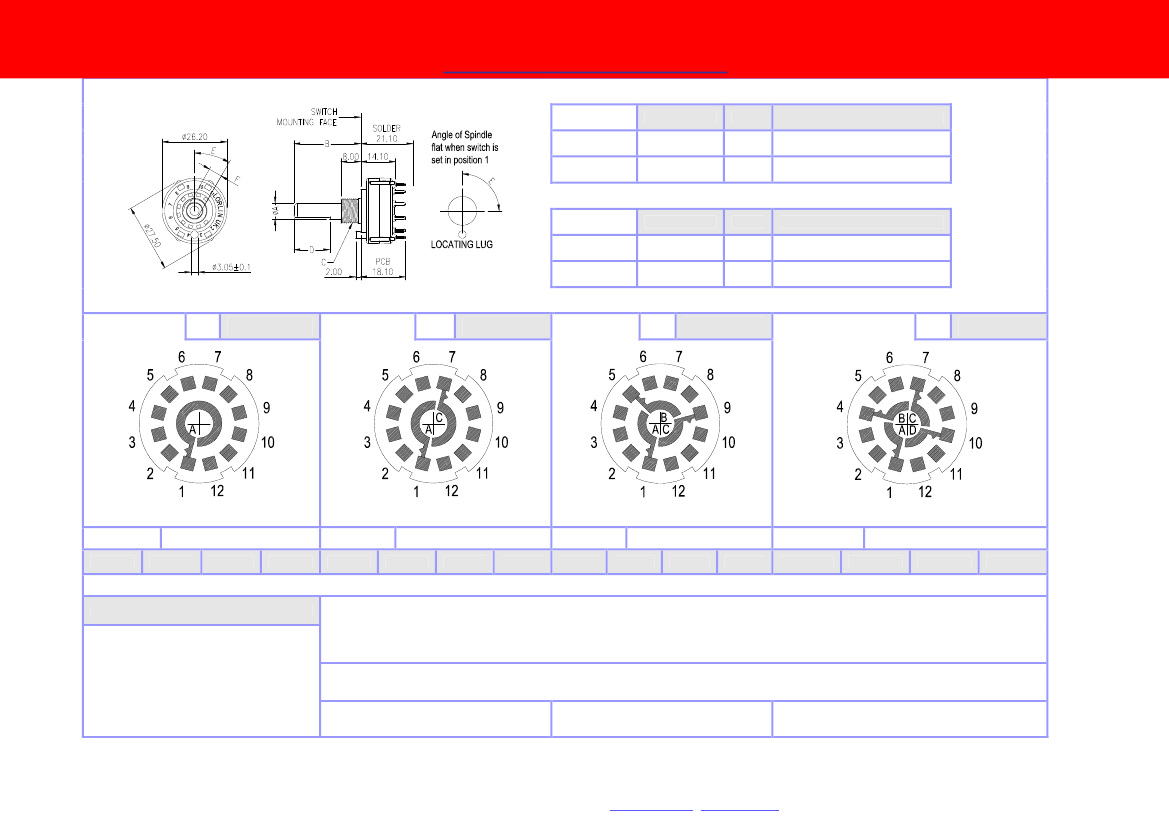

CK ROTARY SWITCH SPECIFICATION SHEET

Lorlin Electronics Ltd, Harwood Industrial Estate, Harwood rd, Littlehampton, W. Sussex BN17 7AT England

Tel (+44) 01903 725121 Fax (+44) 01903 726808 E-mail

sales@lorlin.co.uk

www.lorlin.co.uk
