HDSP-815E/816E/815G/816G

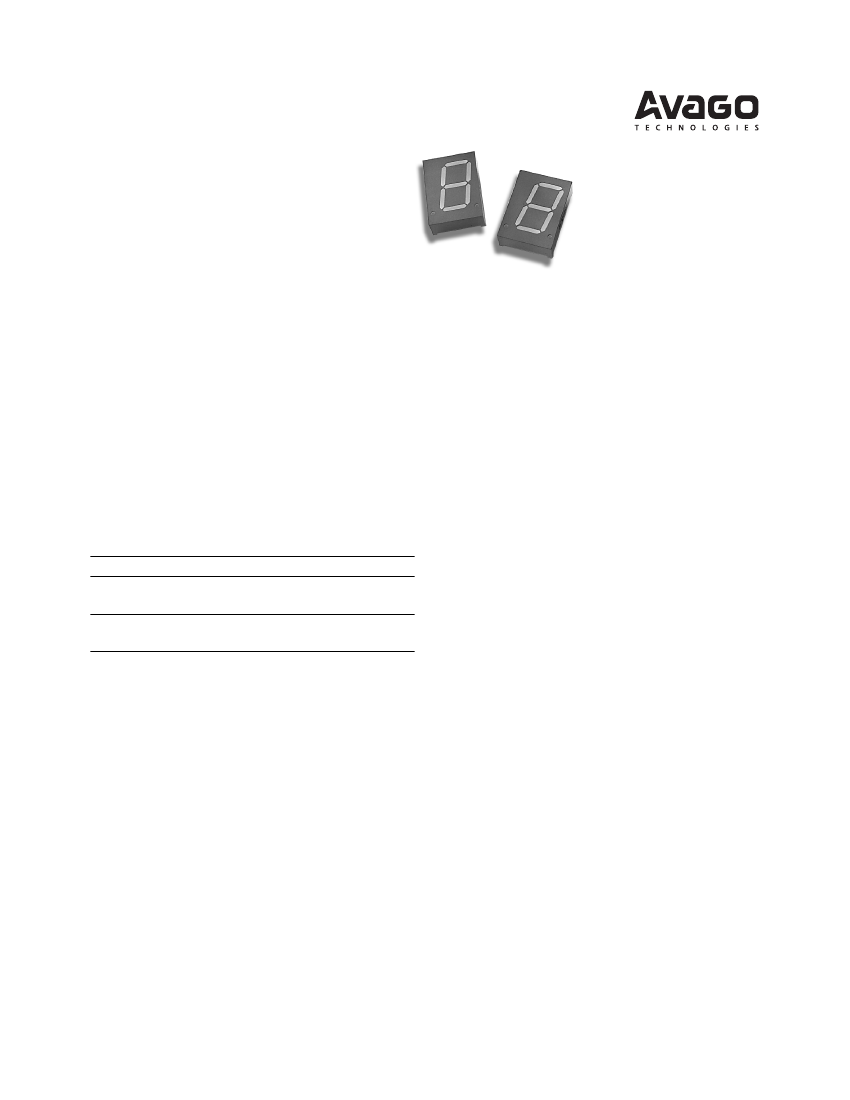

20 mm (0.8 inch) General Purpose
Seven Segment Displays
Data Sheet
Description
These 20 mm (0.8 inch) displays use industry standard
size and pin-out. The devices are available as either
common anode or common cathode. Available in either
red or green colors, these gray-faced displays are suitable
for indoor use.
No color binning is offered for these parts.
These parts are subjected to Outgoing Quality Assurance
(OQA) inspection with AQL of 0.065% for functional
and visual/cosmetic rejects.
Devices
HER HDSP-
815E
816E
Features
• Industry standard size
• Industry standard pin-out
15.24 mm (0.6 in.) DIP leads on 2.54 mm (0.1 in.) centers
• Choice of colors
Red, Green
• Mitered font
Mitered corners on segments
• Gray face paint
Gray package gives optimum contrast
•
±
50° Viewing angle
• Design flexibility
Common anode or common cathode
• Categorized for luminous intensity
Applications
• Suitable for indoor use
• Not recommended for industrial applications, i.e.,
operating temperature requirements exceeding 85°C or
below –25°C
[1]
• Extreme temperature cycling not recommended
[2]
Green HDSP-
815G
816G
Description
Common Anode Right
Hand Decimal
Common Cathode
Right Hand Decimal
Notes:
1. For industrial applications, it is recommended to use HDSP-3901/
3903/8601/8603.
2. For details, please contact your local Avago Technologies sales office
or an authorized distributor.
Part Numbering System
5082 -X X X X-X X X X X
HDSP-X X X X-X X X X X
Mechanical Options
[1]
00: No Mechanical Option
Color Bin Options
[1,2]
0: No Color Bin Limitation
Maximum Intensity Bin
[1,2]
0: No Maximum Intensity Bin Limitation
Minimum Intensity Bin
[1,2]
0: No Minimum Intensity Bin Limitation
Device Configuration/Color
[1]
E: High Efficiency Red
G: Green
Device Specific Configuration
[1]
Refer to Respective Datasheet
Package
[1]
Refer to Respective Datasheet
Notes:
1. For codes not listed in the figure above, please refer to the respective datasheet or contact your nearest Avago
representative for details.
2. Bin options refer to shippable bins for a part number. Color and Intensity Bins are typically restricted to 1 bin per tube
(exceptions may apply). Please refer to respective datasheet for specific bin limit information.
2
Package Dimensions
11.07
(0.436)
8°
LUMINOUS INTENSITY CATEGORY
1
16
13.08
(0.514)
4.60
(0.181)
20.32
(0.800)
HDSP-XXXX
XYY Z
XXXX
1.70
(0.067)
27.69 ± 0.25
(1.090 ± 0.010)
DIA. 0.50
(0.020)
2.54 x 7 = 17.78
(0.100 x 7 = 0.700)
6
9
UNUSED DP
1.25
(0.049)
8.20
(0.323)
C
L
C
L
CHARACTER
PACKAGE
RHDP
DATE CODE
COUNTRY OF ORIGIN
SIDE VIEW
FRONT VIEW
NOTES:
1. DIMENSIONS IN MILLIMETERS AND (INCHES).
2. TOLERANCE IS 0.25 mm (0.010 INCH) UNLESS OTHERWISE STATED.
19.96
(0.786)
8.38
(0.330)
4.8 ± 0.50
(0.189 ± 0.020)
15.24
(0.600)
END VIEW
3
Internal Circuit Diagram
COMMON ANODE
PIN
1
1
2
3
4
5
6
7
8
d
DP
e
c
f
b
g
a
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
d
DP
e
c
f
b
g
a
2
16
15
14
13
12
11
10
9
3
4
5
6
7
8
9
10
11
12
13
14
15
16
FUNCTION
CATHODE A
CATHODE F
COMMON ANODE
CATHODE E
COMMON ANODE
NO CONNECTION
NO PIN
NO PIN
CATHODE RHDP
CATHODE D
COMMON ANODE
CATHODE C
CATHODE G
CATHODE B
NO PIN
COMMON ANODE
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
COMMON CATHODE
FUNCTION
ANODE A
ANODE F
COMMON CATHODE
ANODE E
COMMON CATHODE
NO CONNECTION
NO PIN
NO PIN
ANODE RHDP
ANODE D
COMMON CATHODE
ANODE C
ANODE G
ANODE B
NO PIN
COMMON CATHODE
COMMON ANODE
COMMON CATHODE
4
Absolute Maximum Ratings at T
A
=25°C
High Efficiency Red
HDSP-815E
HDSP-816E
62.5
100
25
3
-25 to +85
-25 to +85
250
Green
HDSP-815G
HDSP-816G
65
90
25
3
-25 to +85
-25 to +85
250
Parameter
Average Power per Segment or DP
Peak Forward Current per Segment or DP
(1/10 Duty Cycle, 0.1 ms Pulse Width)
DC Forward Current per Segment or DP
[1]
Reverse Voltage per Segment or DP
Operating Temperature
Storage Temperature
Wave Soldering Temperature for 3 Seconds
[2]
(1.6 mm [0.063 in.] below Body)
Units
MW
mA
mA
V
°C
°C
°C
Notes:
1. Derate above 25°C at 0.33 mA/°C.
2. Not recommended to be soldered more than 2 times. Minimum interval between solderings is 15 minutes. Total soldering time not to exceed
5 seconds.
Optical/Electrical Characteristics at T
A
=25°C
High Efficiency Red
Devices
HDSP-
Parameter
Luminous Intensity/Segment
(Segment Average)
[1,2]
Forward Voltage/Segment or DP
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Symbol
I
v
V
F
PEAK
d
Min.
2.3
Typ.
4.8
2.1
635
626
25
-2
Max.
Units
mcd
V
nm
nm
V
mV/°C
Test
Conditions
I
F
= 20 mA
I
F
= 20 mA
3.0
815E
816E
V
R
V
F
/°C
3.0
I
R
= 100
µA
Green
Devices
HDSP-
Parameter
Luminous Intensity/Segment
(Segment Average)
[1,2]
Forward Voltage/Segment or DP
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Symbol
I
v
V
F
PEAK
d
Min.
1.5
Typ.
3.3
2.1
566
571
50
-2
Max.
Units
mcd
V
nm
nm
V
mV/°C
Test
Conditions
I
F
= 20 mA
I
F
= 20 mA
2.6
815G
816G
V
R
V
F
/°C
3.0
I
R
= 100
µA
Notes:
1. Case temperature of the device immediately prior to the intensity measurement is 25°C.
2. The digits are categorized for luminous intensity. The intensity category is designated by a letter on the side of the package.
3. The dominant wavelength,
d
, is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the
device.
4. Typical specification for reference only. Do not exceed absolute maximum ratings.
