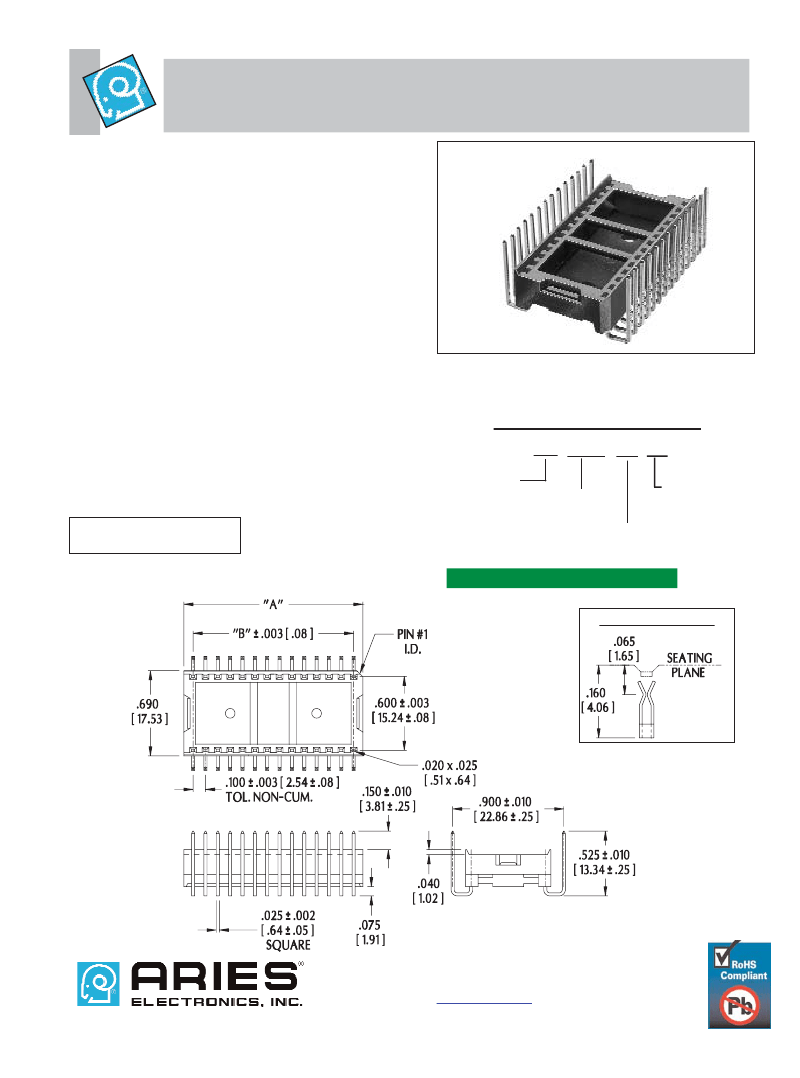

Series 6621
Inverter Sockets
FEATURES:
• Inverted configuration allows the socket to be wave
soldered on the component side of the PCB and the
device socketed through a window on the solder side of
the PCB.
• Available on .600 [15.24] centers. Consult factory for
other sizes.
SPECIFICATIONS:
• Body material is Black UL 94 V-0 Glass-filled 4/6 Nylon.
• Bifurcated contacts are Grade A spring-tempered
Phosphor Bronze per QQ-B-750.
• Contact plating:
-30 = 200μ” min. Matte Tin per ASTM B545-97 over
50μ” min Nickel per SAE-AMS-QQ-N-290
-30TL = 200μ” min. Bright 90/10 Tin/Lead per MIL-T-
10727 Type 1 over 50μ” min. Nickel per SAE-AMS-QQ-
N-290.
• Current rating=1.5 Amp.
• Operating temperature= -67°F to 221°F [-55°C to105°C].
• Accepts flat leads up to .014 thk. x .020 wide [.36-.51],
round leads up to .020 [.51] in diameter .
• Accepts lead lengths from seating plane from .075-.160
[1.91-4.06].
MOUNTING CONSIDERATIONS:
•Suggested PCB hole size=.044 ± .002 [1.15 ± .05].
All tolerances ± .005 [.13]
unless otherwise specified
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
A
LL DIMENSIONS
:
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-6621-30 XX
No. of pins:
8 to 40, 48
Series
Plating option:
TL = Tin/Lead
Tin over Nickel
plated wire wrap pin
INCHES
[
MILLIMETERS
]
CONTACT DETAIL
14007
REV. C
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
