350-066-0040N

Description
RF SMA Connector, Male, Panel Mount, Plug
CategoryThe connector    The connector
File Size47KB，1 Pages
ManufacturerWinchester Electronics
Download Datasheet Parametric Compare View All

350-066-0040N Overview

RF SMA Connector, Male, Panel Mount, Plug

350-066-0040N Parametric

Parameter NameAttribute value
MakerWinchester Electronics
Reach Compliance Codeunknown
Other featuresSTANDARD: MIL-C-39012
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceYES
Manufacturer's serial number35
Installation methodSTRAIGHT
Maximum operating frequency18 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Base Number Matches1

Preview

Download Datasheet

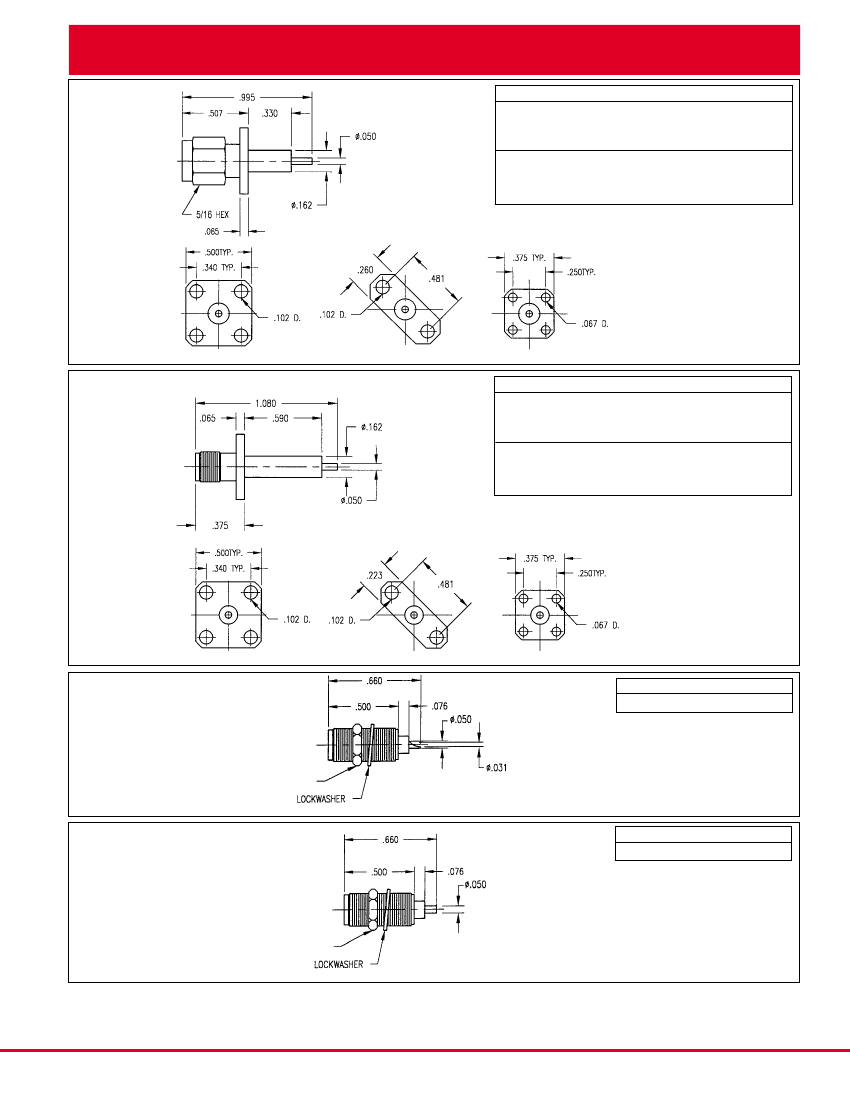

SMA Brass:
Straight
Plug
Flange
Mount
Straight
Contact
Receptacle
Part Number
Mounting Hole
350-065-0040H
No. 065
350-066-0040H
No. 066
350-055-0040H
No. 055
350-065-0041H
No. 065
350-066-0041H
No. 066
350-055-0041H
No. 055
Contact
Figure
captivated
1
captivated
2
captivated
3
non-captivated 1
non-captivated 2
non-captivated 3
Figure 2
• See page 83 for mounting hole layout.
• Part number shown is for gold plated.
• For nickel plate change suffix to “N”.
Figure 1
Figure 3
Straight
Jack
Flange
Mount
Straight
Contact
Figure 2
Part Number
Mounting Hole
351-065-0040H
No. 065
351-066-0040H
No. 066
351-055-0040H
No. 055
351-065-0041H
No. 065
351-066-0041H
No. 066
351-055-0041H
No. 055
Contact
Figure
captivated
1
captivated
2
captivated
3
non-captivated
1
non-captivated
2
non-captivated
3
• See page 83 for mounting hole layout.
• Part number shown is for gold plated.
• For nickel plate change suffix to “N”.
Figure 1
Figure 3
Straight Jack
Feed - Thru
Solder Pot
5/16 HEX
Part Number
Mounting Hole
351-074-0000H
No. 074
• See page 83 for mounting hole layout.
• Part number shown is for gold plated.
• For nickel plate change suffix to “N”.
Straight Jack
Feed - Thru
Straight Terminal
Part Number
Mounting Hole
351-074-0040H
No. 074
• See page 83 for mounting hole layout.
• Part number shown is for gold plated.
• For nickel plate change suffix to “N”.
5/16 HEX
Note: Dimensions shown in inches.
Winchester/Retconn
400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com
RF/21
