33104-6300FL: Description4 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC, PLUG; CategoryThe connector The connector; File Size46KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

33104-6300FL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	33104-6300FL	-	-	View	Buy Now

33104-6300FL Overview

4 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC, PLUG

33104-6300FL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	3M
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY, ONE TOUCH LOCK
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	33104
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

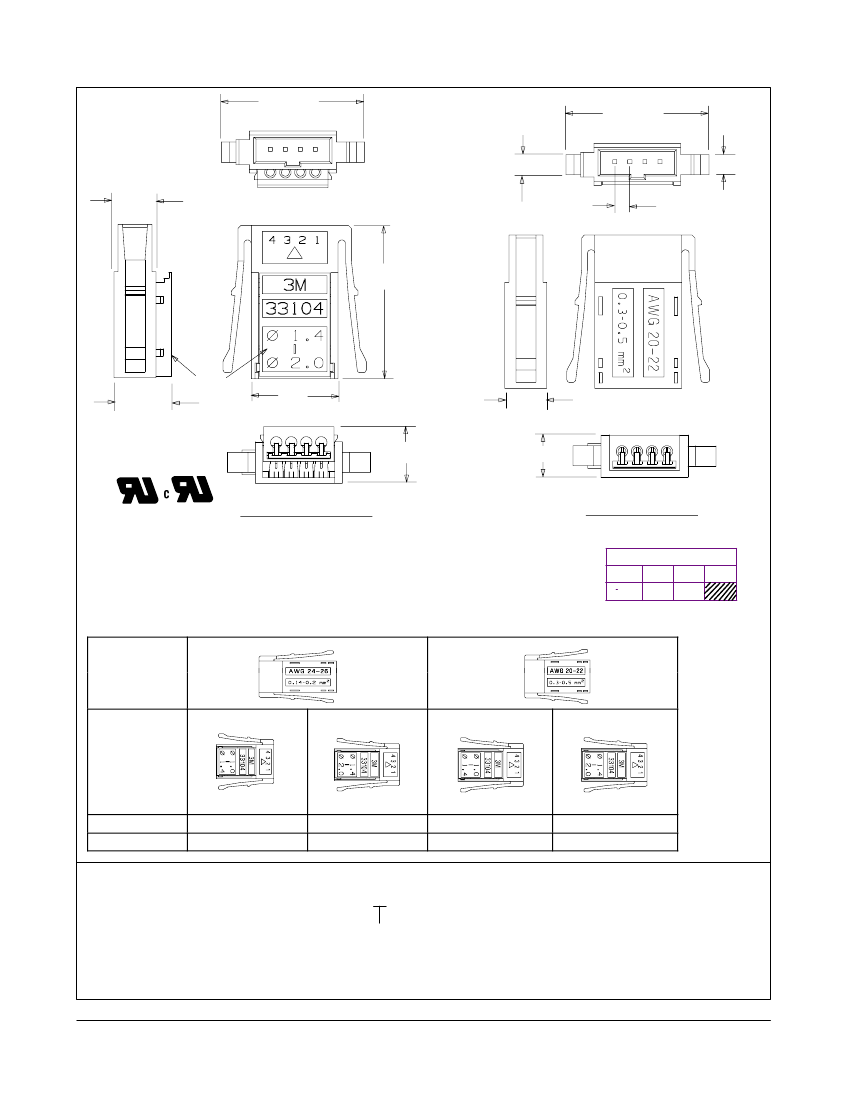

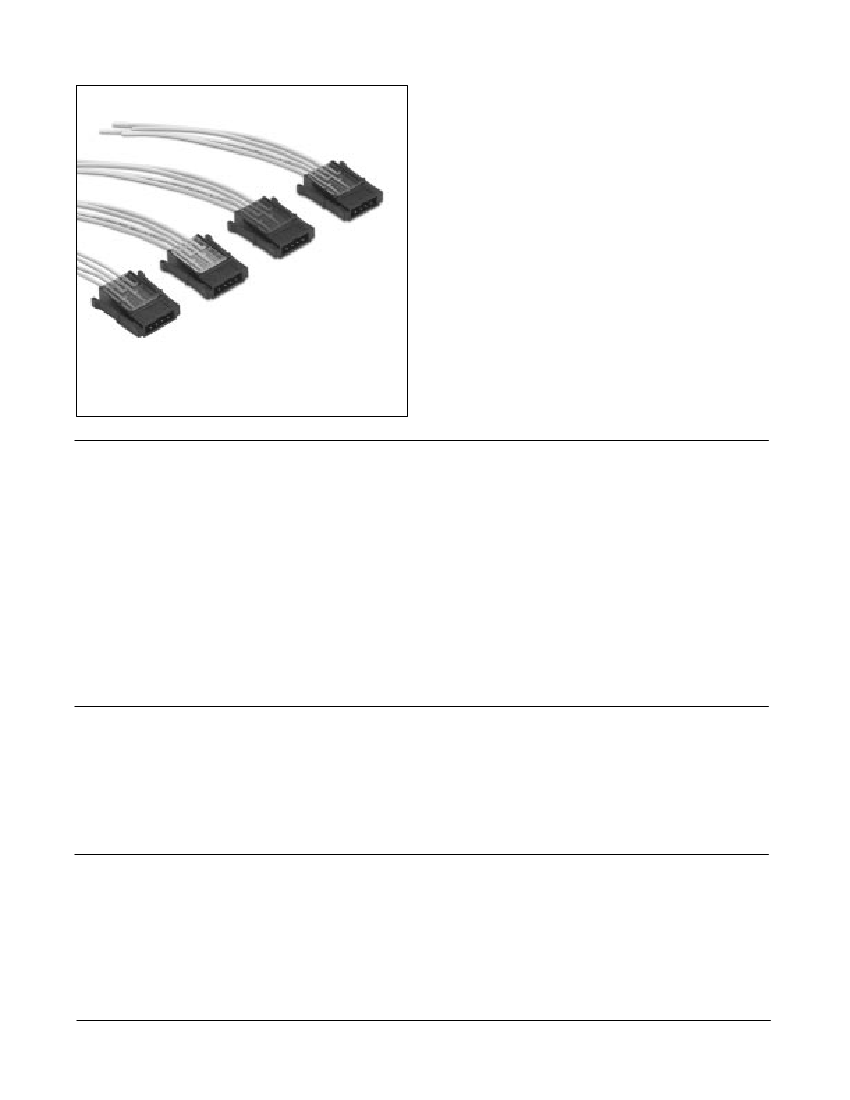

.100″ Wiremount Plug

33104 Series

S

A compact highly reliable four conductor

insulation displacement connector

S

Distinguishable by cover color variations

based on wire core diameter and insulator

diameter

S

Current capacity up to 3A per conductor

with 20-22 AWG wire

S

”One Touch Lock” feature allows insertion

and removal with one hand. Shape prevents

backwards insertion

S

Cable holder prevents cable shifting when

connecting wire

S S

Transparent cover allows visual

verification of wire insertion and connection

Date Modified: September 18, 1999

93

TS-0956-02

Sheet 1 of 2

Physical

Insulation

Material: Body – Nylon

Cover – polycarbonate

Flammability: UL 94V-0

Color: Body – Black

Cover – Blue, Red, Yellow and Clear

Contact

Material: Copper Alloy

Plating

Underplating & U-Slot: 2.5

µm

[ 98

µ″

] Nickel — QQ-N-290, Class 2

Wiping Area: 0.3

µm

[ 12

µ″

] Gold — MIL-G-45204, Type II, Grade C

Marking:

3M Logo, Part Identification on cover

Electrical

Current Rating:

Voltage Rating:

Insulation Resistance:

Withstanding Voltage:

20-22 AWG: 3A, 24-26 AWG: 2A

125 V

> 1

×

10

9

Ω

at 600 Vdc

1000 Vrms at Sea Level

Environmental

Temperature Rating:

–20°C to 75°C

UL File No.: E68080

3M Interconnect Solutions Division

6801 River Place Blvd.

Austin, TX 78726-9000

For technical, sales or ordering information call

800-225-5373

33104-6300FL Related Products

	33104-6300FL	33104-6000FL	33104-6100FL	33104-6200FL
Description	4 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC, PLUG	4 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC, PLUG	4 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC, PLUG	4 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC, PLUG
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	HIGH RELIABILITY, ONE TOUCH LOCK	HIGH RELIABILITY, ONE TOUCH LOCK	HIGH RELIABILITY, ONE TOUCH LOCK	HIGH RELIABILITY, ONE TOUCH LOCK
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	33104	33104	33104	33104
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	IDC	IDC	IDC
Total number of contacts	4	4	4	4
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
Is Samacsys	-	N	N	N
