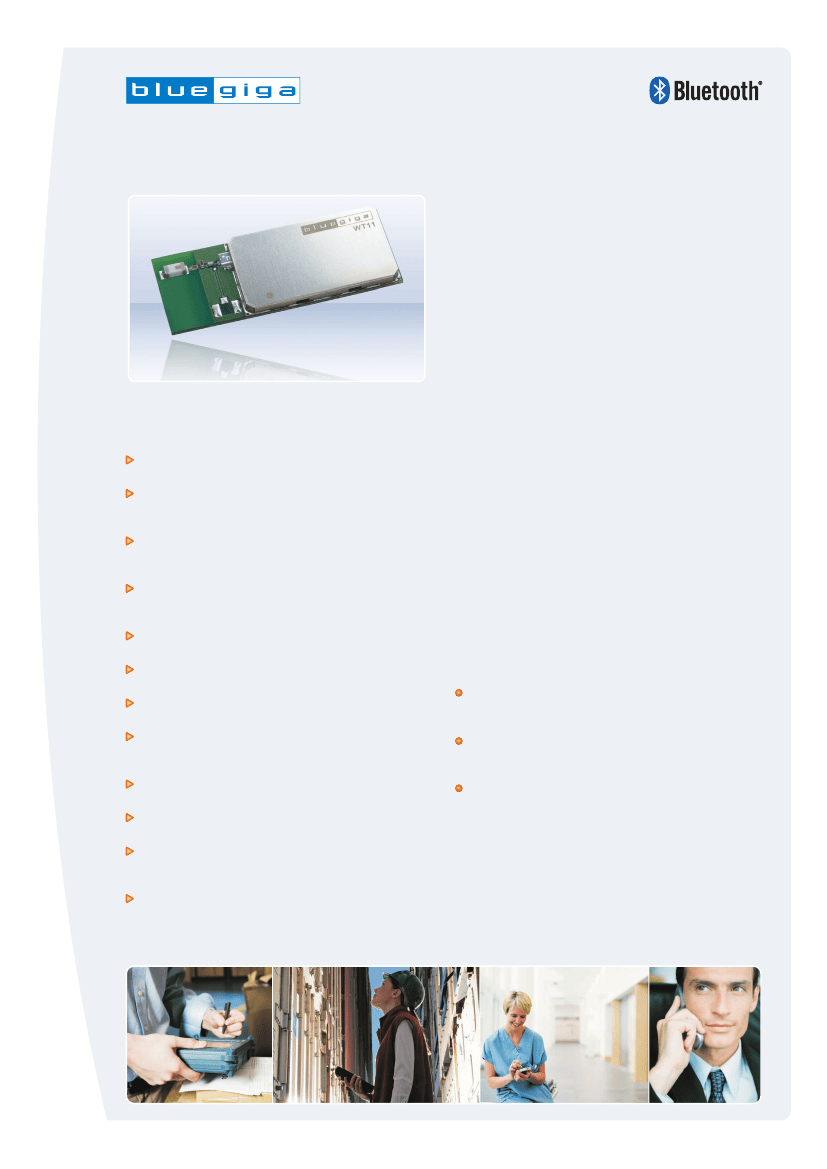

14/10/09
WT11
Bluetooth®
Module™ Description
WT11 is a next-generation, class 1,
Bluetooth
2.1 +
EDR module. It introduces three times faster data rates
compared to the existing
Bluetooth
1.2 modules even with
a lower power consumption. WT11 is a highly integrated
and sophisticated
Bluetooth
module, containing all the
necessary elements from
Bluetooth
radio antenna to
a fully implemented protocol stack. Therefore WT11
provides an ideal solution for developers who want
to integrate
Bluetooth
wireless technology into their
designs with limited knowledge of
Bluetooth
and RF
technologies.
WT11 module combined with Bluegiga’s complete
development, testing and verification services and
excellent developer support; OEMs and designers ensure
that their products reach the market rapidly and cost-
efficiently in relation to time and resources. Bluegiga
has extensive in-house knowledge of both software and
hardware, offering customers a single point of contact
to all
Bluetooth
related issues.
By default, WT11 module is equipped with powerful
and easy-to-use iWRAP firmware. iWRAP enables
users to access
Bluetooth
functionality with simple
ASCII commands delivered to the module over serial
interface.
With iWRAP software you have several implementation
options:
iWRAP can be configured to operate autonomously,
- as a
Bluetooth
cable replacer
To create sophisticated applications - a host system
can be used to control iWRAP with ASCII commands
The GPIO interface in WT11 module can be used to
connect host and iWRAP
Besides the iWRAP firmware, Bluegiga also offers
several other firmware options for WT11 module.
Standard Host Command Interface (HCI) firmware is
supported and an ideal solution for systems where the
host system is capable of running the entire
Bluetooth
stack and profiles and WT11 is utilized as the physical
radio over UART or USB interface.
Key Features
Bluetooth
Class 1
Two antenna options: integrated chip antenna or U.FL
connector
Enhanced Data Rates (EDR) with data throughput up
to 2-3Mbps
Support for Adaptive Frequency Hopping (AFH) and
802.11 co-existence
USB version 2.0
UART with bypass mode
8Mbits of flash memory
Supported
Bluetooth
profiles: SPP, DUN, OBEX OPP,
HFP v.1.5, DID, HID + HCI
Industrial temperature range from -40°C to +85°C
RoHS compliant
Simple iWRAP™ firmware for controlling
Bluetooth
wireless technology
Fully qualified end product with
Bluetooth
2.1 + EDR,
CE, FCC and IC
Information subject to changes
14/10/09
TECHNICAL DATA
Firmware
iWRAP™ command interface to access the
Bluetooth
functionality and to configure the parameters with simple
ASCII commands
HCI firmware available for UART and USB interfaces
Possibility to use / develop custom firmware
128-bit
Bluetooth
encryption available for all firmware
options
Development and Evaluation
WT11-A Evaluation Kit EKWT11-A
WT11-E Evaluation Kit EKWT11-E
CSR’s BlueLab Professional SDK
Other Products
WT12 Class 2
Bluetooth
Module™
WT32
Bluetooth
Audio Module™
Bluegiga Access Server™ 2291, 2293
Hardware
Bluetooth
Class 1 radio (range up to 200 meters)
-Nominal output power +15 dBm
-Nominal sensitivity -82 dB
-Uses 2.4 GHz ISM band
-Based on CSR’s BC04 chipset
Integrated antenna or U.FL connector
Host processor interface with UART or USB
SPI interface for firmware and parameter upgrades
6xGPIO, 1xAIO
PCM interface for audio applications
Supply voltage: regulated 3.2 – 3.4 VDC
PCB form factor: 35.3 x 14 x 2.3 mm
Operating temperature: -40 ºC to +85 ºC
Metal shielding
Reference designs available for HCI, cable replacement
and audio applications
Certifications
Bluetooth
2.1 + EDR
CE, FCC and IC
Applications
Cable replacement
Point-of-sales systems
Barcode readers and pay terminals
Telemetry and machine-to-machine devices
Logistics and transportation systems
Automotive inspection and measurement systems
Medical systems
Fitness and sports telemetry devices
PDAs and other portable terminals
PCs and laptops
Audio applications
Product Codes
iWRAP Firmware, chip antenna
HCI Firmware (USB), chip antenna
Custom Firmware, chip antenna
iWRAP Firmware, U.FL
HCI Firmware (USB), U.FL
Custom Firmware, U.FL
WT11-A-AI
WT11-A-HCI
WT11-A-C
WT11-E-AI
WT11-E-HCI
WT11-E-C
Information subject to changes
For more information about Bluegiga Technologies, please contact:
Bluegiga Technologies Oy
Sinikalliontie 5 A
02630 Espoo, Finland
Phone: +358 9 435 50 60
Fax: +358 9 435 50 660
www.bluegiga.com
sales@bluegiga.com
© Bluegiga Technologies 2000-2009.
