598-9250-102F: DescriptionSingle Color LED, Yellow, Diffused, 2mm, 3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size1MB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

598-9250-102F Overview

Single Color LED, Yellow, Diffused, 2mm, 3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN

598-9250-102F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compliant
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.025 A
JESD-609 code	e4
Lens type	DIFFUSED
Nominal luminous intensity	130.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.68 mm
method of packing	TAPE
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal surface	Gold (Au)
Terminal pitch	3.5 mm
perspective	140 deg
Base Number Matches	1

Preview

Download Datasheet

View All

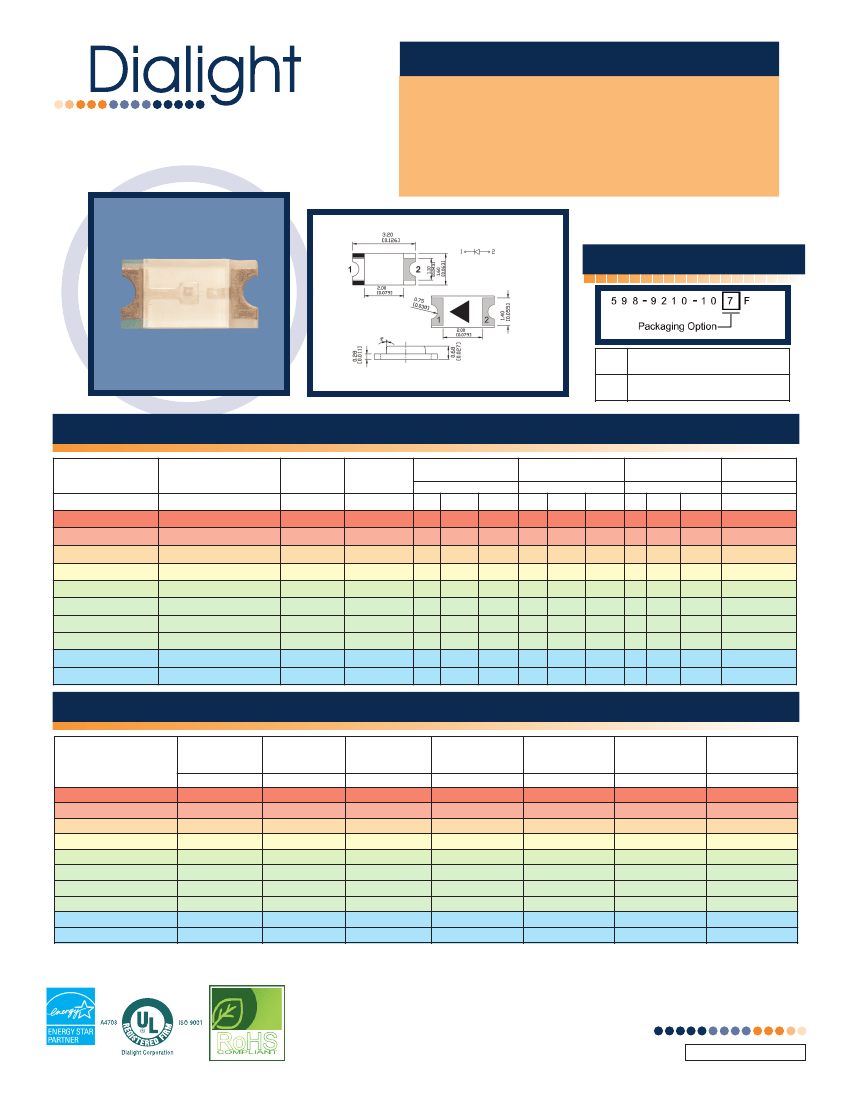

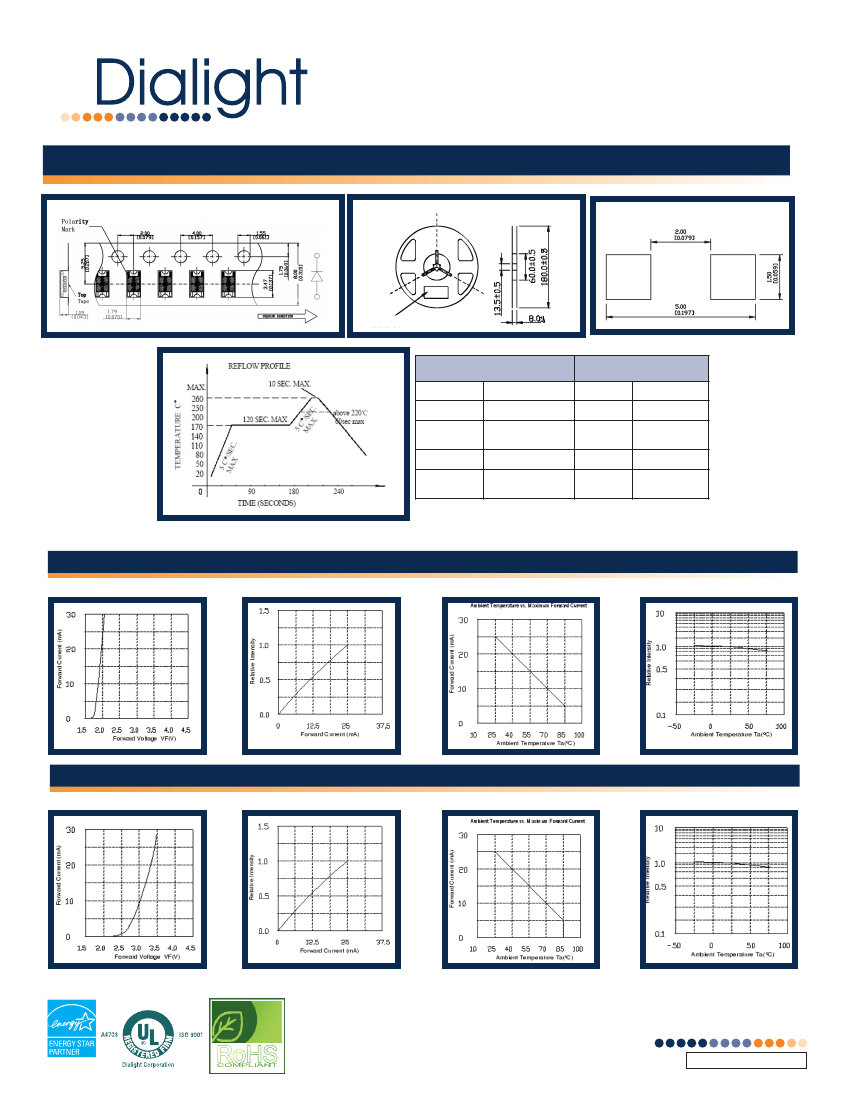

FEATURES / BENEFITS

Compatible with automatic placement equipment

Micro LED

SMD LED

“598 SERIES” 1206 PACKAGE

(3.2mm X 1.6mm X 0.7mm) Single Color Diffused

RoHS compliant

Packaged in 8mm tape, 7” reel and 20 per strip

Meets EIA-481-1 pkg. std.

Package Outline Drawing:

ORDERING INFORMATION

Notes 1. All dimensions are in mm [inches];

2. Tolerances are ±0.1mm [0.004inch] unless noted.

20 pieces on tape

7” reel 3000pcs / reel

PART NUMBERS

DIALIGHT P/N

EMITTED COLOR

MATERIAL

LENS COLOR

MIN

598-9210-107F

598-9220-107F

598-9230-107F

598-9250-107F

598-9260-107F

598-9270-107F

598-9280-107F

598-9281-107F

598-9290-107F

598-9291-107F

RED

RED-ORANGE

ORANGE

YELLOW

YELLOW-GREEN

GREEN

BLUE

AlInGaP

GaP

InGaN

Diffused

120

100

150

220

LUMINOUS

INTENSITY

If = 20 ma

TYP

150

130

220

300

140

MAX

200

150

160

300

400

140

160

DOMINANT

WAVELENGTH

If = 20 ma

MIN

630

620

600

583

570

562

520

470

TYP

635

625

523

473

MAX

640

630

610

590

575

570

525

475

MIN

1.7

1.8

2.8

FORWARD

VOLTAGE

If = 20 ma

TYP

3.2

MAX

2.4

3.5

140

VIEWING

ANGLE

° DEGREES

ABSOLUTE RATINGS

(@ Ta = 25ºC)

DIALIGHT P/N

598-9210-107F

598-9220-107F

598-9230-107F

598-9250-107F

598-9260-107F

598-9270-107F

598-9280-107F

598-9281-107F

598-9290-107F

598-9291-107F

Power

Dissipation

(mW)

87.5

Forward

Current

(mA)

Reverse

Voltage

(V)

Operating

Temperature

Range

(ºC)

-30~+85

-30~+100

-30~+85

-20~+85

-30~+85

Storage

Temperature

Range

(ºC)

-40~+100

-30~+100

-40~+100

Peak Pulse

Forward

Current

(mA)

100

Electrostatic

Discharge

(HBM)

2000

1000

2000

1000

2000

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEI5981206DF_A

598-9250-102F Related Products

	598-9250-102F	598-9270-102F	598-9210-102F	598-9230-102F	598-9220-102F	598-9291-102F	598-9260-102F	598-9280-102F	598-9281-102F	598-9290-102F
Description	Single Color LED, Yellow, Diffused, 2mm, 3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Green, Diffused, 2mm, 3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Red, Diffused, 2mm, 3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Orange, Diffused, 2mm, 3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Red Orange, Diffused, 2mm, 3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Blue, Diffused, 2mm, 3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Yellow Green, Diffused, 2mm, 3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Green, Diffused, 2mm, 3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Green, Diffused, 2mm, 3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Blue, Diffused, 2mm, 3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN	3.20 X 1.60 MM, 0.70 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
color	YELLOW	GREEN	RED	ORANGE	RED ORANGE	BLUE	YELLOW GREEN	GREEN	GREEN	BLUE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.03 A	0.025 A	0.025 A	0.025 A
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	130.0 mcd	20.0 mcd	55.0 mcd	110.0 mcd	150.0 mcd	140.0 mcd	40.0 mcd	220.0 mcd	300.0 mcd	90.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	100 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-20 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	0.68 mm	0.68 mm	0.68 mm	0.68 mm	0.68 mm	0.68 mm	0.68 mm	0.68 mm	0.68 mm	0.68 mm
method of packing	TAPE	TAPE	TAPE	TAPE	TAPE	TAPE	TAPE	TAPE	TAPE	TAPE
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au)
Terminal pitch	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm
perspective	140 deg	140 deg	140 deg	140 deg	140 deg	140 deg	140 deg	140 deg	140 deg	140 deg
Base Number Matches	1	1	1	1	1	1	1	1	1	1
