QL1P300-6PUN132C datasheet, PDF

Datasheet> All Categories > Programmable logic devices> Programmable logic> QL1P300-6PUN132C

QL1P300-6PUN132C: DescriptionField Programmable Gate Array, 1920 CLBs, 300000 Gates, 200MHz, 1920-Cell, CMOS, PBGA132, 8 X 8 MM, 0.5 MM PITCH, LEAD FREE, TFBGA-132; CategoryProgrammable logic devices Programmable logic; File Size2MB，92 Pages; ManufacturerQuickLogic Corporation; Websitehttps://www.quicklogic.com; Environmental Compliance

Download Datasheet Parametric View All

QL1P300-6PUN132C Overview

Field Programmable Gate Array, 1920 CLBs, 300000 Gates, 200MHz, 1920-Cell, CMOS, PBGA132, 8 X 8 MM, 0.5 MM PITCH, LEAD FREE, TFBGA-132

QL1P300-6PUN132C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	BGA
package instruction	TFBGA, BGA132,14X14,20
Contacts	132
Reach Compliance Code	compliant
Is Samacsys	N
maximum clock frequency	200 MHz
Combined latency of CLB-Max	0.59 ns
JESD-30 code	S-PBGA-B132
JESD-609 code	e1
length	8 mm
Humidity sensitivity level	3
Configurable number of logic blocks	1920
Equivalent number of gates	300000
Number of entries	74
Number of logical units	1920
Output times	74
Number of terminals	132
Maximum operating temperature	85 °C
Minimum operating temperature
organize	1920 CLBS, 300000 GATES
Package body material	PLASTIC/EPOXY
encapsulated code	TFBGA
Encapsulate equivalent code	BGA132,14X14,20
Package shape	SQUARE
Package form	GRID ARRAY, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	260
power supply	1.8,3.3 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal form	BALL
Terminal pitch	0.5 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	40
width	8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

QuickLogic PolarPro

Device Data Sheet — QL1P075,

QL1P100, QL1P200, and QL1P300

••••••

Combining Low Power, Performance, Density, and Embedded RAM

• Quadrant-based segmentable clock networks

Device Highlights

Low Power Programmable Logic

• As low as 2.2 µA

• 0.18 µm, six layer metal CMOS process

• 1.8 V core voltage, 1.8/2.5/3.3 V drive

capable I/Os

• Up to 55 kilobits of SRAM

• Up to 238 I/Os available

• Up to 300,000 system gates

• Nonvolatile, instant-on

• IEEE 1149.1 boundary scan testing compliant

20 quad clock networks per device

4 quad clock networks per quadrant

1 dedicated clock network per quadrant

• Two user Configurable Clock Managers (CCMs)

Very Low Power (VLP) Mode

• QuickLogic PolarPro has a special VLP pin

which can enable a low power sleep mode that

significantly reduces the overall power

consumption of the device by placing the device in

standby

• Enter VLP mode from normal operation in less

than 250 µs (typical)

• Exit from VLP mode to normal operation in less

than 250 µs (typical)

Embedded Dual-Port SRAM

• Up to twelve dual-port 4-kilobit high performance

SRAM blocks

• True dual-port capability

• Embedded synchronous/asynchronous FIFO

controller

• Configurable and cascadable aspect ratio

Security Links

There are several security links to disable JTAG

access to the device. Programming these optional

links completely disables access to the device from

the outside world and provides an extra level of

design security not possible in SRAM-based FPGAs.

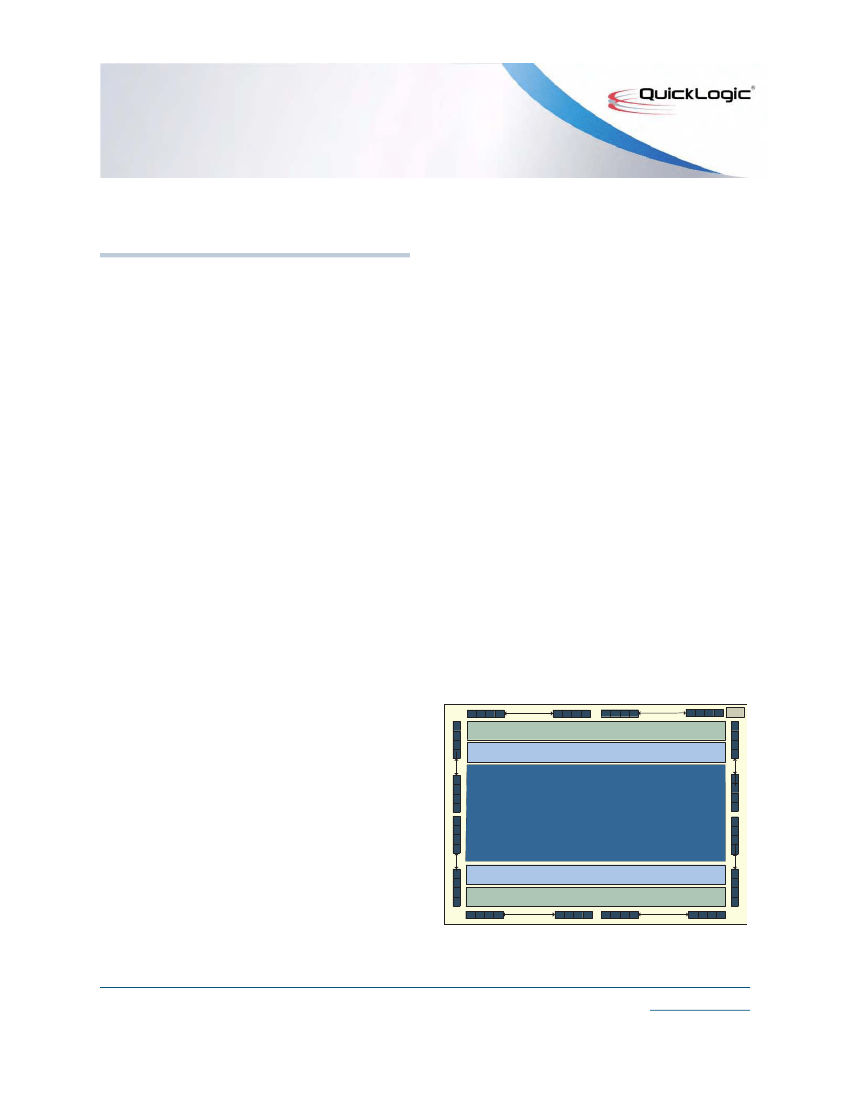

Figure 1: QuickLogic PolarPro Block Diagram

DDR/GPIO

Programmable I/O

• Bank programmable drive strength

GPIO

CCM

GPIO

• Bank programmable slew rate control

• Independent I/O banks capable of supporting

multiple I/O standards in one device

• Native support for DDR I/Os

• Bank programmable I/O standards: LVTTL,

LVCMOS, LVCMOS18, PCI, SSTL2, SSTL3 and

SSDL18

Embedded RAM Blocks

FIFO Controller

GPIO

Fabric

GPIO

• Multiple low skew clock networks

GPIO

Embedded RAM Blocks

GPIO

1 dedicated global clock network

4 programmable global clock networks

•

www.quicklogic.com

•
