54LS14FMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS14FMQB

54LS14FMQB: DescriptionInverter, LS Series, 6-Func, 1-Input, TTL, CDFP14, CERAMIC, FP-14; Categorylogic logic; File Size125KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS14FMQB Overview

Inverter, LS Series, 6-Func, 1-Input, TTL, CDFP14, CERAMIC, FP-14

54LS14FMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL14,.3
Contacts	14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-GDFP-F14
JESD-609 code	e0
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.004 A
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	21 mA
Prop。Delay @ Nom-Sup	33 ns
propagation delay (tpd)	33 ns
Certification status	Not Qualified
Schmitt trigger	YES
Filter level	MIL-STD-883 Class B
Maximum seat height	2.032 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.2865 mm
Base Number Matches	1

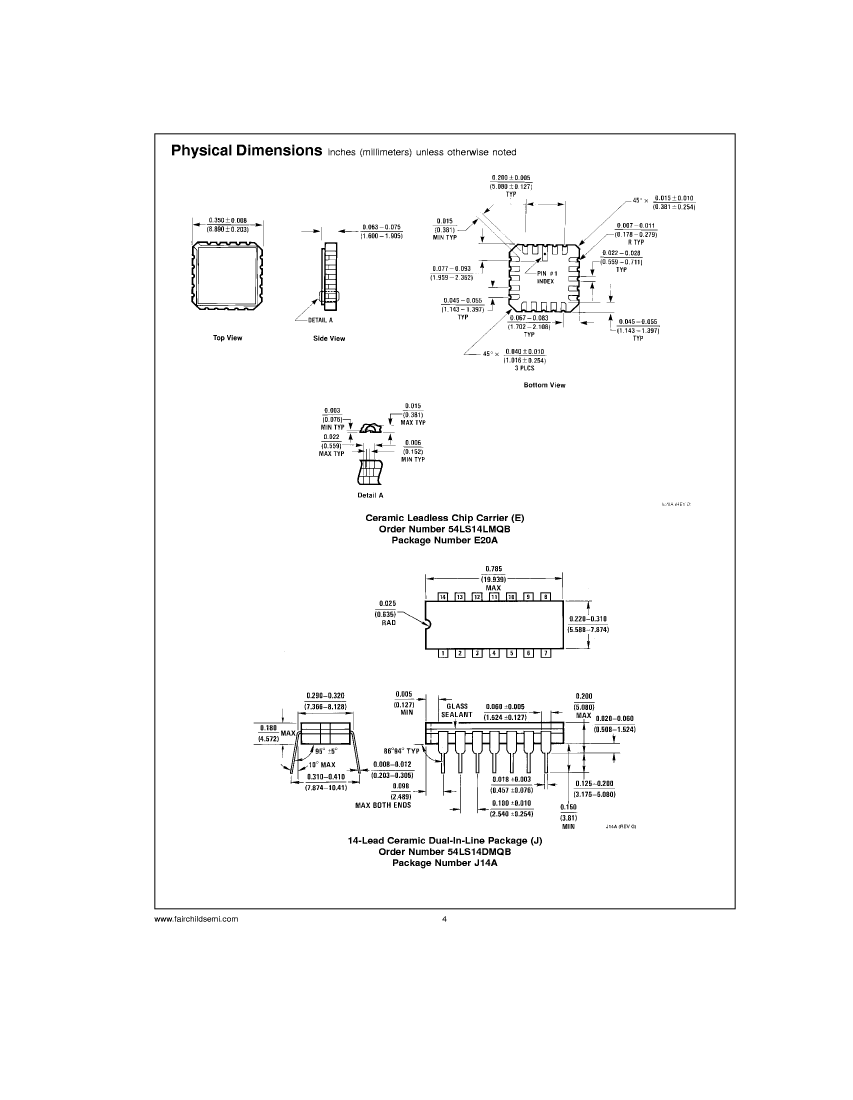

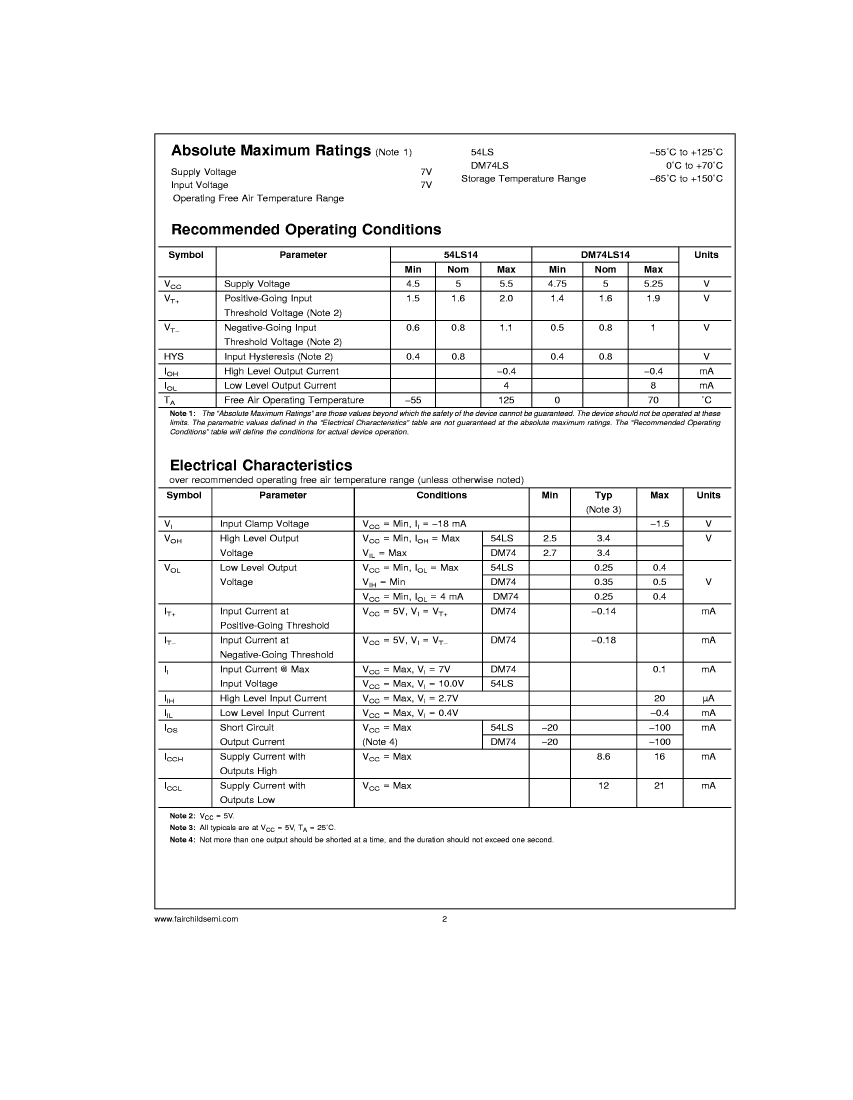

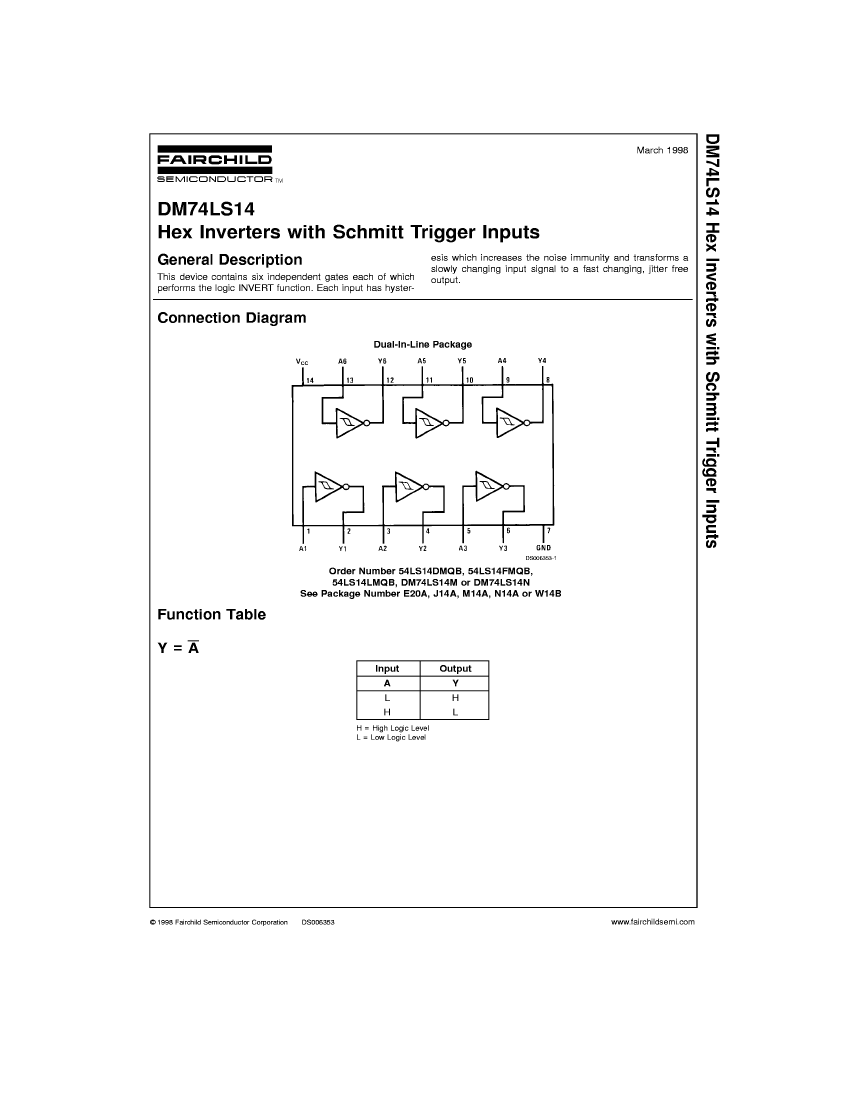

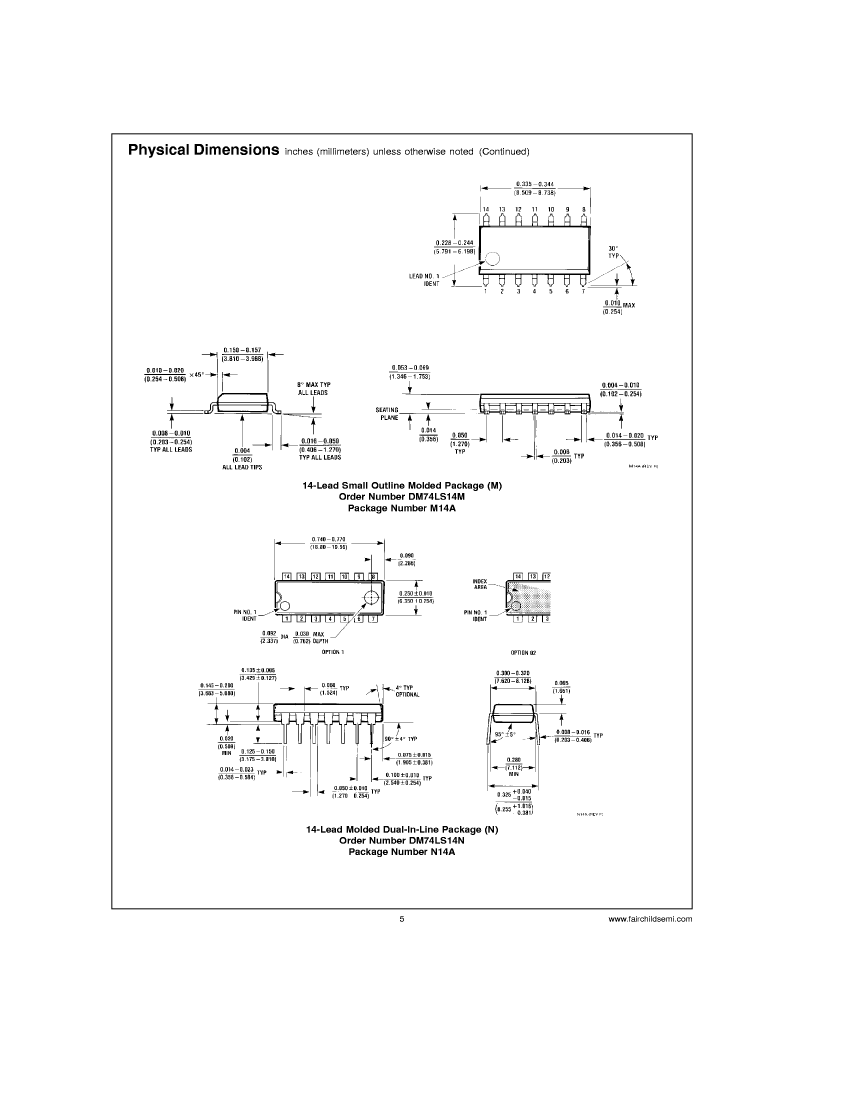

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54LS14FMQB Related Products

	54LS14FMQB	54LS14LMQB	54LS14DMQB
Description	Inverter, LS Series, 6-Func, 1-Input, TTL, CDFP14, CERAMIC, FP-14	Inverter, LS Series, 6-Func, 1-Input, TTL, CQCC20, CERAMIC, LCC-20	Inverter, LS Series, 6-Func, 1-Input, TTL, CDIP14, CERAMIC, DIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	DFP	QLCC	DIP
package instruction	DFP, FL14,.3	CERAMIC, LCC-20	CERAMIC, DIP-14
Contacts	14	20	14
Reach Compliance Code	unknown	unknown	unknown
series	LS	LS	LS
JESD-30 code	R-GDFP-F14	S-CQCC-N20	R-GDIP-T14
JESD-609 code	e0	e0	e0
Logic integrated circuit type	INVERTER	INVERTER	INVERTER
MaximumI(ol)	0.004 A	0.004 A	0.004 A
Number of functions	6	6	6
Number of entries	1	1	1
Number of terminals	14	20	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	QCCN	DIP
Encapsulate equivalent code	FL14,.3	LCC20,.35SQ	DIP14,.3
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	21 mA	21 mA	21 mA
Prop。Delay @ Nom-Sup	33 ns	33 ns	33 ns
propagation delay (tpd)	33 ns	33 ns	33 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	YES	YES	YES
Filter level	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B
Maximum seat height	2.032 mm	1.905 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	6.2865 mm	8.89 mm	7.62 mm
Base Number Matches	1	1	1
Maker	-	Fairchild	Fairchild
length	-	8.89 mm	19.43 mm
