LPS5015-132MRD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LPS5015-132MRD

LPS5015-132MRD: DescriptionGeneral Purpose Inductor, 1.3uH, 20%, 1 Element, Ferrite-Core, SMD, 1919, CHIP, 1919, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components inductor; File Size167KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

LPS5015-132MRD Overview

General Purpose Inductor, 1.3uH, 20%, 1 Element, Ferrite-Core, SMD, 1919, CHIP, 1919, HALOGEN FREE AND ROHS COMPLIANT

LPS5015-132MRD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	1919
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1919
structure	Shielded
core material	FERRITE
DC Resistance	0.065 Ω
Nominal inductance(L)	1.3 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	1.4 mm
Package length	4.93 mm
Package form	SMT
Package width	4.93 mm
method of packing	TR, 13 Inch
Maximum rated current	2.35 A
self resonant frequency	150 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

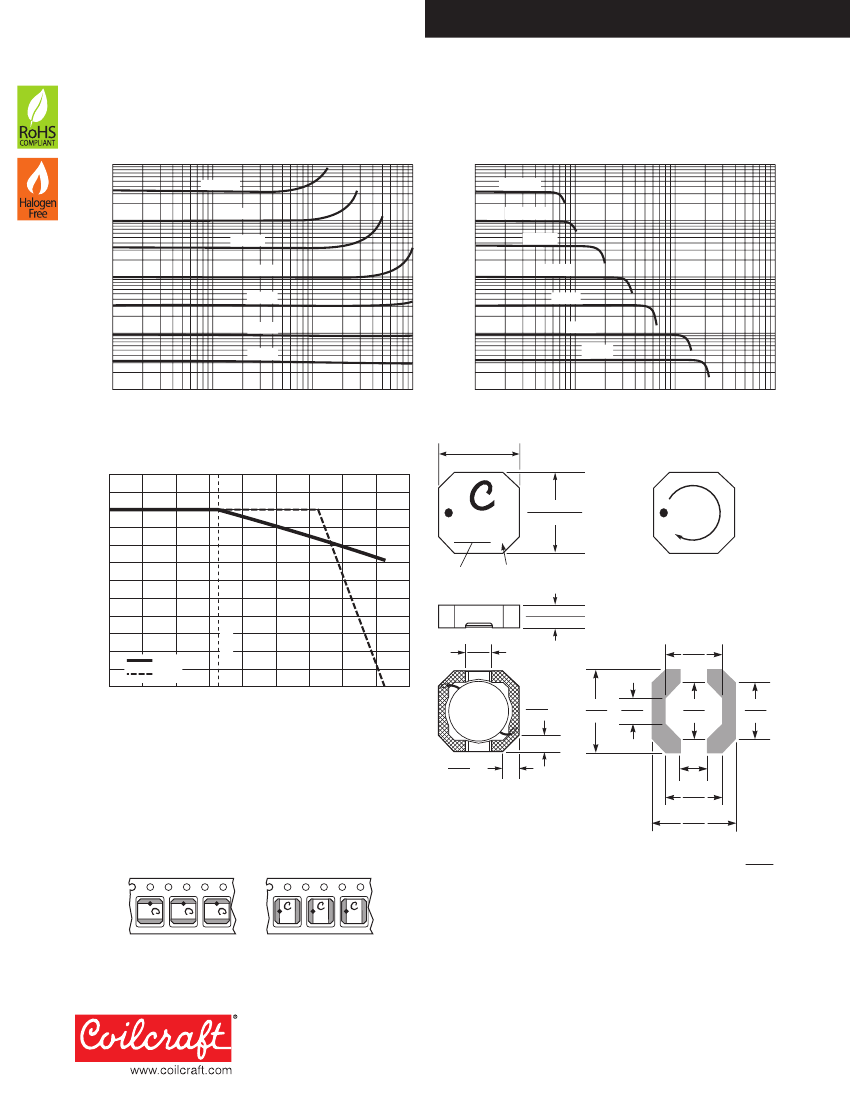

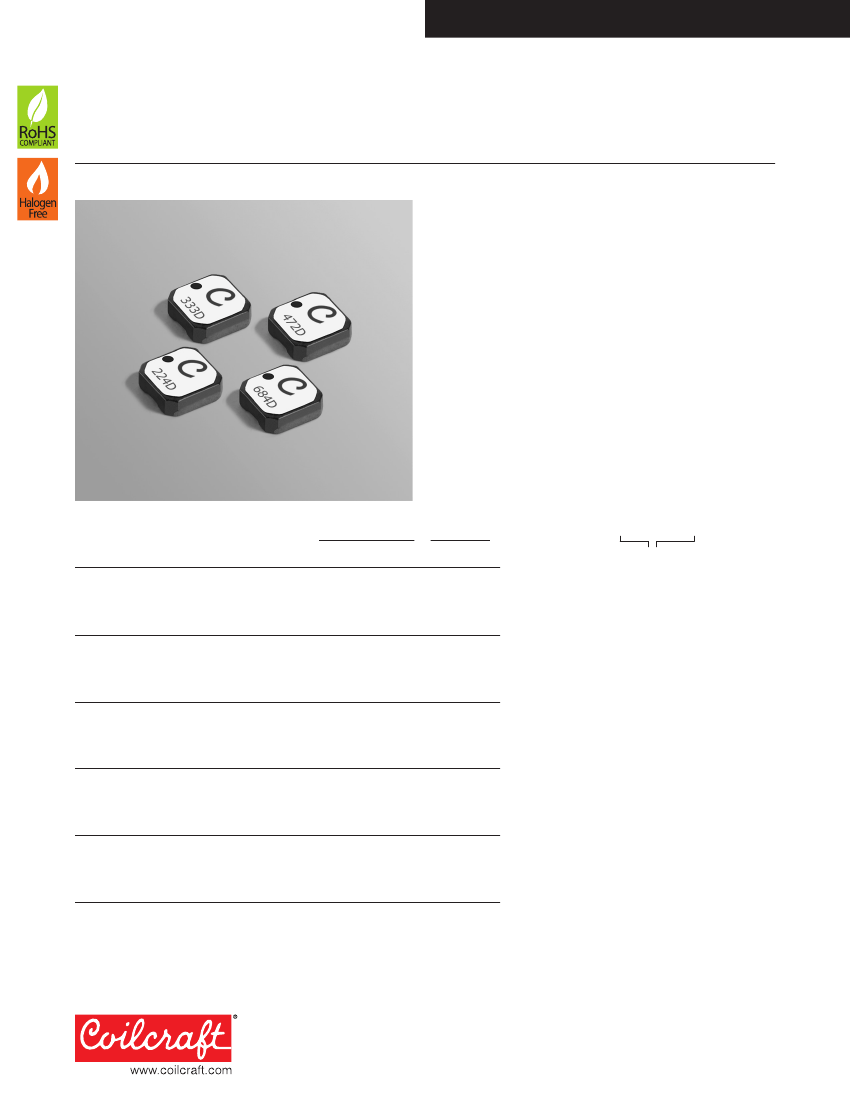

Document 585-1

Shielded Power Inductors – LPS5015

• Very low DCR; excellent current handling

• 5.0 × 5.0 mm footprint; less than 1.5 mm tall

Designer’s Kit C350

contains 3 each of all values

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Environmental

RoHS compliant, halogen free

Terminations

RoHS compliant matte tin over nickel over silver.

Other terminations available at additional cost.

Weight

102 – 107 mg

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide,

0.3 mm thick, 8 mm pocket spacing, 1.57 mm pocket depth

Recommended pick and place nozzle

OD: 5 mm; ID:

≤

2.5 mm

PCB washing

Tested with pure water or alcohol only. For other solvents,

see

Doc787_PCB_Washing.pdf.

Part number

Isat

(A)

DCR SRF

Inductance

max

typ

10% 20% 30%

±20% (µH) (Ohms) (MHz) drop drop drop

Irms

(A)

20°C 40°C

rise rise

1.90

1.70

1.50

1.40

1.30

1.20

1.10

0.90

0.85

0.80

0.75

0.73

0.70

0.60

0.50

0.45

0.40

0.35

0.30

0.27

0.25

0.22

0.17

0.16

0.14

0.13

0.10

0.090

0.085

0.065

2.65

2.35

2.15

2.00

1.80

1.62

1.45

1.25

1.05

0.95

0.84

0.83

0.82

0.70

0.57

0.52

0.47

0.42

0.37

0.33

0.29

0.22

0.21

0.190

0.175

0.150

0.140

0.130

0.090

1. Please specify

termination

and

packaging

codes:

LPS5015-225MRC

Termination: R

= RoHS compliant matte tin over nickel

over silver.

Special order, added cost:

= RoHS tin-silver-copper (95.5/4/0.5)

= non-RoHS tin-lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481

embossed plastic tape 1000 parts

per full reel).

= Less than full reel. In tape, but not

machine ready. To have a leader and

trailer added ($25 charge), use code

letter C instead.

= 13″ machine-ready reel. EIA-481

embossed plastic tape. Factory order

only, not stocked (3500 parts per full

reel).

2. Inductance tested at 100 kHz, 0.1 Vrms using an Agi-

lent/HP 4192A.

3. DCR measured on a micro-ohmmeter.

4. SRF measured using Agilent/HP 8753ES or equivalent.

5. DC current that causes the specified inductance drop

from its value without current.

6. Current that causes the specified temperature rise from

25°C ambient.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components”

before soldering.

LPS5015-102MR_

LPS5015-132MR_

LPS5015-182MR_

LPS5015-222MR_

LPS5015-332MR_

LPS5015-472MR_

LPS5015-562MR_

LPS5015-682MR_

LPS5015-822MR_

LPS5015-103MR_

LPS5015-123MR_

LPS5015-153MR_

LPS5015-183MR_

LPS5015-223MR_

LPS5015-333MR_

LPS5015-473MR_

LPS5015-563MR_

LPS5015-683MR_

LPS5015-104MR_

LPS5015-124MR_

LPS5015-154MR_

LPS5015-224MR_

LPS5015-334MR_

LPS5015-474MR_

LPS5015-564MR_

LPS5015-684MR_

LPS5015-105MR_

LPS5015-155MR_

LPS5015-185MR_

LPS5015-225MR_

1.0

1.3

1.8

2.2

3.3

4.7

5.6

6.8

8.2

100

120

150

220

330

470

560

680

1000

1500

1800

2200

0.050

0.065

0.075

0.090

0.125

0.150

0.175

0.225

0.280

0.300

0.350

0.360

0.550

0.675

0.750

1.00

1.13

1.45

1.95

2.50

3.40

4.50

7.40

7.50

8.50

10.6

15.0

25.0

28.0

36.0

183

150

128

116

9.3

7.3

5.7

4.9

4.3

4.0

3.2

2.5

2.2

2.1

3.6

2.5

2.6

2.4

1.9

1.6

1.3

1.2

1.0

0.80

0.75

0.70

0.55

0.46

0.40

0.33

0.30

0.25

0.23

0.20

0.15

0.12

0.10

0.080

0.078

0.072

3.8

2.6

2.8

2.6

2.0

1.7

1.6

1.4

1.3

1.1

0.84

0.77

0.73

0.59

0.48

0.43

0.38

0.33

0.28

0.25

0.21

0.17

0.12

0.11

0.090

0.086

0.083

0.078

3.9

2.8

2.9

2.7

2.0

1.8

1.6

1.5

1.4

1.3

1.2

0.86

0.80

0.75

0.60

0.49

0.45

0.39

0.34

0.30

0.26

0.22

0.18

0.13

0.12

0.11

0.093

0.088

0.086

0.080

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 585-1

Revised 08/01/13

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
