3-145427-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-145427-3

3-145427-3: Description520 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER; CategoryThe connector The connector; File Size511KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-145427-3 Overview

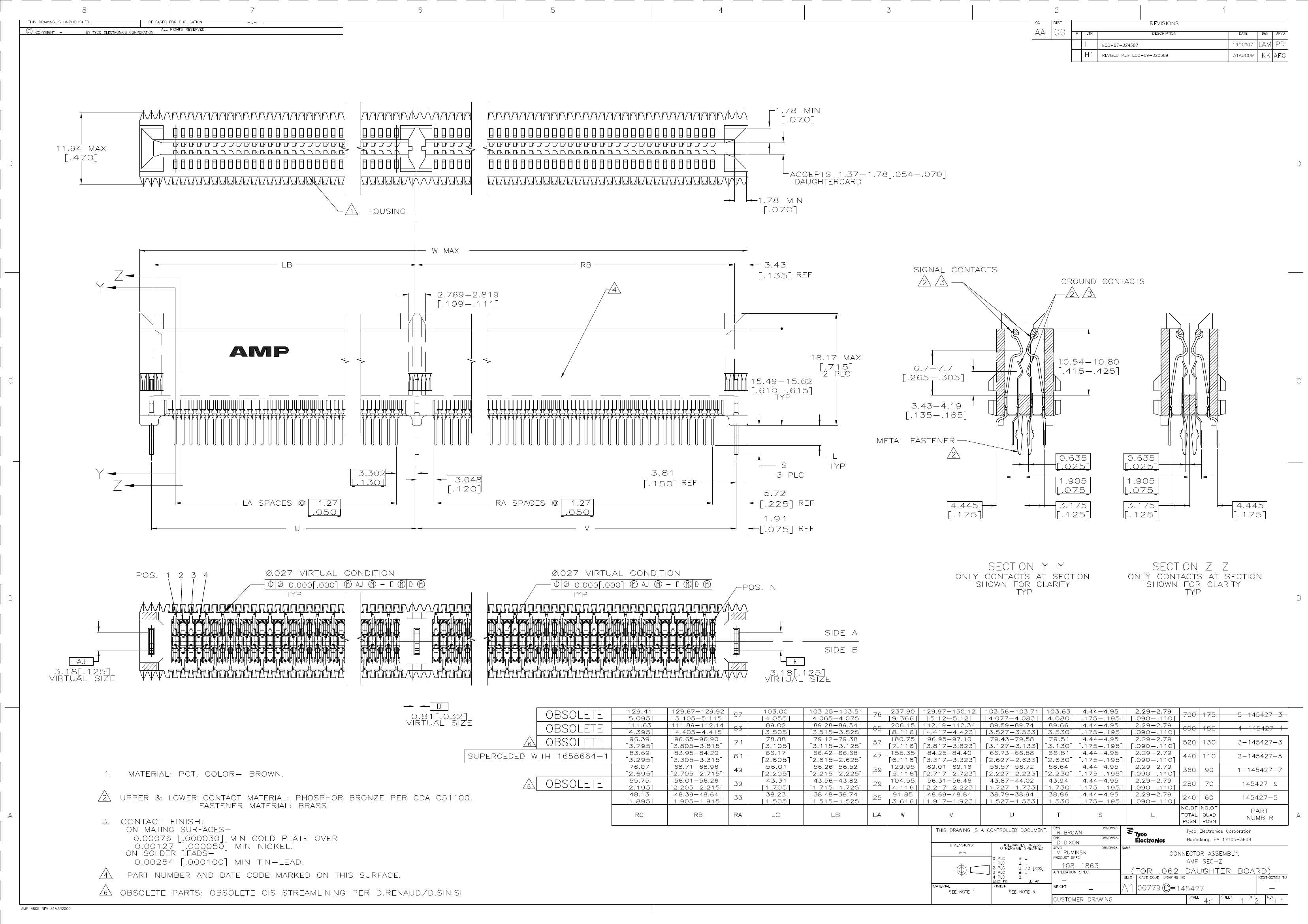

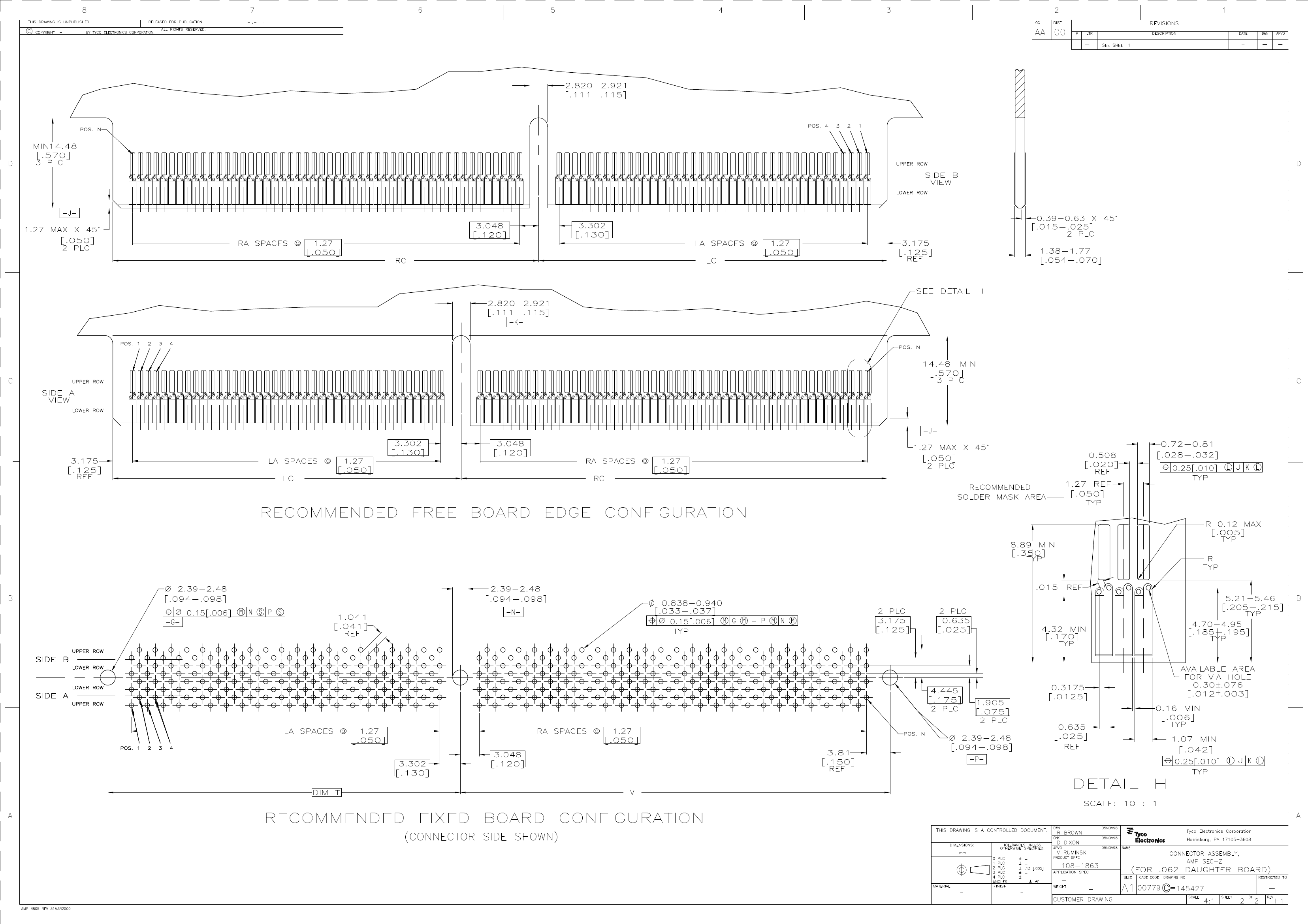

520 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER

3-145427-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	260 GROUND CONTACTS ALSO AVAILABLE
Board mount options	SPLIT BOARD LOCK
body width	0.47 inch
subject depth	0.715 inch
body length	7.116 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.39 N
Insulation resistance	1000000000 Ω
Insulator color	BROWN
insulator material	POLYCARBONATE
MIL compliance	NO
Manufacturer's serial number	145427
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	8
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	520
Base Number Matches	1

Preview

Download Datasheet

View All

3-145427-3 Related Products

	3-145427-3	145427-9	4-145427-1	RN732ALTE4122A05	5-145427-3
Description	520 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER	EDGE CONNECTOR,PCB MNT,RECEPT,280 CONTACTS,0.05 PITCH,PC TAIL TERMINAL	600 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER	Fixed Resistor, Thin Film, 0.1W, 41200ohm, 100V, 0.05% +/-Tol, 5ppm/Cel, Surface Mount, 0805, CHIP	700 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER
Reach Compliance Code	unknown	compli	unknown	not_compliant	unknown
Maximum operating temperature	85 °C	85 °C	85 °C	155 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Is it Rohs certified?	incompatible	incompatible	-	incompatible	-
ECCN code	EAR99	-	EAR99	EAR99	EAR99
Other features	260 GROUND CONTACTS ALSO AVAILABLE	1:1 SIGNAL-TO-GROUND RATIO	1:1 SIGNAL-TO-GROUND RATIO	-	1:1 SIGNAL-TO-GROUND RATIO
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	-	SPLIT BOARD LOCK
body width	0.47 inch	0.47 inch	0.47 inch	-	0.47 inch
subject depth	0.715 inch	0.715 inch	0.715 inch	-	0.715 inch
body length	7.116 inch	4.116 inch	8.116 inch	-	9.366 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	-	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	-	AU ON NI
Contact point gender	FEMALE	-	FEMALE	-	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	-	40 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	-	BELLOWED TYPE
DIN compliance	NO	-	NO	-	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	-	500VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	-	25 Cycles
Filter function	NO	-	NO	-	NO
IEC compliance	NO	-	NO	-	NO
maximum insertion force	1.39 N	1.39 N	1.39 N	-	1.39 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	1000000000 Ω
Insulator color	BROWN	BROWN	BROWN	-	BROWN
insulator material	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	-	POLYCARBONATE
MIL compliance	NO	-	NO	-	NO
Manufacturer's serial number	145427	145427	145427	-	145427
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	-	0.05 inch
Mixed contacts	NO	-	NO	-	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT
Installation type	BOARD	BOARD	BOARD	-	BOARD
Number of connectors	ONE	ONE	ONE	-	ONE
PCB row number	8	8	8	-	8
Number of rows loaded	2	4	2	-	2
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	-	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	-	STAGGERED
PCB contact row spacing	1.27 mm	1.27 mm	1.27 mm	-	1.27 mm
Plating thickness	30u inch	30u inch	30u inch	-	30u inch
Rated current (signal)	1 A	1 A	1 A	-	1 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Terminal length	0.09 inch	0.09 inch	0.09 inch	-	0.09 inch
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	-	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	-	SOLDER
Total number of contacts	520	280	600	-	700
Base Number Matches	1	1	1	-	1
