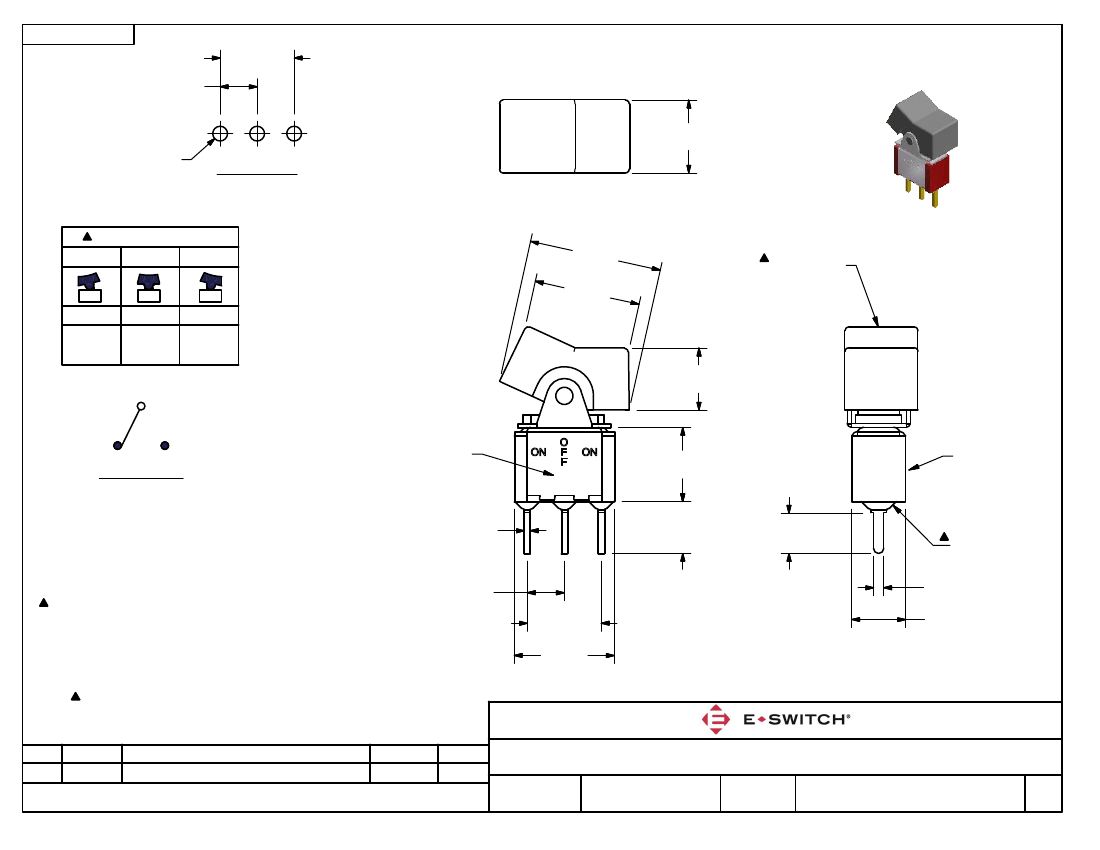

SHEET 1 OF 1
9.40
[.370 in]
4.70
[.185 in]
9.27
[.365 in]
P.C.B. LAYOUT
1.85
[.073 in]
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
16.9
[.66 i
n]
13.5
[.53 in
]
ACTUATOR
COLOR: GREY
ON
2-3
OFF
OPEN
ON
2-1
7.87
[.31 in]
2
1
3
RATINGS
CIRCUIT: SPDT
9.40
[.37 in]
E-SWITCH
MARKING
THIS SIDE
NOTES:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X = 0.4
X.XX = 0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. PLATING MATERIAL: GOLD
5. RATING: 0.4 VOLT-AMPS MAX. @20V MAX. AC OR DC
6. ELECTRIC LIFE: 40,000 make-and-break cycles
at full load.
7. INSULATION RESISTANCE: 1,000 M min.
8. DIELECTRIC STRENGTH: 1,000 V RMS @ sea level
9. OPERATING TEMP.: -30 C to 85 C
10.
DENOTES CRITICAL PARAMETER.
.76
[.030 in]
6.60
[.26 in]
1
2 3
5.10
[.20 in]
EPOXY SEAL
1.27
[.050 in]
4.70
[.185 in]
9.40
[.370 in]
12.70
[.50 in]
6.86
[.27 in]
A
REV
23784
PCR NO
RELEASE
DESCRIPTION
2/25/19
DATE
MW
BY
TITLE
SCALE
300SP3J1GRYM2RE
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
2:1
2/25/2019
MW
T311105
A
