309CNQ135 datasheet, PDF - EEWORLD Datasheet

309CNQ135: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 150A, 135V V(RRM), Silicon, PLASTIC, PRM4, 2 PIN; CategoryDiscrete semiconductor diode; File Size106KB，3 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric Compare View All

309CNQ135 Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 150A, 135V V(RRM), Silicon, PLASTIC, PRM4, 2 PIN

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	R-PUFM-X2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY, FREE WHEELING DIODE
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.71 V
JESD-30 code	R-PUFM-X2
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	1440 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	150 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	135 V
surface mount	NO
technology	SCHOTTKY
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

•

!" #

• " • $ % •

•

&'( )

% *

% ,

- %

- "

- %

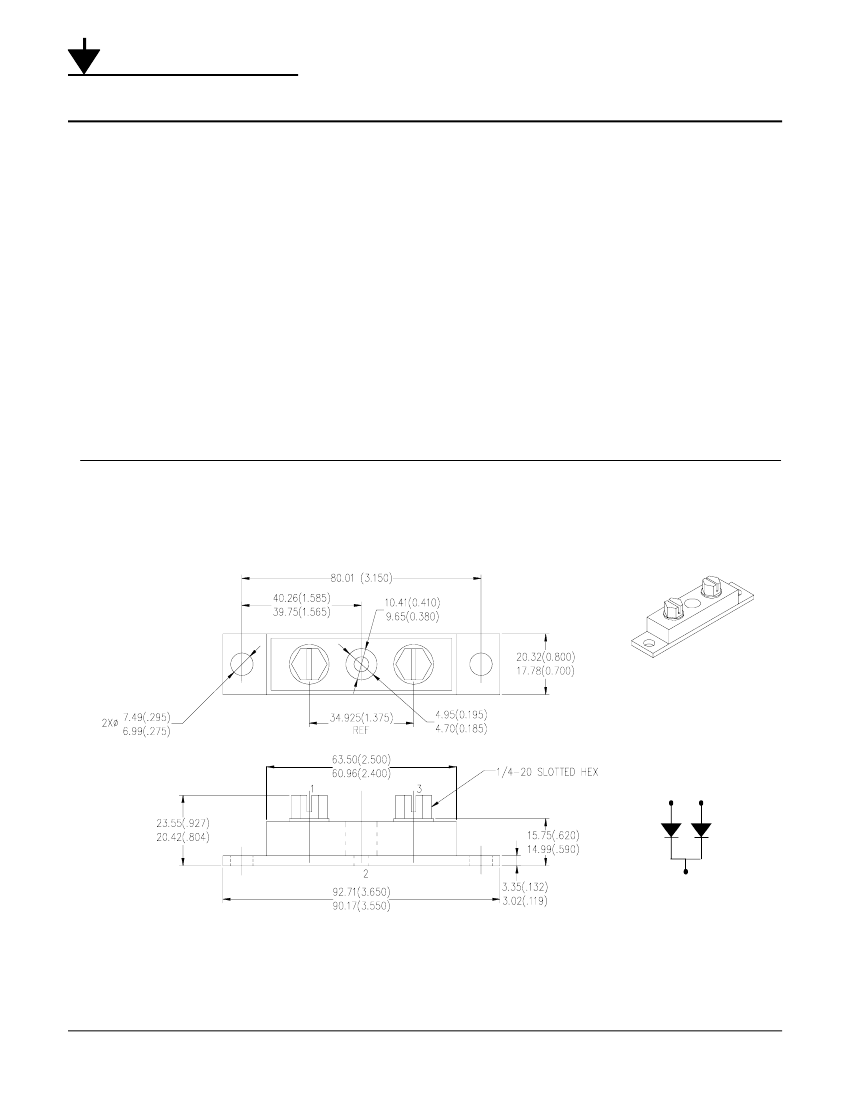

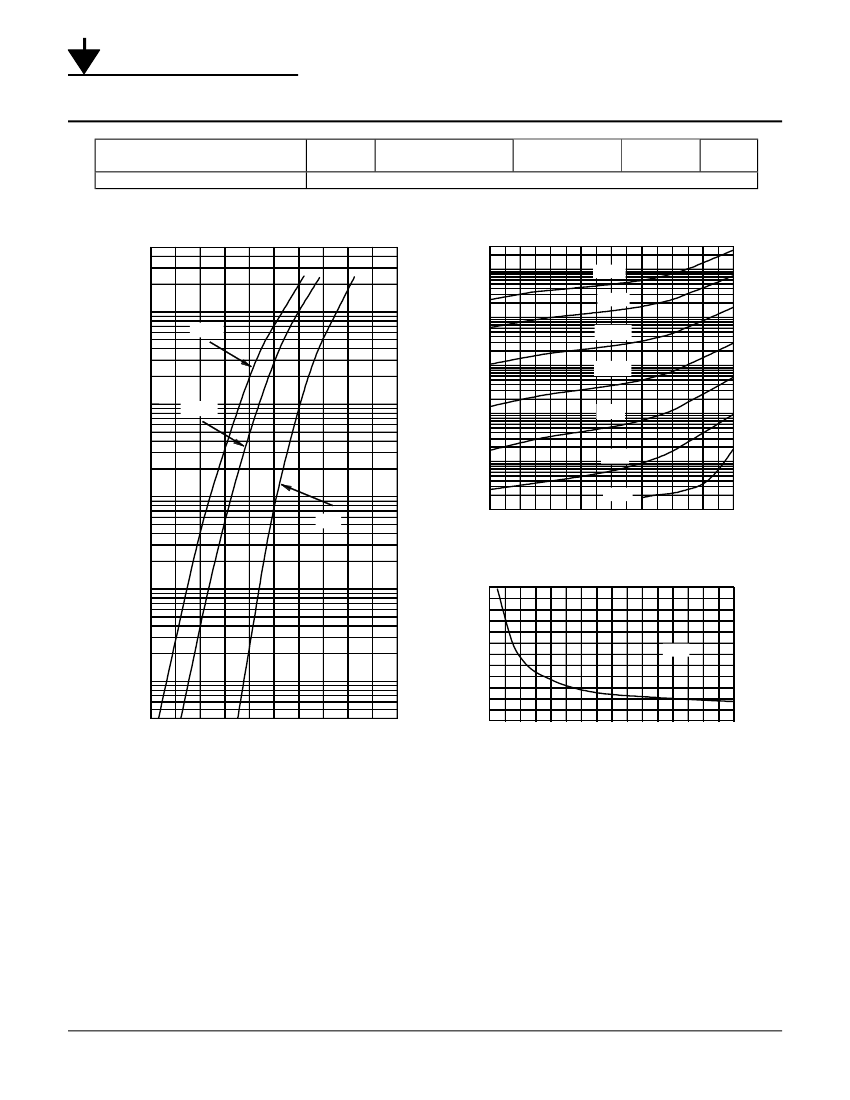

1 2 %%

•

!"#•

•

$ % &'%()*++,,,- %

-./•01%$"

$2 %

-./•

	309CNQ135	309CNQ150
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 150A, 135V V(RRM), Silicon, PLASTIC, PRM4, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 150A, 150V V(RRM), Silicon, PLASTIC, PRM4, 2 PIN
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
package instruction	R-PUFM-X2	R-PUFM-X2
Contacts	2	2
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	HIGH RELIABILITY, FREE WHEELING DIODE	HIGH RELIABILITY, FREE WHEELING DIODE
application	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.71 V	0.71 V
JESD-30 code	R-PUFM-X2	R-PUFM-X2
Humidity sensitivity level	1	1
Maximum non-repetitive peak forward current	1440 A	1440 A
Number of components	2	2
Phase	1	1
Number of terminals	2	2
Maximum operating temperature	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output current	150 A	150 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	135 V	150 V
surface mount	NO	NO
technology	SCHOTTKY	SCHOTTKY
Terminal form	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
