423-2ASUGC/S400-A6/TR1 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 423-2ASUGC/S400-A6/TR1

423-2ASUGC/S400-A6/TR1: DescriptionSingle Color LED, Super Green, Water Clear Diffused, T-1 3/4, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size173KB，8 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/

Download Datasheet Parametric Compare View All

423-2ASUGC/S400-A6/TR1 Overview

Single Color LED, Super Green, Water Clear Diffused, T-1 3/4, 5mm, ROHS COMPLIANT, PLASTIC PACKAGE-2

423-2ASUGC/S400-A6/TR1 Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	compliant
Other features	IC COMPATIBLE
color	SUPER GREEN
Configuration	SINGLE WITH BUILT-IN ZENER DIODE
Maximum forward current	0.03 A
Lens type	WATER CLEAR DIFFUSED
Nominal luminous intensity	565.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	6.7 mm
method of packing	TAPE AND REEL
peak wavelength	518 nm
shape	CYLINDRICAL
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	90 deg
Base Number Matches	1

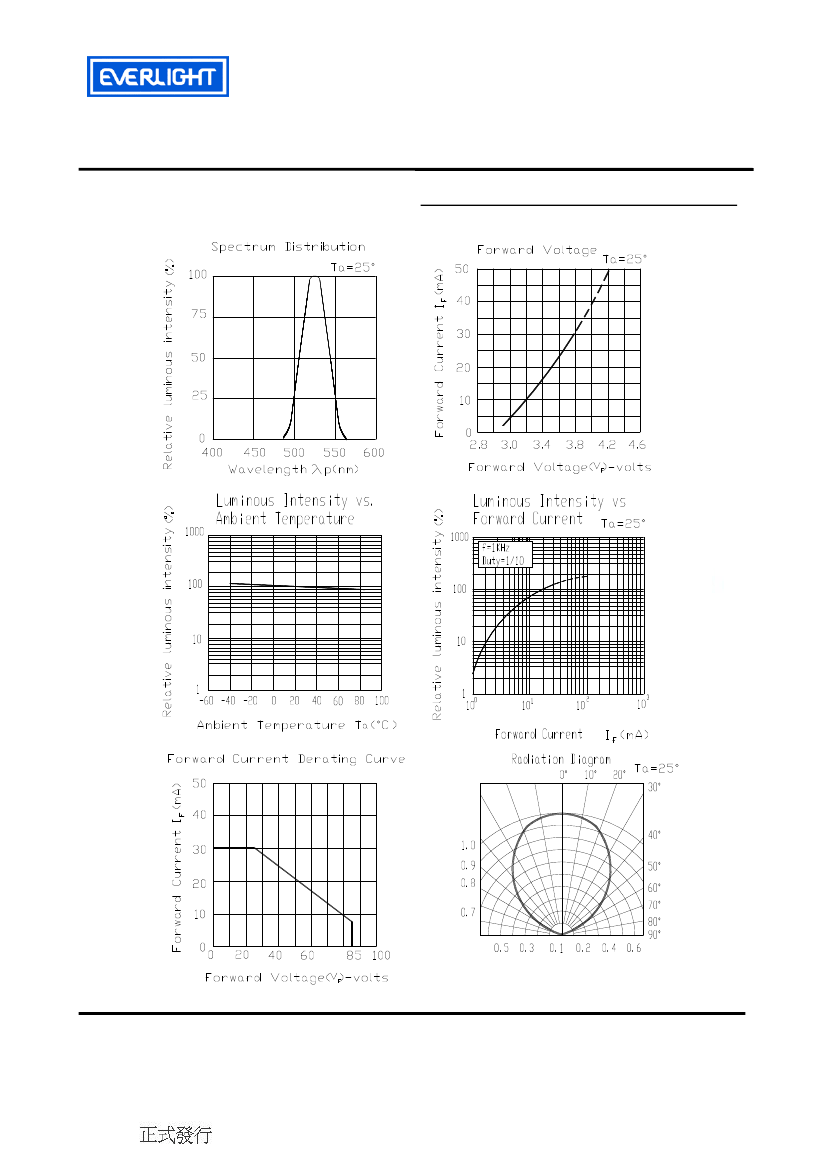

Preview

Download Datasheet

View All

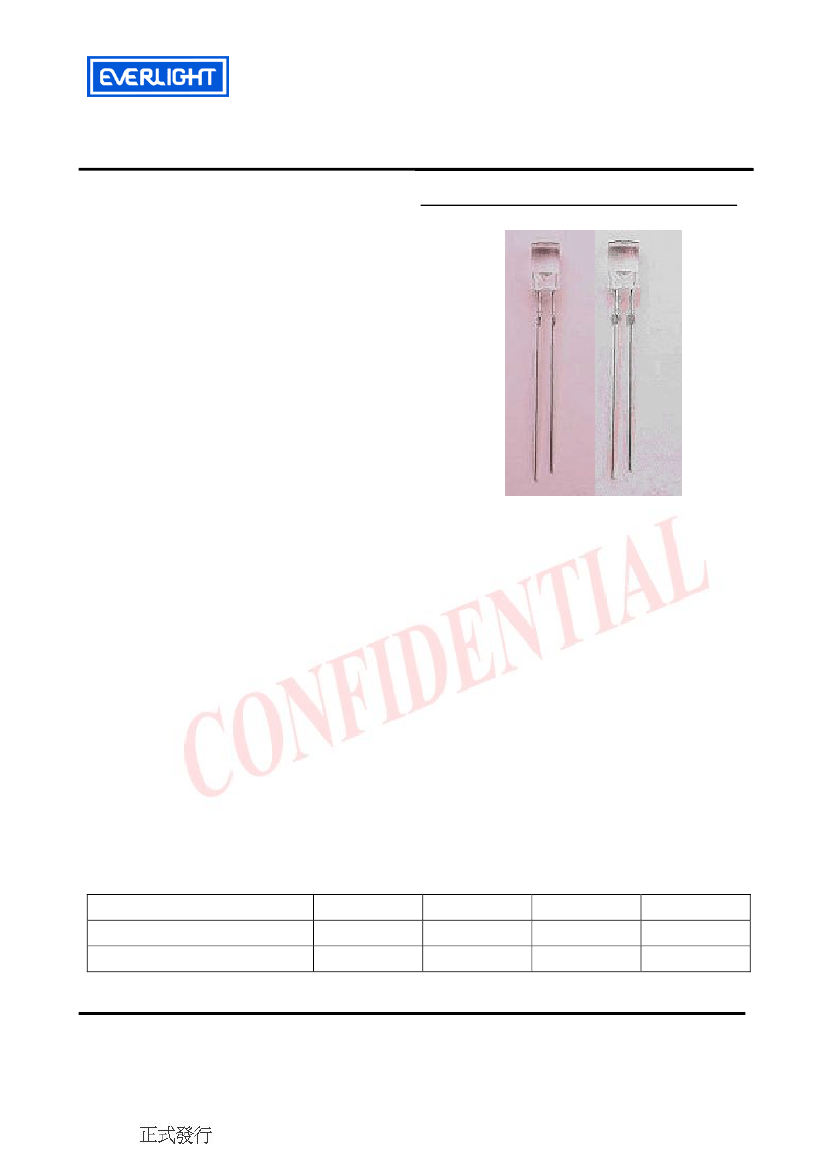

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet

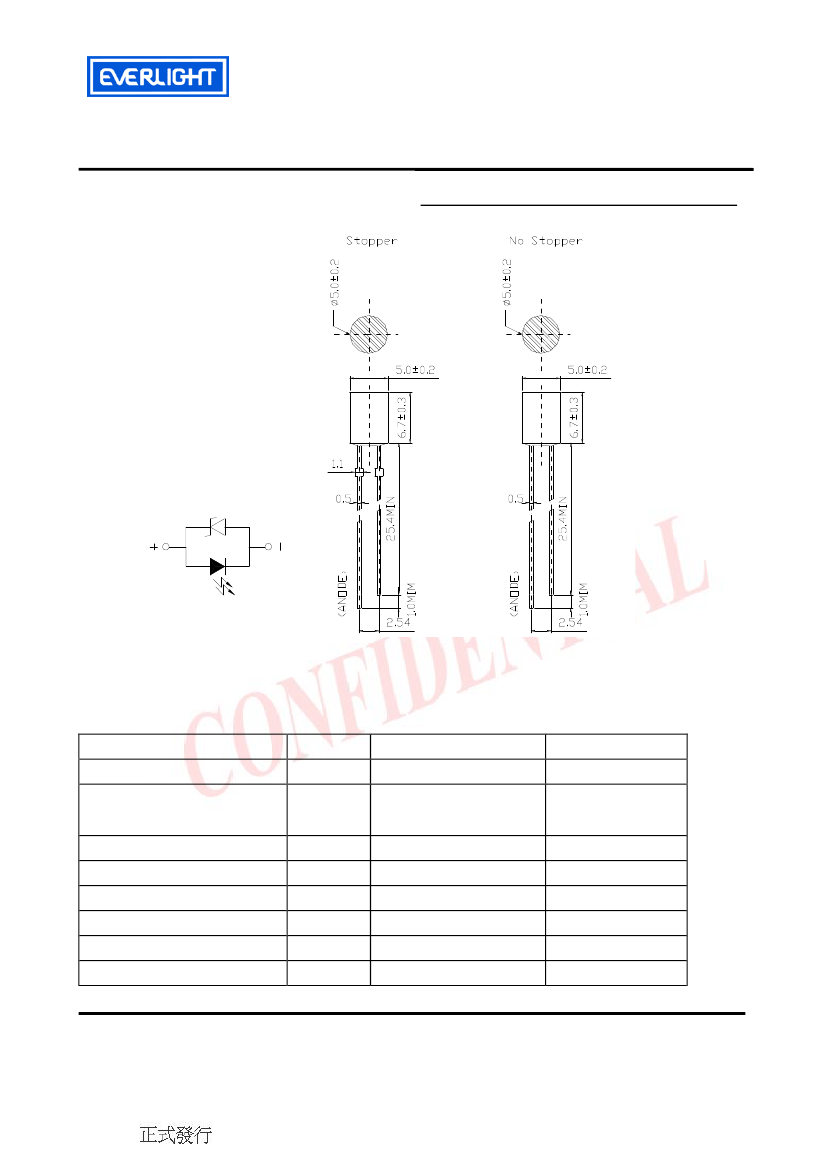

5 mm Cylindrical Shape

423-2ASUGC/S400-A6/X/TR1

Features

․Cylindrical

lens with white Diffused color .

․I.C

compatible.

˙Available

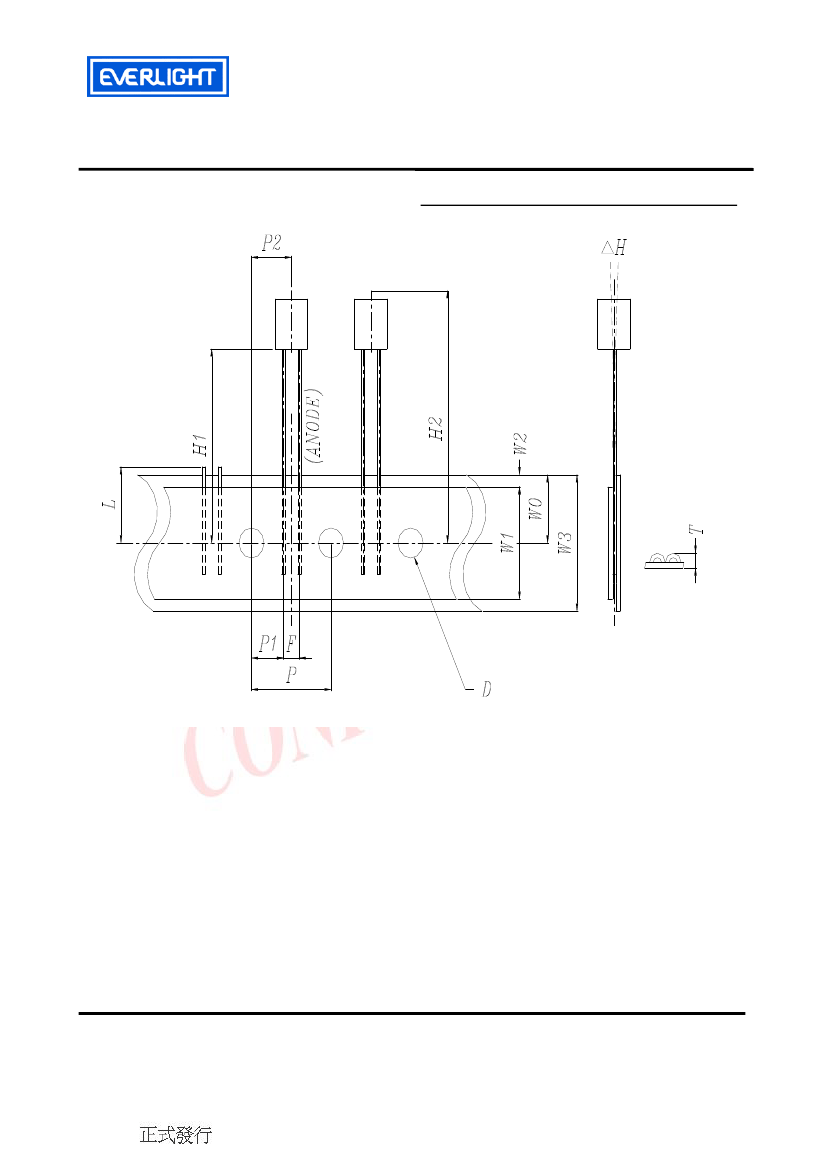

on tape and reel.

˙Reliable

and robust.

˙Pb

free.

˙ESD-withstand

voltage: up to 4K V

Descriptions

˙The

series is specially designed for

applications requiring higher

brightness

․The

LED lamps are available with

different colors, intensities, epoxy

colors, etc.

Applications

․TV

set

․Monitor

․Telephone

․Computer

Device Selection Guide

LED Part No.

423-2ASUGC/S400-A6/P

423-2ASUGC/S400-A6

Chip Material Emitted Color

InGaN/SiC

Super Green

Lens Color

Water Clear

Stopper

Yes

Everlight Electronics Co., Ltd.

Device Number : DT1-042-004

http\\:www.everlight.com

Prepared date: 03-01-2005

Rev 1.0

Page: 1 of 8

Prepared by: Grace Shen

Revision

Release Date:2008-09-20 00:15:59.0

Expired Period: Forever

LifecyclePhase:
