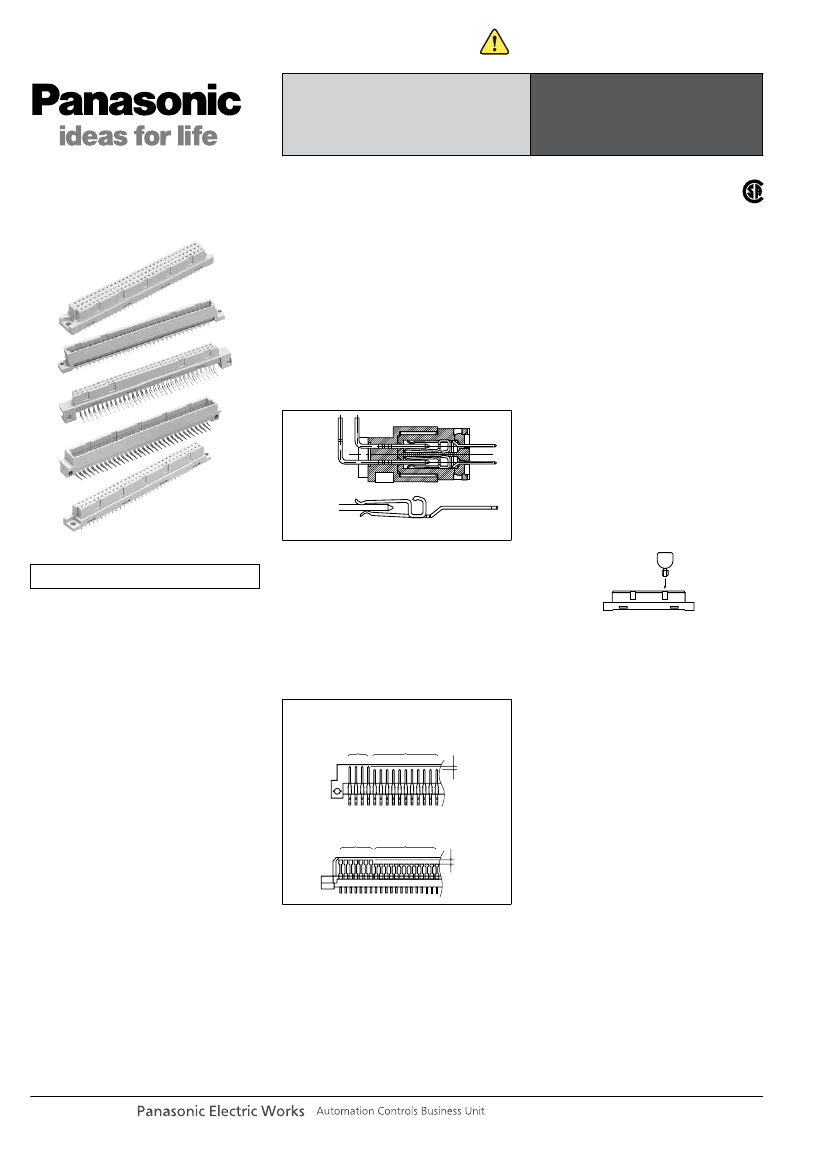

Discontinued as of September 30, 2010
DIN CONNECTORS (AXD)
CONNECTORS FOR PC
BOARD TO PC BOARD
DIN CONNECTORS
(AXD)
UL
(for B and C type)
DIN Connector conforming to DIN/IEC standards
FEATURES
1. 2 pieces connectors conforming to
DIN 41612 and IEC 603-2.
2. Clip contact with reliable
construction on both sides for highly
reliable contact.
1) Withstands vibration and shock.
2) Long insertion/removal life and
insertion/removal force is stable.
3) Construction able to withstand
unreasonable twisting when inserting and
removing.
Mating
diagram
Dual surface contacting construction
4. Plenty of products with improved
functions
The following types are available in
addition to ones with the time difference
contact function.
-Flux-tight type that prevents flux from
creeping up from the connector bottom
and terminals.
-Self-clinching bracket, PC board top
mounting type.
5. Constructed to prevent incorrect
insertion.
The construction is designed to prevent
reverse insertion of the connector
according to the DIN standard. We have
taken further measures with a dedicated
key that enables the easy prevention of
incorrect insertion of connectors with
identical poles.
Incorrect insertion prevention key
Compliance with RoHS Directive
3. Supports time difference contact
function.
1) ICs are protected from damage at
connection even if the PC board is
inserted or removed without power
connected during maintenance or
inspection. This simplifies circuit design.
2) Time difference contacts can be
arranged as desired.
3) Possible for either header or socket.
• Time difference contact function
Header
APPLICATIONS
PBX, Factory Automation Equipment
Connectors for industrial equipment
Time difference
contacts
Standard
contacts
1mm
Socket
Standard
contacts
Time difference
contacts
1.2mm
panasonic-electric-works.net/ac
Discontinued as of September 30, 2010
DIN CONNECTORS (AXD)
1
ORDERING INFORMATION
AXD
DIN connectors
1: Socket
2: Header
<No. of contacts (2 digits)>
20: 20 contacts 32: 32 contacts 44: 44 contacts
50: 50 contacts 64: 64 contacts 90: 90 contacts
96: 96 contacts 00: 100 contacts
<Type and contacts layout>
2: B type (2 rows terminal pitch: 2.54 mm)
3: C type (The middle row is removed terminal pitch: 5.08 mm)
4: C type (3 rows terminal pitch: 2.54 mm)
6: R type (The middle row is removed terminal pitch: 5.08 mm)
7: R type (3 rows terminal pitch: 2.54 mm)
8: Q type (2 rows terminal pitch: 2.54 mm)
<Terminal shape and product types>
PC board
Self-clinching
Flux
Terminal
No.
mountig form
bracket
resistant
shape
0
Not available
Not available
2 PC board top
Available
5 mounting type
Not available
DIP terminal
Available
7
Available
PC board edge
1
Not available Not available
mounting type
<Surface treatment (Contact portion/Terminal portion>
1: Au plating/Sn plating
SPECIFICATIONS
1. Characteristics
Item
Rated current
Rated voltage
Breakdown voltage
Insulation resistance
Contact resistance
Composite insetion force
Mechanical
characteristics
Lifetime
characteristics
Environmental
characteristics
Unit removal force
Post holding force
Insertion and removal life
Ambient temperature
Soldering temperature
resistance
Specifications
2A
300V AC
1,000 V AC for 1 min.
Min. 1,000MΩ
Max. 20mΩ
Max. 0.843N {86gf}
×
no. of contact
Min. 0.15N {15.3gf}
Min. 19.6N {2kgf} (header side)
1,000 times
–55°C to +125°C
260°C: within 10 sec.
300°C: within 5 sec.
350°C: within 3 sec.
At less than 85% R.H. (No freezing at low temperature)
Measured by steel gauge with 0.56(t)×0.8(W)mm and
smoothness 0.1s.
Conditions
Electrical
characteristics
Detection current: 1mA
at 500V DC megger
Measured based on the HP4338B measurement method of
JIS C 5402.
2. Material and surface treatment
Part name
Molded portion
Socket contact
Header post
Material
Glass reinforced PBT
(UL94V-0)
Copper alloy
Brass
Surface
—
Contact portion: Ni plating on base, Au plating on surface
Terminal portion: Ni plating on base, Sn plating on surface
Contact portion: Ni plating on base, Au plating on surface
Terminal portion: Ni plating on base, Sn plating on surface
3. Applicable PC board
PC board
thickness
B, C type socket
Q, R type header
B, C type header
Q, R type socket
1.6 to 2.4mm
1.6mm
Note) Please consult us for different plating requirements.
panasonic-electric-works.net/ac
Connectors for industrial equipment
DIN CONNECTORS (AXD)

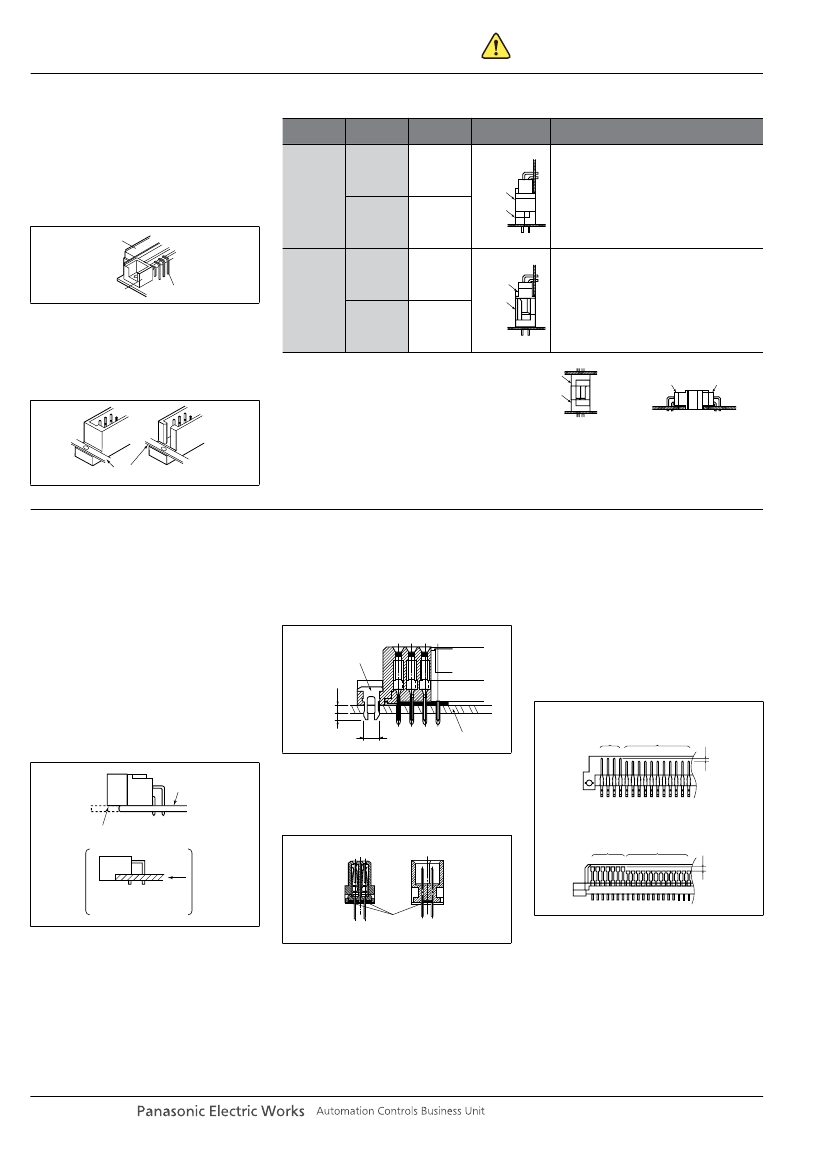

INTRODUCTION OF OTHER TYPES
1. FEATURES OF REVERSE TYPE DIN
CONNECTOR
New series of reverse types popular in
the U.S.A.
1) Shock resistant socket construction
Integrated construction of the flange and
housing prevent damage to the terminals
from shock.
Body
Discontinued as of September 30, 2010
Standard type and reverse type
Types
Header/
socket
Terminal
shape
Form
Header
Standard
type
Socket
Angle
Srandard
header
Standard
socket
The contacts of the socket mounted on the
mother board (power supply side) are covered
to prevent electrical shock and entry of foreign
matter.
Straight
Header
Flange
Contact
Straight
2) Box-shaped header provides excellent
electrical performance
Box-shaped headers feature long
insulation distance between the
connector and mounting panel and low
capacitance.
Reverse
type
Socket
Angle
Reverse
socket
Reverse
header
1. Reduction of total cost
Since the cost of the header is low, it is more
economical to use the header for mother
boards which require multiple pins for
expansion.
2. Matches the designer's requirements for
maximum simplicity in the mother board design.
The header and socket for the standard
type and reverse type fit each other,
this permits the connections shown in
the figure on the right.
Standard
socket
Reverse
header
Srandard
header
Reverse
socket
Stacking connection
OPEN type
Former product
Horizontal connection
BOX type
Mounting panel
Connectors for industrial equipment
2. FEATURES AND CONSTRUCTION OF DIN CONNECTOR WITH HIGHER FUNCTION
2) Self-clinching brackets
DIN connector enhancement products
(with temporary function)
which support user circuit designs and
• Prevents the connector from shifting
solve problems that occur during
due to vibration and shock.
connector mounting.
• Uses the same mounting hole as the
• PC board top mounting type
mounting screw.
• Self-clinching bracket (with temporary
fastening function)
mm
• Flux resistant construction
Self-clinching bracket
• Time difference contacts
1) PC board top mounting type
• Prevents the entry of flux during
automatic soldering.
1.6
1.4
• Large position tolerance when mounting
PC board
the connector to the PC board permits
2.8±0.05 dia. PC board
mounting hole
the use of automatic mounting.
3) Flux resistant construction
The terminals are sealed with resin to
PC board
prevent seepage of flux through the
terminals or entry of flux from the bottom
of the connector.
Snap off at the notches
after soldering
4) Time difference contacts
• ICs are protected from damage at
connection even if the PC board is
inserted or removed without power
connected during maintenance or
inspection. This simplifies circuit design.
• A contact time difference of 1mm for
headers and 1.2mm for sockets is
obrained.
• Time difference contacts can be
arranged as desired.
Header
Time difference
contacts
Standard
contacts
1mm
Socket
Standard
contacts
Time difference
contacts
1.2mm
Cross section
PC board edge
mounting type
(DIN connector)
Socket
Sealed
Header
with
resin
panasonic-electric-works.net/ac
Discontinued as of September 30, 2010
DIN CONNECTORS (AXD)
Socket
Header
Reverse types
Q type
2 rows
100
R type
3 rows
96
90
64
(The middle row
is removed)
Standard types
B type
2 rows
100
C type
3 rows
96
64
(The middle row
is removed)
Q type
2 rows
100
Reverse types
R type
3 rows
96
64
(The middle row
is removed)
PRODUCT TABLE
Type
Standard types
B type
2 rows
100
90
No. of contacts
64
50
44
32
20
Terminal shape
PC board top mounting
type
Self-clinching bracket
(temporary fastening)
Flux-resistant
construction
Time difference
contacts
64
(The middle row
is removed)
64
50
32
C type
3 rows
96
64
50
44
32
20
64
50
32
Higher functional
products availability
—
Available
Available
Available
—
Available
Available
Available
Available
Available
—
—
Available
Available
—
—
Available
Available
—
Available
Available
Available
—
Available
—
Available
Available
Available
—
Available
Available
Available
PRODUCT TYPES (STANDARD)
1) B type (standard 2 rows)
Shape
Socket
Header
2) C type (standard 3 rows)
Shape
Socket
Header
No. of contacts
20
32
44
50
64
90
100
Solder-dip
straight terminals
Part No.
AXD120201
AXD132201
AXD144201
AXD150201
AXD164201
AXD190201
AXD100201
Solder-dip
angle terminals
Part No.
AXD220211
AXD232211
AXD244211
AXD250211
AXD264211
AXD290211
AXD200211
No. of contacts
64
(The middle row is
removed)
96
Solder-dip
straight terminals
Part No.
AXD164301
AXD196401
Solder-dip
angle terminals
Part No.
AXD264311
AXD296411
Notes: 1. All are tray packaged. Packing quantity for outer carton is 200 pcs.
2. For the available foreign standard products, refer to “STANDARDS
CHART” on the end of the catalog.
Notes: 1. All are tray packaged. Packing quantity for outer carton is 200 pcs.
2. For the available foreign standard products, refer to “STANDARDS
CHART” on the end of the catalog.
PRODUCT TYPES (REVERSE)
1) Q type (reverse 2 rows)
Shape
Socket
Header
2) R type (reverse 3 rows)
Shape
Socket
Header
No. of contacts
32
50
64
100
Solder-dip
angle terminals
Part No.
AXD132811
AXD150811
AXD164811
AXD100811
Solder-dip
straight terminals
Part No.
AXD232801
AXD250801
AXD264801
AXD200801
No. of contacts
64
(The middle row is
removed)
96
Solder-dip
angle terminals
Part No.
AXD164611
AXD196711
Solder-dip
straight terminals
Part No.
AXD264601
AXD296701
Notes: 1. All are tray packaged. Packing quantity for outer carton is 200 pcs.
2. Adopting box shape, Q types differ from DIN international standards
(open shape) on the mounting spacing.
Note: All are tray packaged. Packing quantity for outer carton is 200 pcs.
panasonic-electric-works.net/ac
Connectors for industrial equipment
DIN CONNECTORS (AXD)
PRODUCT TYPE (HIGHER FUNCTIONAL products)
1. Top mounting types
1) B type (standard 2 rows)
Shape
Header
Discontinued as of September 30, 2010
2) C type (standard 3 rows)
Shape
Header
No. of contacts
20
32
44
50
64
90
100
Solder-dip angle terminals
Part No.
AXD220201
AXD232201
AXD244201
AXD250201
AXD264201
AXD290201
AXD200201
No. of contacts
64
(The middle row is
removed)
96
Solder-dip angle terminals
Part No.
AXD264301
AXD296401
3) Q type (reverse 2 rows)
Shape
Socket
4) R type (reverse 3 rows)
Shape
Socket
Solder-dip angle terminals
No. of contacts
32
50
64
100
Part No.
AXD132801
AXD150801
AXD164801
AXD100801
No. of contacts
64
(The middle row is
removed)
96
Solder-dip angle terminals
Part No.
AXD164601
AXD196701
Notes: 1. All are tray packaged. Packing quantity for outer carton is 200 pcs.
2. For the available foreign standard products, refer to “STANDARDS
CHART” on the end of the catalog.
2. Type with self-clinching bracket
1) B type (standard 2 rows)
Shape
Socket
Header
2) C type (standard 3 rows)
Shape
Socket
Header
No. of contacts
20
32
44
50
64
90
100
Connectors for industrial equipment
Solder-dip
straight terminals
Part No.
AXD120251
AXD132251
AXD144251
AXD150251
AXD164251
AXD190251
AXD100251
(PC board top mounting type)
Solder-dip
angle terminals
Part No.
AXD220251
AXD232251
AXD244251
AXD250251
AXD264251
AXD290251
AXD200251
No. of contacts
64
(The middle row is
removed)
96
Solder-dip
straight terminals
Part No.
AXD164351
AXD196451
(PC board top mounting type)
Solder-dip
angle terminals
Part No.
AXD264351
AXD296451
3) Q type (reverse 2 rows)
Shape
Socket
Header
4) R type (reverse 3 rows)
Shape
Socket
Header
No. of contacts
32
50
64
100
(PC board top mounting type)
Solder-dip
angle terminals
Part No.
AXD132851
AXD150851
AXD164851
AXD100851
Solder-dip
straight terminals
Part No.
AXD232851
AXD250851
AXD264851
AXD200851
No. of contacts
64
(The middle row is
removed)
96
(PC board top mounting type)
Solder-dip
angle terminals
Part No.
AXD164651
AXD196751
Solder-dip
straight terminals
Part No.
AXD264651
AXD296751
Notes: 1. All are tray packaged. Packing quantity for outer carton is 200 pcs.
2. For the available foreign standard products, refer to “STANDARDS
CHART” on the end of the catalog.
panasonic-electric-works.net/ac
京公网安备 11010802033920号
EEWORLD
