DM54L72W datasheet, PDF - EEWORLD Datasheet

DM54L72W: DescriptionJ-K Flip-Flop, 1-Func, Master-slave Triggered, TTL, CDFP14,; Categorylogic logic; File Size198KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

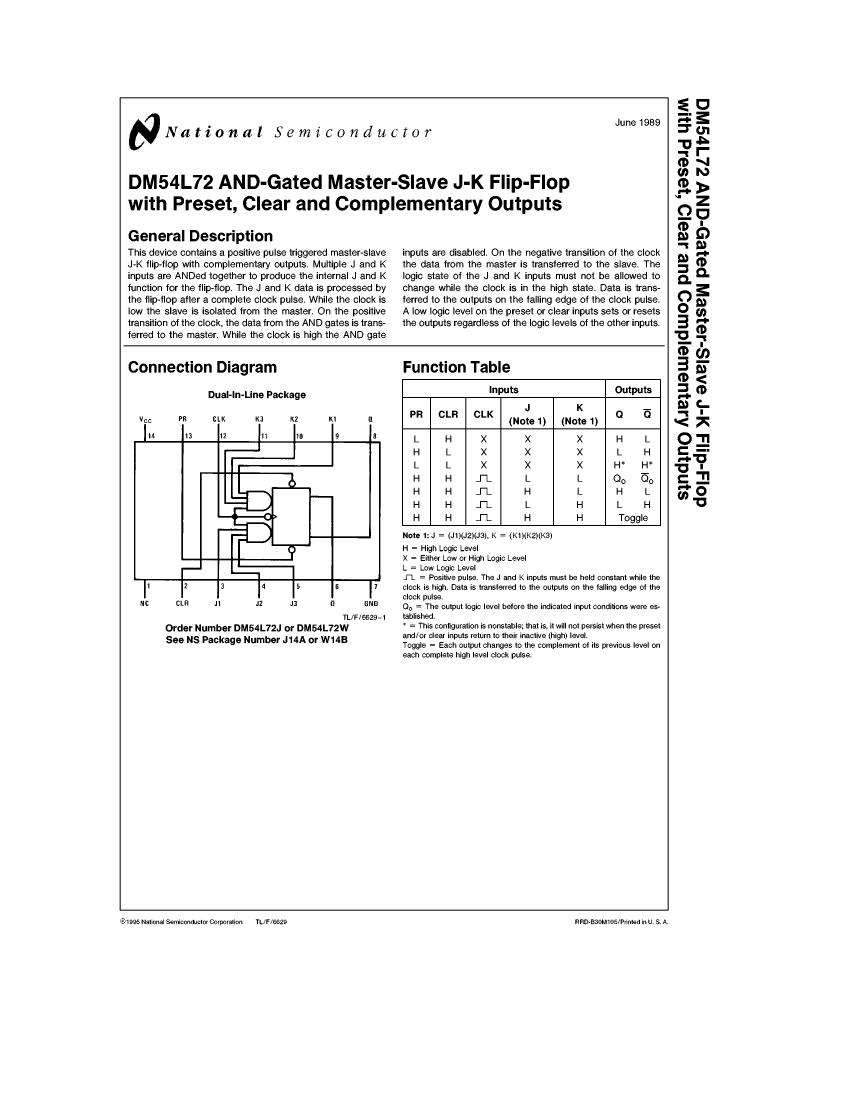

DM54L72W Overview

J-K Flip-Flop, 1-Func, Master-slave Triggered, TTL, CDFP14,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DFP, FL14,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDFP-F14
JESD-609 code	e0
Logic integrated circuit type	J-K FLIP-FLOP
Maximum Frequency@Nom-Sup	6000000 Hz
MaximumI(ol)	0.002 A
Number of functions	1
Number of terminals	14

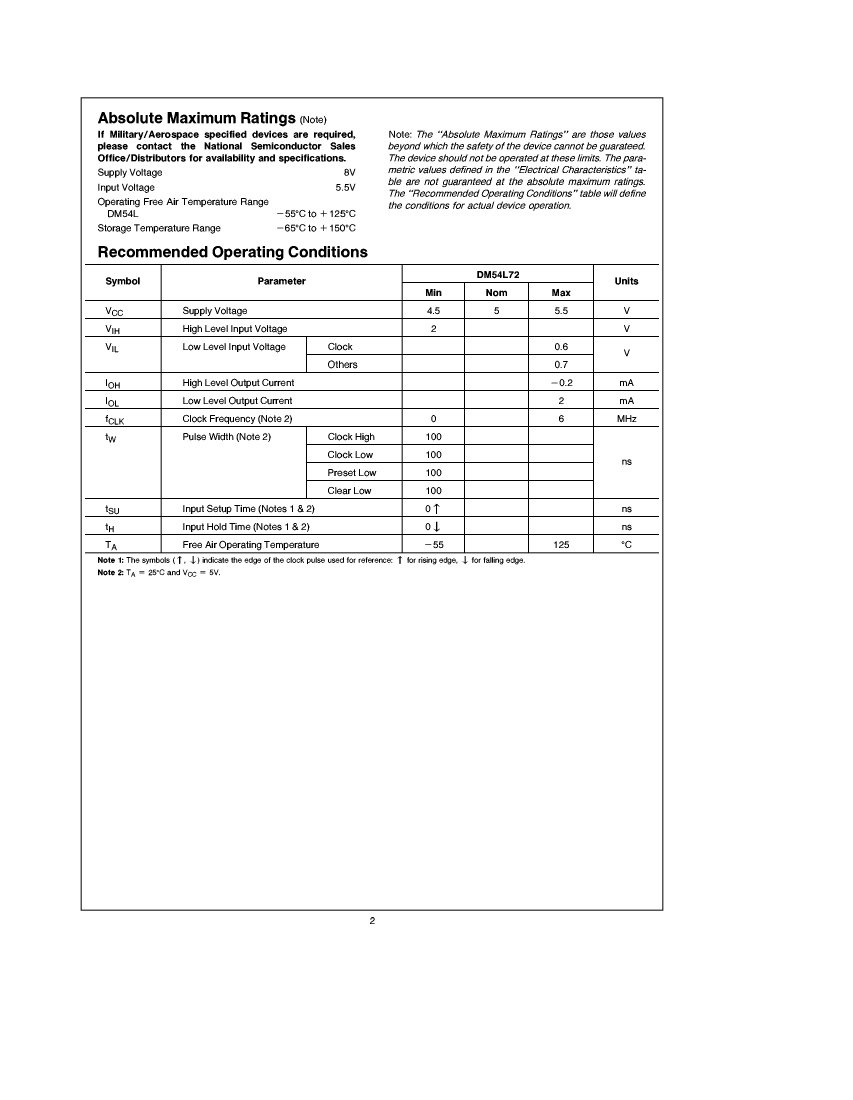

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

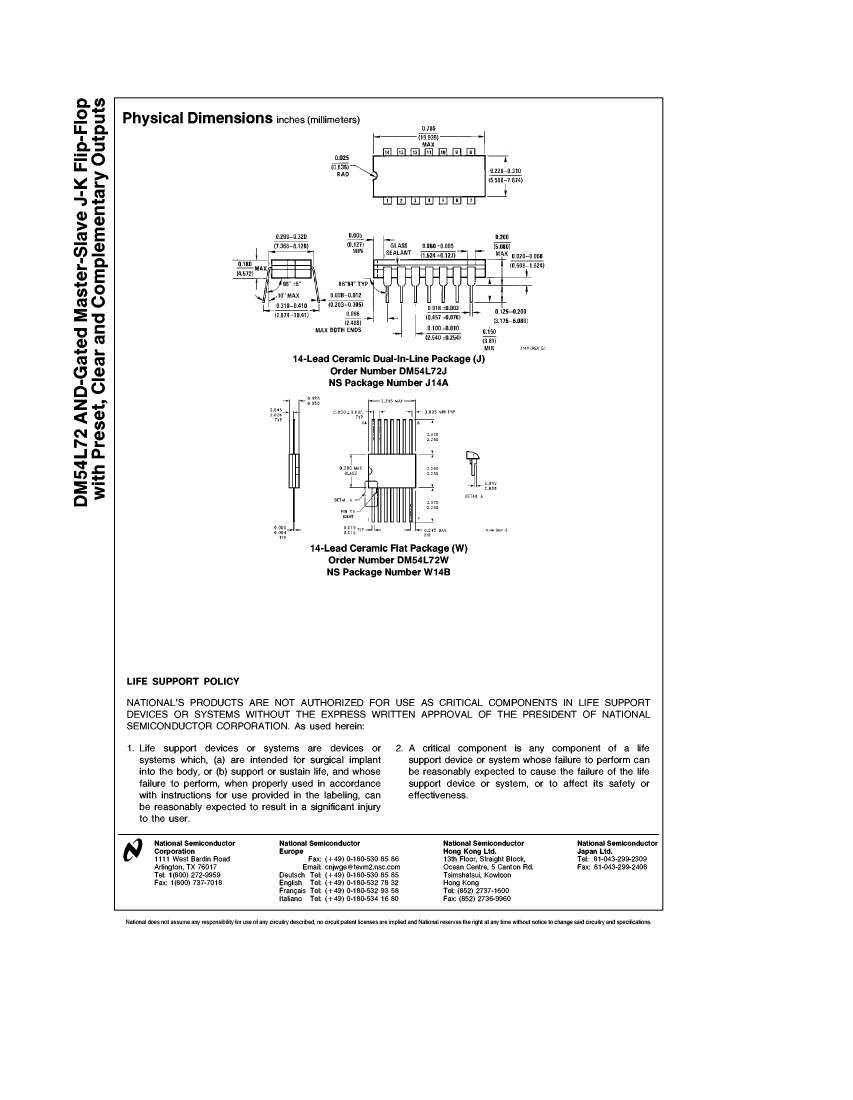

Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V

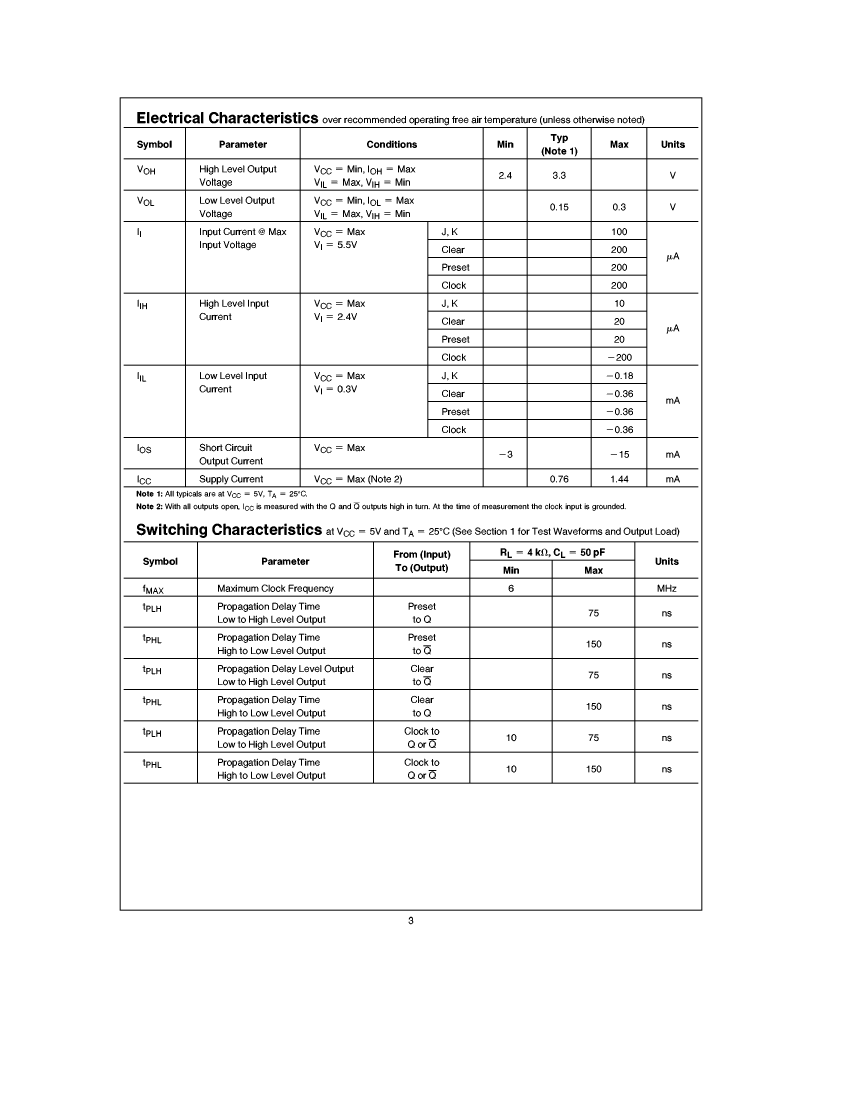

Maximum supply current (ICC)	1.44 mA
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	MASTER-SLAVE
Base Number Matches	1

	DM54L72W	DM54L72J
Description	J-K Flip-Flop, 1-Func, Master-slave Triggered, TTL, CDFP14,	J-K Flip-Flop, 1-Func, Master-slave Triggered, TTL, CDIP14,
Is it Rohs certified?	incompatible	incompatible
Maker	Fairchild	Fairchild
package instruction	DFP, FL14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown
JESD-30 code	R-XDFP-F14	R-XDIP-T14
JESD-609 code	e0	e0
Logic integrated circuit type	J-K FLIP-FLOP	J-K FLIP-FLOP
Maximum Frequency@Nom-Sup	6000000 Hz	6000000 Hz
MaximumI(ol)	0.002 A	0.002 A
Number of functions	1	1
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC
encapsulated code	DFP	DIP
Encapsulate equivalent code	FL14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
power supply	5 V	5 V
Maximum supply current (ICC)	1.44 mA	1.44 mA
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Trigger type	MASTER-SLAVE	MASTER-SLAVE
Base Number Matches	1	1
