BC035-58-C-0200-0300-L-E datasheet, PDF

Datasheet> All Categories > The connector> The connector> BC035-58-C-0200-0300-L-E

BC035-58-C-0200-0300-L-E: DescriptionBoard Connector, 58 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BC035-58-C-0200-0300-L-E Overview

Board Connector, 58 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle,

BC035-58-C-0200-0300-L-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.091 inch
subject depth	0.047 inch
body length	1.142 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	BC035
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	.9906 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	58
Base Number Matches	1

Preview

Download Datasheet

View All

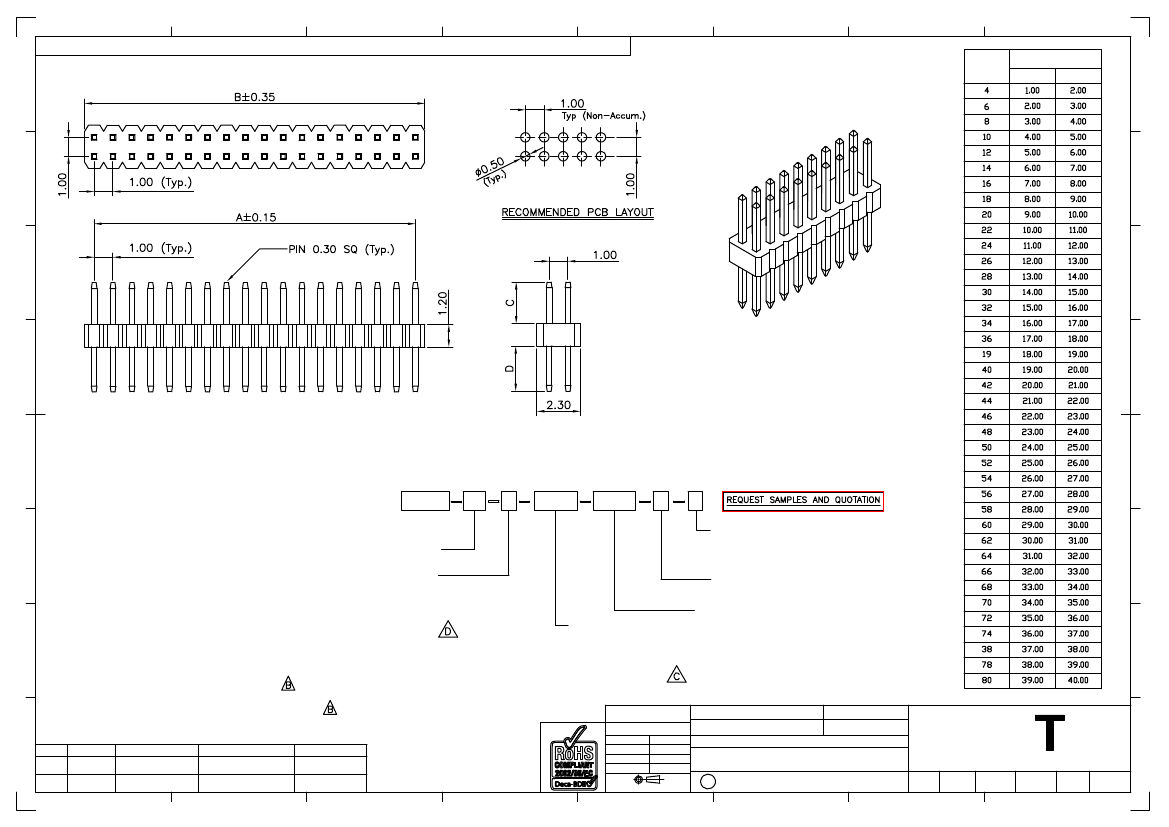

Global Connector Technology Ltd. - BC035: 1.0mm PITCH PIN HEADER, DUAL ROW, THROUGH HOLE, VERTICAL

DIMENSIONS

CONTACTS

Ordering Grid

BC035

SPECIFICATIONS

规格

No. of Contacts

04 to 80

XXXX

Packing Options

G = Plastic Box (Standard)

D = Tube

E = Tube with Cap

Insulator Material

L = LCP (Standard)

Dimension D (1/100mm)

(Tail Length)

Standard - 3.00mm = 0300

or specify Dimension D

e.g. 2.50mm = 0250

Tol +/- 0.2mm

CURRENT RATING

电流额定值：

1 AMP

Contact Plating

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MEGOHMS MIN.

A = Gold Flash All Over

DIELECTRIC WITHSTANDING

耐电压：

AC 300 V

C = Tin All Over

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

Standard = Gold Flash All Over

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BC084

BC085

DETAIL

REV

DATE

ASE

DRAWING

RELEASE

20/05/08

AMENDMENT TO

PLATING OPTIONS

21/12/09

AMENDMENT TO

CHANGE TO SOLDER

TEMP. INFORMATION STANDARD DIMENSIONS

08/12/09

23/07/09

Dimension C (1/100mm)

(Post Height)

Standard - 2.00mm = 0200

Standard - 3.80mm = 0380

or specify Dimension C

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°± 5°

.X°± 3°

X.X ± 0.25

X.XX ± 0.15

.XX°± 2°

X.XXX ± 0.10 .XXX°± 1°

X. ± 0.30

Third Angle Projection

BC035

Description:-

20 MAY 08

1.0mm PITCH PIN HEADER, DUAL ROW,

THROUGH HOLE, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

ASE

E & OE

Sheet No.

1/1
