3-67797-3 datasheet, PDF - EEWORLD Datasheet

3-67797-3: DescriptionEDGE CONNECTOR,PCB MNT,RECEPT,44 CONTACTS,0.156 PITCH,WRAP POST TERMINAL; CategoryThe connector The connector; File Size162KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

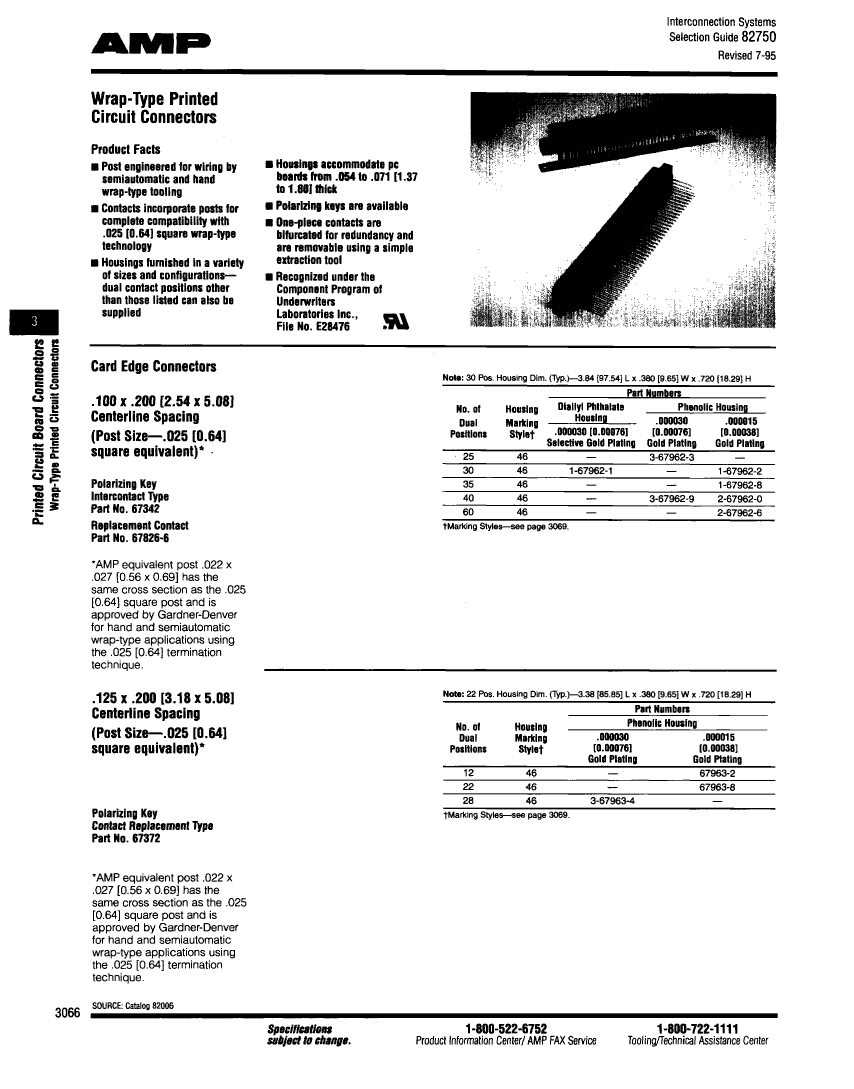

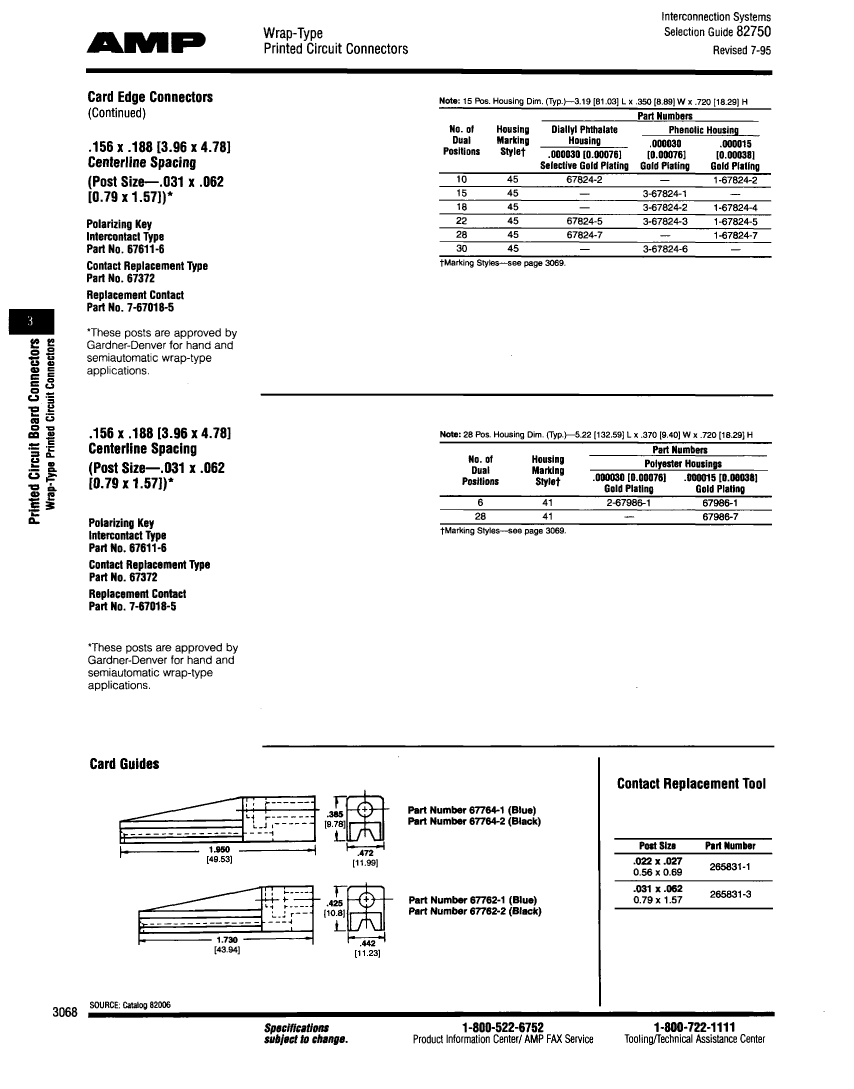

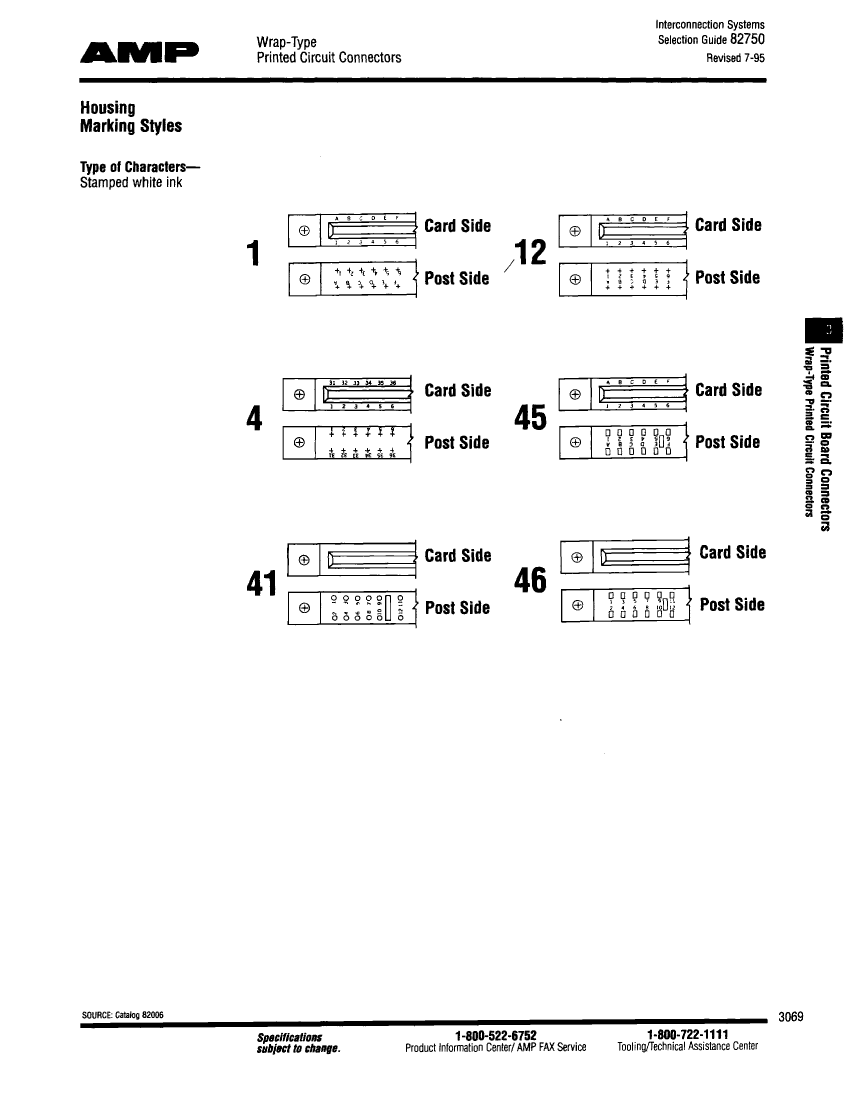

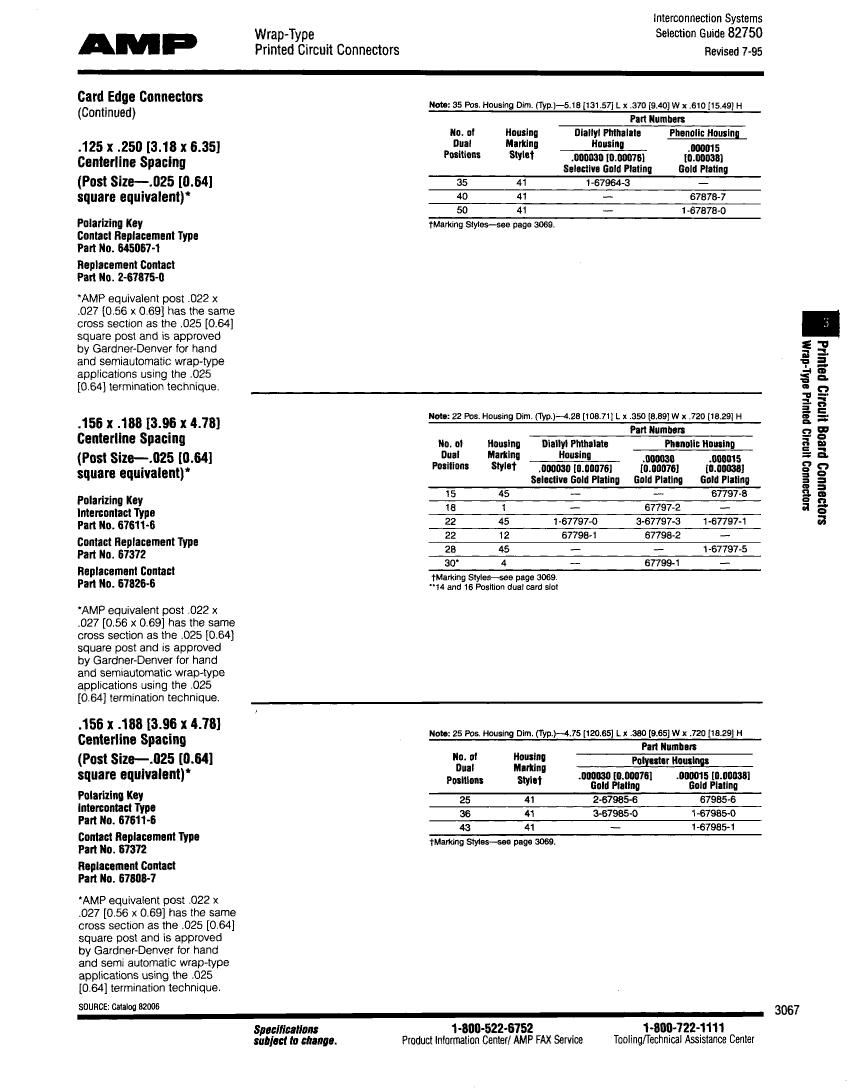

3-67797-3 Overview

EDGE CONNECTOR,PCB MNT,RECEPT,44 CONTACTS,0.156 PITCH,WRAP POST TERMINAL

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	WITH POLARIZING KEY
Board mount options	HOLE .125-.137
body width	0.35 inch
subject depth	0.72 inch
body length	4.28 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
maximum insertion force	4.448 N
Insulator color	BLACK
insulator material	PHENOLIC
Manufacturer's serial number	67797
Plug contact pitch	0.156 inch
Match contact row spacing	0.188 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.7752 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.58 inch
Terminal pitch	3.9624 mm
Termination type	WIRE WRAP
Total number of contacts	44
Evacuation force-minimum value	.278 N
Base Number Matches	1
