BT-M814RD datasheet, PDF - EEWORLD Datasheet

BT-M814RD: DescriptionSmart/Normal 7 Seg Numeric LED Display, High Efficiency Red/orange, 20.32mm, TD-12, 12 PIN; CategoryLED optoelectronic/LED photoelectric; File Size102KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BT-M814RD Overview

Smart/Normal 7 Seg Numeric LED Display, High Efficiency Red/orange, 20.32mm, TD-12, 12 PIN

Parameter Name	Attribute value
package instruction	TD-12, 12 PIN
Reach Compliance Code	unknow
color	HIGH EFFICIENCY RED/ORANGE
Configuration	COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT
Display height	20.32 mm
Maximum forward current	0.03 A
Number of functions	3
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

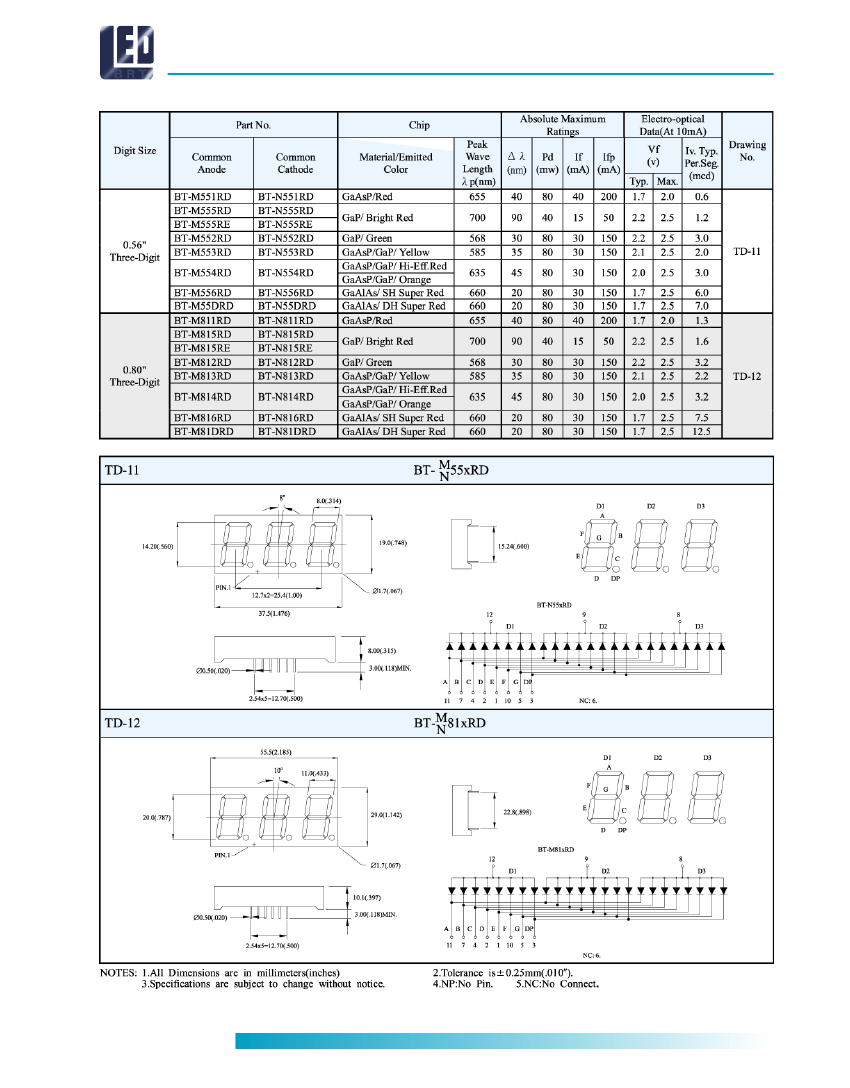

Three Digit LED Displays

B T-M/N Series

7-segment

AMERICAN BRIGHT

w w w. a m e r i c a n b r i g h t l e d . c o m

155

	BT-M814RD	BT-M811RD	BT-M813RD	BT-M555RE
Description	Smart/Normal 7 Seg Numeric LED Display, High Efficiency Red/orange, 20.32mm, TD-12, 12 PIN	Smart/Normal 7 Seg Numeric LED Display, Red, 20.32mm, TD-12, 12 PIN	Smart/Normal 7 Seg Numeric LED Display, Yellow, 20.32mm, TD-12, 12 PIN	Smart/Normal 7 Seg Numeric LED Display, Bright Red, 14.224mm, TD-11, 12 PIN
package instruction	TD-12, 12 PIN	TD-12, 12 PIN	TD-12, 12 PIN	TD-11, 12 PIN
Reach Compliance Code	unknow	unknown	unknown	unknown
color	HIGH EFFICIENCY RED/ORANGE	RED	YELLOW	BRIGHT RED
Configuration	COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT
Display height	20.32 mm	20.32 mm	20.32 mm	14.224 mm
Maximum forward current	0.03 A	0.04 A	0.03 A	0.015 A
Number of functions	3	3	3	3
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1	1	1	-
Maker	-	BRIGHT	BRIGHT	BRIGHT
