Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 3202-NM

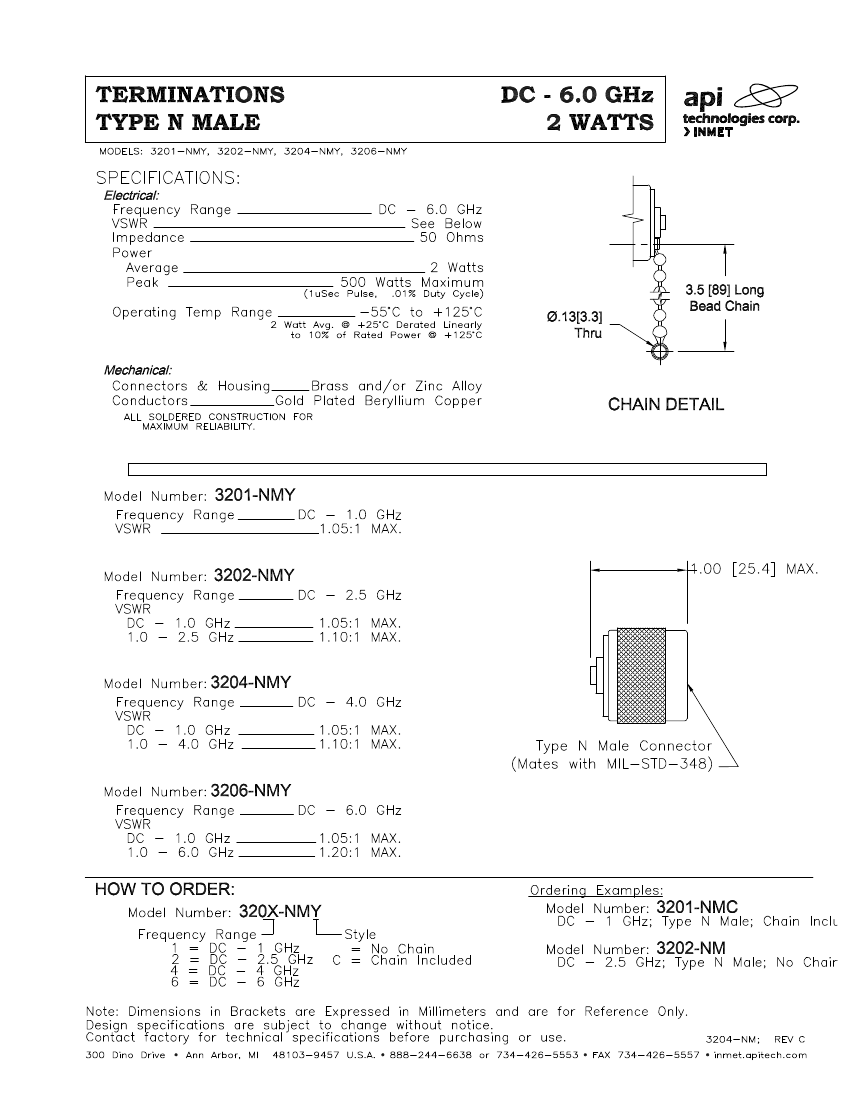

Preview

3202-NM: DescriptionRF/Microwave Termination, 0MHz Min, 2500MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size182KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

3202-NM Overview

RF/Microwave Termination, 0MHz Min, 2500MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

3202-NM Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT PACKAGE
Reach Compliance Code	compliant
Other features	N-M
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	2500 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.1
Base Number Matches	1

Preview

Download Datasheet

View All

3202-NM Related Products

	3202-NM	3201-NM	3202-NMC	3204-NM	3201-NMC	3204-NMC	3206-NM
Description	RF/Microwave Termination, 0MHz Min, 2500MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 1000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 2500MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 1000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 6000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	N-M	N-M	N-M	N-M	N-M	N-M	N-M
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
Maximum operating frequency	2500 MHz	1000 MHz	2500 MHz	4000 MHz	1000 MHz	4000 MHz	6000 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION
Terminal surface	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Maximum voltage standing wave ratio	1.1	1.05	1.1	1.1	1.05	1.1	1.2
Base Number Matches	1	1	1	1	1	1	1
