SK36B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SK36B

SK36B: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 60V V(RRM), Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size163KB，2 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

SK36B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SK36B	-	-	View	Buy Now

SK36B Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 60V V(RRM), Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN

SK36B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
Parts packaging code	DO-214AA
package instruction	ROHS COMPLIANT, PLASTIC, SMB, 2 PIN
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	LOW POWER LOSS
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Maximum non-repetitive peak forward current	70 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	60 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	TIN
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

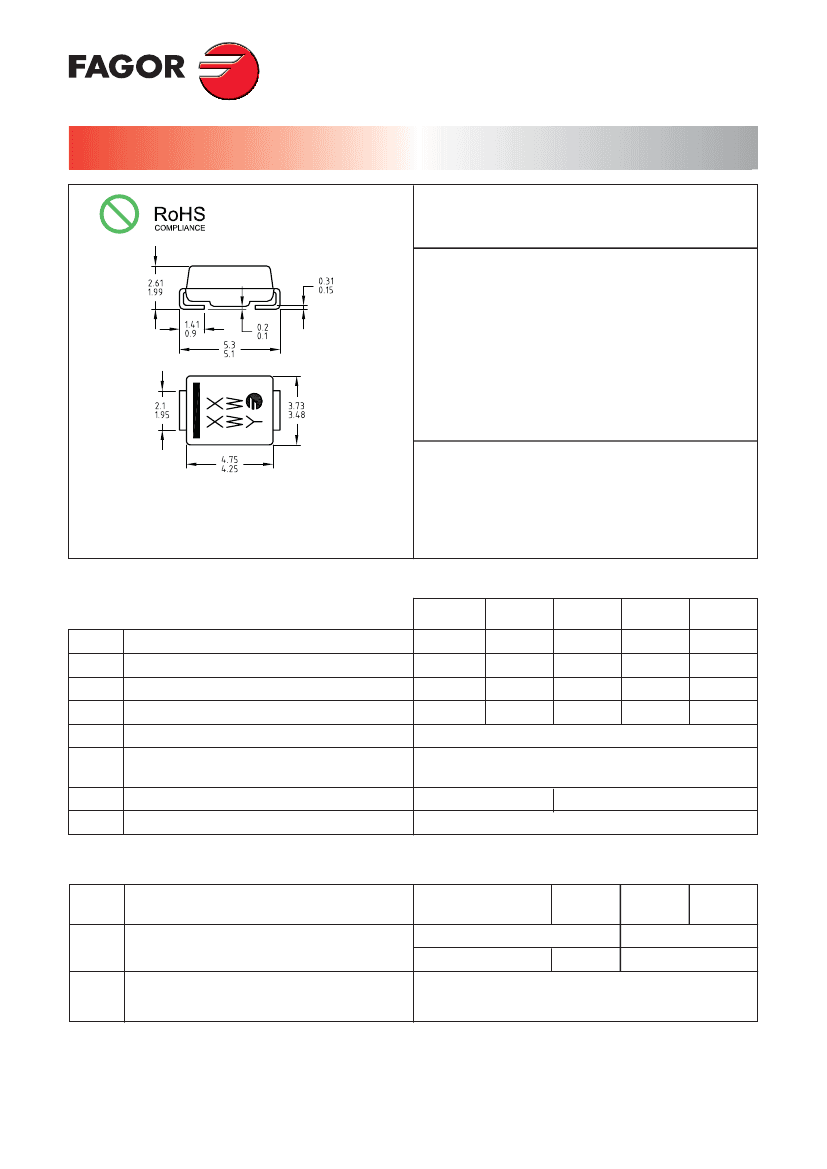

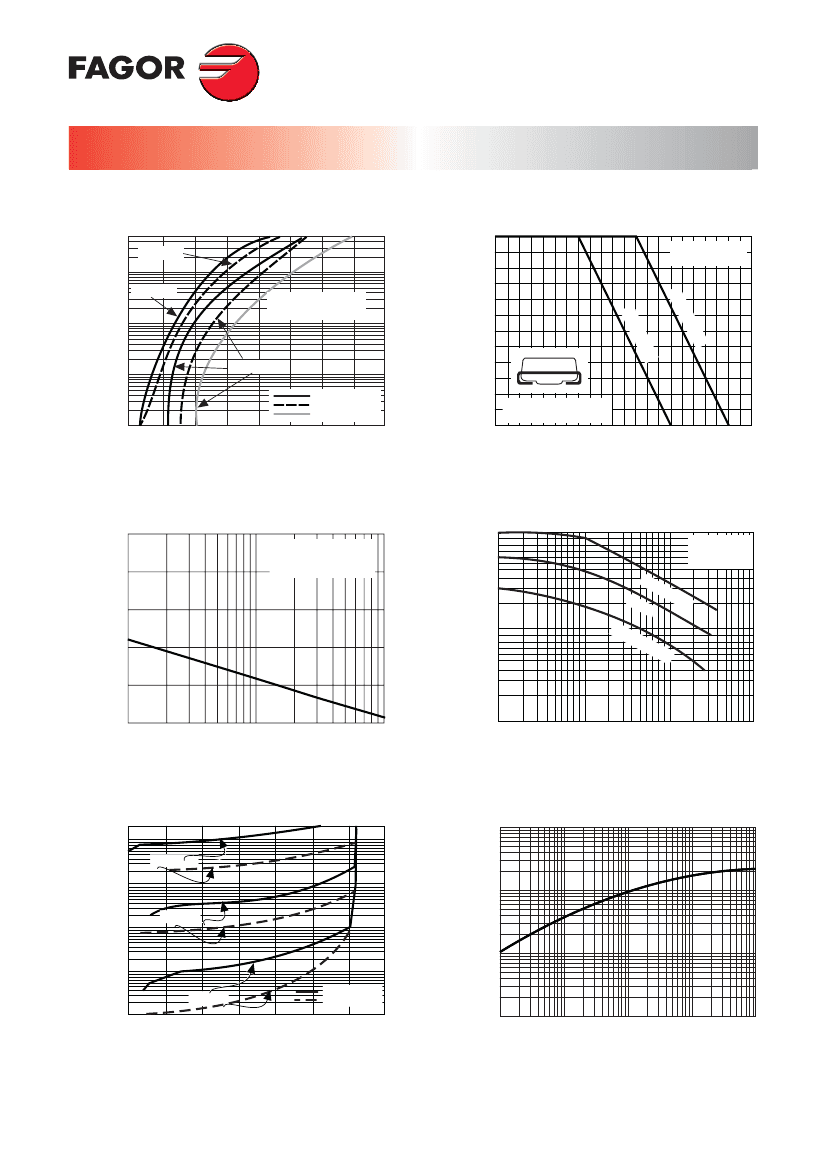

SK32B - SK315B

3 Amp. Surface Mount Schottky Barrier Rectifiers

CASE:

SMB/DO-214AA

Voltage

20 V to 150 V

Current

3.0 A

For surface mounted application

Easy pick and place

Metal to silicon rectifier, majority carrier conduction

Low power loss, high efficiency

High current capability. low VF

High surge current capability

Plastic material used carriers Underwraiters

Laboratory Classification 94V-0

Epitaxial construction

High temperature soldering:

260 ºC / 10 seconds at terminals

MECHANICAL DATA

XX = Marking code

WW = Week code

Y = Year code

Dimensions in mm.

Case: Molded plastic

Terminals: Pure tin plated, lead free

Polarity: Indicated by cathode band

Packaging: 16 mm tape EIA-STD RS-481.

Weight: 0.1 g.

Maximum Ratings and Electrical Characteristics at 25 ºC

Marking code

32B

34B

36B

3.0 A

70 A

310B

100

315B

150

105

150

RRM

RMS

F(AV)

FSM

stg

Maximum Recurrent Peak Reverse Voltage (V)

Maximum RMS Voltage (V)

Maximum DC Blocking Voltage (V)

Forward Current at T

(See graphic)

8.3 ms.Peak Forward Surge Current

(Jedec Method)

Operating Temperature Range

Storage Temperature Range

-55°C to +125°C

-55°C to +150°C

Electrical Characteristics at Tamb = 25 °C

thj-l

thj-a

NOTES:

Maximum Instantaneous Forward Voltage

@ 3.0 A

Maximum DC Reverse Current (Note 1) T

= 25 °C

at Rated DC Blocking Voltage

Typical Thermal Resistance

(Note 2)

1. Pulse Test With PW = 300 µsec, 1% Duty Cycle

2. Measured on P.C. Board with 10mm x 10mm Copper Pad Areas.

0.5 V

0.5 mA

10 mA

0.75 V

0.85 V

0.95 V

0.1 mA

5.0 mA

17 °C/W

75 °C/W

2.0 mA

=125°C

Oct - 08

SK36B Related Products

	SK36B	SK32B	SK310B	SK315B	SK34B
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 60V V(RRM), Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 20V V(RRM), Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica
Parts packaging code	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA
package instruction	ROHS COMPLIANT, PLASTIC, SMB, 2 PIN	ROHS COMPLIANT, PLASTIC, SMB, 2 PIN	ROHS COMPLIANT, PLASTIC, SMB, 2 PIN	R-PDSO-C2	ROHS COMPLIANT, PLASTIC, SMB, 2 PIN
Contacts	2	2	2	2	2
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e3	e3	e3	e3	e3
Maximum non-repetitive peak forward current	70 A	70 A	70 A	70 A	70 A
Number of components	1	1	1	1	1
Phase	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	150 °C	125 °C	150 °C	150 °C	125 °C
Minimum operating temperature	-55 °C	-65 °C	-55 °C	-55 °C	-65 °C
Maximum output current	3 A	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	60 V	20 V	100 V	150 V	40 V
surface mount	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	TIN	TIN	TIN	TIN	TIN
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
