Part Number

Search

5223013-1

Description
CONNECTOR, 30 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT
CategoryThe connector    The connector
File Size128KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

5223013-1 Overview

CONNECTOR, 30 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, ROHS COMPLIANT

5223013-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number5223013
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded5
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts30
Base Number Matches1
My Account
Tyco Electronics
(C hange)
Se a rch by Ke yword or Pa rt #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
Backplane/Midplane
>
Product Feature Selector
> Product Details

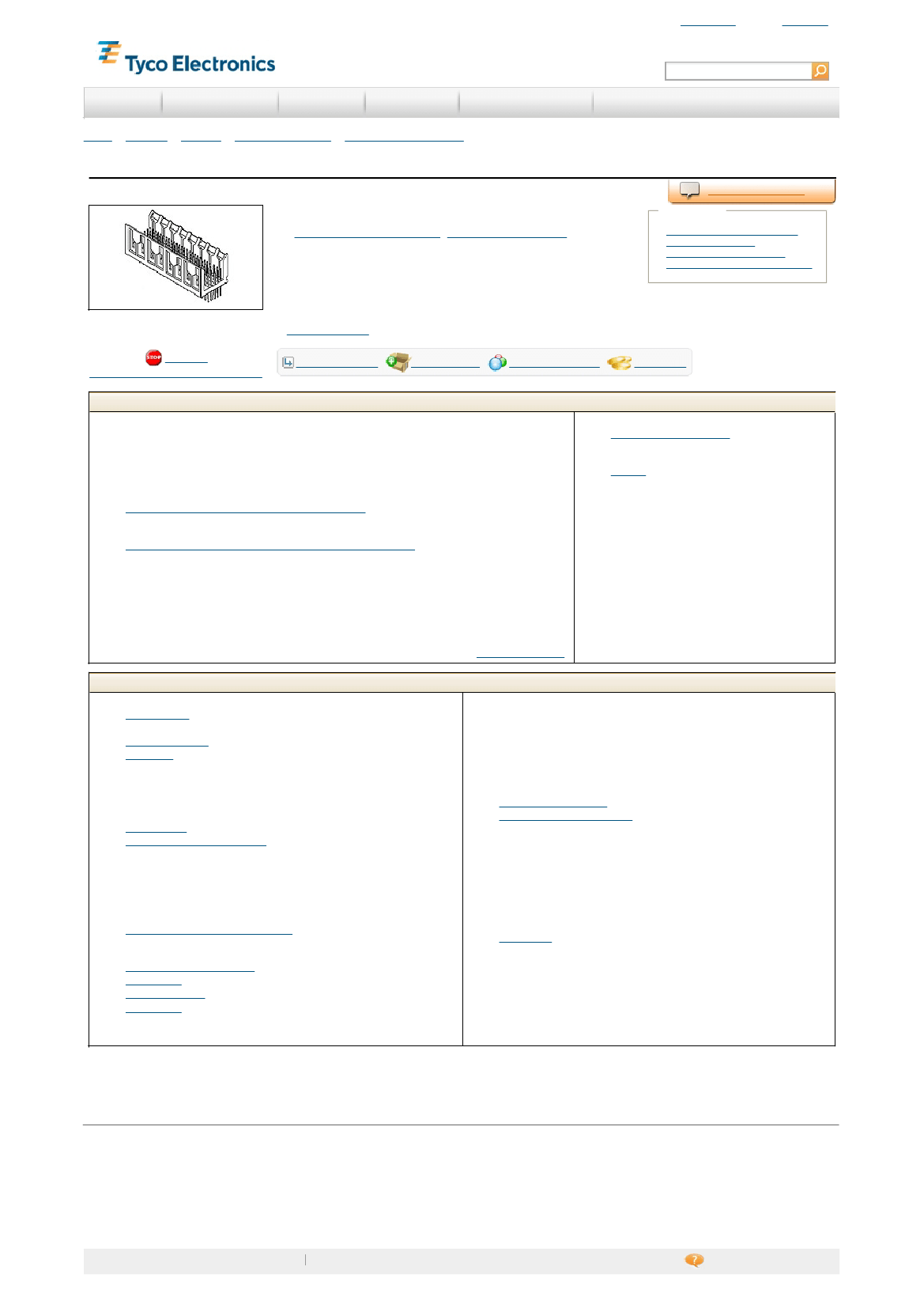

5223013-1 Product Details
Live Product Chat
2mm Centerline Futurebus+ Connectors
Always EU R oHS/ELV C om plia nt
(
Sta te m e nt of C om plia nce
)
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
5223013-1
T E I nternal N umber: 5 2 2 3 0 1 3 - 1
Product Highlights:
l
Module Type = Signal
l
30 Signal Positions
l
C onnector
l
Fixed-Board Application
l
C onnector Type = Header - Pin
View all Features
Obsolete
C ontact Product Information C enter
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
C onnector, Z-PAC K*, 2 mm FB, Signal and Power
(PDF, English)
Application Specifications:
l
Z-PAC K 2mm FB (Futurebus+) Receptacle and Pin Header...
(PDF, English)
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Product Type
= C onnector
l
C onnector Type = Header - Pin
l
PC B Mount Angle
= Vertical
l
Post Type
= Solder Post
l
C omment = Sequencing of the mating posts and lead lengths is
available. Worksheets for this procedure may be found under Z-
PAC K 2mm FB General Information.
Mechanical Attachment:
l
Module Type
= Signal
l
Mating Post Length (mm [in])
= 6.50 [0.256]
l
Pin Header Width (mm [in]) = 18.00 [0.709]
Electrical Characteristics:
l
Voltage Rating (VAC ) = 30
Termination Related Features:
l
Termination Post Length (mm [in])
= 3.20 [0.126]
Body Related Features:
l
Number of Signal Positions
= 30
l
Sequencing
= No
l
Number of Rows
= 5
l
Post Plating
= Tin
l
C enterline, Matrix (mm [in]) = 2.00 x 2.00 [.079 x .079]
Contact Related Features:
l
C ontact Base Material = Phosphor Bronze
l
C ontact Plating, Mating Area, Material = Gold (30)
Housing Related Features:
l
Housing Material = Liquid C rystal Polymer (LC P)
Industry Standards:
l
RoHS/ELV C ompliance
= RoHS compliant, ELV compliant
l
Lead Free Solder Processes
= Wave solder capable to 240?C , Wave
solder capable to 260?C , Wave solder capable to 265?C , Reflow
solder capable to 245?C , Reflow solder capable to 260?C , Pin-in-
Paste capable to 245?C , Pin-in-Paste capable to 260?C
l
RoHS/ELV C ompliance History = Always was RoHS compliant
Conditions for Usage:
l
Terminate To = Printed C ircuit Board
Operation/Application:
l
Application
= Fixed-Board
Other:
l
Brand = AMP
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
