BI2-EH6.5K-AN6X-0.2-RS4T

Inductive Sensor – With increased switching distance

Features

■

Smooth barrel, Ø 6.5 mm

■

Stainless steel, 1.4404

■

Large sensing range

■

DC 3-wire, 10…30 VDC

■

NO contact, NPN output

■

Pigtail with M12 × 1 connector

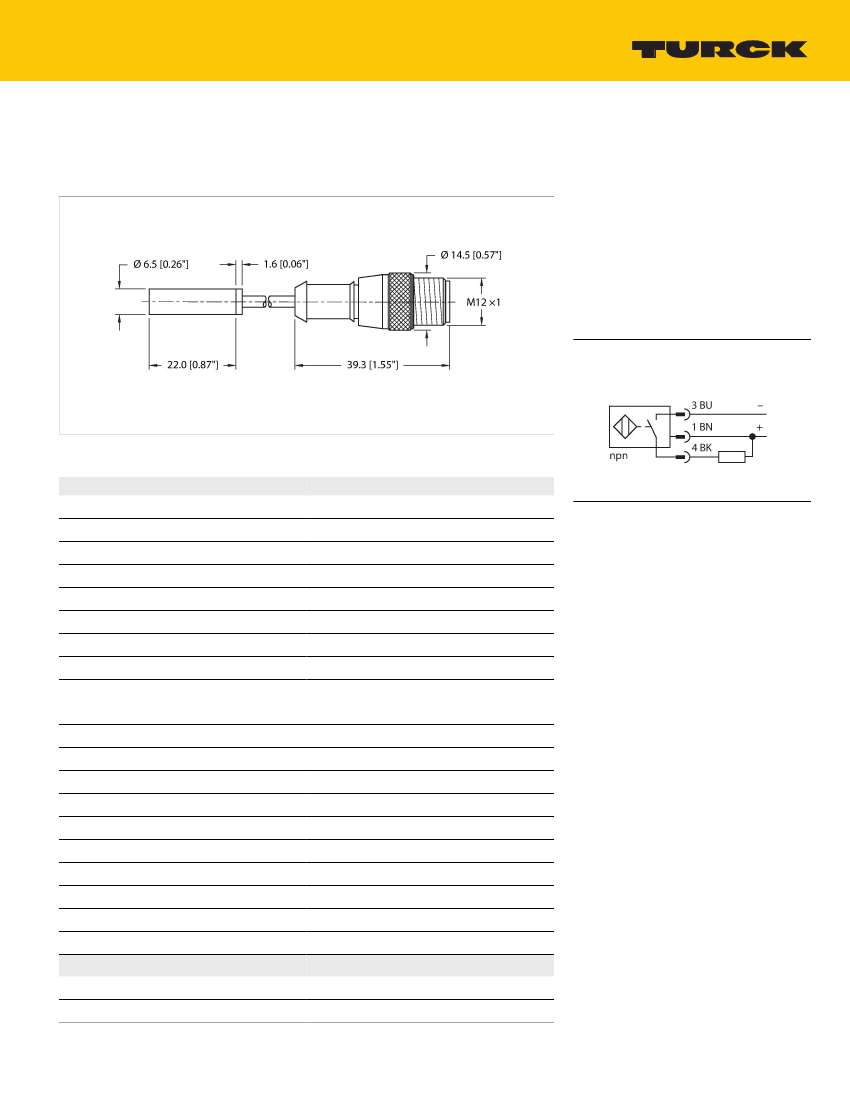

Wiring diagram

Technical data

Type

Ident. no.

Rated switching distance

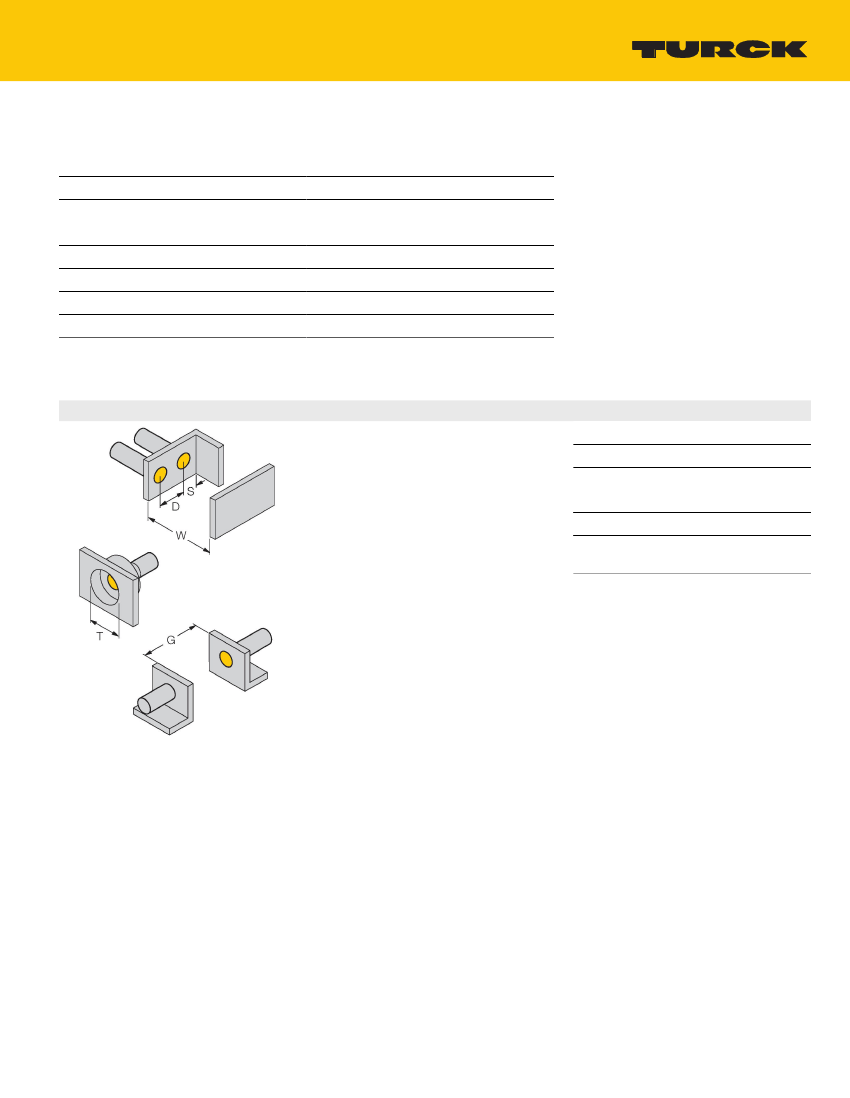

Mounting conditions

Secured operating distance

Correction factors

Repeat accuracy

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

Residual ripple

DC rated operational current

No-load current

Residual current

Isolation test voltage

Short-circuit protection

Voltage drop at

Wire breakage/Reverse polarity protection

Output function

Switching frequency

Design

Housing material

Active area material

BI2-EH6.5K-AN6X-0.2-RS4T

4610194

2 mm

Flush

≤ (0,81 x Sn) mm

St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4

≤ 2 % of full scale

≤ ± 10 %

3…15 %

10…30 VDC

≤ 10 % U

≤ 150 mA

≤ 15 mA

≤ 0.1 mA

≤ 0.5 kV

yes / Cyclic

≤ 1.8 V

yes / Complete

3-wire, NO contact, NPN

3 kHz

Smooth barrel,6.5 mm

Stainless steel, 1.4427 SO

Plastic, PA12-GF30

BI2-EH6.5K-AN6X-0.2-RS4T| 11/19/2019 15-48 | technical changes reserved

1|2

Functional principle

Inductive sensors detect metal objects contactless

and wear-free. For this, they use a high-frequency

electromagnetic AC field that interacts with the

target. Inductive sensors generate this field via an

RLC circuit with a ferrite coil.

-25…+70 °C
