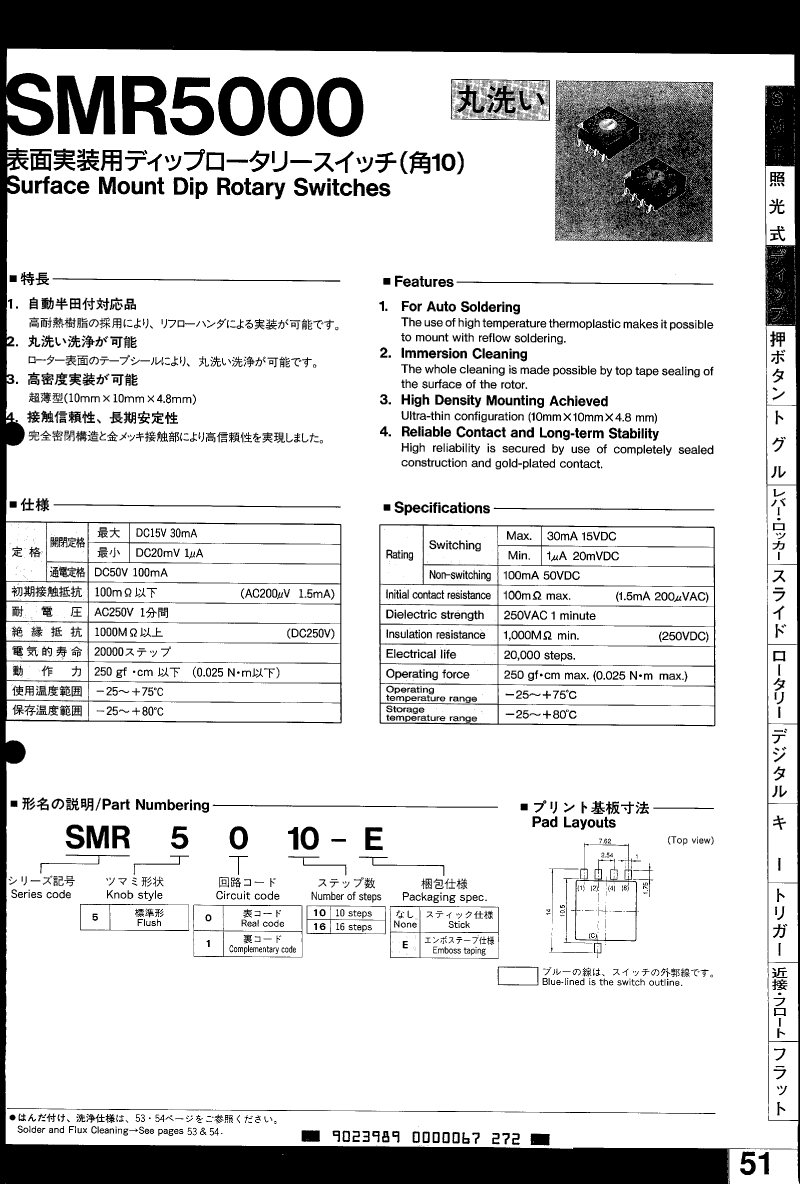

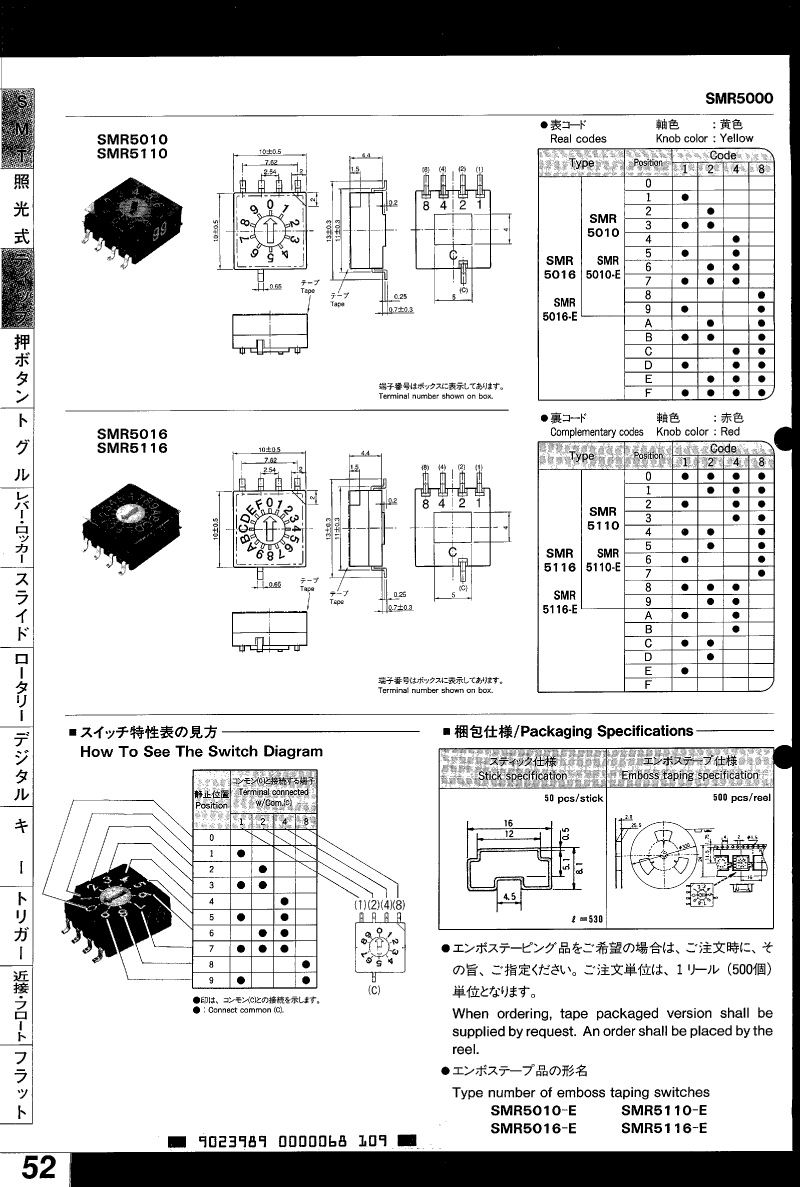

SMR5016-E: DescriptionRotary Coded Switch, 16 Positions, Hexadecimal, On-on, Circular, 0.03A, 15VDC, Solder Terminal, Rotary Screw Actuator, Surface Mount-right Angle,; CategoryMechanical and electronic products switch; File Size261KB，2 Pages; ManufacturerFujisoku Corporation

Download Datasheet Parametric Compare View All

SMR5016-E Overview

Rotary Coded Switch, 16 Positions, Hexadecimal, On-on, Circular, 0.03A, 15VDC, Solder Terminal, Rotary Screw Actuator, Surface Mount-right Angle,

Parameter Name	Attribute value
Maker	Fujisoku Corporation
Reach Compliance Code	unknown
Actuator length
Actuator type	ROTARY SCREW
Other features	EMBOSS TAPING PACKAGING
body width	10.0076 mm
body height	5.1054 mm
Body length or diameter	10.0076 mm
Center contact plating	GOLD
Maximum contact current (DC)	0.03 A
Contact (DC) maximum rated R load	0.03A@15VDC
Contact function	ON-ON
Contact resistance	0.1 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (DC)	15 V
Dielectric withstand voltage	250VAC V
Electrical life	20000 Cycle(s)
End contact plating	GOLD
Graduation angle	22.5 deg
Insulation resistance	1000000000 Ω
Manufacturer's serial number	SMR
Installation features	SURFACE MOUNT-RIGHT ANGLE
Number of positions	16
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Solderability	HAND
surface mount	NO
Switch action	CIRCULAR
switch function	HEXADECIMAL
Switch type	ROTARY CODED SWITCH
Terminal length
Termination type	SOLDER
Washability	SOLVENT
Base Number Matches	1

	SMR5016-E	SMR5010
Description	Rotary Coded Switch, 16 Positions, Hexadecimal, On-on, Circular, 0.03A, 15VDC, Solder Terminal, Rotary Screw Actuator, Surface Mount-right Angle,	Rotary Coded Switch, 10 Positions, Binary Coded Decimal, On-on, Circular, 0.03A, 15VDC, Solder Terminal, Rotary Screw Actuator, Surface Mount-right Angle,
Maker	Fujisoku Corporation	Fujisoku Corporation
Reach Compliance Code	unknown	unknown
Actuator type	ROTARY SCREW	ROTARY SCREW
Other features	EMBOSS TAPING PACKAGING	STICK PACKAGING
body width	10.0076 mm	10.0076 mm
body height	5.1054 mm	5.1054 mm
Body length or diameter	10.0076 mm	10.0076 mm
Center contact plating	GOLD	GOLD
Maximum contact current (DC)	0.03 A	0.03 A
Contact (DC) maximum rated R load	0.03A@15VDC	0.03A@15VDC
Contact function	ON-ON	ON-ON
Contact resistance	0.1 mΩ	0.1 mΩ
contact time	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Maximum contact voltage (DC)	15 V	15 V
Dielectric withstand voltage	250VAC V	250VAC V
Electrical life	20000 Cycle(s)	20000 Cycle(s)
End contact plating	GOLD	GOLD
Graduation angle	22.5 deg	36 deg
Insulation resistance	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	SMR	SMR
Installation features	SURFACE MOUNT-RIGHT ANGLE	SURFACE MOUNT-RIGHT ANGLE
Number of positions	16	10
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-25 °C	-25 °C
Solderability	HAND	HAND
surface mount	NO	NO
Switch action	CIRCULAR	CIRCULAR
switch function	HEXADECIMAL	BINARY CODED DECIMAL
Switch type	ROTARY CODED SWITCH	ROTARY CODED SWITCH
Termination type	SOLDER	SOLDER
Washability	SOLVENT	SOLVENT
