5962-9555702QXC datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> 5962-9555702QXC

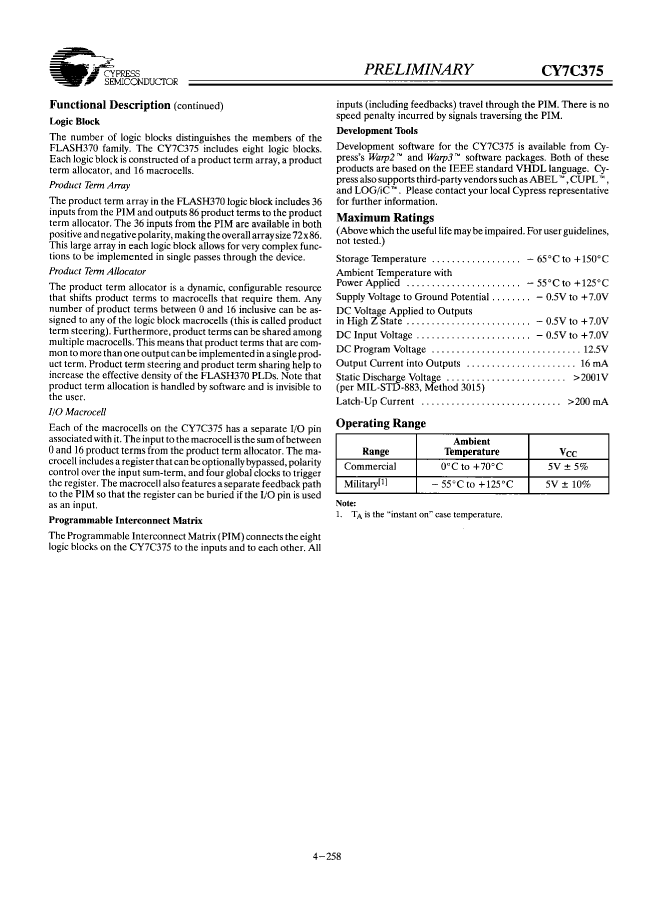

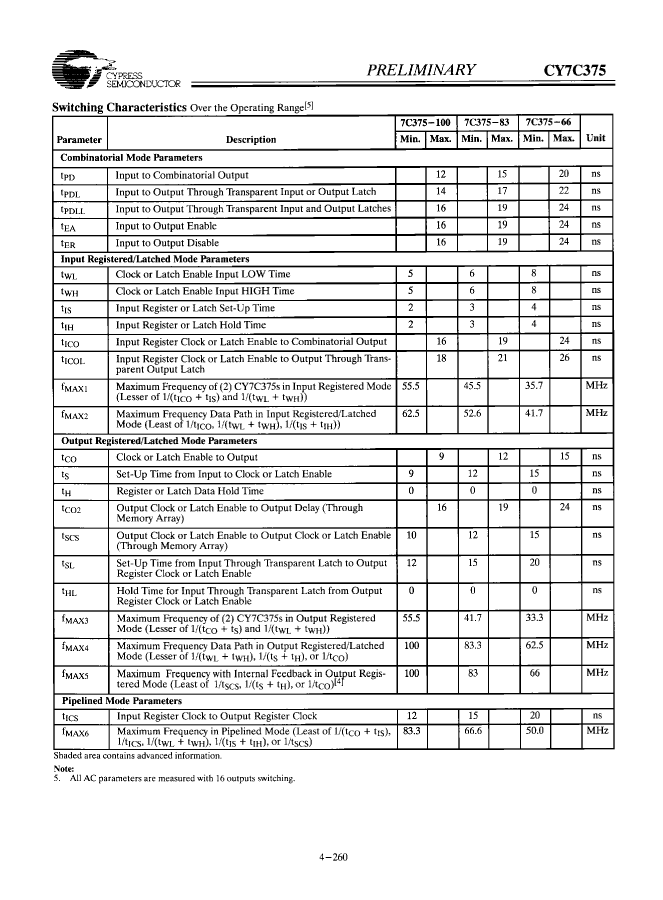

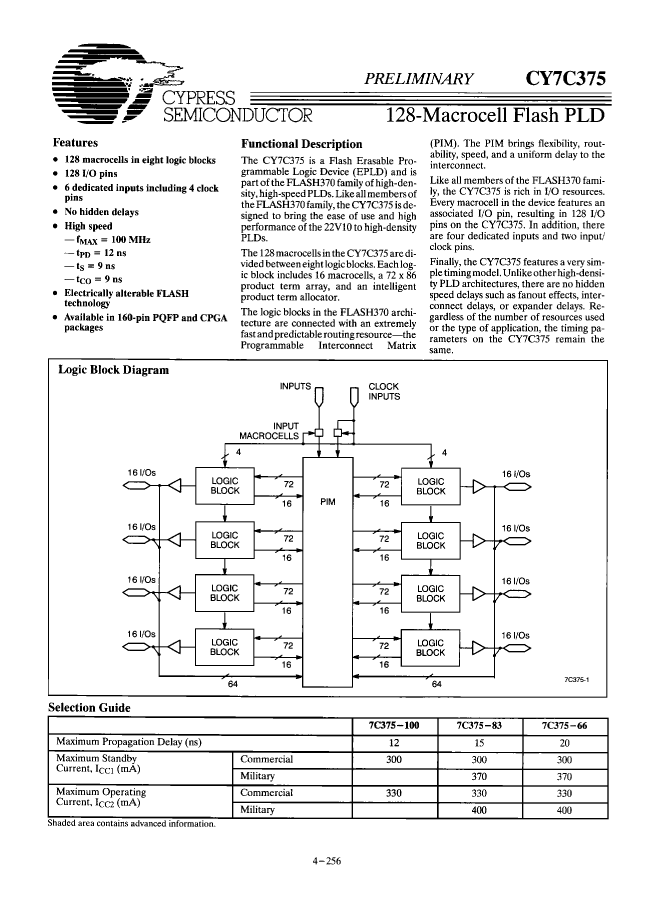

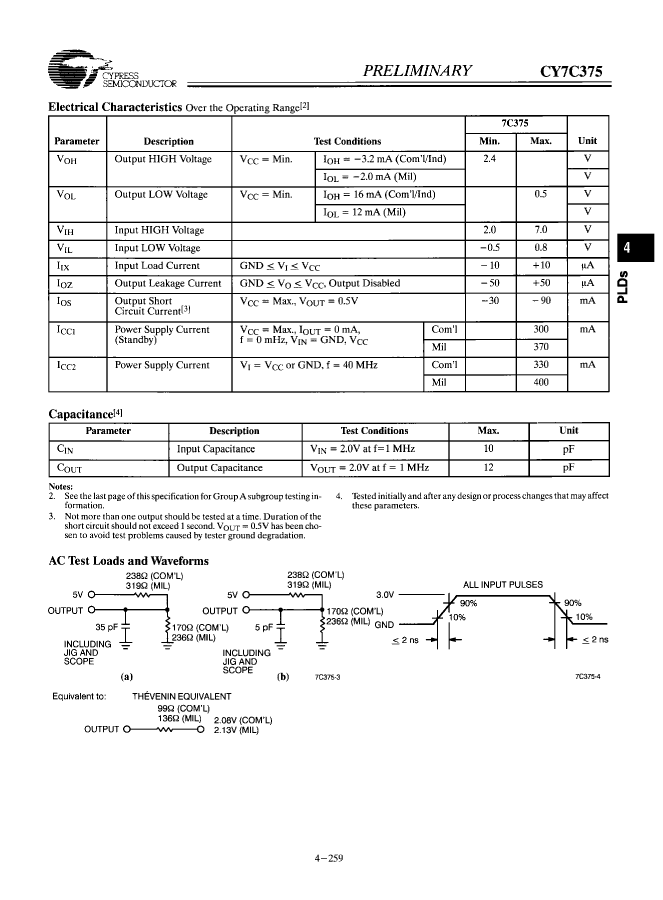

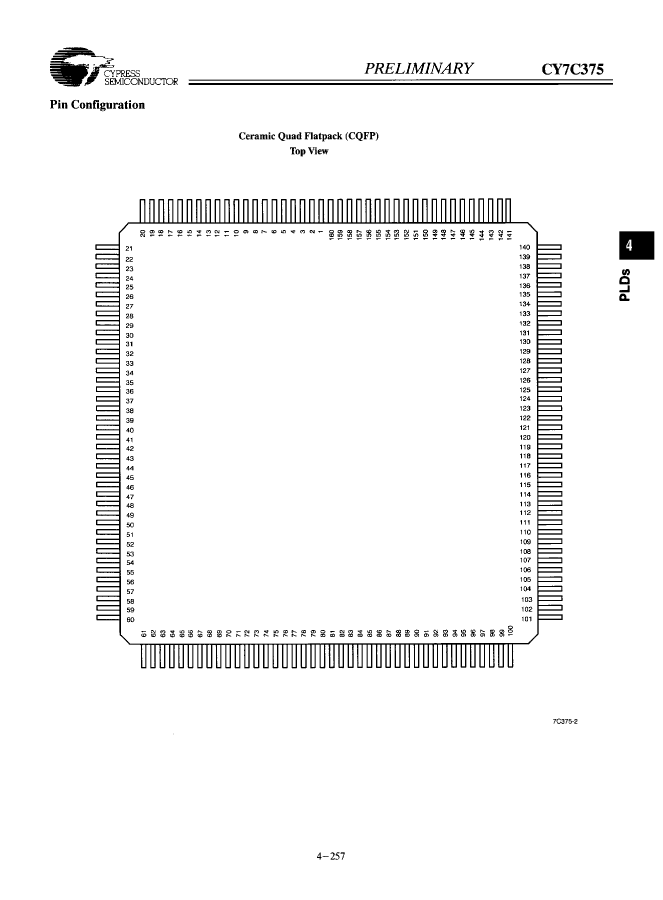

Preview

5962-9555702QXC: DescriptionFlash PLD, 15ns, 128-Cell, CMOS, CPGA160, CERAMIC, PGA-160; CategoryProgrammable logic devices Programmable logic; File Size227KB，9 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

5962-9555702QXC Overview

Flash PLD, 15ns, 128-Cell, CMOS, CPGA160, CERAMIC, PGA-160

5962-9555702QXC Parametric

Parameter Name	Attribute value
Parts packaging code	PGA
package instruction	PGA, PGA160M,15X15
Contacts	160
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	NO
In-system programmable	NO
JESD-30 code	R-CPGA-P160
JESD-609 code	e4
JTAG BST	NO
Dedicated input times	2
Number of I/O lines	128
Number of macro cells	128
Number of terminals	160
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2 DEDICATED INPUTS, 128 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA160M,15X15
Package shape	RECTANGULAR
Package form	GRID ARRAY
power supply	5 V
Programmable logic type	FLASH PLD
propagation delay	15 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Base Number Matches	1

Preview

Download Datasheet

View All

5962-9555702QXC Related Products

	5962-9555702QXC	CY7C375-83NC	CY7C375-66NC	CY7C375-100NC
Description	Flash PLD, 15ns, 128-Cell, CMOS, CPGA160, CERAMIC, PGA-160	Flash PLD, 19ns, 128-Cell, CMOS, PQFP160, PLASTIC, QFP-160	Flash PLD, 24ns, 128-Cell, CMOS, PQFP160, PLASTIC, QFP-160	Flash PLD, 16ns, 128-Cell, CMOS, PQFP160, PLASTIC, QFP-160
Parts packaging code	PGA	QFP	QFP	QFP
package instruction	PGA, PGA160M,15X15	PLASTIC, QFP-160	PLASTIC, QFP-160	PLASTIC, QFP-160
Contacts	160	160	160	160
Reach Compliance Code	unknown	not_compliant	not_compliant	not_compliant
Other features	NO	128 MACROCELLS; LABS INTERCONNECTED BY PIA; 8 LABS; 4 EXTERNAL CLOCKS	128 MACROCELLS; LABS INTERCONNECTED BY PIA; 8 LABS; 4 EXTERNAL CLOCKS	128 MACROCELLS; LABS INTERCONNECTED BY PIA; 8 LABS; 4 EXTERNAL CLOCKS
In-system programmable	NO	NO	NO	NO
JESD-30 code	R-CPGA-P160	S-PQFP-G160	S-PQFP-G160	S-PQFP-G160
JESD-609 code	e4	e0	e0	e0
JTAG BST	NO	NO	NO	NO
Dedicated input times	2	2	2	2
Number of I/O lines	128	128	128	128
Number of macro cells	128	128	128	128
Number of terminals	160	160	160	160
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C
organize	2 DEDICATED INPUTS, 128 I/O	2 DEDICATED INPUTS, 128 I/O	2 DEDICATED INPUTS, 128 I/O	2 DEDICATED INPUTS, 128 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	PGA	QFP	QFP	QFP
Encapsulate equivalent code	PGA160M,15X15	QFP160,1.2SQ	QFP160,1.2SQ	QFP160,1.2SQ
Package shape	RECTANGULAR	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	FLATPACK	FLATPACK	FLATPACK
power supply	5 V	5 V	5 V	5 V
Programmable logic type	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD
propagation delay	15 ns	19 ns	24 ns	16 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.5 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	GOLD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	PERPENDICULAR	QUAD	QUAD	QUAD
Is it Rohs certified?	-	incompatible	incompatible	incompatible
Maker	-	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
maximum clock frequency	-	41.7 MHz	33.3 MHz	55.5 MHz
length	-	28 mm	28 mm	28 mm
Maximum seat height	-	3.99 mm	3.99 mm	3.99 mm
width	-	28 mm	28 mm	28 mm
