Datasheet> All Categories > Discrete semiconductor> diode> BZX55C91

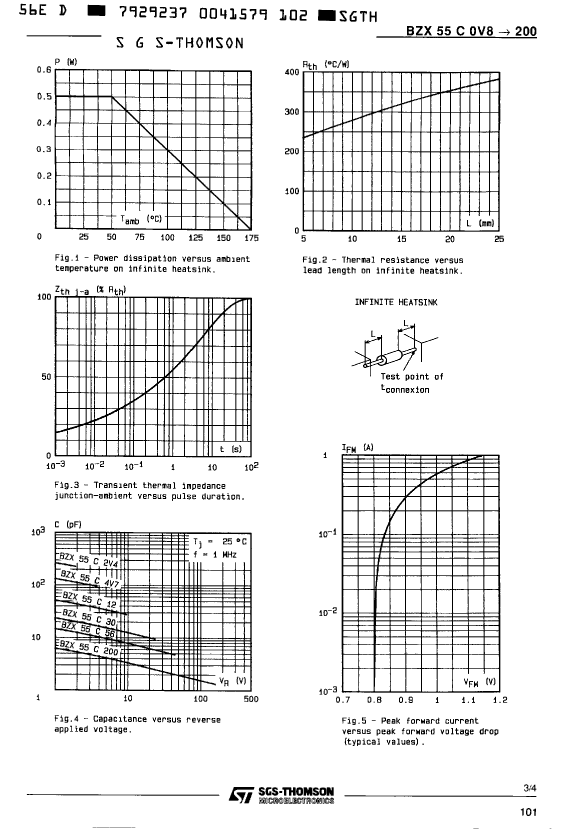

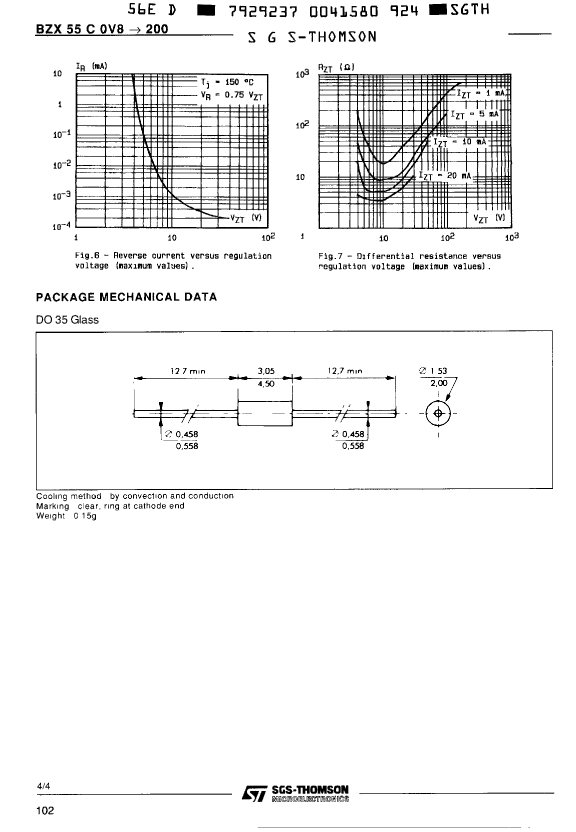

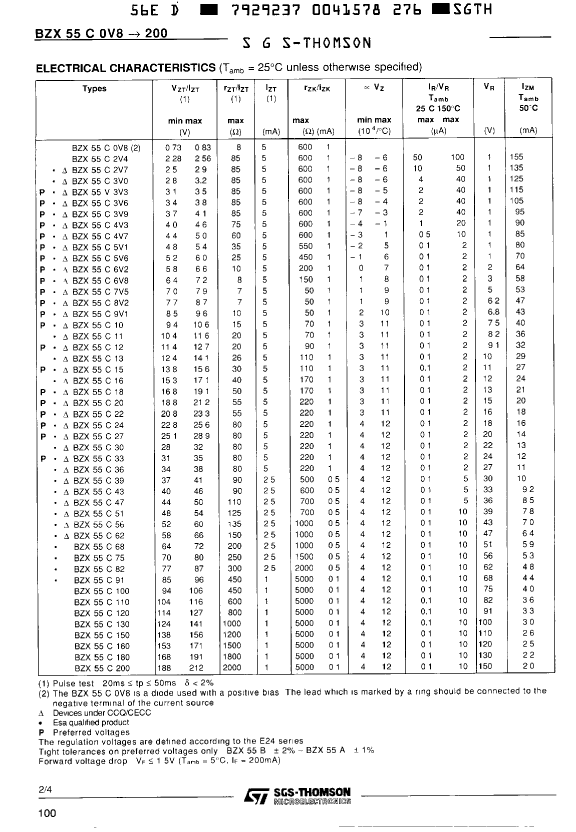

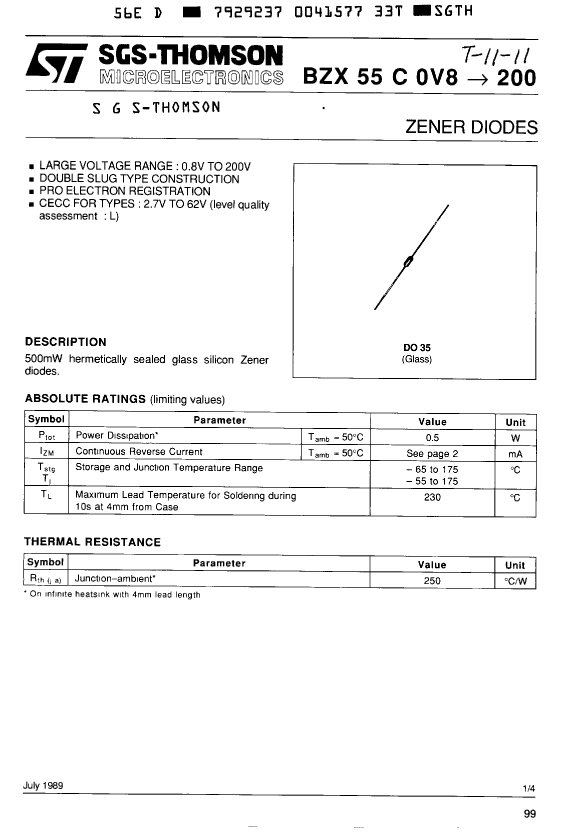

Preview

BZX55C91: Description91V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35; CategoryDiscrete semiconductor diode; File Size114KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

BZX55C91 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BZX55C91	-	-	View	Buy Now

BZX55C91 Overview

91V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35

BZX55C91 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	not_compliant
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	250 Ω
JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
JESD-609 code	e0
Maximum knee impedance	5000 Ω
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Nominal reference voltage	91 V
Maximum reverse current	0.1 µA
surface mount	NO
technology	ZENER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Voltage temperatureCoeff-Max	109.2 mV/°C
Maximum voltage tolerance	5%
Working test current	1 mA
Base Number Matches	1

Preview

Download Datasheet

View All

BZX55C91 Related Products

	BZX55C91	BZX55C82	BZX55C110
Description	91V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35	82V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35	110V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	250 Ω	200 Ω	350 Ω
JEDEC-95 code	DO-35	DO-35	DO-35
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2
JESD-609 code	e0	e0	e0
Maximum knee impedance	5000 Ω	2000 Ω	5000 Ω
Number of components	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	0.5 W	0.5 W	0.5 W
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	91 V	82 V	110 V
Maximum reverse current	0.1 µA	0.1 µA	0.1 µA
surface mount	NO	NO	NO
technology	ZENER	ZENER	ZENER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Voltage temperatureCoeff-Max	109.2 mV/°C	98.4 mV/°C	132 mV/°C
Maximum voltage tolerance	5%	5%	5%
Working test current	1 mA	2.5 mA	1 mA
Base Number Matches	1	1	-
Maker	-	STMicroelectronics	STMicroelectronics
