HEF40192B
MSI
4-bit up/down decade counter
Product specification
File under Integrated Circuits, IC04
January 1995
Philips Semiconductors
Product specification
4-bit up/down decade counter
DESCRIPTION

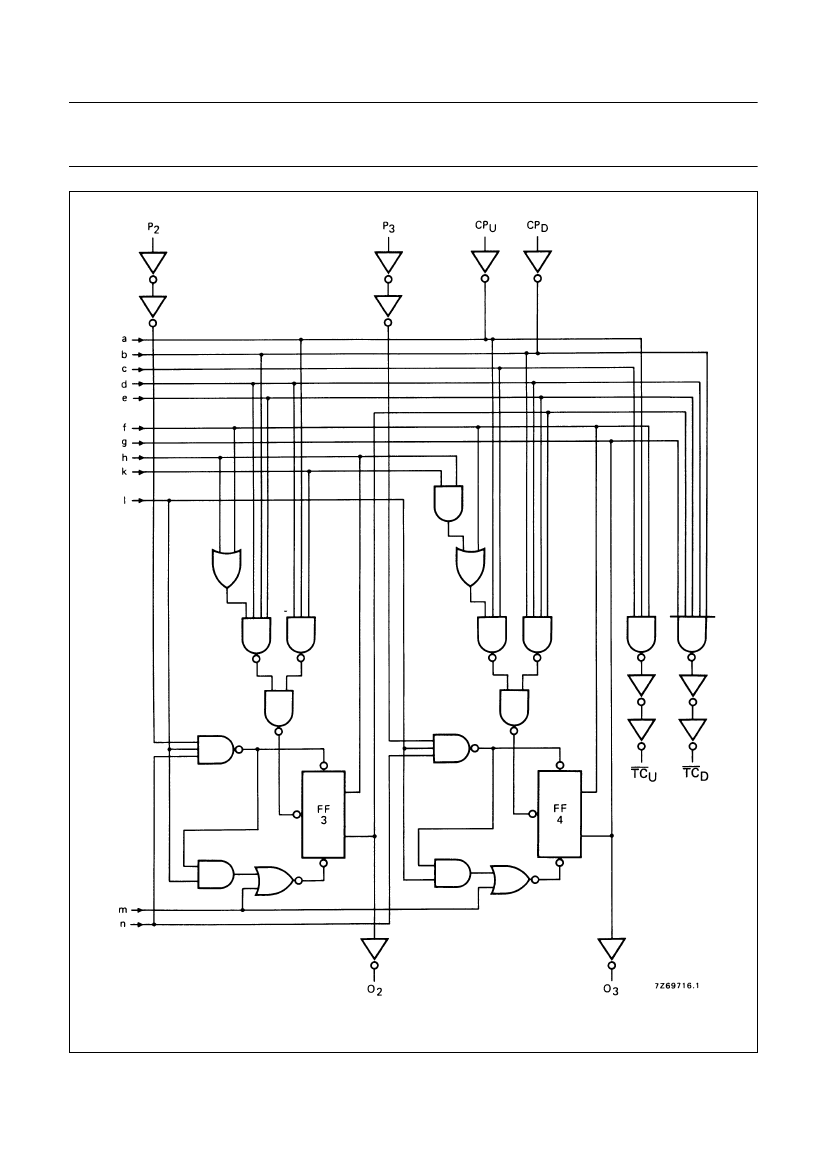

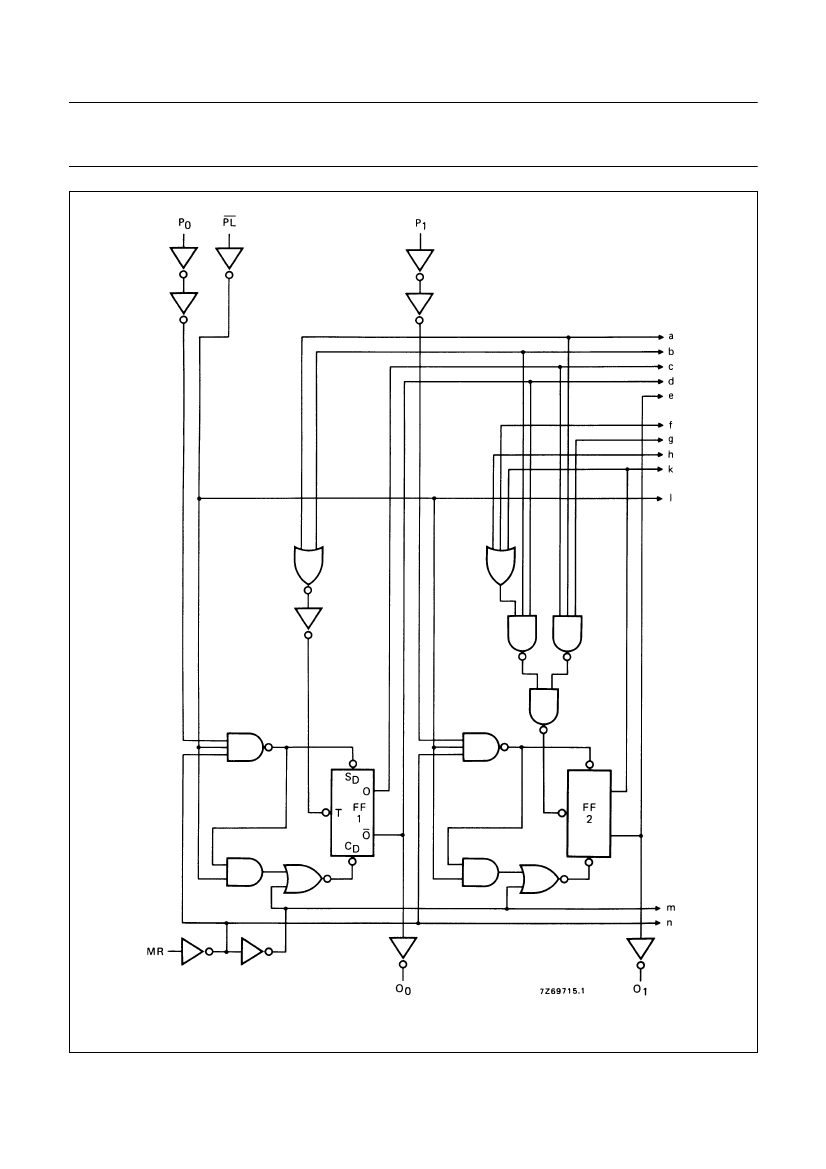

The HEF40192B is a 4-bit synchronous up/down decade
counter. The counter has a count-up clock input (CP
U
), a
count-down clock input (CP
D
), an asynchronous parallel
load input (PL), four parallel data inputs (P
0
to P
3
), an
asynchronous master reset input (MR), four counter
outputs (O
0
to O
3
), an active LOW terminal count-up
(carry) output (TC
U
) and an active LOW terminal
count-down (borrow) output (TC
D
).
The counter outputs change state on the LOW to HIGH
transition of either clock input. However, for correct
HEF40192B
MSI
counting, both clock inputs cannot be LOW
simultaneously. The outputs TC
U
and TC
D
are normally

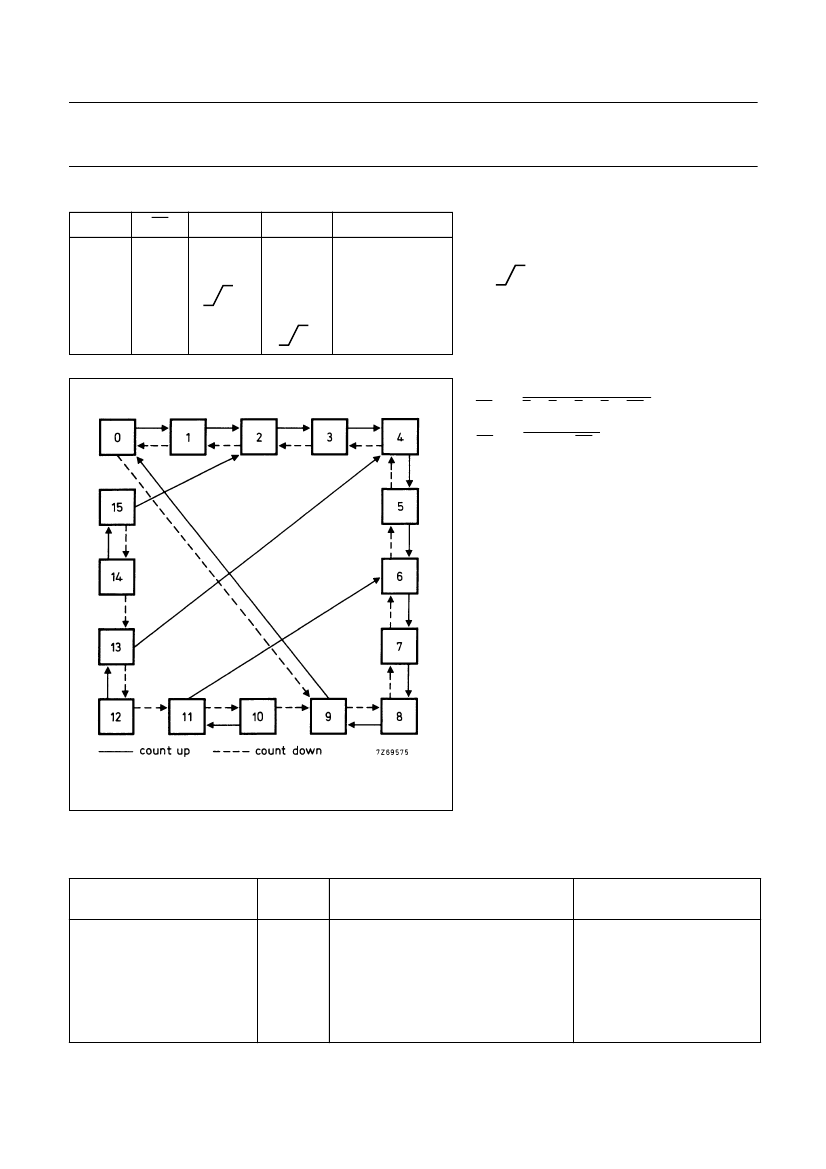

HIGH. When the circuit has reached the maximum count
state of ‘9’, the next HIGH to LOW transition of CP
U
will
cause TC
U
to go LOW. TC
U
will stay LOW until CP
U
goes
HIGH again. Likewise, output TC
D
will go LOW when the
circuit is in the zero state and CP
D
goes LOW. When PL is
LOW, the information on P
0
to P
3
is asynchronously
loaded into the counter. A HIGH on MR resets the counter
independent of all other input conditions. The counter
stages are of a static toggle type flip-flop.

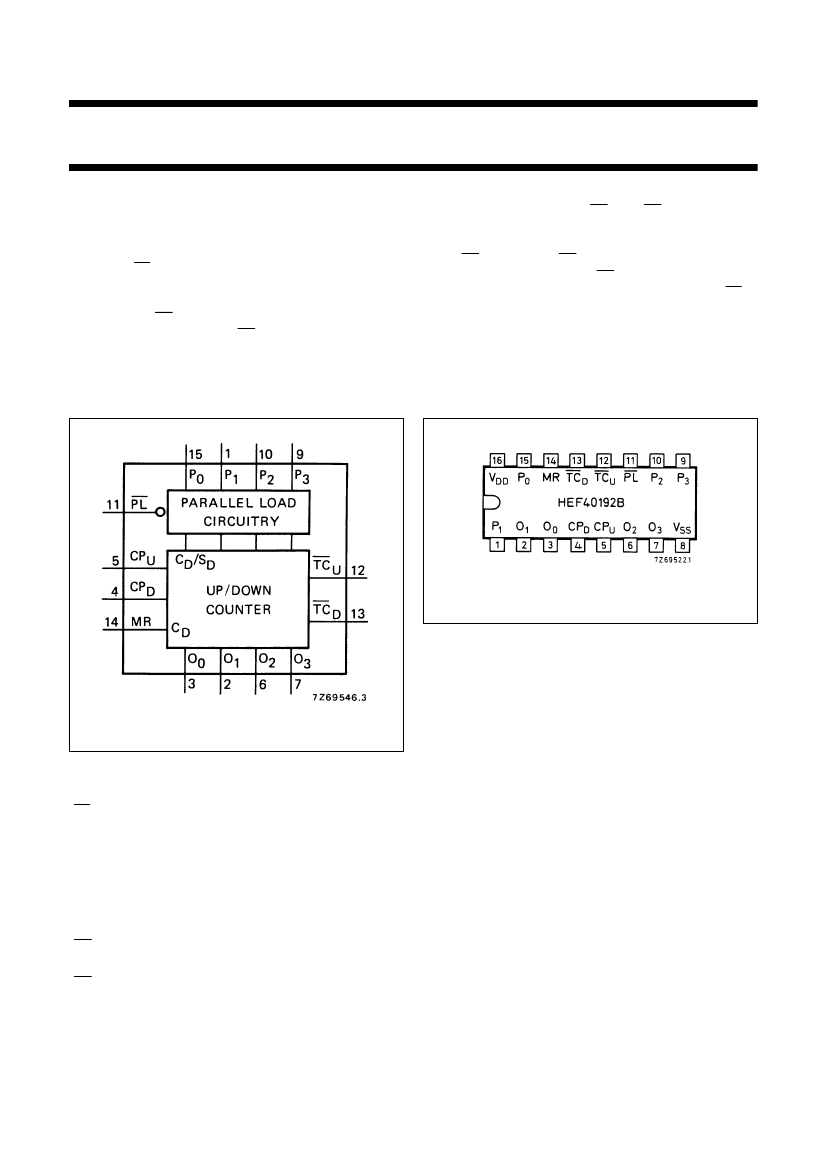

Fig.2 Pinning diagram.
HEF40192BP(N): 16-lead DIL; plastic
(SOT38-1)
Fig.1 Functional diagram.
HEF40192BD(F): 16-lead DIL; ceramic (cerdip)
(SOT74)
HEF40192BT(D): 16-lead SO; plastic
PINNING
PL
P
0
to P
3
CP
U
CP
D
MR
TC
U
TC
D
O
0
to O
3
parallel load input (active LOW)
parallel data inputs
count-up clock pulse input (LOW to HIGH,
edge-triggered)
count-down clock pulse input (LOW to
HIGH, edge-triggered)
master reset input (asynchronous)
buffered terminal count-up (carry) output
(active LOW)
buffered terminal count-down
(borrow) output (active LOW)
buffered counter outputs
FAMILY DATA, I
DD
LIMITS category MSI
See Family Specifications
(SOT109-1)
( ): Package Designator North America
