REVISION V
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: 0.038[.0015] MAX.
3. MINIMUM PUSHOUT FORCE: 2.22N [.5 LB].
4. PARTS TO BE PACKAGED IN TRAYS.
5. BOW ALLOWED AT 0.075MM[.0030]/25.0MM[.98].
6. AS OF REV T SAMTEC WILL ONLY SUPPORT EXISTING
BUSINESS WITHOUT -SD OR -LC OPTION SELECTED.
"B" REF
(SEE TABLE 2, SHT 2)
"C" REF
(SEE TABLE 2, SHT 2)
"J" REF
(SEE TABLE 2, SHT 2)
MP-80-Q
"F"
DESIGNED & DIMENSIONED
IN MILLIMETERS
MPTC-XX-XX-XX-01-XX-X-RA-XX
OPTION (SEE NOTE 6)
-SD: SCREW DOWN
(SEE FIG 1, SHT 1)
-LC: LOCKING CLIP
(SEE FIG 2, SHT 2)
RIGHT ANGLE
PLATING SPECIFICATION
-L: SEE TABLE 3
-T: SEE TABLE 3
TAIL LENGTH
-01: FOR 1.57[.062] THICK PCB
(USE SUB-T-1M40-01-X)
-03: FOR 2.36[.093] THICK PCB
(USE SUB-T-1M40-03-X)
*
POWER POSITIONS (PER END)
-01, -02, ***-03, ***-04
*
SIGNAL POSITIONS
***-12: (4 X 3)
-16: (4 X 4)
***-20: (4 X 5)
-24: (4 X 6)
-80: (4 X 20)
* POWER POSITIONS
(PER END)
***-00, -01, -02
LEADSTYLE
-01
3.56 .140
(TYP) REF
15.70 .618
4.06 .160
REF
"F"
"H"
(SEE TABLE 2, SHT 2)
8.18 .322 (TYP)
"D"
C
(SEE TABLE 2, SHT 2)
D
C
12.27 .483 REF
* SEE TABLE 2 FOR AVAILABLE COMBINATIONS
*** NOT RELEASED FOR PRODUCTION
4.44 .175 (TYP)
P1
"A"
B
P2
MPT-XX-RA-XX-XX
12.45
REF
"A"
- 0.25
+0.50
5.08 .200
REF
SUB-T-1M40-XX-XX
01 (POWER)
"B"
0.41 .016
(TYP) REF
C
"B"
1
2
3
2.00 .079
0.50 .020 SQ
REF
20
A
"A"
MPT-02-RA-80-SD
5.38 .212
C
0.79 .031 REF
3.25
- 0.25
.128
- .010
5.08 .200 REF
+0.13
+.005
C
1.88 .074
"G"
(X SPACES @ 2.00 [.079])
(SEE TABLE 2, SHT 2)
C
2 MAX SWAY (TYP)
2.54 .100
REF
SECTION "A"-"A"
"E"
(SEE TABLE 2, SHT 2)
C
MPTC-01-80-01-XX-X-RA-SD SHOWN
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
FIG 1
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.X: 0.3 [.01]
2
.XX: 0.13 [.005]
.XXX: 0.051 [.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
INSULATOR: LCP, UL 94 V0, COLOR: BLACK
TERMINAL: COPPER ALLOY
LOCKING CLIP: COPPER ALLOY
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
RIGHT ANGLE POWER TERMINAL
2/2/2007
SHEET
1
OF
3
F:\DWG\MISC\MKTG\MPTC-XX-XX-XX-01-XX-X-RA-XX-MKT.SLDDRW
BY:
CLAY W
MPTC-XX-XX-XX-01-XX-X-RA-XX
REVISION V
1.42
- 0.13
.056
- .005
+0.20
+.008
LC-07-TM
1.42 .056 REF
2 MAX SWAY (TYP)
C
0.25 .010 REF
1.87
- 0.05
.074
- .002
C
+0.13
+.005
5.79 .228
REF
SECTION "B"-"B"
SCALE 3 : 1
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
C
"F"
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.

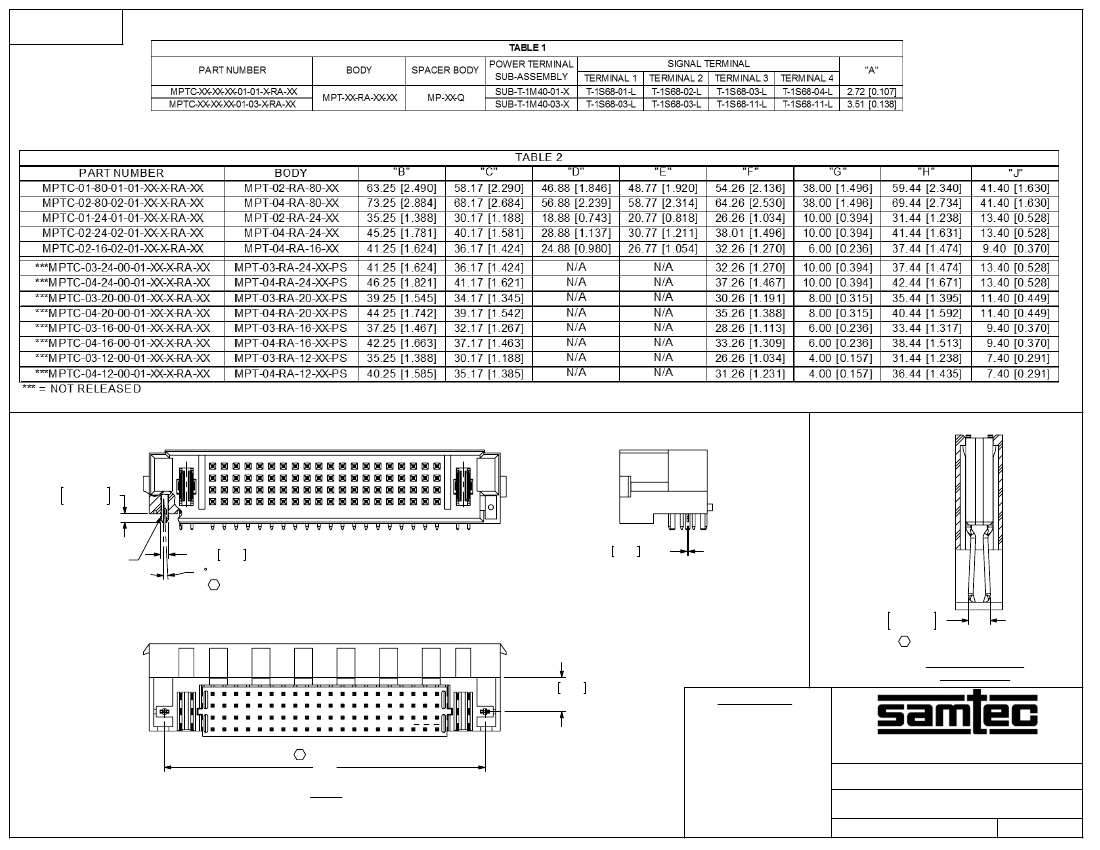

MPTC-01-80-01-01-XX-X-RA-LC SHOWN
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
F:\DWG\MISC\MKTG\MPTC-XX-XX-XX-01-XX-X-RA-XX-MKT.SLDDRW
FIG 2
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
RIGHT ANGLE POWER TERMINAL
MPTC-XX-XX-XX-01-XX-X-RA-XX
BY:
CLAY W
2/2/2007
SHEET
2
OF
3
REVISION V
P2
P1
5.00 .197
C
P3
P4
0.50 .020 SQ REF
1.27 .050
REF (TYP)
TERMINAL 4
(SEE TABLE 1, SHEET 2)
TERMINAL 3
(SEE TABLE 1, SHEET 2)
TERMINAL 2
(SEE TABLE 1, SHEET 2)
TERMINAL 1
(SEE TABLE 1, SHEET 2)
C
-01 POWER
POSITION
-02 POWER
POSITION
1.00 .039
REF (TYP)
3.30 .130
REF (TYP)
2.00 .079 (TYP)
C
3.81 .150 (TYP)
"A" .254
(SEE TABLE 1, SHEET 2)
2.00 .079 (TYP)
2.79 .110
C
C
"F" REF
SECTION "F"-"F"
MPTC-02-80-02-01-XX-X-RA SHOWN
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
(SEE NOTE 6)
FIG 3
P1
P2
P3
P4
25.60 1.008 REF
C
3.81 .150
19.55 .770 REF
***MPTC-04-24-00-01-XX-X-RA-LC SHOWN
(SAME AS FIG 2, UNLESS OTHERWISE STATED)
*** NOT RELEASED
FIG 5
IN-PROCESS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
RIGHT ANGLE POWER TERMINAL
MPTC-XX-XX-XX-01-XX-X-RA-XX
BY:
CLAY W
2/2/2007
SHEET
3
OF
3
