382L182M315N082 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 382L182M315N082

382L182M315N082: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 315V, 20% +Tol, 20% -Tol, 1800uF, Through Hole Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size1017KB，11 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

382L182M315N082 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 315V, 20% +Tol, 20% -Tol, 1800uF, Through Hole Mount, CAN, ROHS COMPLIANT

382L182M315N082 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	1800 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	40 mm
dielectric materials	ALUMINUM (WET)
ESR	113 mΩ
leakage current	2.25898 mA
length	80 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Snap-in
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	315 V
ripple current	4500 mA
surface mount	NO
Terminal shape	SNAP-IN
Base Number Matches	1

Preview

Download Datasheet

View All

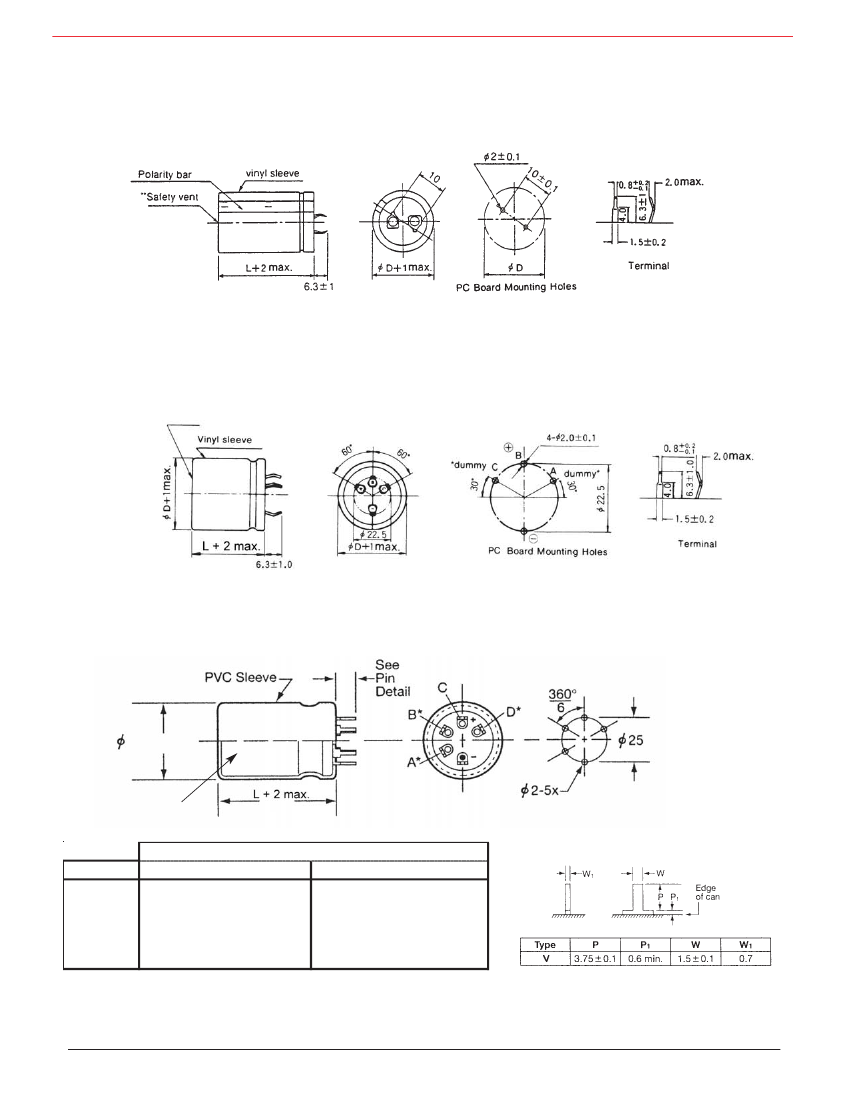

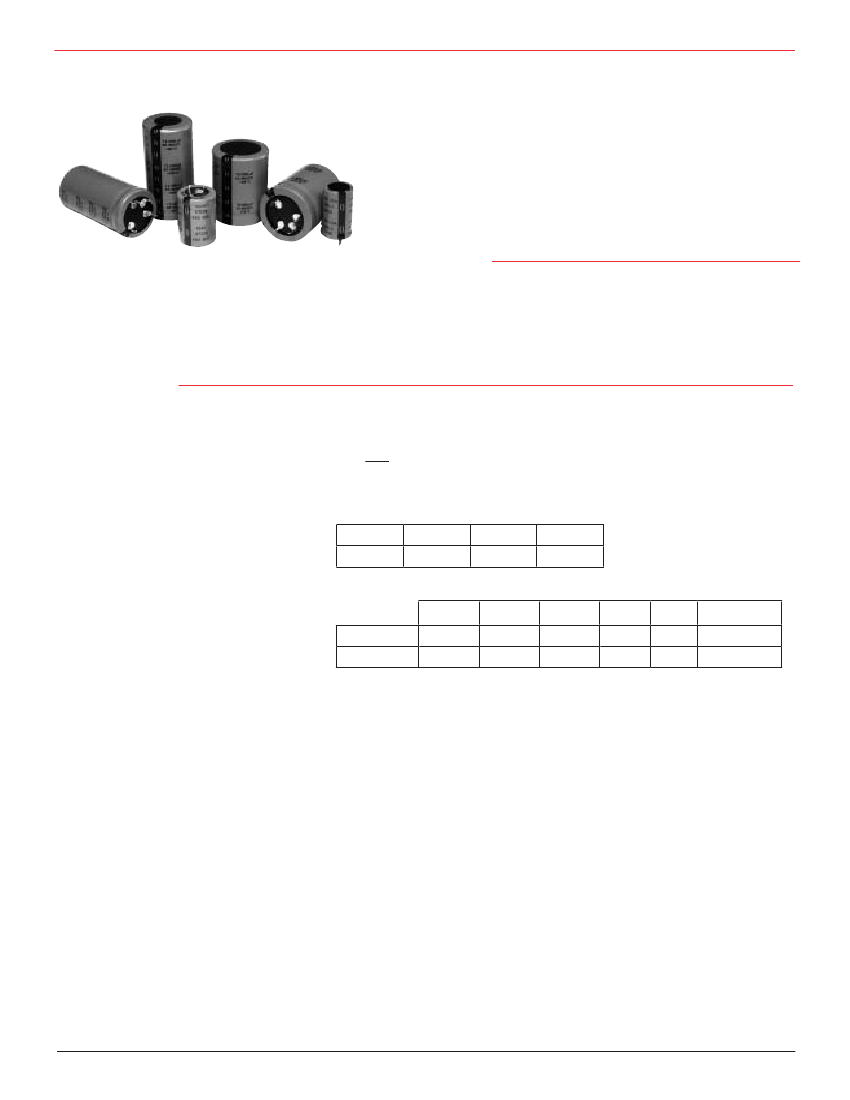

2-pin Types: 380L and 380LX. 4-pin or 5-pin Types: 382L and 382LX

Types 380L, 382L, 380LX & 382LX,

ºC

High-Capacitance Snap-In

The excellent value of Type 380L/LX capacitors ﬁnds application

in switching power supply input and output circuits and even

motor drives where the high surface area of multiple units in

parallel approaches the ripple capability of our Type 520C

computer-grade capacitor. Type 380LX delivers more capacitance

per can size while Type 380L available in the largest case sizes

gives lower ESR for the same capacitance. Types 382L and

382LX give the choice of 4 or 5 leads for stable, reverse proof

mounting.

Highlights

• Latest available ratings, worldwide

• Top performance in power supplies and motor drives

• Big selection of 46 case sizes

• 2, 4 and 5 leads available

Speciﬁcations

Operating Temperature:

Rated Voltage:

Capacitance:

Leakage Current:

Ripple Current Multipliers:

–40 °C to 85 °C up to 300 V, –25 °C to 85 °C

≥315

16 Vdc to 500 Vdc

33 µF to 270,000 µF

±20%

≤3√CV

µA at 5 min.

Ambient Temperature

45 °C

1.5

60 °C

1.4

70 °C

1.3

85 °C

1.0

Frequency

50 Hz

16-100 Vdc

160-450 Vdc

0.93

0.75

60 Hz

0.95

0.80

120 Hz

1.00

500 Hz 2 kHz

1.05

1.20

1.08

1.25

10 kHz & up

1.15

1.40

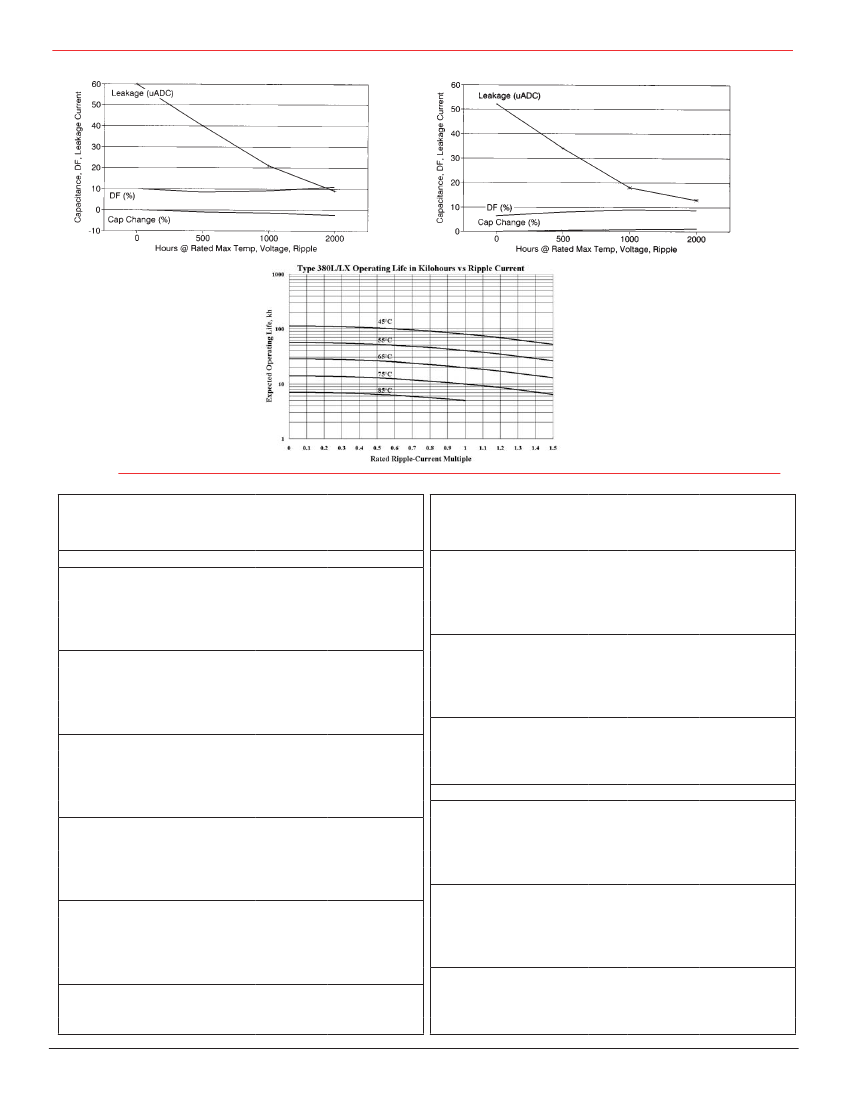

EIA Ripple Life:

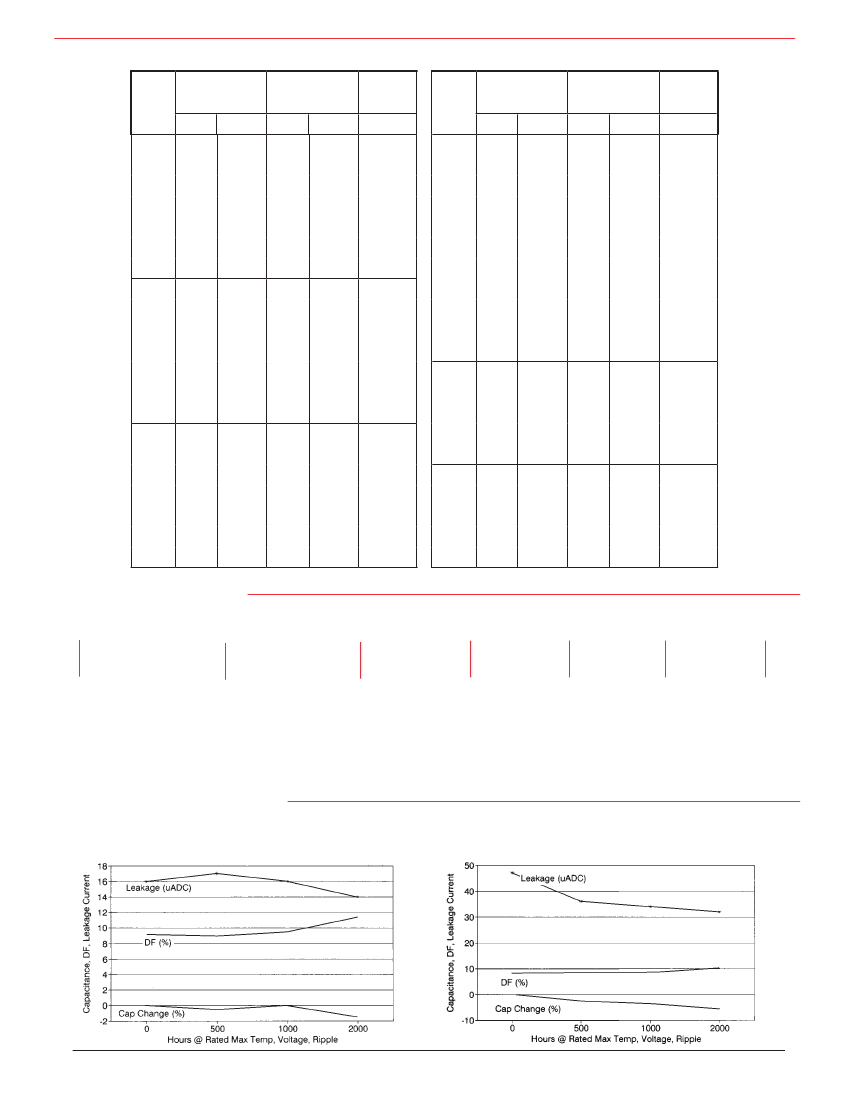

Load Life Test:

Shelf Life:

Vibration:

3,000 h @ full load at +85 °C per EIA IS-749

∆Capacitance ±20%

ESR 150% of limit

DCL 100% of limit

3,000 h @ full load at +85 °C

∆Capacitance ±20%

ESR 200% of limit

DCL 100% of limit

1,000 h @ 85 °C, capacitance, ESR and DCL,

initial requirements

10 to 55 Hz, 0.06” and 10 g max, 2 h in each plane

Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com
