M83-LML3M519314 datasheet, PDF

Datasheet> All Categories > The connector> The connector> M83-LML3M519314

M83-LML3M519314: DescriptionCONNECTOR, 19 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size593KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

M83-LML3M519314 Overview

CONNECTOR, 19 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

M83-LML3M519314 Parametric

Parameter Name	Attribute value
Maker	Harwin
Reach Compliance Code	unknown
Base Number Matches	1

Preview

Download Datasheet

View All

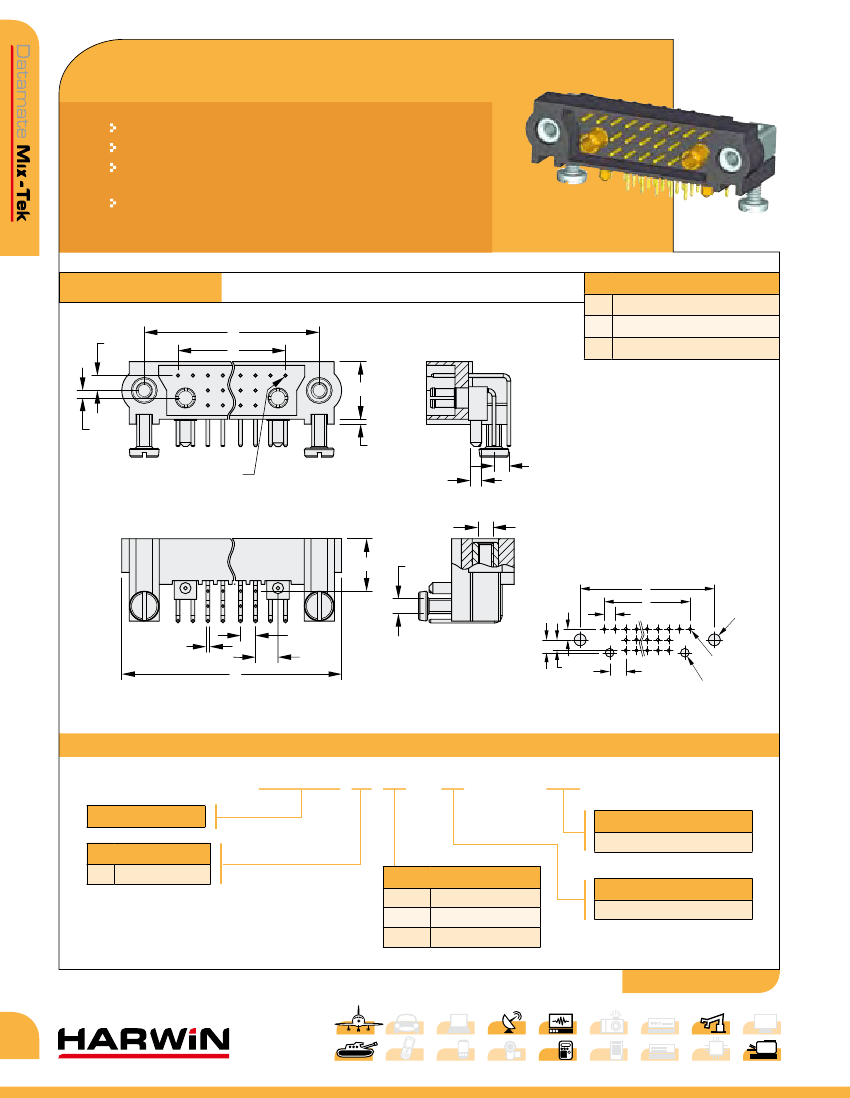

m83 Datamate Connectors

male Horizontal

Choice of compatible jackscrews and special contacts.

All contacts are gold finish for full RoHS compliance.

See page 53 for a signal-only configuration, and page

55 for an alternative mixed technology configuration.

Contact datamate@harwin.com for alternative

contact configurations.

mAlE HORIzOnTAl

2.00

7.70

1.00

0.65

No. 1 Contact

CalCulaTIon

B + 15

(Total No. of contacts + 5) x 2/3

B+9

2.00

1.50 Power Contact

7.00

2.00

2.40

2.00

2.20 MIN

0.50

2.00

3.00

2.00

0.65 MIN

3.00

1.60 MIN

Recommended pC board

PCB LAYOUT

HM1283: M83-LMLXMXNXX-0101-333

pattern

Diagrams shown with special contact 333 and Jackscrew M5 assembled.

HM1282: M83-LMLXMXNXX-0101-333

HOW TO ORDER

M83 – lM l3 XX n XX – 0101 – XXX

seRIes Code

TaIl

4mm Tail

sPeCIal ConTaCTs

311, 314, 333, 334

JaCksCRew

No Jackscrew

Jackscrew Nut

5mm Board Mount

ToTal no. oF ConTaCTs

19, 25

All dimensions in mm.

www.harwin.com

M83-LML3M519314 Related Products

	M83-LML3M519314	M83-LML3M519334	M83-LML3M519311	M83-LML3M519333	M83-LML30019333	M83-LML30019334	M83-LML3M125333	M83-LML30019311	M83-LML30019314	M83-LML3M125311
Description	CONNECTOR, 19 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 19 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 19 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 19 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 19 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 19 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 25 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 19 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 19 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 25 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow	unknow	unknow
