395GN-0089IB=P3: DescriptionGeneral Purpose Inductor, 820uH, 20%, 1 Element, SMD; CategoryPassive components inductor; File Size435KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric View All

395GN-0089IB=P3 Overview

General Purpose Inductor, 820uH, 20%, 1 Element, SMD

395GN-0089IB=P3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TOKO, INC.
Reach Compliance Code	unknown
ECCN code	EAR99
Base Number Matches	1

Preview

Download Datasheet

View All

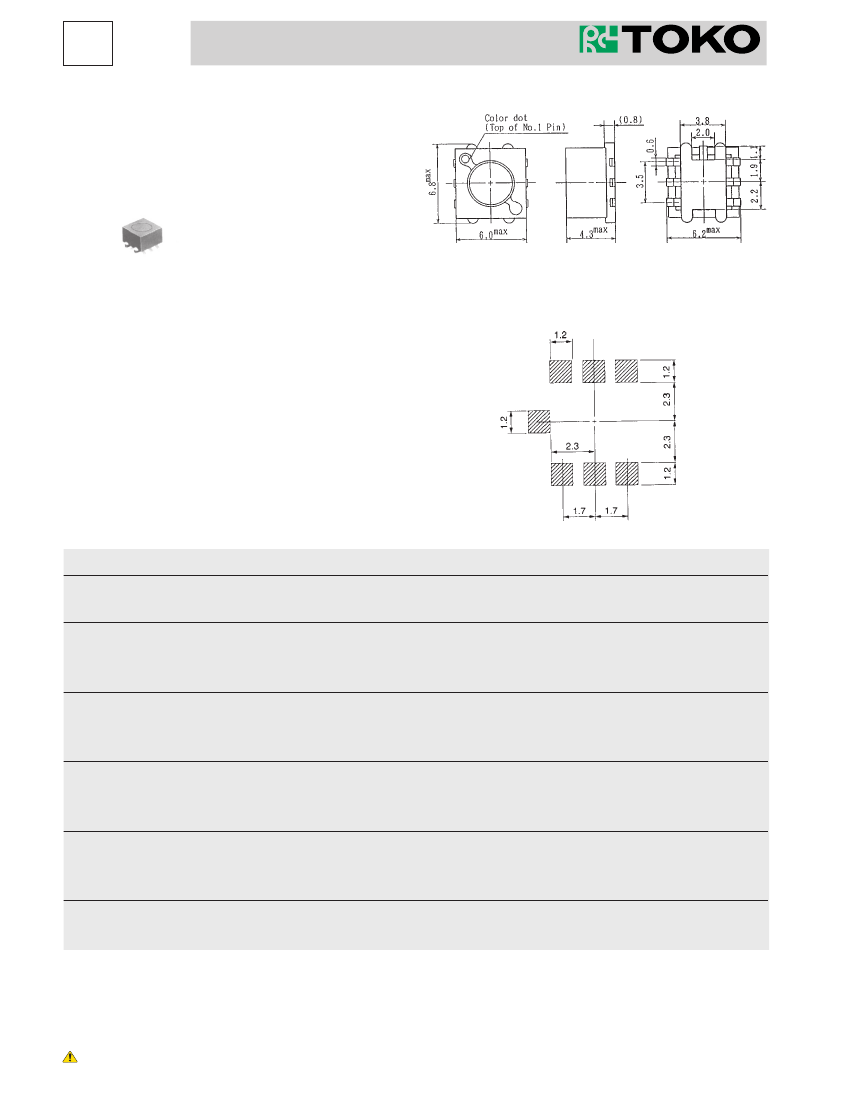

48

TYPE

5CA

Fixed Inductors for Surface Mounting

Meeting Your Needs

TYPE 5CA

Frequency Range:

10-500kHz

Inductance Range:

0.1-7mH

0.6

*

* Available in heights of 3mm and 5mm.

Unit: mm

Features

• Package design is ideal for automatic assembly

• Available with up to 7 terminals to provide secondary winding

or taps, and function as DC-DC step up transformer

• Suitable for reflow soldering

• Available on tape and reel for automatic insertion

• Lead-free terminations

Recommended patterns:

Unit: mm

STANDARD PARTS SELECTION GUIDE

TYPE 5CA

TOKO

Part

Number

#395GN-0078IB=P3

#395GN-0079IB=P3

#395GN-0080IB=P3

#395GN-0081IB=P3

#395GN-0082IB=P3

#395GN-0083IB=P3

#395GN-0084IB=P3

#395GN-0085IB=P3

#395GN-0086IB=P3

#395GN-0087IB=P3

#395GN-0088IB=P3

#395GN-0089IB=P3

#395GN-0090IB=P3

#395GN-0091IB=P3

#395GN-0092IB=P3

#395GN-0093IB=P3

#395GN-0094IB=P3

#395GN-0095IB=P3

#395GN-0096IB=P3

#395GN-0097IB=P3

#395GN-0098IB=P3

#395GN-0099IB=P3

#395GN-0100IB=P3

Inductance

100µH±20%

120µH±20%

150µH±20%

180µH±20%

220µH±20%

270µH±20%

330µH±20%

390µH±20%

470µH±20%

560µH±20%

680µH±20%

820µH±20%

1.0mH±20%

1.2mH±20%

1.5mH±20%

1.8mH±20%

2.2mH±20%

2.7mH±20%

3.3mH±20%

3.9mH±20%

4.7mH±20%

5.6mH±20%

6.8mH±20%

Q

(min.)

40

70

DC

Resistance

(

Ω

)

1.1

1.2

1.4

1.5

1.7

1.9

2.2

2.5

3.3

3.6

max.

Test

Frequency

(kHz)

796

252

Rated DC

Current

(mA)

188 max.

167 max.

155 max.

148 max.

140 max.

117 max.

112 max.

100 max.

85 max.

78 max.

76

71

57

54

45

42

38

35

32

28

max.

4.0 max.

5.5 max.

7.3 max.

8.7 max.

12.3 max.

14.2 max.

15.6 max.

24.0 max.

26.6 max.

30.2 max.

33.6 max.

36.0 max.

49.0 max.

24 max.

21 max.

17 max.

Note:

=P3

is added to each part number to indicate tape and reel packaging.

Please read PRECAUTIONS and NOTES sections of this catalog for safe operation. This catalog contains consumer grade specifications only. Detailed technical specifications are available upon request.

1.800.PIK.TOKO

www.tokoam.com

1.847.297.0070

R-LOG1104A
