REVISION J
Pb
THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
DESIGNED & DIMENSIONED
IN METRIC[INCHES]
MPSS-XX-XX-X-XX.XX-XX-XXX
SECOND END OPTION
(ONLY AVAILABLE WITH -DR OPTION)
-NUS: NOTCH UP STRAIGHT
-NDS: NOTCH DOWN STRAIGHT
END OPTION
-SR: SINGLE END
-DR: DOUBLE END
ASSEMBLY LENGTH (INCHES)
03.25[82.5] MINIMUM LENGTH
No OF POSITIONS
-02: 2 POSITIONS
-03: 3 POSITIONS
-04: 4 POSITIONS
-06: 6 POSITIONS
-08: 8 POSITIONS
*
*
LEAD STYLE
-10: 10 AWG 600 V (C- 246-02-X)
-12: 12 AWG 600 V (C- 246-02-X)
-14: 14 AWG 600 V (C- 246-01-X)
-16: 16 AWG 600 V (C- 246-01-X)
PLATING SPECIFICATION
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA
BRIGHT ACID TIN ON TAIL
-T: BRIGHT ACID TIN CONTACT AND TAIL
* = NOT TOOLED
LTC-22
DO NOT
SCALE FROM
THIS PRINT
XX.XX[X.XXX]±0.13[3.2]
(SEE NOTE 6)
C
MPSS-XX-R-02
"C" REF
"A" 0.25[.010]
"E" REF
(SEETABLE 1) (SEE TABLE 1) (SEE TABLE 1)
FIRST POSITION INDICATOR
5.00 .197
REF
10.16 .400
REF
"D" REF
(SEE TABLE 1)
"B" REF
(SEE TABLE 1)
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. ALL ASSEMBLIES TO BE 100% HI-POT TESTED AT 1000V
AND ELECTRICALLY TESTED FOR SHORTS AND OPENS. AFTER
FINAL ELECTRICAL TEST, LABEL EACH ASSEMBLY WITH (1) ET
STAMP ON THE BODY.
3. MINIMUM LATCH RETENTION: 4.4 N [1 LB].
4. MINIMUM PULL OUT FORCE: 22.2 N [5.0 LB] MINIMUM.
5. PARTS TO BE LAYER PACKAGED.
6. ALL DIMS SHOWN IN METRIC EXCEPT FOR ASSEMBLY
LENGHT ON PART CALL OUT
7. NOT FOR SALE AS COMPONENTS; SOLD AS A CABLE ASSEMBLY ONLY.
8. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,
TOLERANCES, TOOLING AND ITS REQUIREMENTS.
18.55 .7 REF
DWC-XX-10-600
8.70 .343
REF
'A'
22.59 .890 REF

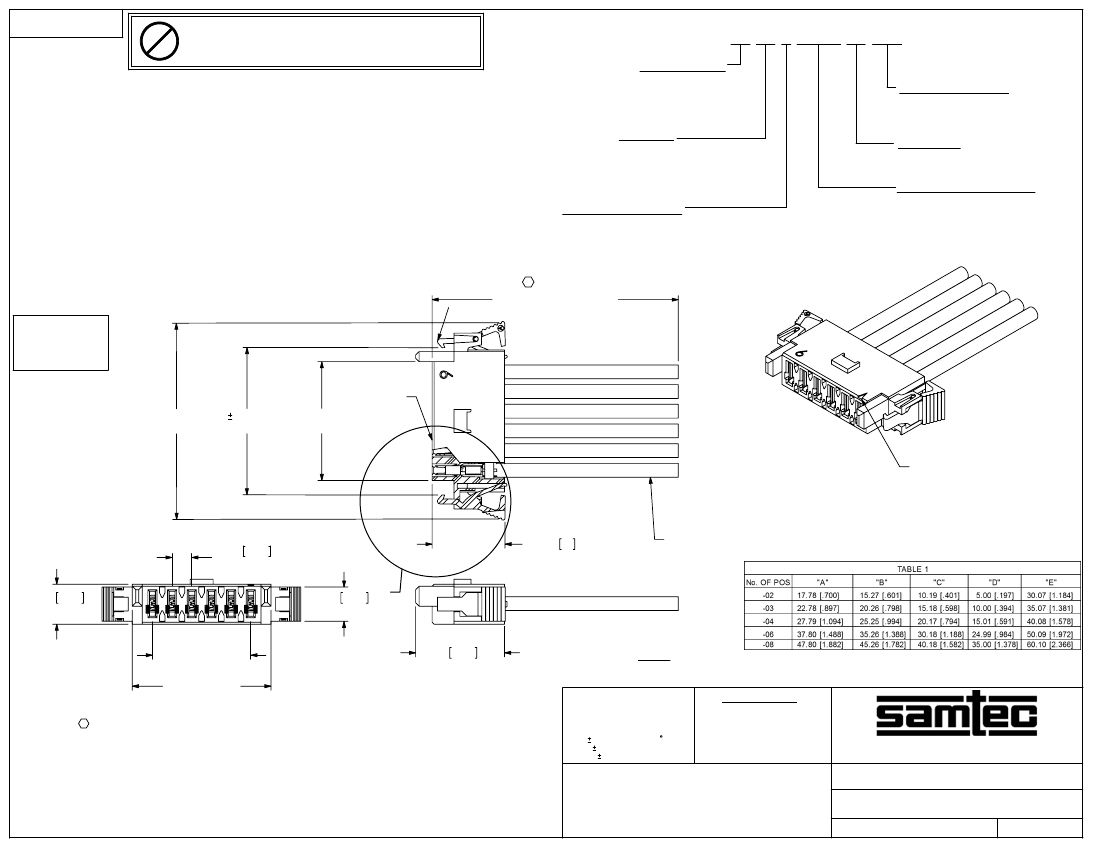

(MPSS-106-14-X-XX.XX-SR SHOWN)
F:\DWG\MISC\MKTG\MPSS-XX-XX-X-XX.XX-XX-XXX-MKT.SLDDRW
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
FIG 1
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
X.X: 0.3[.01]
2
X.XX: 0.13[.005]
X.XXX: 0.051[.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
INSULATOR:
ZYTEL HTNFR52G30NH BLACK
CONTACT: COPPER ALLOY
LATCH:
ZYTEL HTNFR52G30NH BLACK
WIRE: PVC COATED TINNED COPPER
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
MINI POWER DISCRETE WIRE
05/09/2008
SHEET
1
OF
3
MPSS-XX-XX-X-XX.XX-XX-XXX
BY:
B RAY
REVISION J
C
XX.XX[XXX.X]±.13 [3.2]
01
N
01
N
FIRST POSITION INDICATOR
(MPSS-106-14-X-XX.XX-DR-NUS SHOWN)

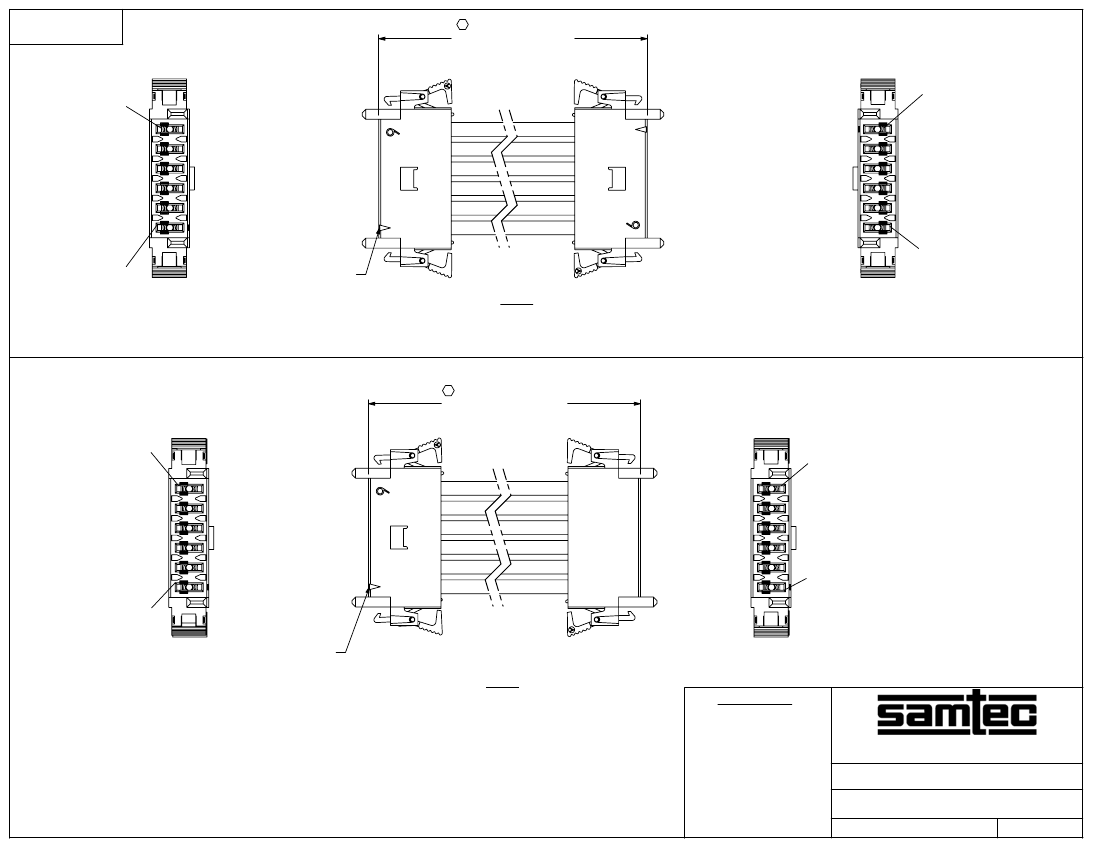

(SAME AS FIG 1, DIFFERENT AS SHOWN)
FIG 2
C
XX.XX[XXX.X]±0.13[3.2]
N
N
01
01
FIRST POSITION INDICATOR
(MPSS-106-14-X-XX.XX-DR-NDS SHOWN)
(SAME AS FIG 1, DIFFERENT AS SHOWN)
FIG 3
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
MINI POWER DISCRETE WIRE
MPSS-XX-XX-X-XX.XX-XX-XXX
05/09/2008
SHEET
2
OF
3
F:\DWG\MISC\MKTG\MPSS-XX-XX-X-XX.XX-XX-XXX-MKT.SLDDRW
BY:
B RAY
REVISION J
C
+0.25
1.02
- 0.50
.040
- .020
+.010
C
3.18
- 0.27
.125
- .011
+0.23
+.009
C

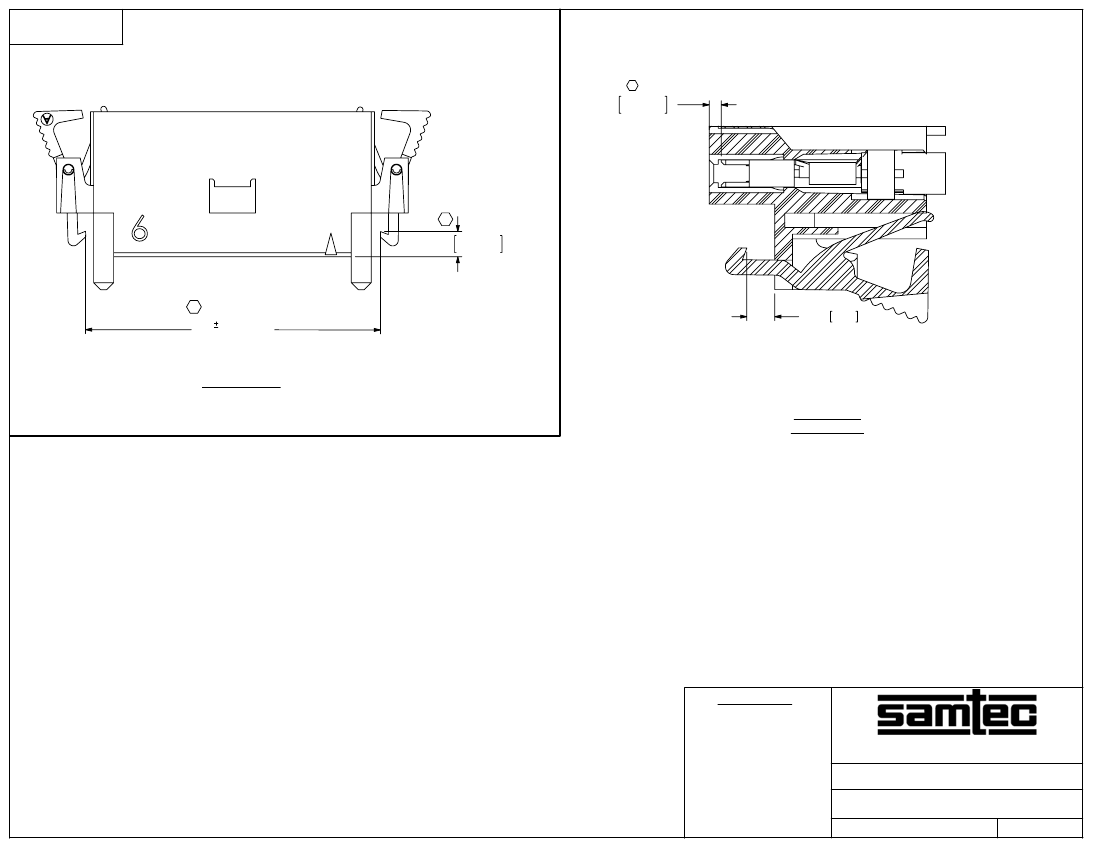

"A" 0.25[.010]
(SEE TABLE 1)
2.36 .093 REF
IN PROCESS
DETAIL 'A'
SCALE 3 : 1
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
MINI POWER DISCRETE WIRE
MPSS-XX-XX-X-XX.XX-XX-XXX
BY:
B RAY
F:\DWG\MISC\MKTG\MPSS-XX-XX-X-XX.XX-XX-XXX-MKT.SLDDRW
05/09/2008
SHEET
3
OF
3
