Schottky Barrier Rectifier
Features:
•
•
•
•
•
•
•
•
•
For Surface Mounted Applications
Low Profile Package
Built-In Strain Relief
Metal Silicon Junction, Majority Carrier Conduction
High Surge Capability
Low Power Loss, High Efficiency
For Use In Low Voltage High Frequency Inverters, Free Wheeling And
Polarity Protection Applications
Guard Ring For Over Voltage Protection
High Temperature Soldering Guaranteed : 250°C/10 Seconds At Terminals
Mechanical Data
•
•
•
•

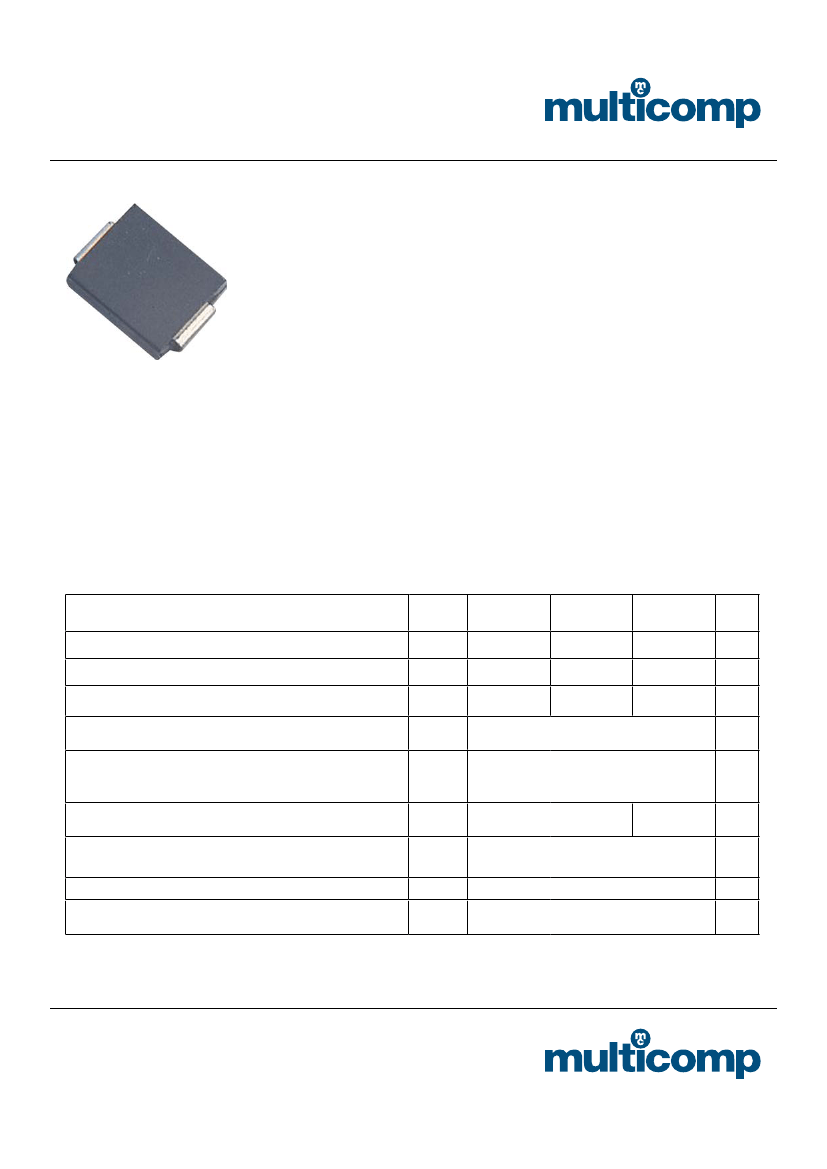

Case: JEDEC SMA, molded plastic over passivated chip
Terminals : Solder plated, solderable per MIL-STD-750, Method 2026
Polarity : Colour band denotes cathode end
Weight : 0.002oz, 0.064g
Maximum Ratings and Thermal Characteristics
Characteristic
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at T
L
= See Fig. 1
Peak forward surge current 8.3ms single half-sine-wave
Maximum instantaneous forward voltage at 2A (Note 1)
Maximum DC reverse current at T
A
=25°C
at rated DC blocking voltage T
A
=100°C (Note 1)
Typical thermal resistance (Note 2)
Operating junction and storage temperature range
Ratings at 25°C ambient temperature unless otherwise specified
Symbol
V
RRM
V
RWS
V
DC
I
F(AV)
I
FSM
V
F
I
R
R
θJL
T
J,
T
STG
0.5
0.5
20
15
-55 to +125
B230A-13-F
30
21
30
B240A-13-F
40
28
40
2
50
0.7
B260A-13-F
60
42
50
Units
V
V
V
A
A
V
mA
°C/W
°C
Notes:
(1) Pulse test : 300μS pulse width,1% duty cycle.
(2) PCB mounted with 0.55ʺ × 0.55ʺ (14 × 14mm
2
) copper pad areas.
www.element14.com
www.farnell.com
www.newark.com
Page <1>
25/02/13
V1.0

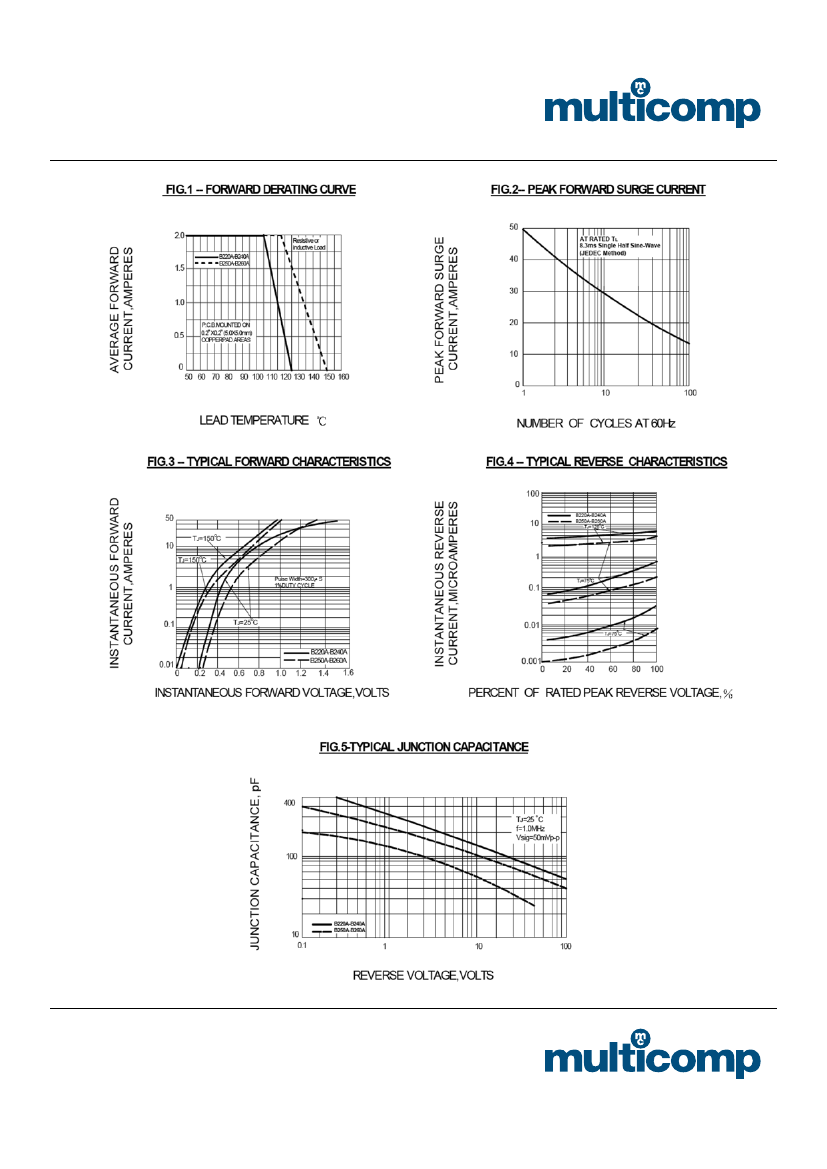

Schottky Barrier Rectifier
Package Outline Dimensions
Dim.
A
B
C
D
E
F
G
H
I
1.9
1.35
0.9
0.2 Max.
2.3
1.65
DO-214AC(SMA)
Min.
4.25
2.4
1.85
4.85
0.2 Typ.
1.5
Max.
4.65
2.8
2.15
5.35
Dimensions : Millimetres
Soldering Footprint
Package Information
Device
B230A-13-F
B240A-13-F
B260A-13-F
Package
DO-214AC(SMA)
Shipping
5,000 / Tape & Reel
Dimensions : Millimetres
Part Number Table
Description
Schottky Barrier Rectifier
Part Number
B230A-13-F
B240A-13-F
B260A-13-F
Important Notice :
This data sheet and its contents (the “Information”) belong to the members of the Premier Farnell group of companies (the “Group”) or are licensed to it. No licence is granted
for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change
without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any
error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any
assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence.
Multicomp is the registered trademark of the Group. © Premier Farnell plc 2012.
www.element14.com
www.farnell.com
www.newark.com
Page <3>
25/02/13
V1.0
