purple, rose and aqua. The colored jacket allows for easy
visual identification of the cables. The standard jacket
color will be determined by the dominant fiber type in
the cable and will use the standard part numbers shown
here. Contact Customer Care at 1-800-743-2675 to order
other color options.
Standards
Approval and Listings
National Electrical Code
®
(NEC
®
) OFCP, CSA FT-4,
ICEA S-104-696
NFPA 262 (for plenum, riser
and general building appli-
cations)
Flame Resistance
Flame-Retardant
Outer Jacket
Interlocking
Armor
Flame-Retardant
Inner Jacket
Dielectric Strength
Members
Dielectric Strength
Members
Dielectric Strength
Members
Tight-Buffered
Fiber
Ripcord
MIC
®

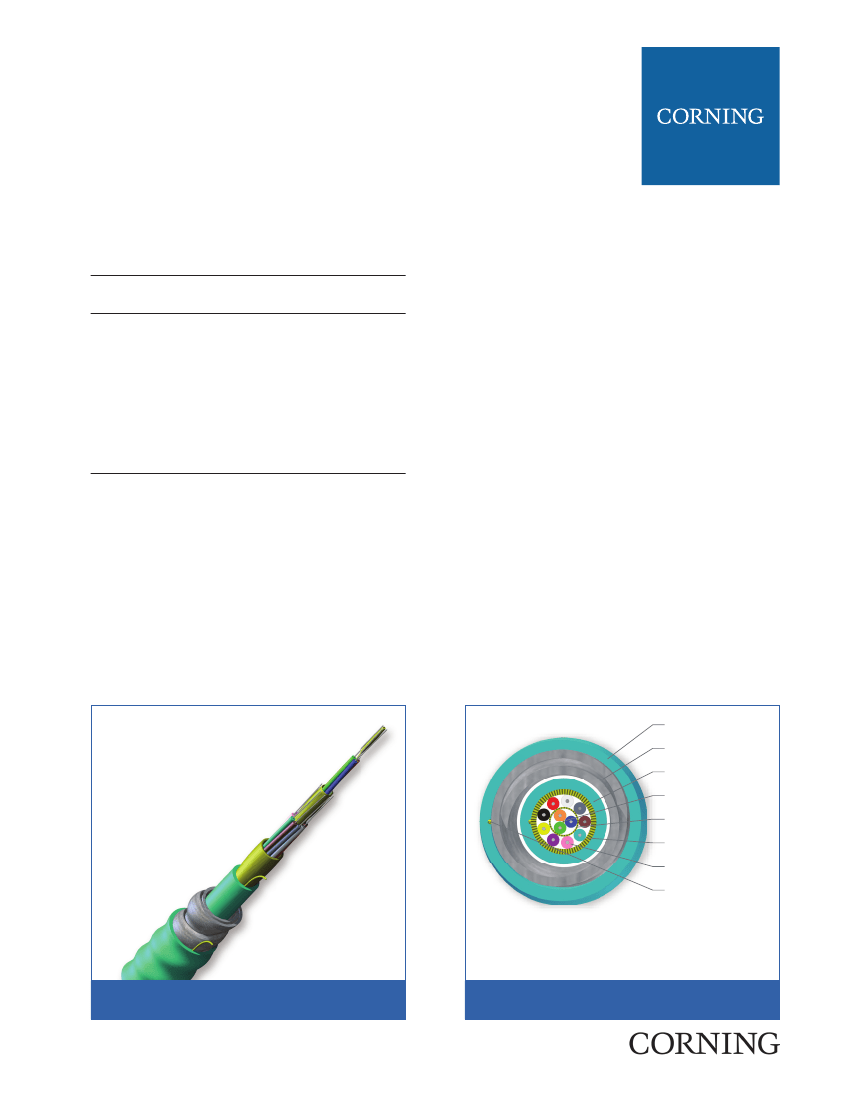

Interlocking Armored Plenum Cables, 12-Fibers
MIC
®
Interlocking Armored Plenum Cables, 12-Fibers
Family Spec Sheet 0062_NAFTA_AEN
Page 1 | Revision date 2013-02-01
MIC
®
Interlocking Armored Plenum Cables,
2-24 Fibers
Flame-Retardant
Outer Jacket
Interlocking
Armor
Flame-Retardant
Inner Jacket
Dielectric Strength
Members
Dielectric Strength
Members
Dielectric Strength
Members
Tight-Buffered
Fiber
Ripcord
MIC
®

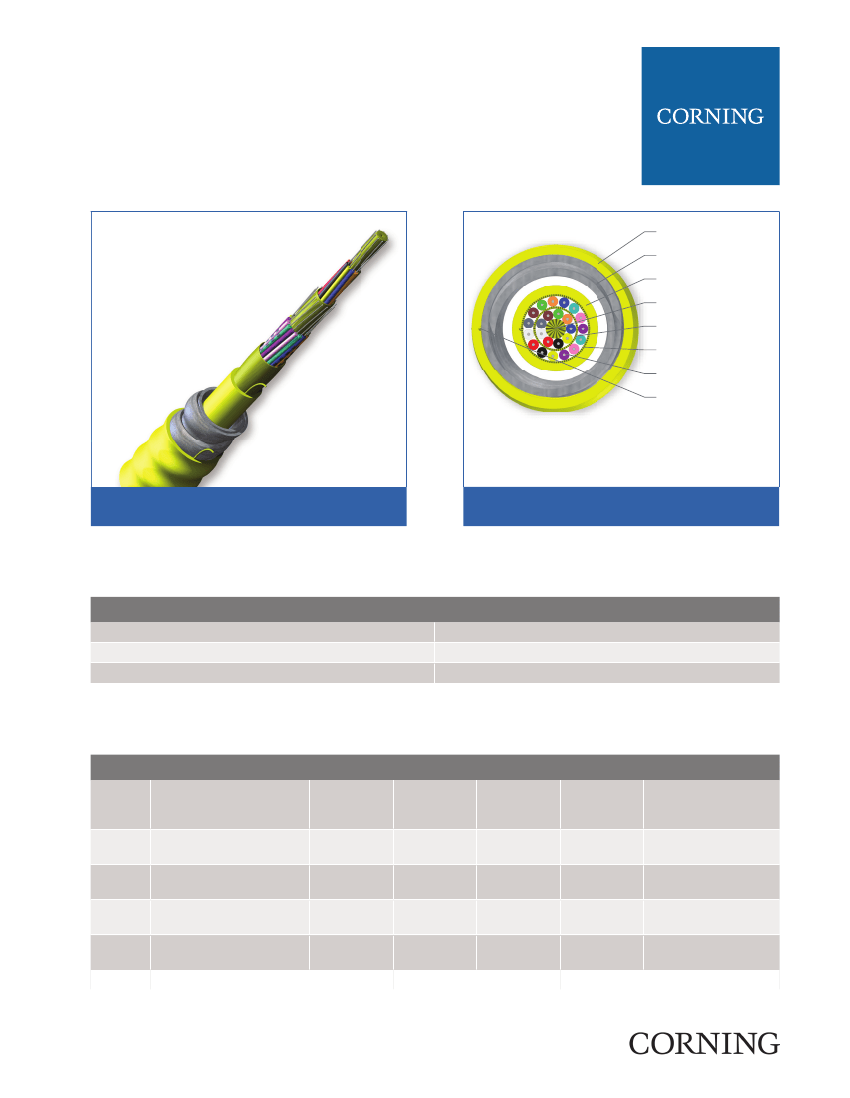

Interlocking Armored Plenum Cables, 24-Fibers
False
MIC
®
Interlocking Armored Plenum Cables, 24-Fibers
Specifications
Temperature Range
Storage
Installation
Operation
-40 °C to 70 °C (-40 °F to 158 °F)
0 °C to 60 °C (32 °F to 140 °F)
0 °C to 70 °C (32 °F to 158 °F)
*
Corning Cable Systems recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation
temperature range specifications for best installation results.
Mechanical Characteristics Cable
Fiber
Count
2
4
6
8 - 12
Product Type
Nominal
Inner Cable
Diameter
5 mm
(0.2 in)
5.3 mm
(0.21 in)
5.3 mm
(0.21 in)
6.1 mm
(0.24 in)
Nominal
Min. Bend
Min. Bend
Outer Diame- Radius Instal- Radius
ter
lation
Operation
12.2 mm
(0.48 in)
12.2 mm
(0.48 in)
12.2 mm
(0.48 in)
12.6 mm
(0.5 in)
183 mm
(7.2 in)
183 mm
(7.2 in)
183 mm
(7.2 in)
189 mm
(7.4 in)
122 mm
(4.8 in)
122 mm
(4.8 in)
122 mm
(4.8 in)
126 mm
(5 in)
Weight
Interlocking armor
Interlocking armor
Interlocking armor
Interlocking armor
131 kg/km
(87 lb/1000 ft)
136 kg/km
(91 lb/1000 ft)
138 kg/km
(92 lb/1000 ft)
151 kg/km
(105 lb/1000 ft)
Family Spec Sheet 0062_NAFTA_AEN
Page 2 | Revision date 2013-02-01
MIC
®
Interlocking Armored Plenum Cables,
2-24 Fibers
Fiber
Count
18
24
Product Type
Nominal
Inner Cable
Diameter
7.4 mm
(0.29 in)
7.8 mm
(0.31 in)
Nominal
Min. Bend
Min. Bend
Outer Diame- Radius Instal- Radius
ter
lation
Operation
13.7 mm
(0.54 in)
14.3 mm
(0.56 in)
206 mm
(8.1 in)
215 mm
(8.5 in)
137 mm
(5.4 in)
143 mm
(5.6 in)
Weight
Interlocking armor
Interlocking armor
181 kg/km
(125 lb/1000 ft)
197 kg/km
(136 lb/1000 ft)
Transmission Performance
Fiber Type
Fiber Core Diameter (µm)
Fiber Category
Fiber Code
Performance Option Code
Wavelengths (nm)
Maximum Attenuation (dB/km)
Min. Overfilled Launch (OFL)
Bandwidth (MHz*km)
Minimum Effective Modal
Bandwidth (EMB) (MHz*km)
Serial 1 Gigabit Ethernet (m)
Serial 10 Gigabit Ethernet (m)
Induced Attenuation @ 7.5 mm
Radius (dB)
Multimode
62.5
OM1
K
30
850 / 1300
3.4 / 1.0
200 / 500
220 / -
300 / 550
33 / -
Multimode
50
OM2
T
31
850 / 1300
2.8 / 1
700 / 500
950 / -
750 / 600
150 / -
Multimode
50
OM3
T
80
850 / 1300
2.8 / 1
1500 / 500
2000 / -
1000 / 600
300 / -
< 30 up to 80
Multimode
50
OM4
T
90
850 / 1300
2.8 / 1
3500 / 500
4700 / -
1100 / 600
550 / -
Multimode
50
OM4
Extended
Distance
T
91
850 / 1300
2.8 / 1
3500 / 500
5350 / -
1100 / 600
600 / -
5000 / - / -
10000 / - /
40000
Single-mode
8.2
OS2
E
31
1310 / 1383
/ 1550
0.65 / 0.65
/ 0.5
* Assumes 1.0 dB maximum total connector/splice loss.
* Assumes 0.7 dB maximum total connector/splice loss.
* Meets 0.75 ns optical skew when used in all Corning Cable Systems Plug & Play™/Pretium EDGE
®
Systems Solutions.
* ITU-T G.652 D compliant.
Notes:
1)
Improved attenuation and bandwidth options available.
2)
Bend-insensitive single-mode fibers available on request.
3)
Contact a Corning Cable Systems Customer Care Representative for additional information.
4)
50 µm multimode fiber macrobend loss ≤ 0.2 dB at 850 nm for two turns around 7.5 mm radius mandrel.
Family Spec Sheet 0062_NAFTA_AEN
Page 3 | Revision date 2013-02-01
MIC
®
Interlocking Armored Plenum Cables,
2-24 Fibers
Ordering Information |
Contact Customer Care at 1-800-743-2671 for other options.
This cable is available in 12 different jacket colors - blue, orange, green, brown, slate, white, red, black, yellow, purple, rose and aqua. The colored jacket allows
for easy visual identification of the cables while still providing all of the required environmental protection of an indoor/outdoor cable jacket. Black is the standard
jacket color using the standard part numbers shown here. Contact Customer Care at 1-800-743-2675 to order other color options.
