HFM307 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> HFM307

HFM307: DescriptionUltra fast recovery type; CategoryDiscrete semiconductor diode; File Size56KB，2 Pages; ManufacturerFORMOSA; Websitehttp://www.formosams.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HFM307 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HFM307	-	-	View	Buy Now

HFM307 Overview

Ultra fast recovery type

HFM307 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FORMOSA
package instruction	SMC, 2 PIN
Reach Compliance Code	unknow
Is Samacsys	N
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-F2
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.075 µs
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

Chip Silicon Rectifier

HFM301 THRU HFM307

Ultra fast recovery type

Formosa MS

SMC

0.276(7.0)

0.260(6.6)

0.012(0.3) Typ.

Features

Plastic package has Underwriters Laboratory

Flammability Classification 94V-O Utilizing Flame

Retardant Epoxy Molding Compound.

For surface mounted applications.

Exceeds environmental standards of MIL-S-19500 /

228

Low leakage current.

0.032(0.8) Typ.

0.040(1.0) Typ.

0.152(3.8)

0.144(3.6)

0.189(4.8)

0.173(4.4)

0.244(6.2)

0.228(5.8)

0.087(2.2)

0.071(1.8)

Mechanical data

Case : Molded plastic, JEDEC DO-214AB

Terminals : Solder plated, solderable per MIL-STD-750,

Method 2026

Polarity : Indicated by c athode band

Mounting P

osition : Any

Weight : 0.00585 ounce, 0.195 gram

0.040 (1.0) Typ.

Dimensions in inches and (millimeters)

MAXIMUM RATINGS

(AT T

=25

C unless otherwise noted)

PARAMETER

Forward rectified current

Forward surge current

CONDITIONS

Ambient temperature = 55

8.3ms single half sine-wave superimposed on

rate load (JEDEC methode)

= V

RRM

Symbol

FSM

MIN.

TYP.

MAX.

3.0

100

10.0

300

UNIT

Reverse current

Thermal resistance

Diode junction capacitance

Storage temperature

STG

-55

= V

RRM

= 100 C

Junction to ambient

f=1MHz and applied 4vDC reverse voltage

C / w

+150

SYMBOLS

MARKING

CODE

H31

H32

H33

H34

H35

H36

H37

RRM

(V)

RMS

(V)

140

210

280

420

560

Operating

temperature

(

(V)

100

200

300

400

600

800

(V)

(nS)

HFM301

HFM302

HFM303

HFM304

HFM305

HFM306

HFM307

100

200

300

400

600

800

1.0

-55 to +150

1.3

*1 Repetitive peak reverse voltage

*2 RMS voltage

*3 Continuous reverse voltage

*4 Maximum forward voltage

1.7

*5 Reverse recovery time

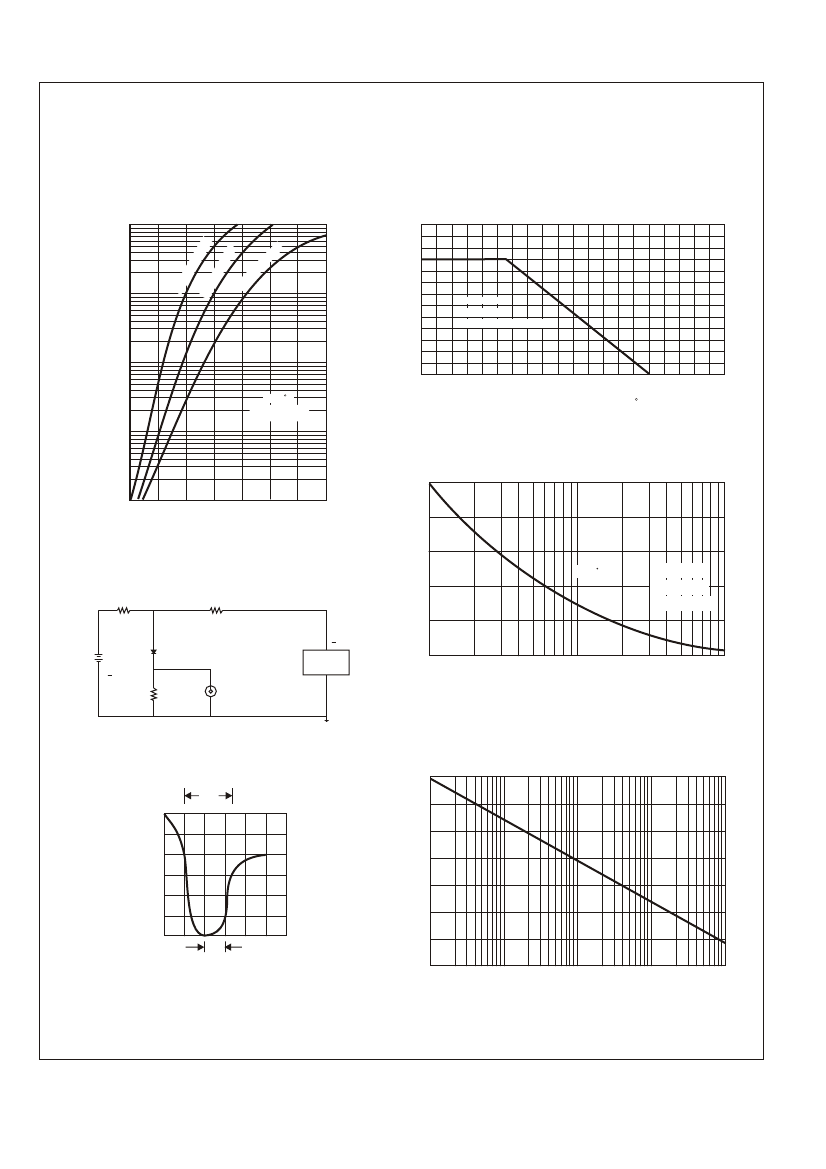

HFM307 Related Products

	HFM307	HFM301	HFM302	HFM303	HFM305	HFM304	HFM306
Description	Ultra fast recovery type	Ultra fast recovery type	Ultra fast recovery type	Ultra fast recovery type	Ultra fast recovery type	Ultra fast recovery type	Ultra fast recovery type
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	FORMOSA	FORMOSA	FORMOSA	FORMOSA	FORMOSA	FORMOSA	FORMOSA
package instruction	SMC, 2 PIN	R-PDSO-F2	R-PDSO-F2	SMC, 2 PIN	R-PDSO-F2	SMC, 2 PIN	R-PDSO-F2
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V	1 V	1 V	1 V	1.7 V	1.3 V	1.7 V
JEDEC-95 code	DO-214AB	DO-214AB	DO-214AB	DO-214AB	DO-214AB	DO-214AB	DO-214AB
JESD-30 code	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2	R-PDSO-F2
Maximum non-repetitive peak forward current	100 A	100 A	100 A	100 A	100 A	100 A	100 A
Number of components	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum repetitive peak reverse voltage	1000 V	50 V	100 V	200 V	600 V	400 V	800 V
Maximum reverse current	5 µA	5 µA	5 µA	5 µA	5 µA	5 µA	5 µA
Maximum reverse recovery time	0.075 µs	0.05 µs	0.05 µs	0.05 µs	0.075 µs	0.05 µs	0.075 µs
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
