DFVS2-KHZ5FREQ1100XE50 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> DFVS2-KHZ5FREQ1100XE50

DFVS2-KHZ5FREQ1100XE50: DescriptionHCMOS Output Clock Oscillator, 2MHz Min, 25MHz Max, MINIATURE PACKAGE-6; CategoryPassive components oscillator; File Size65KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

DFVS2-KHZ5FREQ1100XE50 Overview

HCMOS Output Clock Oscillator, 2MHz Min, 25MHz Max, MINIATURE PACKAGE-6

DFVS2-KHZ5FREQ1100XE50 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
Maximum control voltage	5 V
Minimum control voltage
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	50%
Installation features	SURFACE MOUNT
Maximum operating frequency	25 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	25 PF
physical size	7.2mm x 5.3mm x 3.2mm
longest rise time	5 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

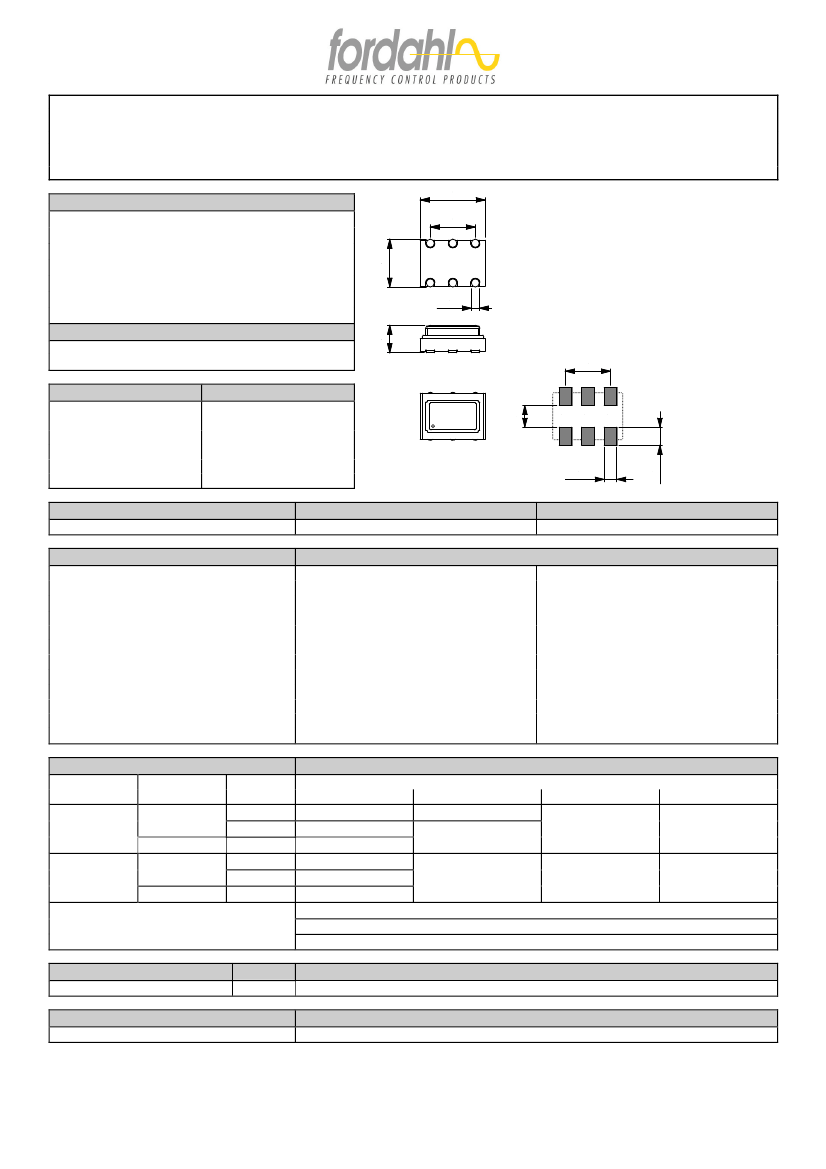

MINIATURE SURFACE MOUNT VCXO

DFV S2-KHZ (5 V) & DFV S2-LHZ (3.3 V)

KEY FEATURES

5.3±0.1

7.2±0.2

5.08

2 to 52 MHz

± 20 ppm overall stability available

Encapsulated crystal

APPLICATIONS

Sonet/SDH/Switching

Function

V control

N/C or Enable/Disable

GND

Output

N/C or Enable/Disable

Vcc

0.9

3.2±0.2

5.08

DFV S2

2.4

PC board footprint

1.4

TYPE

Frequency Range

DFV S2-KHZ

2 to 52 MHz

5V±5%

≤

15 mA

≤

35 mA

25 pF up to 25 MHz, 15 pF above

45/55...55/45 % @ 50% level

10 to 90 % :

≤

5 ns

≥

4.5 V/

≤

0.5 V

high or open = enable, low = high Z

≤

10 ms @ 4.75 V

DFV S2-LHZ

2 to 52 MHz

3.3 V ± 5 %

≤

10 mA

≤

25 mA

15 pF

45/55...55/45 % @ 50% level

10 to 90 % :

≤

5 ns

≥

2.8 V/

≤

0.3 V

high or open = enable, low = high Z

≤

10 ms @ 3.15 V

ELECTRICAL SPECIFICATIONS

supply voltage

supply current (no load)

≤

25 MHz

> 25 MHz

output load (HCMOS)

duty cycle

rise/fall times (@ 15 pF load)

high/low levels

tri-state control (pin 2) (pin 5 N/C)

start up

FREQUENCY STABILITY

type

DFV S2-KHZ

temperature

range

0 to 70°

-40 to 85°

DFV S2-LHZ

0 to 70°

-40 to 85°

model

code

100XB20

100XB25

100XE50

90XB20

90XB25

90XE50

tolerances [ ppm ]

overall stability

≤

± 20

≤

± 25

≤

± 50

≤

± 20

≤

± 25

≤

± 50

pulling range

≥

± 100

≥

± 100

≥

± 90

function

positive

control voltage

2.5 V ± 2.5 V

positive

2.0

1.65 V ± 1.65 V

remarks

input impedance

≥

10 kΩ

includes calibration @ 25° temperature, ageing, Vcc and load changes

ageing is 1 year at 25°

CODE

high or open = enable, low = high Z (pin 2 N/C)

OPTIONS

tri-state control on pin 5

ORDERING CODE

Example

type + option code + frequency + model code

DFV S2-LHZ 34.368 MHz 90XB20

DFV_S2-KH_LH

These products and their specifications are subject to change without notice

25.10.2010 / PIK
