Part Number

Search

5761-1CCCE

Description
RF SMA Connector, 1 Contact(s), Male, Panel Mount, Panel Mount, Solder Lug Terminal, Locking, Plug,
CategoryThe connector    The connector
File Size97KB,1 Pages
ManufacturerCarlisle Interconnect Components
Download Datasheet Parametric Compare View All

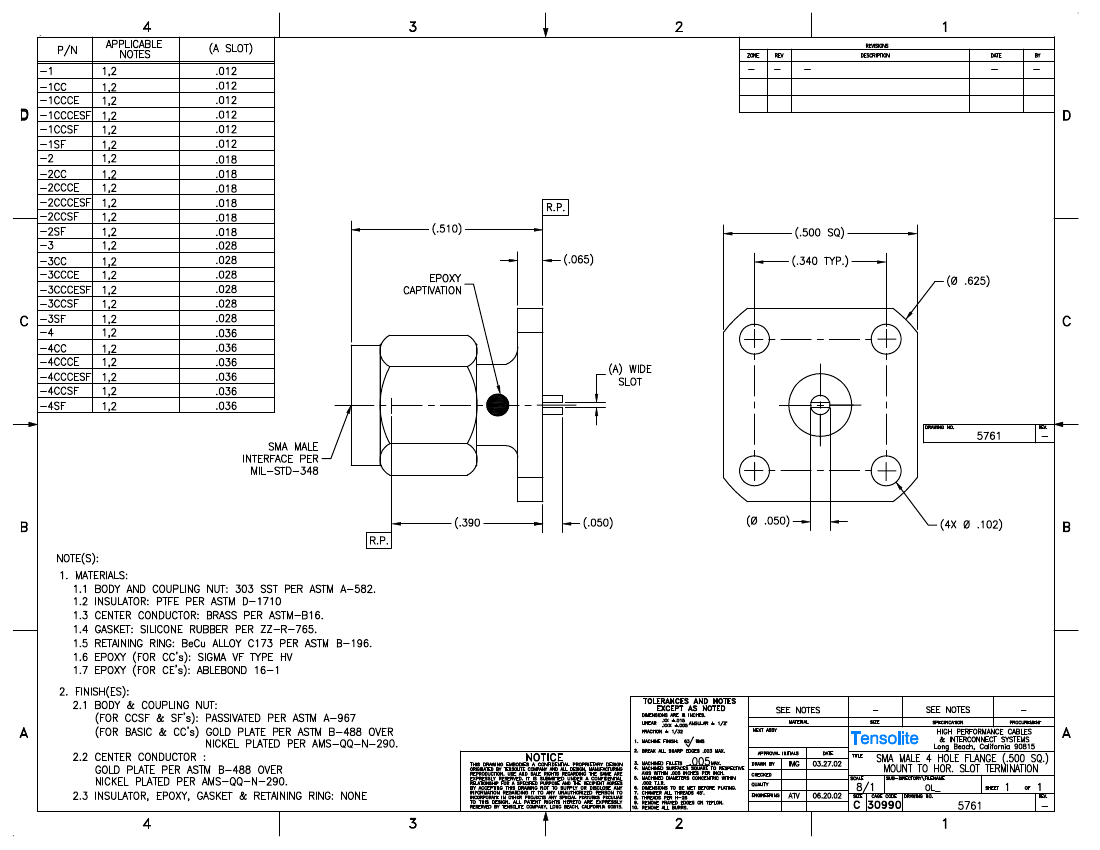

5761-1CCCE Overview

RF SMA Connector, 1 Contact(s), Male, Panel Mount, Panel Mount, Solder Lug Terminal, Locking, Plug,

5761-1CCCE Parametric

Parameter NameAttribute value
MakerCarlisle Interconnect Components
Reach Compliance Codecompliant
Other featuresSLOTTED TERMINATION
subject depth0.51 inch
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Contact styleCOAX
Dielectric withstand voltage2100VAC V
Durability500 Cycles
maximum insertion force8.896 N
Insertion loss0.05 dB
Insulation resistance10000000000 Ω
insulator materialPOLYTETRAFLUOROETHYLENE
Manufacturer's serial number5761
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typePANEL
Number of ports1
Maximum operating frequency18 GHz
Panel mountingYES
reliabilityCOMMERCIAL
Shell surfaceGOLD OVER NICKEL
Termination typeSOLDER LUG
Total number of contacts1
voltage standing wave ratio1.05
Evacuation force-minimum value.278 N
Base Number Matches1

5761-1CCCE Related Products

5761-1CCCE 5761-1CCCESF
Description RF SMA Connector, 1 Contact(s), Male, Panel Mount, Panel Mount, Solder Lug Terminal, Locking, Plug, RF SMA Connector, 1 Contact(s), Male, Panel Mount, Panel Mount, Solder Lug Terminal, Locking, Plug,
Maker Carlisle Interconnect Components Carlisle Interconnect Components
Reach Compliance Code compliant compliant
Other features SLOTTED TERMINATION SLOTTED TERMINATION
subject depth 0.51 inch 0.51 inch
Body/casing type PLUG PLUG
Characteristic impedance 50 Ω 50 Ω
Connector type RF SMA CONNECTOR RF SMA CONNECTOR
Contact point gender MALE MALE
Contact style COAX COAX
Dielectric withstand voltage 2100VAC V 2100VAC V
Durability 500 Cycles 500 Cycles
maximum insertion force 8.896 N 8.896 N
Insertion loss 0.05 dB 0.05 dB
Insulation resistance 10000000000 Ω 10000000000 Ω
insulator material POLYTETRAFLUOROETHYLENE POLYTETRAFLUOROETHYLENE
Manufacturer's serial number 5761 5761
Installation option 1 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type PANEL PANEL
Number of ports 1 1
Maximum operating frequency 18 GHz 18 GHz
Panel mounting YES YES
reliability COMMERCIAL COMMERCIAL
Termination type SOLDER LUG SOLDER LUG
Total number of contacts 1 1
voltage standing wave ratio 1.05 1.05
Evacuation force-minimum value .278 N .278 N
Base Number Matches 1 1
