3-1105051-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 3-1105051-1

3-1105051-1: DescriptionHN.D-C-BU.AG.0,75; CategoryThe connector Connector bracket; File Size214KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1105051-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1105051-1	-	-	View	Buy Now

3-1105051-1 Overview

HN.D-C-BU.AG.0,75

3-1105051-1 Parametric

Parameter Name	Attribute value
Brand Name	HTS
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	11 weeks
Other features	CONTACT FINISH: SILVER
Assembly name	CONTACT
Connector bracket type	CONNECTOR ACCESSORY
Contactor design	LOOSE
Contact point gender	MALE
DIN compliance	NO
designed usage	POWER AND SIGNAL
IEC compliance	NO
MIL compliance	NO
Material	COPPER ALLOY
Rated current	10 A
Terminal type	CRIMP
used for	HN SERIES INSERT
Maximum wire diameter	17 AWG
Minimum wire diameter	18 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

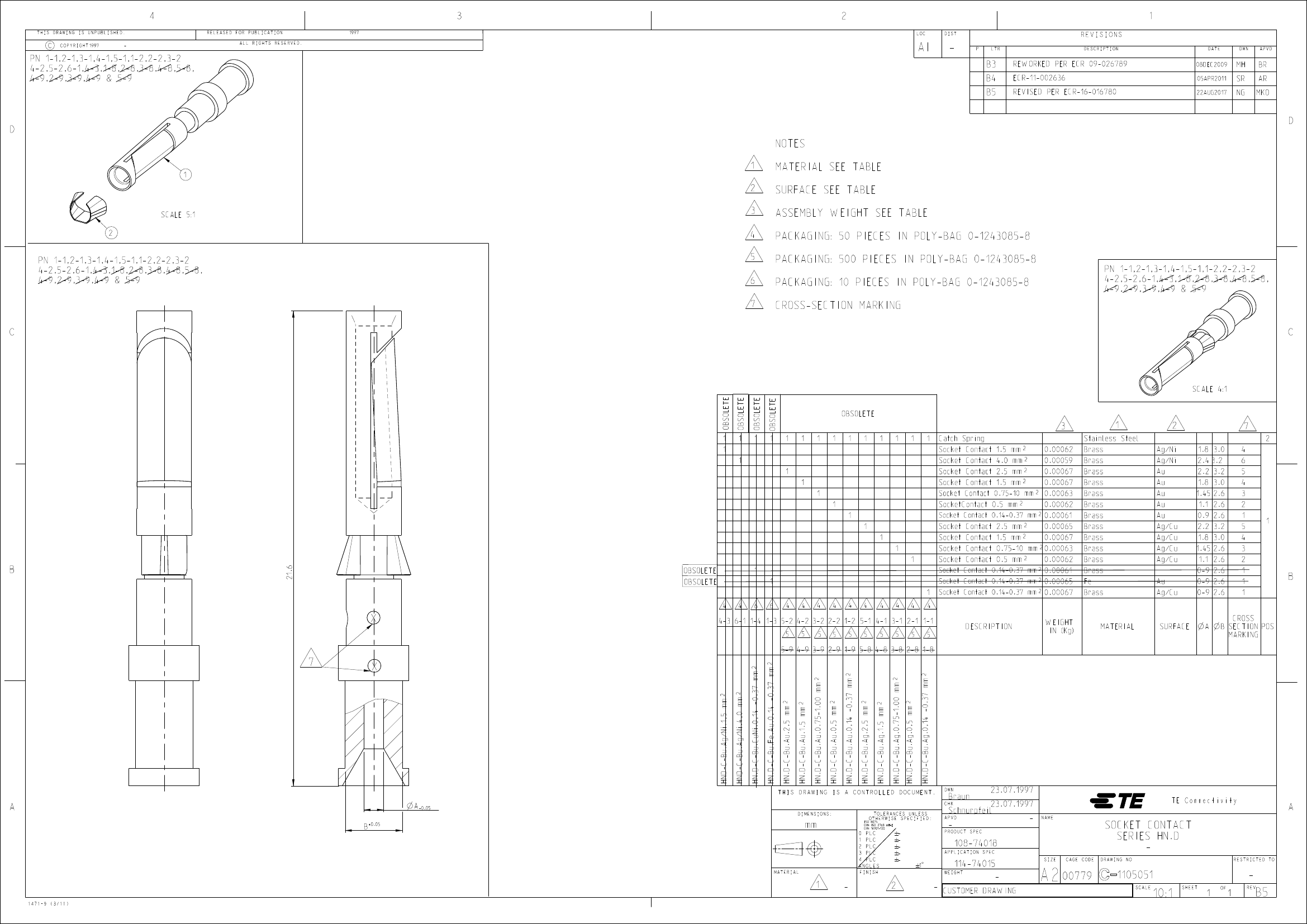

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

1997

LOC

DIST

1997

PN 1-1,2-1,3-1,4-1,5-1,1-2,2-2,3-2

4-2,5-2,6-1,4-3,1-8,2-8,3-8,4-8,5-8,

4-9,2-9,3-9,4-9& 5-9

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REWORKED PER ECR 09-026789

ECR-11-002636

REVISED PER ECR-16-016780

08DEC2009

05APR2011

22AUG2017

MKO

SCALE 5:1

NOTES

MATERIAL SEE TABLE

SURFACE SEE TABLE

ASSEMBLY WEIGHT SEE TABLE

PACKAGING: 50 PIECES IN POLY-BAG 0-1243085-8

PACKAGING: 500 PIECES IN POLY-BAG 0-1243085-8

PACKAGING: 10 PIECES IN POLY-BAG 0-1243085-8

CROSS-SECTION MARKING

PN 1-1,2-1,3-1,4-1,5-1,1-2,2-2,3-2

4-2,5-2,6-1,4-3,1-8,2-8,3-8,4-8,5-8,

4-9,2-9,3-9,4-9& 5-9

PN 1-1,2-1,3-1,4-1,5-1,1-2,2-2,3-2

4-2,5-2,6-1,4-3,1-8,2-8,3-8,4-8,5-8,

4-9,2-9,3-9,4-9& 5-9

OBSOLETE

SCALE 4:1

OBSOLETE

Catch Spring

0.00062

0.00059

0.00067

Socket Contact 1.5 mm²

Socket Contact 4.0 mm²

Socket Contact 2.5 mm²

Stainless Steel

Brass

Ag/Ni

1.8 3.0

2.43.2

2.2 3.2

Socket Contact 1.5 mm²

SocketContact 0.5 mm²

Socket Contact 0.75-10 mm²

0.00063

Socket Contact 0.14-0.37 mm²

0.00061

0.00062

0.00065

0.00067

0.00062

Ag/Cu

1.452.6

1.1 2.6

0.9 2.6

2.2 3.2

1.452.6

1.1 2.6

0-9 2.6

1.8 3.0

Socket Contact 2.5 mm²

Socket Contact 1.5 mm²

Socket Contact 0.5 mm²

Socket Contact 0.75-10 mm²

0.00063

Socket Contact 0.14-0.37 mm²

0.00061

Socket Contact 0.14-0.37 mm²

0.00065

Socket Contact 0.14-0.37 mm²

0.00067

21.6

OBSOLETE

Ag/Cu

4-3 6-1 1-4 1-3 5-2 4-2 3-2 2-2 1-2 5-1 4-1 3-1 2-1 1-1

DESCRIPTION

WEIGHT

IN (Kg)

MATERIAL

SURFACE

CROSS

SECTION POS

MARKING

HN.D-C-Bu.CuNi.0,14 -0.37 mm²

HN.D-C-Bu.Au.0.75-1.00 mm²

HN.D-C-Bu.Au.0,14 -0.37 mm²

HN.D-C-Bu.Ag.0.75-1.00 mm²

HND-C-Bu.Ag/Ni.1,5 mm²

HND-C-Bu.Ag/Ni.4,0 mm²

HN.D-C-Bu.Au.2,5 mm²

HN.D-C-Bu.Au.0,5 mm²

HN.D-C-Bu.Au.1.5 mm²

HN.D-C-Bu.Ag.2,5 mm²

HN.D-C-Bu.Ag.1.5 mm²

HN.D-C-Bu.Ag.0,14 -0.37 mm²

HN.D-C-Bu.Fe.Au.0,14 -0.37 mm²

5-9 4-9 3-9 2-9 1-9 5-8 4-8 3-8 2-8 1-8

HN.D-C-Bu.Ag.0,5 mm²

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

+0.05

-0.05

DIMENSIONS:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

ISO 8075

DIN ISO 2768 mH-E

DIN 16901-120

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

23.07.1997

Schnurpfeil

APVD

PRODUCT SPEC

APPLICATION SPEC

Braun

23.07.1997

NAME

TE Connectivity

108-74018

1 $

1471-9 (3/11)

CUSTOMER DRAWING

114-74015

WEIGHT

SIZE

CAGE CODE

DRAWING NO

SOCKET CONTACT

SERIES HN.D

1105051

SCALE

RESTRICTED TO

00779

10:1

SHEET

REV

3-1105051-1 Related Products

	3-1105051-1	2-1105051-1	4-1105051-1	5-1105051-1	BD036-068-A-S-0210-0770-N-D
Description	HN.D-C-BU.AG.0,75	HN.D-C-BU.AG.0,5	HN.D-C-BU.AG.1,5	HN.D-C-BU.AG.2,5	Board Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	not_compliant	not_compliant	compliant
Brand Name	HTS	HTS	HTS	HTS	-
Factory Lead Time	11 weeks	20 weeks 3 days	20 weeks 3 days	24 weeks	-
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	-
Base Number Matches	1	1	1	1	-
Is it lead-free?	-	Lead free	Lead free	Lead free	-
Manufacturer's serial number	-	1105051	1105051	1105051	BD036
