AP87C51BH: DescriptionMicrocontroller, 8-Bit, OTPROM, 8051 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size230KB，16 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

AP87C51BH Overview

Microcontroller, 8-Bit, OTPROM, 8051 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40

AP87C51BH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	DIP
package instruction	PLASTIC, DIP-40
Contacts	40
Reach Compliance Code	compliant
Has ADC	NO
Address bus width	16
bit size	8
CPU series	8051
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52.26 mm
Number of I/O lines	32
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	4096
ROM programmability	OTPROM
Maximum seat height	5.08 mm
speed	12 MHz
Maximum slew rate	25 mA
Maximum supply voltage	6 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

80C31BH 80C51BH 87C51

MCS 51

CHMOS SINGLE-CHIP 8-BIT MICROCONTROLLER

Automotive

Extended Automotive Temperature

Range (

40 C to

125 C Ambient)

High Performance CHMOS Process

Power Control Modes

4 Kbyte On-Chip ROM EPROM

128 x 8-bit RAM

32 Programmable I O Lines

Two 16-Bit Timer Counters

5 Interrupt Sources

Quick-Pulse EPROM Programming

2-Level Program Memory Lock EPROM

Boolean Processor

Programmable Serial Port

TTL- and CMOS-Compatible Logic

Levels

64K External Program Memory Space

64K External Data Memory Space

IDLE and POWER DOWN Modes

ONCE Mode Facilitates System Testing

Available in 12 MHz and 16 MHz

Versions

Available in PLCC and DIP Packages

(See Packaging Specification Order

231369)

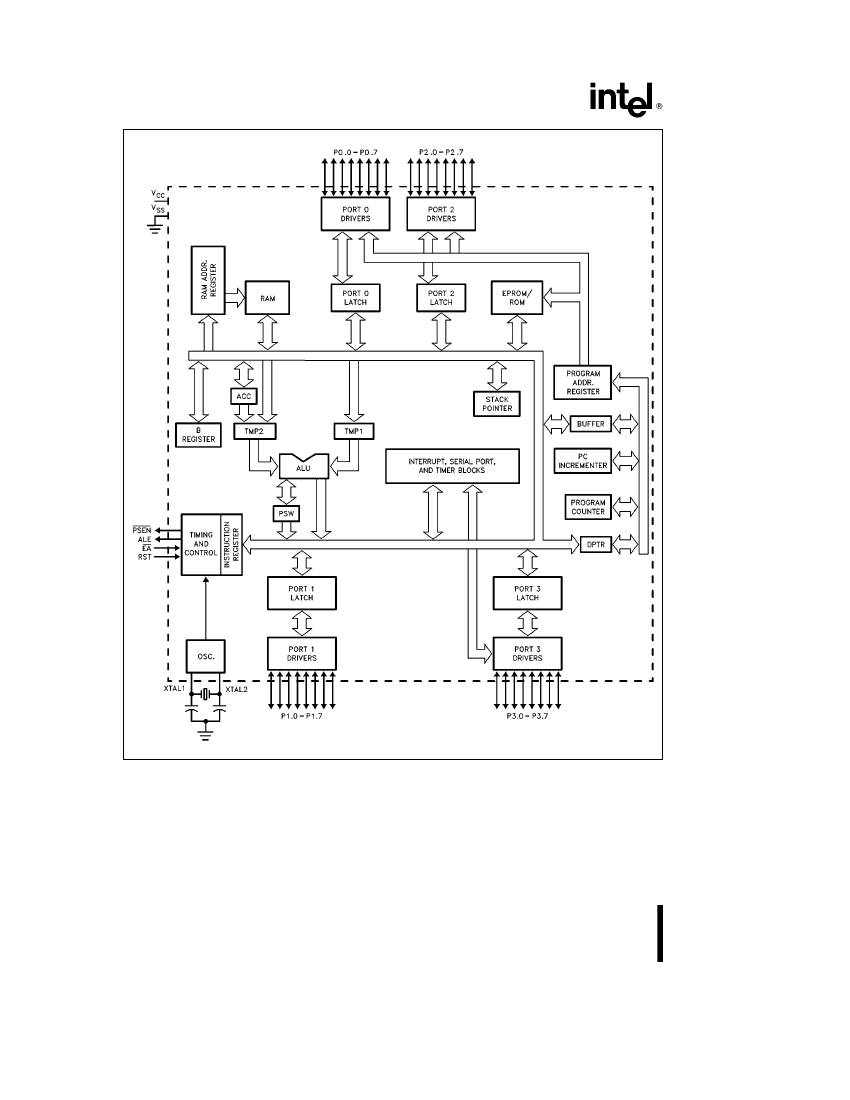

The MCS 51 CHMOS microcontroller products are fabricated on Intel’s reliable CHMOS process and are

functionally compatible with the standard MCS 51 HMOS microcontroller products This technology combines

the high speed and density characteristics of HMOS with the low power attributes of CHMOS This combina-

tion expands the effectiveness of the powerful MCS 51 microcontroller architecture and instruction set

Like the MCS 51 HMOS microcontroller versions the MCS 51 CHMOS microcontroller products have the

following features 4 Kbytes of EPROM ROM (87C51 80C51BH respectively) 128 bytes of RAM 32 I O lines

two 16-bit timer counters a five-source two-level interrupt structure a full duplex serial port and on-chip

oscillator and clock circuitry In addition the MCS 51 CHMOS microcontroller products exhibit low operating

power along with two software selectable modes of reduced activity for further power reduction Idle and

Power Down

The Idle mode freezes the CPU while allowing the RAM timer counters serial port and interrupt system to

continue functioning The Power Down mode saves the RAM contents but freezes the oscillator causing all

other chip functions to be inoperative

The 87C51 is the EPROM version of the 80C51BH It contains 4 Kbytes of on-chip program memory that can

be electrically programmed and can be erased by exposure to ultraviolet light The 87C51 EPROM array uses

a modified Quick-Pulse Programming algorithm by which the entire 4 Kbyte array can be programmed in about

12 seconds

NOTICE

This datasheet contains information on products in full production Specifications within this datasheet

are subject to change without notice Verify with your local Intel sales office that you have the latest

datasheet before finalizing a design

Other brands and names are the property of their respective owners

Information in this document is provided in connection with Intel products Intel assumes no liability whatsoever including infringement of any patent or

copyright for sale and use of Intel products except as provided in Intel’s Terms and Conditions of Sale for such products Intel retains the right to make

changes to these specifications at any time without notice Microcomputer Products may have minor variations to this specification known as errata

INTEL CORPORATION 1995

January 1995

Order Number 270419-007

AP87C51BH Related Products

	AP87C51BH	TP80C31BH	LN87C51BH	LP87C51BH	LP87C51	BN80C51BH
Description	Microcontroller, 8-Bit, OTPROM, 8051 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, 8051 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, OTPROM, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, OTPROM, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, OTPROM, 8051 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, 8051 CPU, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44
Maker	Intel	Intel	Intel	Intel	Intel	Intel
Parts packaging code	DIP	DIP	LCC	DIP	DIP	LCC
package instruction	PLASTIC, DIP-40	PLASTIC, DIP-40	QCCJ,	DIP,	DIP, DIP40,.6	PLASTIC, LCC-44
Contacts	40	40	44	40	40	44
Reach Compliance Code	compliant	unknown	unknown	unknown	compliant	compliant
Has ADC	NO	NO	NO	NO	NO	NO
Address bus width	16	16	16	16	16	16
bit size	8	8	8	8	8	8
maximum clock frequency	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz
DAC channel	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8
JESD-30 code	R-PDIP-T40	R-PDIP-T40	S-PQCC-J44	R-PDIP-T40	R-PDIP-T40	S-PQCC-J44
length	52.26 mm	52.26 mm	16.6 mm	52.26 mm	52.26 mm	16.5862 mm
Number of I/O lines	32	32	32	32	32	32
Number of terminals	40	40	44	40	40	44
Maximum operating temperature	125 °C	85 °C	85 °C	85 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PWM channel	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ	DIP	DIP	QCCJ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	4.57 mm	5.08 mm	5.08 mm	4.57 mm
speed	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz
Maximum supply voltage	6 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	AUTOMOTIVE
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	QUAD
width	15.24 mm	15.24 mm	16.6 mm	15.24 mm	15.24 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
CPU series	8051	8051	-	-	8051	8051
Encapsulate equivalent code	DIP40,.6	DIP40,.6	-	-	DIP40,.6	LDCC44,.7SQ
power supply	5 V	5 V	-	-	5 V	5 V
RAM (bytes)	128	128	-	-	128	128
ROM programmability	OTPROM	-	OTPROM	OTPROM	OTPROM	MROM
Maximum slew rate	25 mA	25 mA	-	-	20 mA	20 mA
Other features	-	BOOLEAN PROCESSOR; ON-CIRCUIT EMULATION	BOOLEAN PROCESSOR; ON-CIRCUIT EMULATION	BOOLEAN PROCESSOR; ON-CIRCUIT EMULATION	BOOLEAN PROCESSOR; ON-CIRCUIT EMULATION	-
