HI2-0200-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> HI2-0200-5

HI2-0200-5: DescriptionDUAL 1-CHANNEL, SGL POLE SGL THROW SWITCH, MBCY10; CategoryAnalog mixed-signal IC The signal circuit; File Size383KB，10 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric Compare View All

HI2-0200-5 Overview

DUAL 1-CHANNEL, SGL POLE SGL THROW SWITCH, MBCY10

HI2-0200-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1438641192
Parts packaging code	BCY
package instruction	METAL CAN-10
Contacts	10
Reach Compliance Code	not_compliant
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	O-MBCY-W10
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NC
Number of channels	1
Number of functions	2
Number of terminals	10
Nominal off-state isolation	70 dB
Maximum on-state resistance (Ron)	70 Ω
Maximum operating temperature	75 °C
Minimum operating temperature
output	SEPARATE OUTPUT
Package body material	METAL
Encapsulate equivalent code	CAN10,.23
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-15 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	NO
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM

Preview

Download Datasheet

View All

HI-200, HI-201

Data Sheet

October 1999

File Number

3121.4

Dual/Quad SPST, CMOS Analog Switches

HI-200/HI-201 (dual/quad) are monolithic devices comprising

independently selectable SPST switches which feature fast

switching speeds (HI-200 240ns, and HI-201 185ns)

combined with low power dissipation (15mW at 25

C). Each

switch provides low “ON” resistance operation for input signal

voltage up to the supply rails and for signal current up to

80mA. Rugged DI construction eliminates latch-up and

substrate SCR failure modes.

All devices provide break-before-make switching and are

TTL and CMOS compatible for maximum application

versatility. HI-200/HI-201 are ideal components for use in

high frequency analog switching. Typical applications include

signal path switching, sample and hold circuit, digital ﬁlters,

and operational ampliﬁer gain switching networks.

Features

• Analog Voltage Range . . . . . . . . . . . . . . . . . . . . . . .

±15V

• Analog Current Range . . . . . . . . . . . . . . . . . . . . . . . 80mA

• Turn-On Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240ns

• Low r

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55Ω

• Low Power Dissipation . . . . . . . . . . . . . . . . . . . . . . .15mW

• TTL/CMOS Compatible

Applications

• High Frequency Analog Switching

• Sample and Hold Circuits

• Digital Filters

• Operational Ampliﬁer Gain Switching Networks

Ordering Information

PART

NUMBER

HI1-0200-5

HI2-0200-5

HI3-0200-5

HI1-0201-2

HI1-0201-4

HI1-0201-5

HI3-0201-5

HI4P0201-5

HI9P0201-5

HI9P0201-9

TEMPERATURE

RANGE (

0 to 75

-55 to 125

-25 to 85

0 to 75

-40 to 85

PACKAGE

14 Ld CERDIP

10 Pin Metal Can

14 Ld PDIP

16 Ld CERDIP

16 Ld PDIP

20 Ld PLCC

16 Ld SOIC

PKG. NO.

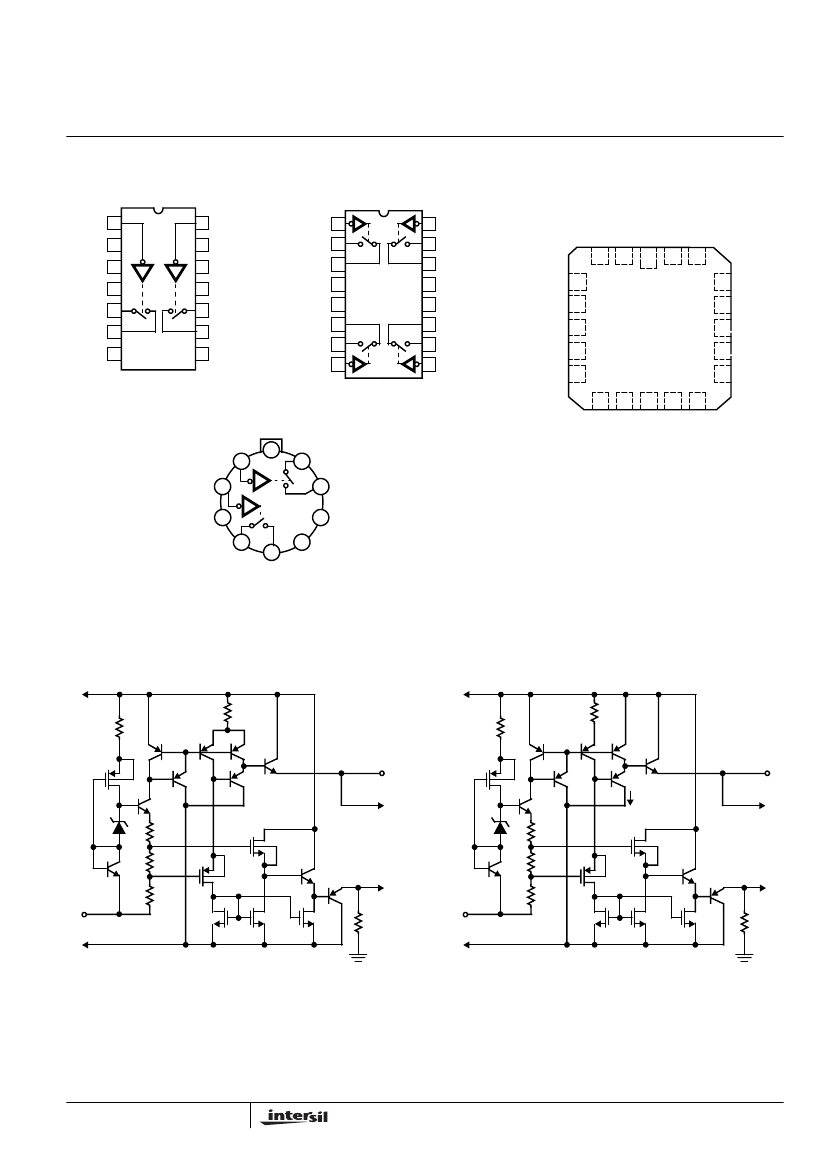

Functional Diagram

V+

F14.3

T10.B

E14.3

F16.3

E16.3

N20.35

M16.15

LOGIC

INPUT

REF

INPUT

SOURCE

GATE

REFERENCE,

LEVEL SHIFTER,

AND DRIVER

SWITCH

CELL

GATE

DRAIN

OUTPUT

V-

TRUTH TABLE

HI-200

OFF

HI-201

OFF

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 407-727-9207

Intersil Corporation 1999
