HFE4050-013/BAA datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> HFE4050-013/BAA

HFE4050-013/BAA: DescriptionLED Emitter, 810nm Min, 885nm Max, ST Connector, Through Hole Mount; CategoryWireless rf/communication Optical fiber; File Size318KB，6 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

HFE4050-013/BAA Overview

LED Emitter, 810nm Min, 885nm Max, ST Connector, Through Hole Mount

HFE4050-013/BAA Parametric

Parameter Name	Attribute value
Maker	Honeywell
Reach Compliance Code	unknown
body height	20.447 mm
Body length or diameter	6.985 mm
Connection Type	ST CONNECTOR
maximum descent time	6 ns
Fiber optic equipment types	LED EMITTER
Fiber type	50/125, 100/140, 200/230, MMF
Installation features	THROUGH HOLE MOUNT
Number of channels	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum operating wavelength	885 nm
Minimum operating wavelength	810 nm
Nominal operating wavelength	850 nm
Rise Time	6 ns
Spectral width	50 nm
Supply current	100 mA
Maximum supply voltage	2.25 V
Minimum supply voltage	1.5 V
Nominal supply voltage	1.85 V
surface mount	NO
Transmission type	ANALOG
Base Number Matches	1

Preview

Download Datasheet

View All

HFE4050-01X/XXX

High Power Fiber Optic LED

FEATURES

•

High power LED sends 410 µW into 100/140 micron

fiber

•

High speed: 85 MHz

Rated to 100 mA forward current operation

Wave solderable

Designed to operate with Honeywell fiber optic

receivers

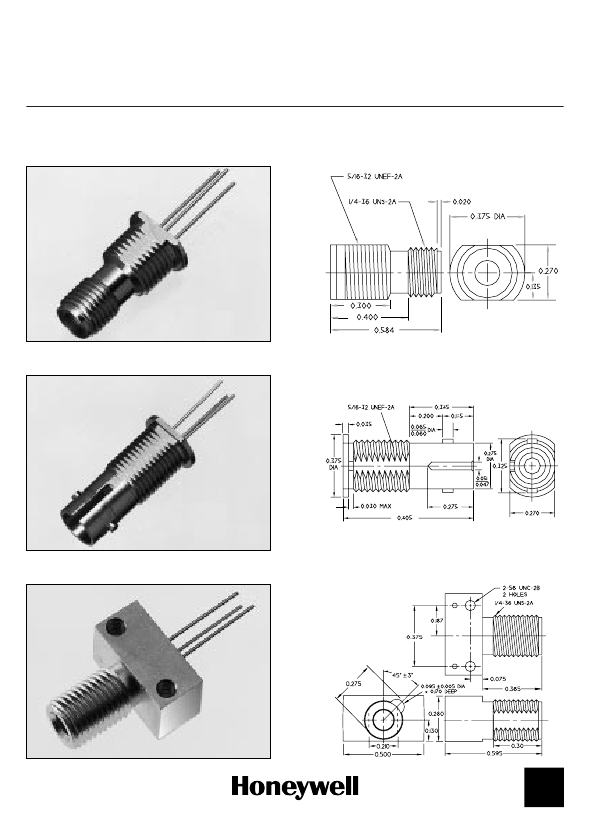

Mounting options

SMA single hole

ST single hole

SMA PCB

ST PCB

SMA 4 hole

DESCRIPTION

The HFE4050-01X/XXX is a high radiance GaAlAs

850 nanometer LED optimized for coupling into small

fiber core diameters at a forward current up to 100 mA.

The patented "Caprock"™ LED chip combines high power

coupling with wide bandwidth. The peak wavelength is

matched for use with Honeywell silicon fiber optic

detectors and receivers.

APPLICATION

The HFE4050-01X/XXX is a high radiance LED

packaged in a fiber optic connector that aligns the optical

axis of the base component to the axis of the optical fiber.

Data rates can vary from DC to above 85 MHz depending

upon component application. The LED converts electrical

current into optical power that can be used in fiber optic

communications. As the current varies (typically from 10

to 100 mA), the light intensity increases proportionally.

The HFE4050-01X/XXX LED provides the maximum

amount of radiance for the amount of forward current in

the industry. A 0.25 mm diameter glass microlens over

the "Caprock"™ junction collimates the light, increasing

the intensity. Thus, greater power is directed toward

standard fiber optic cables.

226

Honeywell reserves the right to make

changes in order to improve design and

supply the best products possible.

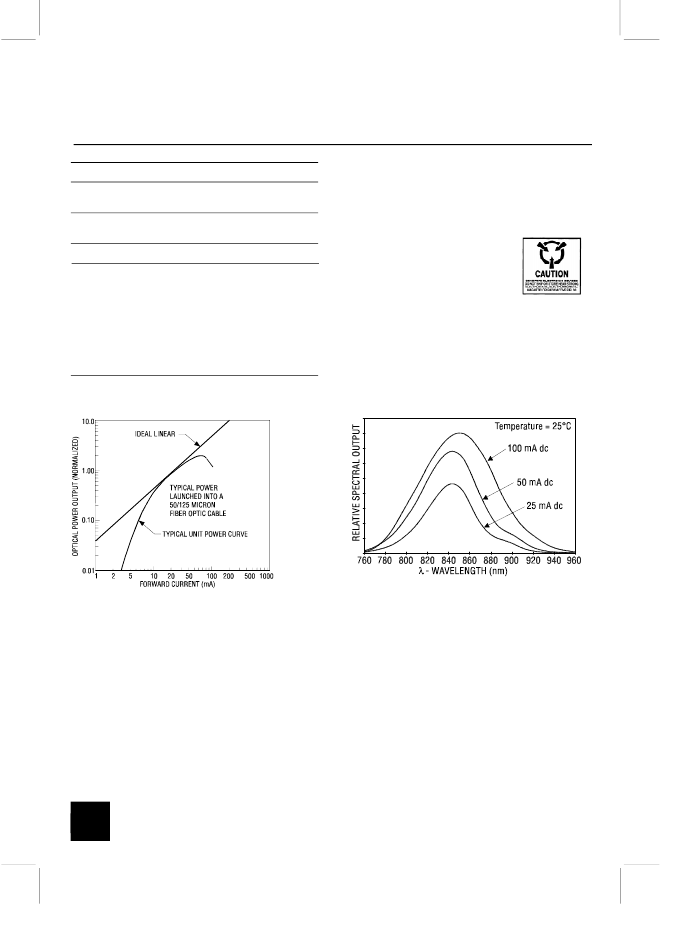

HFE4050-013/BAA Related Products

	HFE4050-013/BAA	HFE4050-014/AAA	HFE4050-013/ADA	HFE4050-014/ABA	HFE4050-014/BBA	HFE4050-013/BBA
Description	LED Emitter, 810nm Min, 885nm Max, ST Connector, Through Hole Mount	LED Emitter, 810nm Min, 885nm Max, SMA Connector, Through Hole Mount	LED Emitter, 810nm Min, 885nm Max, SMA Connector, Panel Mount	LED Emitter, 810nm Min, 885nm Max, SMA Connector, Through Hole Mount	LED Emitter, 810nm Min, 885nm Max, ST Connector, Through Hole Mount	LED Emitter, 810nm Min, 885nm Max, ST Connector, Through Hole Mount
Maker	Honeywell	Honeywell	Honeywell	Honeywell	Honeywell	Honeywell
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
body height	20.447 mm	14.833 mm	19.6 mm	15.113 mm	20.447 mm	20.447 mm
Body length or diameter	6.985 mm	9.525 mm	12.7 mm	7.112 mm	6.985 mm	6.985 mm
Connection Type	ST CONNECTOR	SMA CONNECTOR	SMA CONNECTOR	SMA CONNECTOR	ST CONNECTOR	ST CONNECTOR
maximum descent time	6 ns	6 ns	6 ns	6 ns	6 ns	6 ns
Fiber optic equipment types	LED EMITTER	LED EMITTER	LED EMITTER	LED EMITTER	LED EMITTER	LED EMITTER
Fiber type	50/125, 100/140, 200/230, MMF	50/125, 100/140, 200/230, MMF	50/125, 100/140, 200/230, MMF	50/125, 100/140, 200/230, MMF	50/125, 100/140, 200/230, MMF	50/125, 100/140, 200/230, MMF
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	PANEL MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of channels	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum operating wavelength	885 nm	885 nm	885 nm	885 nm	885 nm	885 nm
Minimum operating wavelength	810 nm	810 nm	810 nm	810 nm	810 nm	810 nm
Nominal operating wavelength	850 nm	850 nm	850 nm	850 nm	850 nm	850 nm
Rise Time	6 ns	6 ns	6 ns	6 ns	6 ns	6 ns
Spectral width	50 nm	50 nm	50 nm	50 nm	50 nm	50 nm
Supply current	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA
Maximum supply voltage	2.25 V	2.25 V	2.25 V	2.25 V	2.25 V	2.25 V
Minimum supply voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Nominal supply voltage	1.85 V	1.85 V	1.85 V	1.85 V	1.85 V	1.85 V
surface mount	NO	NO	NO	NO	NO	NO
Transmission type	ANALOG	ANALOG	ANALOG	ANALOG	ANALOG	ANALOG
body width	-	-	17.5 mm	12.7 mm	9.525 mm	9.525 mm
