AAI3M5795450DJJ18H datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> AAI3M5795450DJJ18H

AAI3M5795450DJJ18H: DescriptionParallel - Fundamental Quartz Crystal, 3.579545MHz Nom, HC49UP, 2 PIN; CategoryPassive components Crystal/resonator; File Size42KB，1 Pages; ManufacturerStandard Crystal Corporation

Download Datasheet Parametric View All

AAI3M5795450DJJ18H Overview

Parallel - Fundamental Quartz Crystal, 3.579545MHz Nom, HC49UP, 2 PIN

AAI3M5795450DJJ18H Parametric

Parameter Name	Attribute value
Maker	Standard Crystal Corporation
package instruction	HC49UP, 2 PIN
Reach Compliance Code	unknown
Other features	TR
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1000 µW
frequency stability	0.003%
frequency tolerance	20 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	3.579545 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L11.4XB4.8XH3.5 (mm)/L0.449XB0.189XH0.138 (inch)
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

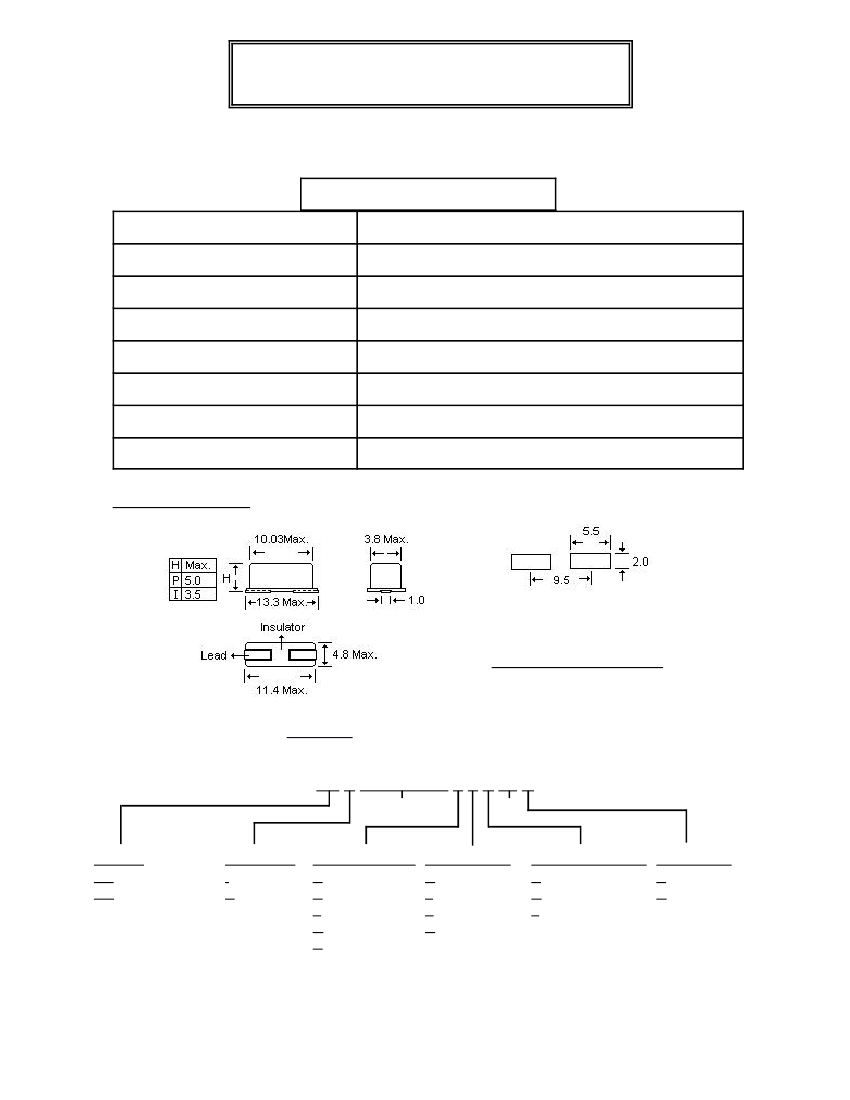

HC49UP

Low Profile Surface Mount

MICROPROCESSOR CRYSTALS

RESISTANCE WELD

SPECIFICATION

Frequency Range

Frequency Tolerance

Frequency Stability @ 25EC

3.579545 to 60.000 MHz

± 50 PPM ( Standard )

Operating Temperature Range 0EC to 70EC ( Standard )

Load Capacitance ( C

)

Shunt Capacitance

Drive Lavel

Aging

Dimensions in mm

12pF to 50pF or Series

7pF Maximum

1mWatt Maximum

±5 PPM per year Maximum

Recommended Pad Layout

HC49UP Part Number Break Down

AA P 20M000000 F L E 18 H

(Frequency)

MODE

AA=

Fundamental

BA=

Overtone

HOLDER

= 3.5 H

= 5.0 H

TOLERANCE STABILITY

±10 PPM

±20 PPM

±30 PPM

±50 PPM

±100 PPM

±20 PPM

= ±30 PPM

±50 PPM

±100 PPM

TEMP. RANGE OPTIONS

0 to 70EC

-20 to 70EC

-40 to 85EC

Standard

Tape & Reel

Standard Crystal Corporation

9940 E. Baldwin Place, El Monte, Ca., 91731

Phone:

(800) 423-4578,

Fax:

(626) 443-9049

www.standardcrystalcorp.com, E-Mail: stdxtl@pacbell.net

C-3
