UNISONIC TECHNOLOGIES CO., LTD
3510
PC POWER SUPPLY
SUPERVISORS
DESCRIPTION
DIP-8
The UTC
3510
is designed to provide protection circuits, power
good output (PGO) indicator, fault protection output (FPO) and a
PSON control for PC switching power supply systems.
The protection circuits include over voltage protection (OVP)
monitoring for 3.3V, 5V and 12V (12V via V
DD
pin) and under voltage
protection(UVP) monitoring for 3.3V and 5V. When an OV or UV event
arose and is detected, the power good output (PGO) goes low and the
FPO will be set to high. The protection latch can be reset by setting
PSON to high. UVP function is enabled 75ms after PSON is set low
and de-bounced. Besides, there is a 2.3ms delay with 38ms
de-bounce at turn off but no delay during turn on.
When OVP and UVP detected the right voltage level, a PGO signal
will be issued.
CMOS IC
SOP-8

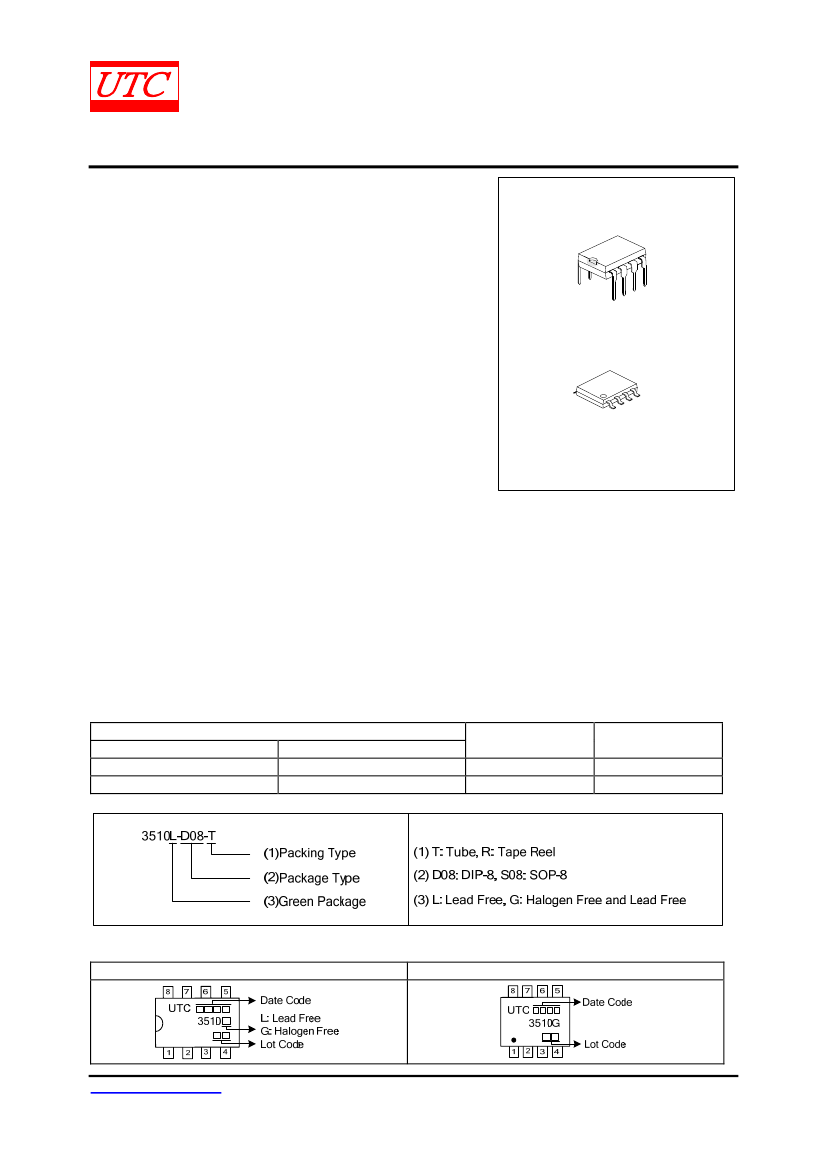

FEATURES
* Over Voltage Protection and Lock Out for 3V, 5V and 12V.
* Under Voltage Protection and Lock Out for 3.3V and 5V.
* Open Drain Output for PGO and FPO pin.
* 300ms delay for PGO.
* 75ms delay for 3.3V and 5V short-circuit turn-on protection.
* 2.3ms PSON control to FPO turn-off delay.
* 38ms PSON control de-bounce.
* 73us width noise deglitches.
* Wide supply voltage range from 4V ~15V.
■
ORDERING INFORMATION
Ordering Number
Lead Free
3510L-D08-T
-
Halogen Free
3510G-D08-T
3510G-S08-R
Package
DIP-8
SOP-8
Packing
Tube
Tape Reel
MARKING
DIP-8
SOP-8
www.unisonic.com.tw
Copyright © 2015 Unisonic Technologies Co., Ltd
1 of 8
QW-R502-408.E
3510
PIN CONFIGURATION
CMOS IC
PIN DESCRIPTION
PIN NAME
PGI
GND
FPO
PSON
V
S33
VS5
V
DD
PGO
TYPE
I
O
I
I
I
I
O
DESCRIPTION
Power good input
Ground
Fault protection output(invert), open drain output stage
ON/OFF control
3.3V over/under-voltage protection
5V over/under-voltage protection
Supply voltage/12V over-voltage protection input pin
Power good output, open drain output stage
PIN No.
1
2
3
4
5
6
7
8
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 8
QW-R502-048.E

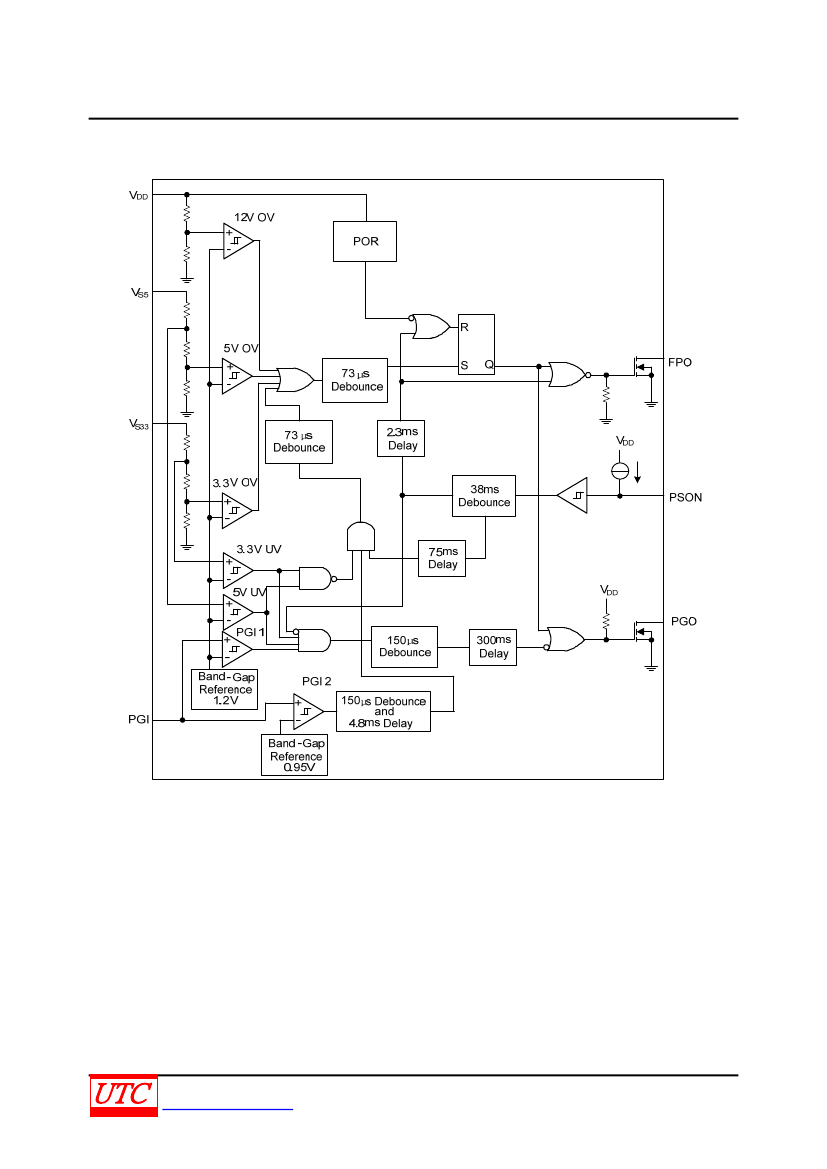

3510
CMOS IC
ABSOLUTE MAXIMUM RATINGS
PARAMETER
SYMBOL
V
DD
RATINGS
UNIT
Supply Voltage
16
V
FPO
16
Output Voltage
V
OUT
V
PGO
8
All Other Pins
-0.3 ~ 16
V
DIP-8
1092
Power Dissipation (T
A
≤25°C)
P
D
mW
SOP-8
730
℃
Operating Temperature
T
OPR
-20 ~ +85
℃
Storage Temperature
T
STG
-40 ~ +150
Note: 1. Absolute maximum ratings are stress ratings only and functional device operation is not implied. The device
could be damaged beyond Absolute maximum ratings.
2. The device is guaranteed to meet performance specifications within 0
℃
~+70
℃
operating temperature range
and assured by design from -20
℃
~+85
℃
.
RECOMMENDED OPERATING CONDITIONS
PARAMETER
SYMBOL
V
DD
MIN
4
TYP
MAX
15
7
7
15
7
20
10
UNIT
V
V
V
mA
ms
Supply Voltage
Input Voltage
PSON, VS5, VS33
V
IN
PGI
FPO
Output Voltage
V
OUT
PGO
FPO
Output Sink Current
I
O(SINK)
PGO
Supply Voltage Rising Time (See Note)
Note: V
DD
rising and falling slew rate must be less than 14V/ms.
V
DD
+0.3V
1
ELECTRICAL CHARACTERISTICS
(T
A
=25°C,
unless otherwise specified.)
SYMBOL
V
S33
V
S5
V
DD
V
OL
I
LEAK
TEST CONDITIONS
MIN
3.7
5.7
13.0
V
DD
=5V, I
O(SINK)
=20mA
V
(FPO)
=5V
V
DD
=5V
TYP
3.9
6.1
13.8
MAX
4.1
6.5
14.4
0.7
5
110
1.2
1
2.4
3.7
0.4
5
114
450
7.2
225
445
220
UNIT
PARAMETER
OVER-VOLTAGE PROTECTION
Over Voltage Threshold
Low-level Output Voltage (FPO)
Leakage Current (FPO)
Noise Deglitch Time OVP
PGI AND PGO
Input threshold Voltage
Under Voltage Threshold
Low-level Output Voltage (PGO)
Leakage Current (PGO)
Short-Circuit Protection Delay
Transient Delay time
Noise Deglitch Time
PGI
V
S33
V
S5
V
V
μA
μS
V
V
V
μA
ms
ms
μs
35
1.1
0.9
2
3.3
73
1.15
0.95
2.2
3.5
V
PGI
V
PG2
V
IT
V
OL
I
LEAK
V
DD
=4V, I
O(SINK)
=10mA
PGO = 5 V
V
DD
= 5 V
V
DD
= 5 V
3.3V, 5V
PGI to PGO
PGI to FPO
PGI to PGO
PGI to FPO
UVP to FPO
t
DLY1
49
200
3.2
88
180
82
75
300
4.8
150
296
146
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 8
QW-R502-048.E
