1825182-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 1825182-4

1825182-4: DescriptionTOGGLE SWITCH, DPDT, LATCHED, 0.05A, 48VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size190KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1825182-4 Overview

TOGGLE SWITCH, DPDT, LATCHED, 0.05A, 48VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

1825182-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Actuator type	LEVER
body width	5 mm
body height	8 mm
Body length or diameter	9.5 mm
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@48VDC
Maximum contact voltage (DC)	48 V
Electrical life	10000 Cycle(s)
Manufacturer's serial number	1825182
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	LATCHED
switch function	DPDT
Switch type	TOGGLE SWITCH
Termination type	SOLDER
Base Number Matches	1

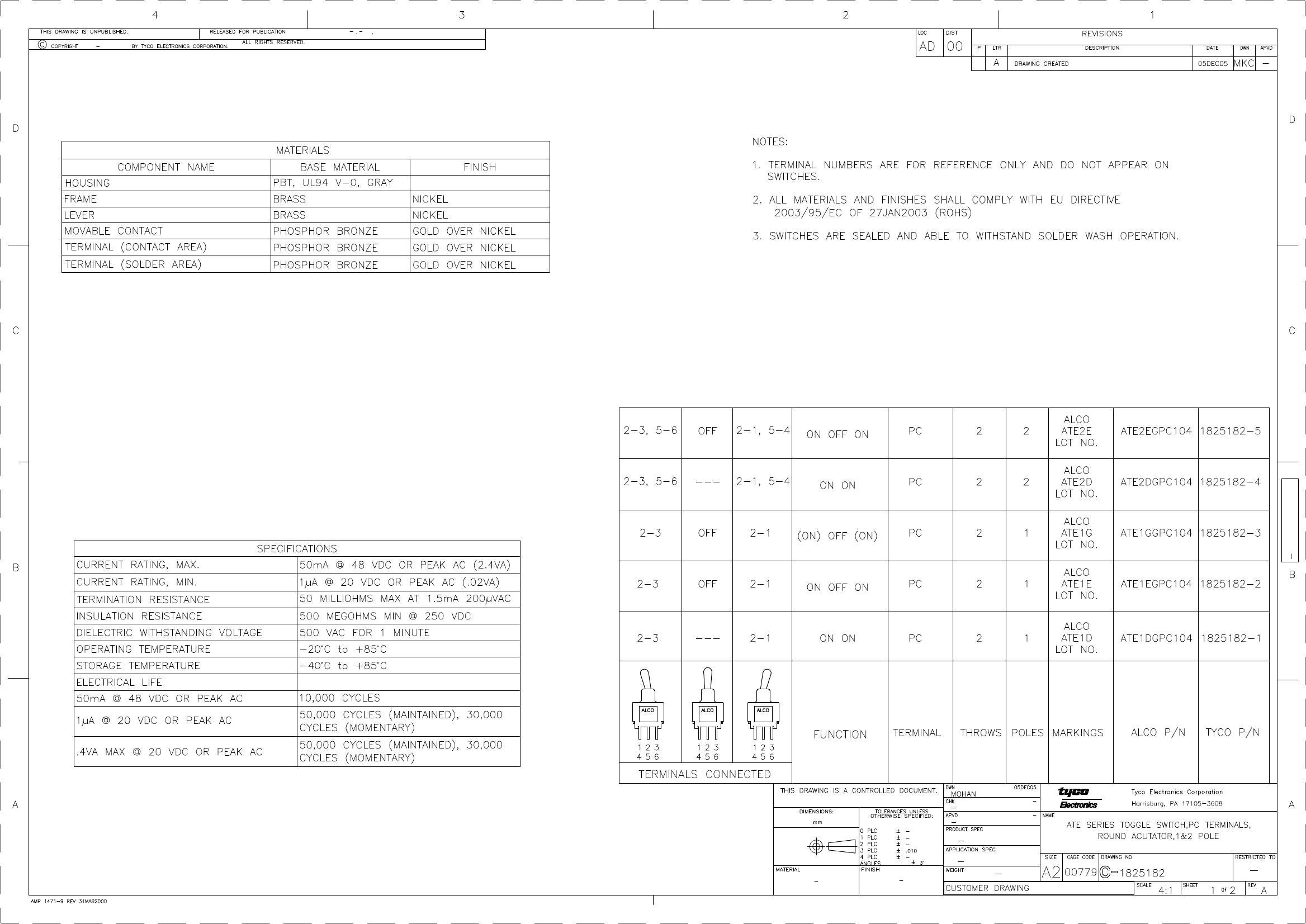

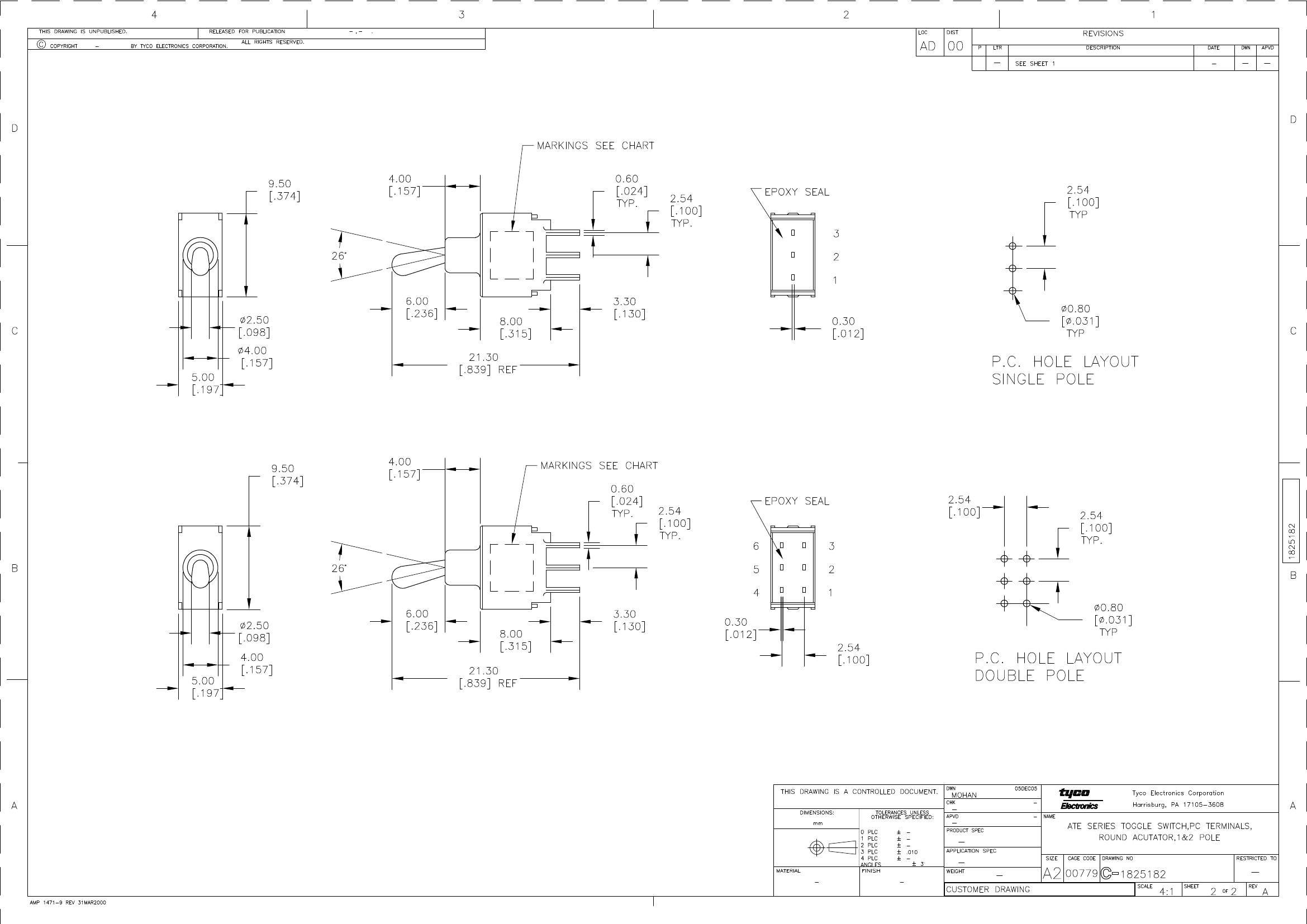

Preview

Download Datasheet

View All

1825182-4 Related Products

	1825182-4	1825182-1	1825182-5	1825182-2	1825182-3
Description	TOGGLE SWITCH, DPDT, LATCHED, 0.05A, 48VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	TOGGLE SWITCH, SPDT, LATCHED, 0.05A, 48VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	TOGGLE SWITCH, DPDT, LATCHED, 0.05A, 48VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	TOGGLE SWITCH, SPDT, LATCHED, 0.05A, 48VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	TOGGLE SWITCH, SPDT, MOMENTARY, 0.05A, 48VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compli	unknow	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	LEVER	LEVER	LEVER	LEVER	LEVER
body width	5 mm	5 mm	5 mm	5 mm	5 mm
body height	8 mm	8 mm	8 mm	8 mm	8 mm
Body length or diameter	9.5 mm	9.5 mm	9.5 mm	9.5 mm	9.5 mm
Maximum contact current (DC)	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Contact (DC) maximum rated R load	.05A@48VDC	.05A@48VDC	.05A@48VDC	.05A@48VDC	.05A@48VDC
Maximum contact voltage (DC)	48 V	48 V	48 V	48 V	48 V
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)
Manufacturer's serial number	1825182	1825182	1825182	1825182	1825182
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
seal	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED
surface mount	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED	MOMENTARY
switch function	DPDT	SPDT	DPDT	SPDT	SPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	-	1
