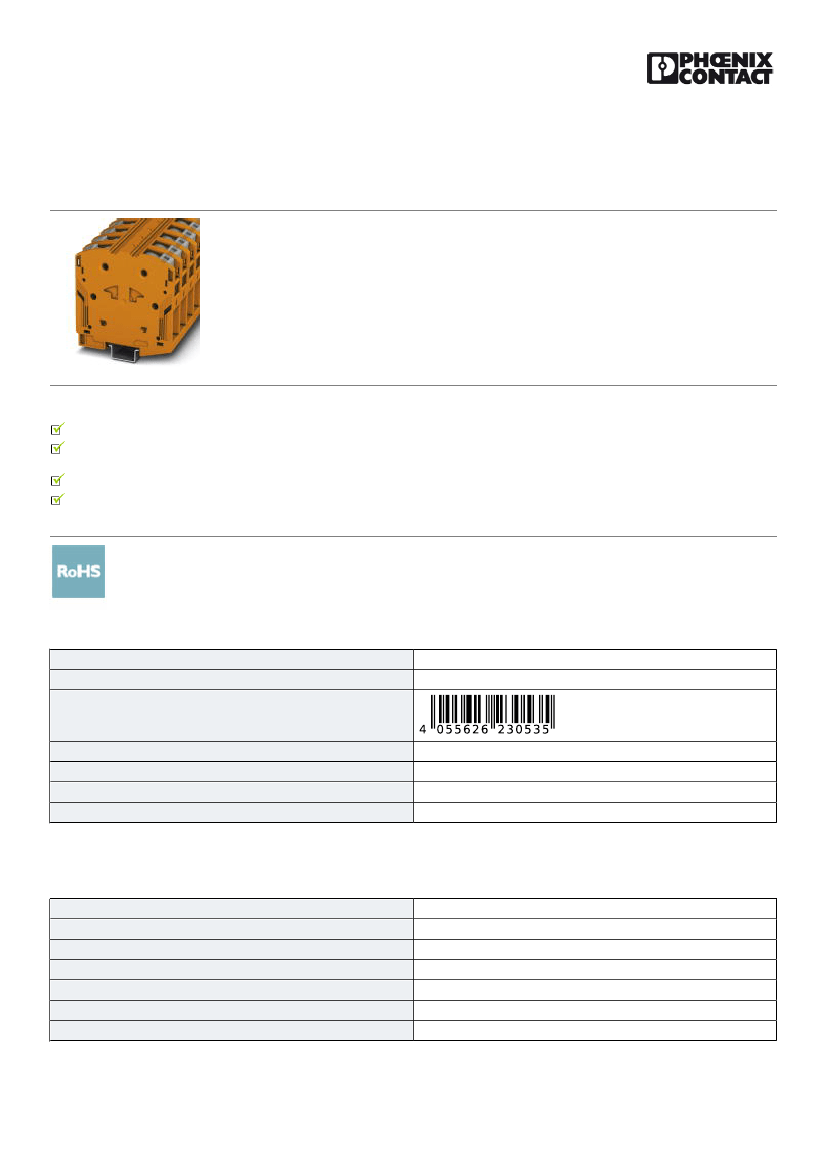

High-current terminal block - PTPOWER 50 OG - 3260069
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
High-current terminal block, nom. voltage: 1000 V AC / 1500 V DC, nominal current: 150 A, connection
method: Power-Turn connection, number of connections: 2, cross section: 10 mm² - 70 mm², AWG: 8 - 2/0,
width: 20 mm, color: orange, mounting type: NS 35/15
Your advantages
Quick and easy connection is now also possible for large conductors with the high-current terminal block
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free
wiring of conductors with ferrules or solid conductors
The compact design enables wiring in a confined space
In addition to using the existing test connection, pick-off terminal blocks can be connected, each of which can also accommodate two test
cables
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4055626230535
157.290 g
85369010
Poland
10 pc
10 pc
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
1
2
1
50 mm²
orange
PA
V0
01/23/2019 Page 1 / 17
https://www.phoenixcontact.com/in/products/3260069
High-current terminal block - PTPOWER 50 OG - 3260069
Technical data
General
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
8 kV
3
III
I
4.73 W
150 A (with 70 mm² conductor cross section)
150 A
1000 V AC
1500 V DC
No
Dimensions
Width
Length
Height NS 35/15
20 mm
101 mm
105 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Cross section with insertion bridge solid min.
Cross section with insertion bridge, solid max.
Cross section with insertion bridge stranded min.
Cross section with insertion bridge, stranded max.
Cross section with insertion bridge stranded, with ferrule without plastic
sleeve min.
Cross section with insertion bridge stranded, with ferrule without plastic
sleeve max.
Cross section with insertion bridge stranded, with ferrule without plastic
sleeve min.
Cross section with insertion bridge stranded, with ferrule with plastic
sleeve max.
Power-Turn connection
IEC 60947-7-1
10 mm²
70 mm²
8
2/0
10 mm²
70 mm²
8
2/0
10 mm²
10 mm²
50 mm²
10 mm²
50 mm²
10 mm²
50 mm²
10 mm²
50 mm²
10 mm²
50 mm²
01/23/2019 Page 2 / 17
Conductor cross section flexible, with ferrule without plastic sleeve max. 50 mm²
https://www.phoenixcontact.com/in/products/3260069
High-current terminal block - PTPOWER 50 OG - 3260069
Technical data
Connection data
Internal cylindrical gage
A10
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141120
27141100
27141120
27141120
27141120
ETIM
ETIM 5.0
ETIM 6.0
EC000897
EC000897
UNSPSC
UNSPSC 13.2
39121410
Approvals
Approvals
Approvals
DNV GL / CSA / BV / LR / UL Recognized / cUL Recognized / EAC / EAC / cULus Recognized
Ex Approvals
Approval details
01/23/2019 Page 3 / 17
https://www.phoenixcontact.com/in/products/3260069
High-current terminal block - PTPOWER 50 OG - 3260069
Approvals
DNV GL
B
600 V
140 A
8
http://exchange.dnv.com/tari/
TAE00000Z9
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.csagroup.org/services-industries/product-listing/
C
1000 V
140 A
8
13631
BV
http://www.veristar.com/portal/veristarinfo/generalinfo/
approved/approvedProducts/equipmentAndMaterials
40933/A1 BV
LR
http://www.lr.org/en
15/20030
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
1000 V
140 A
8
FILE E 60425
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
1000 V
140 A
8
FILE E 60425
EAC
RU C-
DE.A*30.B.01742
01/23/2019 Page 4 / 17
https://www.phoenixcontact.com/in/products/3260069
High-current terminal block - PTPOWER 50 OG - 3260069
Approvals
EAC
RU C-
DE.AI30.B.01102
cULus Recognized
Accessories
Accessories
Connector
Ferrule - A 25 -40 - 3241238
Ferrule, length: 40 mm, color: silver
Ferrule - A 35 -40 - 3241239
Ferrule, length: 40 mm, color: silver
Ferrule - A 50 -40 - 3241240
Ferrule, length: 40 mm, color: silver
Ferrule - A 70 -40 - 3241241
Ferrule, length: 40 mm, color: silver
