MC74HC4066DT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MC74HC4066DT

MC74HC4066DT: DescriptionQUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP14; CategoryAnalog mixed-signal IC The signal circuit; File Size176KB，12 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance; Related ProductsFound20parts with similar functions to MC74HC4066DT

Download Datasheet Parametric Compare View All

MC74HC4066DT Overview

QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP14

MC74HC4066DT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP14,.25
Contacts	14
Reach Compliance Code	unknow
Factory Lead Time	1 week
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G14
JESD-609 code	e4
length	5 mm
normal position	NO
Number of channels	4
Number of functions	1
Number of terminals	14
Nominal off-state isolation	50 dB
On-state resistance matching specifications	40 Ω
Maximum on-state resistance (Ron)	255 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	2/12 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	12 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	YES
Maximum disconnect time	37 ns
Maximum connection time	45 ns
switch	MAKE-BEFORE-BREAK
technology	CMOS
Temperature level	MILITARY
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

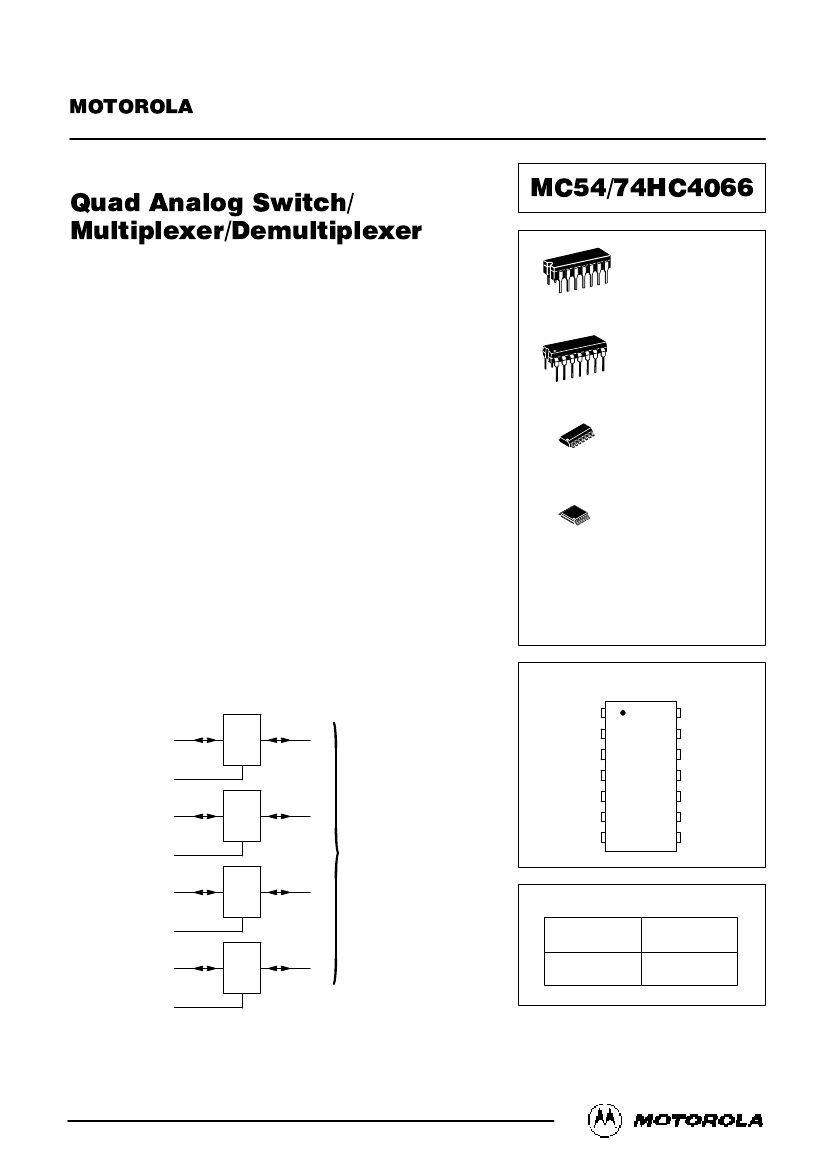

MOTOROLA

SEMICONDUCTOR TECHNICAL DATA

Quad Analog Switch/

Multiplexer/Demultiplexer

MC54/74HC4066

High–Performance Silicon–Gate CMOS

The MC54/74HC4066 utilizes silicon–gate CMOS technology to achieve

fast propagation delays, low ON resistances, and low OFF–channel leakage

current. This bilateral switch/multiplexer/demultiplexer controls analog and

digital voltages that may vary across the full power–supply range (from VCC

to GND).

The HC4066 is identical in pinout to the metal–gate CMOS MC14016 and

MC14066. Each device has four independent switches. The device has

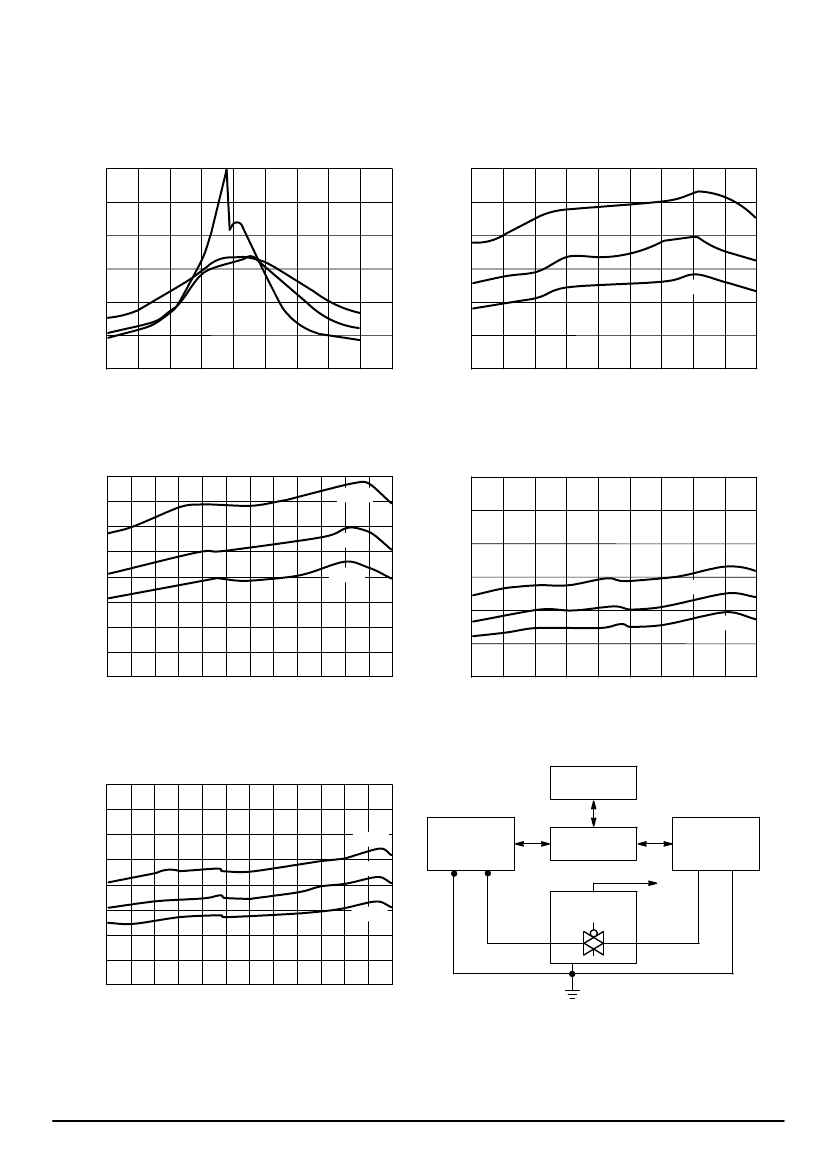

been designed so that the ON resistances (RON) are much more linear over

input voltage than RON of metal–gate CMOS analog switches.

This device is identical in both function and pinout to the HC4016. The

ON/OFF control inputs are compatible with standard CMOS outputs; with

pullup resistors, they are compatible with LSTTL outputs. For analog

switches with voltage–level translators, see the HC4316.

•

Fast Switching and Propagation Speeds

High ON/OFF Output Voltage Ratio

Low Crosstalk Between Switches

Diode Protection on All Inputs/Outputs

Wide Power–Supply Voltage Range (VCC – GND) = 2.0 to 12.0 Volts

Analog Input Voltage Range (VCC – GND) = 2.0 to 12.0 Volts

Improved Linearity and Lower ON Resistance over Input Voltage than

the MC14016 or MC14066 or HC4016

•

Low Noise

•

Chip Complexity: 44 FETs or 11 Equivalent Gates

J SUFFIX

CERAMIC PACKAGE

CASE 632–08

N SUFFIX

PLASTIC PACKAGE

CASE 646–06

D SUFFIX

SOIC PACKAGE

CASE 751A–03

DT SUFFIX

TSSOP PACKAGE

CASE 948G–01

ORDERING INFORMATION

MC54HCXXXXJ

MC74HCXXXXN

MC74HCXXXXD

MC74HCXXXXDT

Ceramic

Plastic

SOIC

TSSOP

LOGIC DIAGRAM

PIN ASSIGNMENT

VCC

A ON/OFF

CONTROL

D ON/OFF

CONTROL

A ON/OFF CONTROL

B ON/OFF CONTROL

C ON/OFF CONTROL

D ON/OFF CONTROL

ANALOG

OUTPUTS/INPUTS

B ON/OFF

CONTROL

C ON/OFF

CONTROL

GND

FUNCTION TABLE

On/Off Control

Input

State of

Analog Switch

Off

ANALOG INPUTS/OUTPUTS = XA, XB, XC, XD

PIN 14 = VCC

PIN 7 = GND

10/95

Motorola, Inc. 1995

REV 6
