7638-7861 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 7638-7861

7638-7861: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size393KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

7638-7861 Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack

7638-7861 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
Board mount options	SPLIT BOARD LOCK
body width	0.524 inch
subject depth	0.659 inch
body length	0.701 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	7638
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.128 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

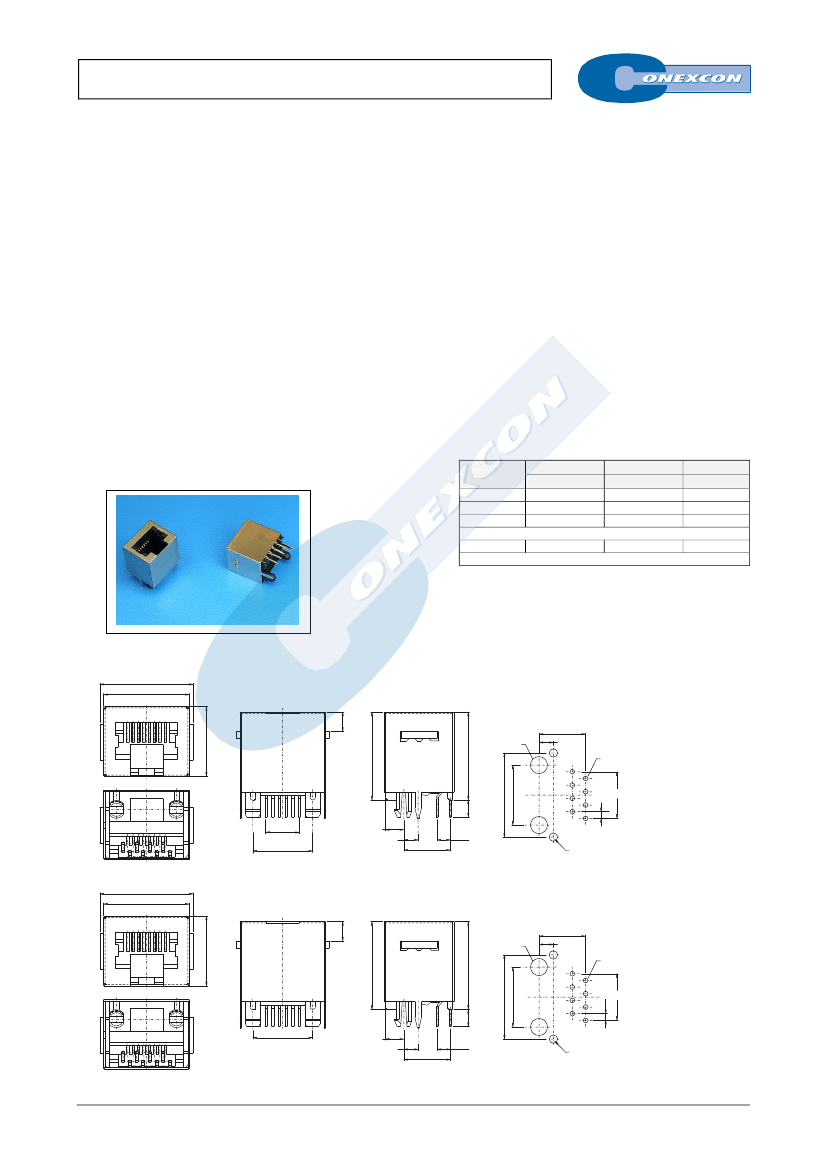

TOP ENTRY SHIELDED PCB JACK FCC-68

7638 SERIES.

Vertical PCB jack.

General Features

Electrical Features



Available in 8/4, 8/6 and 8/8 circuits

Standard telephone jack FCC-68

16.75 mm. height

Accept standard plugs FCC-68 type

Selective gold plating with different finish

Bifurcated plastic foot print. Available Cat. 5

With / Without panel stop

Optional Press fit Type (Consult Sales Office)



Voltage rating: < 125V

Current rating: < 1.50 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: Thermoplastic UL 94V-0

Contact: 0.35 mm thickness phosphor bronze

Operating temperature. -25ºC to + 85ºC

RoHS compliant



Durability: 1000 cycles

Dimensional Information

Version

8/4

8/6

8/8

Part Number

With Panel Stop

7638 –

T841

7638 –

T861

7638 –

T881

CAT. 5

7638 –

T885

7638 –

T886

8.89 (0.350)

Optional: Press fit Type 8/8 (add P in the end of part number)

W/O panel Stop

7638 –

T842

7638 –

T862

7638 –

T882

Dimensions

3.81 (0.150)

6.35 (0.250)

8.89 (0.350)

T = Contact Plating

Stan d ard Versio n

17.80

16.30



T =

10µ” gold over 50µ” nickel

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

T =

50µ” gold over 50µ” nickel

3.70

13.30

8.89

16.75

2-ø 3.25

2.75

8-ø 0.90

11.4 3

16.05

1.27

3 .25

3.50

2.75

8.89

2.54

2-ø 1.60

Cat. 5

17.80

16.30

3.7 0

8.89

2-ø 3.25

16.7 5

2.75

8-ø 0.90

13 .30

16.05

11.43

3.25

11.43

3.50

2.75

8.89

2.54

2-ø 1.60
