5962-8971801XX: DescriptionD/A Converter, 1 Func, Parallel, 8 Bits Input Loading, CDIP18, CERAMIC, DIP-18; CategoryAnalog mixed-signal IC converter; File Size226KB，4 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

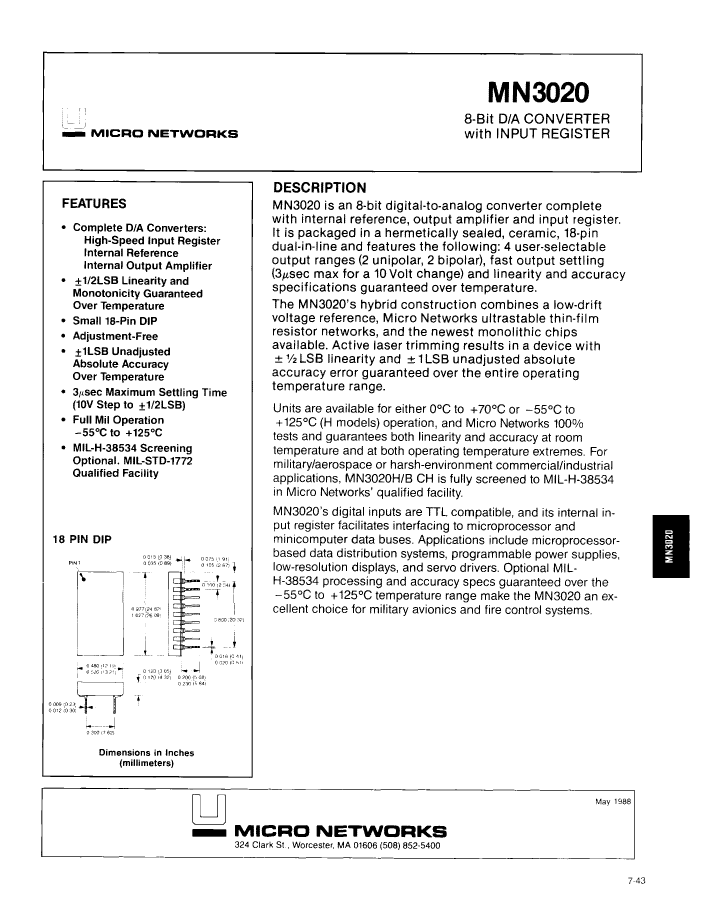

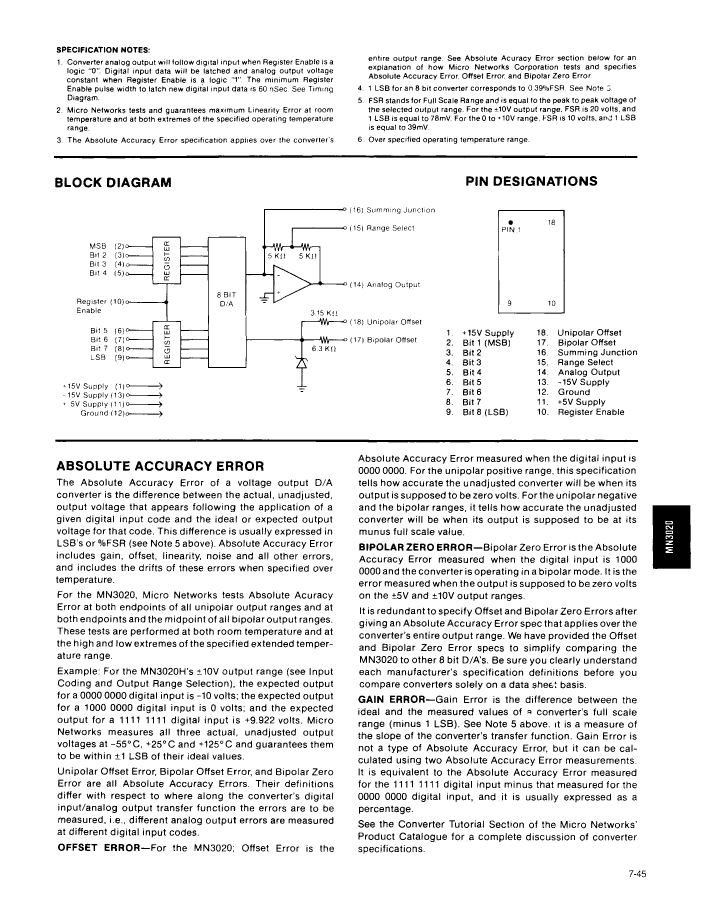

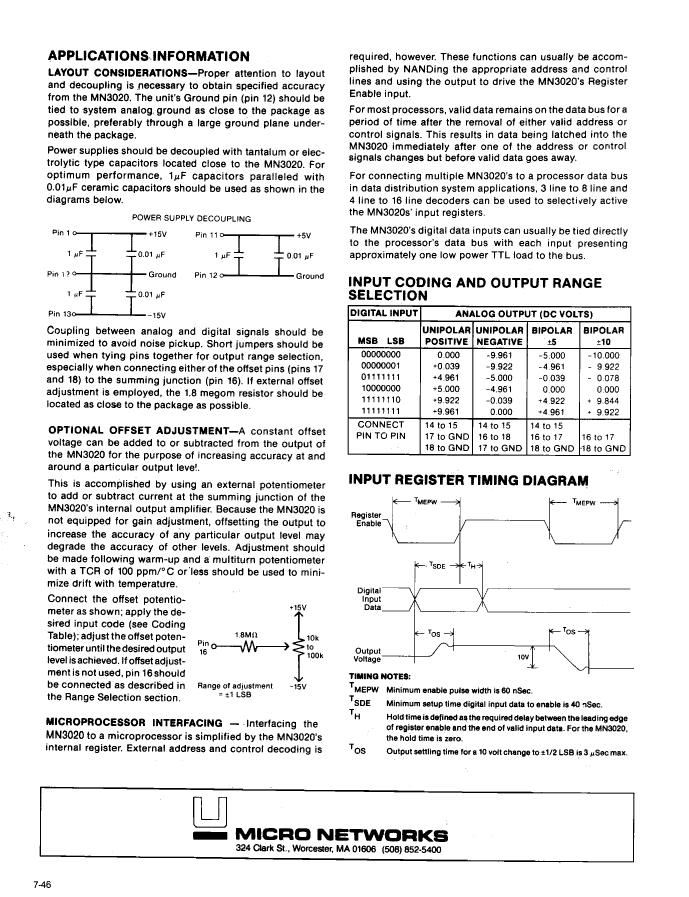

5962-8971801XX Overview

D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, CDIP18, CERAMIC, DIP-18

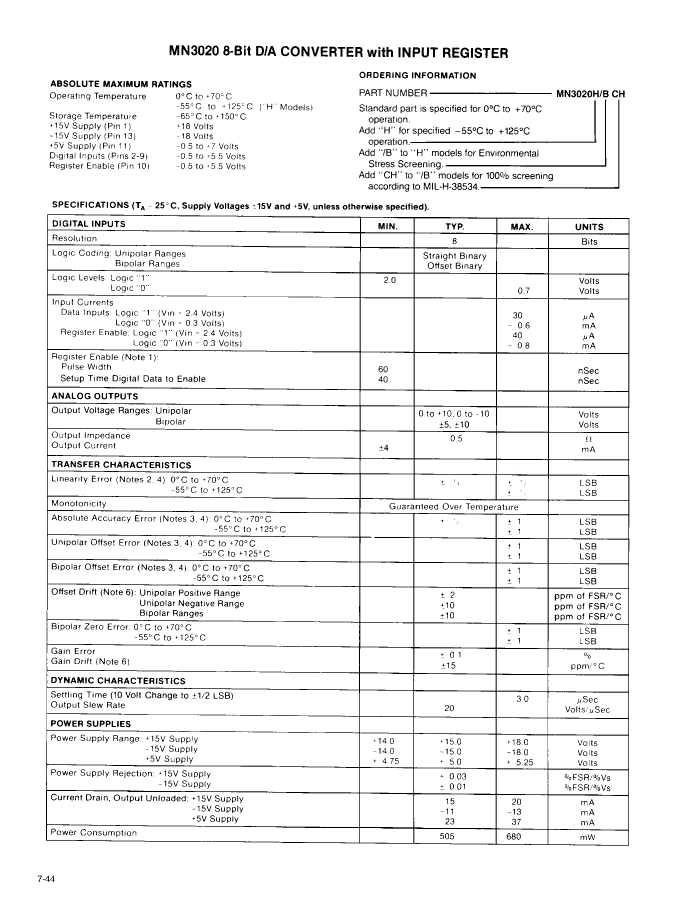

Parameter Name	Attribute value
Maker	API Technologies
package instruction	DIP,
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	R-CDIP-T18
length	25.451 mm
Maximum linear error (EL)	0.1953%
Nominal negative supply voltage	-15 V
Number of digits	8
Number of functions	1
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Qualified
Filter level	MIL-STD-883
Maximum seat height	5.2 mm
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	5962-8971801XX	5962-8971801XA
Description	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, CDIP18, CERAMIC, DIP-18	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, CDIP18, CERAMIC, DIP-18
Maker	API Technologies	API Technologies
package instruction	DIP,	DIP, DIP18,.3
Reach Compliance Code	compliant	compliant
ECCN code	3A001.A.2.C	3A001.A.2.C
Maximum analog output voltage	10 V	10 V
Minimum analog output voltage	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
Input format	PARALLEL, 8 BITS	PARALLEL, 8 BITS
JESD-30 code	R-CDIP-T18	R-CDIP-T18
length	25.451 mm	25.451 mm
Maximum linear error (EL)	0.1953%	0.1953%
Nominal negative supply voltage	-15 V	-15 V
Number of digits	8	8
Number of functions	1	1
Number of terminals	18	18
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Qualified	Qualified
Filter level	MIL-STD-883	38535Q/M;38534H;883B
Maximum seat height	5.2 mm	5.2 mm
Nominal supply voltage	15 V	15 V
surface mount	NO	NO
technology	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
Base Number Matches	1	1
